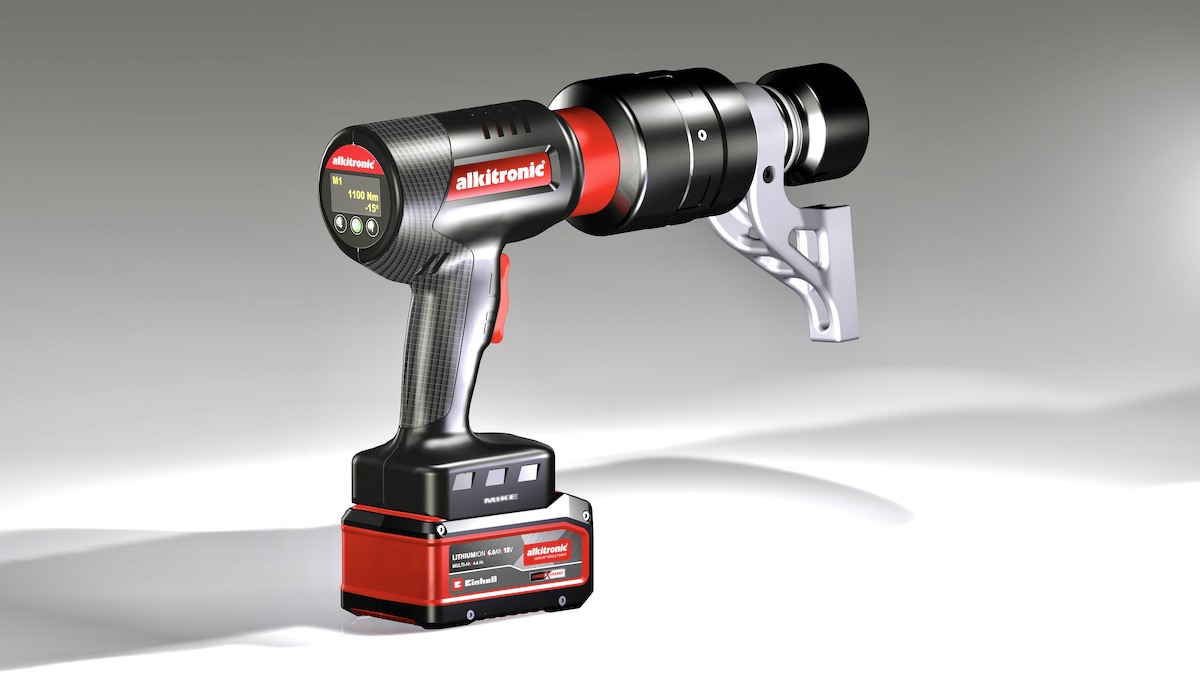

Battery torque multiplier alkitronic EB-S 400 torque range 4.000 Nm

alkitronic EB-S 400 represents the zenith of precision and efficiency in the realm of battery torque multipliers. This innovative tool, proudly made in Germany, embodies 40 years of expertise in professional bolting technology, catering to the most demanding industrial applications.

At the heart of the EB-S 400 is its formidable torque range, capable of delivering up to 4,000 Nm. This range ensures versatility across a wide spectrum of bolting tasks. The tool is equipped with a 1″ square drive, catering to robust and heavy-duty requirements. Alkitronic EB – 2023 Red Dot and iF Design Award Winner – The Pinnacle of Flexible Bolting Technology

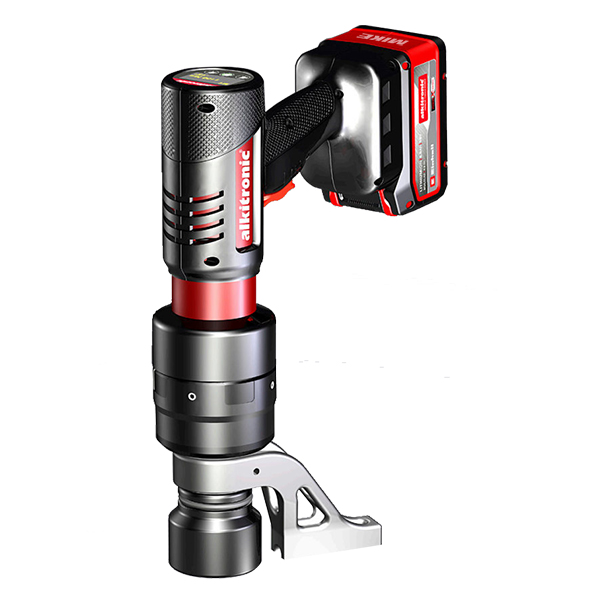

Battery torque multiplier alkitronic EB-S 400

1. Torque Range & Precision: Offers a broad torque range from 560 to 4,000 Nm, adjustable in precise 10 Nm increments. Repeat shut-off accuracy is maintained at 3% for consistent bolting applications.
2. Drive & Motor: Equipped with a 1″ square drive and a brushless synchronous motor that is maintenance-free and exhibits minimal wear.
3. Display & Navigation: Features an OLED display providing anti-glare and high contrast visibility in all weather conditions. The intuitive interface minimizes operational errors and misadjustments.
4. Health & Safety Innovations: Incorporates alkitronic’s patented technology to decouple reaction torques, significantly reducing reaction forces on the wrist to just 1 Nm. This enhancement greatly contributes to user health and safety.
5. Enhanced Bolting Quality: The brushless synchronous motor ensures excellent efficiency, while the smart processor-controlled automatic shutdown boosts productivity and reduces operating costs.
6. Flexibility & Software: Offers maximum flexibility with application-specific, modular software packages. These include bolting methods like torque/rotation angle with adjustable min./max. torque limitations, and can be updated or retrofitted as needed.
7. Battery Technology: Features an advanced battery concept with the ability to switch between 4 and 6 Ah, significantly increasing the number of bolting operations possible.

Additional Details EB-S 400

What sets the EB-S 400 apart is its brushless synchronous motor. This motor is not only maintenance-free but also exhibits minimal wear, signifying a long-lasting, reliable performance. The advanced motor is coupled with an intelligent processor-controlled automatic shutdown feature, enhancing the tool’s efficiency and significantly reducing operating costs.

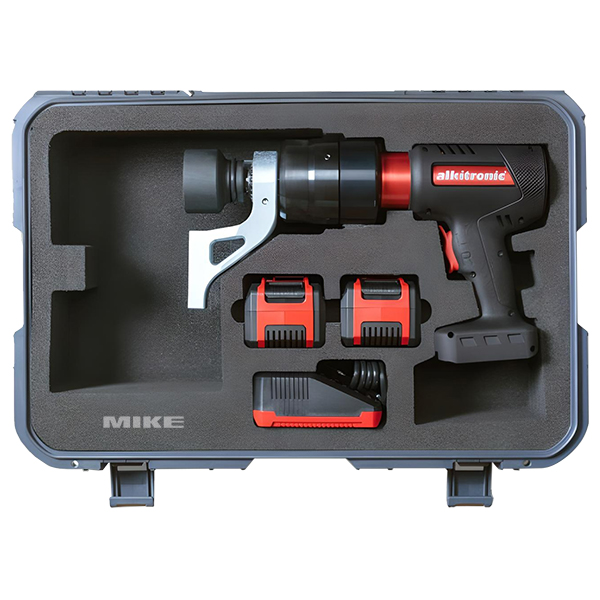

• Standard Accessories: Includes a standard support arm, two batteries, a 230V battery charger, a calibration certificate, an operating and service manual, and a carry case.
• Unique Design Elements: Boasts a unique 1-Finger-Trigger for efficient and easy direction of rotation changes.
• Quality & Experience: Proudly made in Germany, reflecting 40 years of expertise in professional bolting technology.

User interaction with the EB-S 400 is a study in convenience and precision. It features an OLED display that provides anti-glare and high contrast visibility, ensuring perfect readability in diverse weather conditions. The intuitive interface of the tool minimizes operational errors and misadjustments, further augmented by the ability to adjust torque in precise 10 Nm steps.

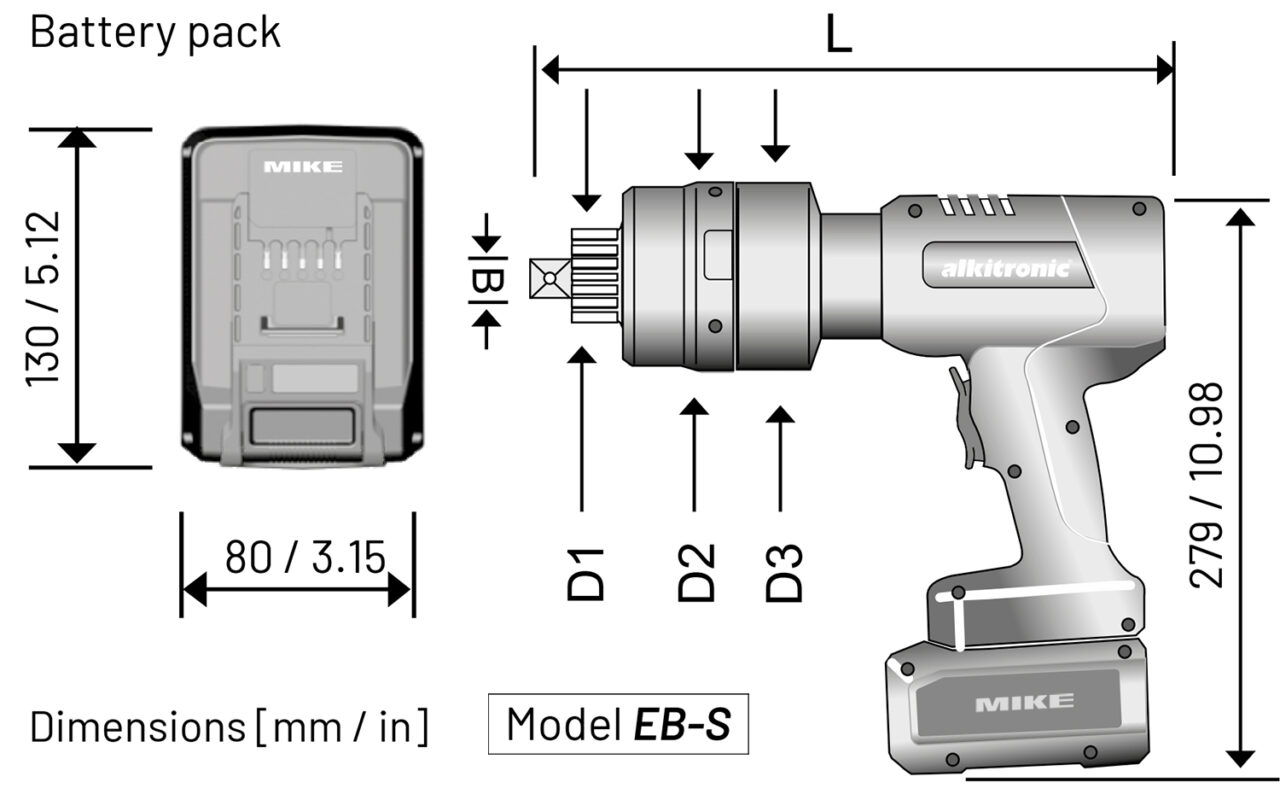

Specifications

Safety and user comfort are paramount in the design of the EB-S 400. Alkitronic’s patented technology effectively decouples reaction torques, drastically reducing the reaction forces exerted on the user’s wrist to a mere 1 Nm. This innovative approach actively contributes to the occupational health and safety of its users.

This tool represents a major leap in bolting efficiency and safety, offering unparalleled flexibility and quality in professional settings.

• Torque Range: 560 – 4,000 Nm
• Square Drive: 1″
• Motor Type: Brushless synchronous motor (maintenance-free, low-wearing)
• Display: OLED (Anti-glare, high contrast)
• Torque Adjustment: In 10 Nm steps
• Repeat Shut-Off Accuracy: 3%
• Unique Feature: 1-Finger-Trigger for easy rotation direction change
• Safety Technology: Reaction torques decoupled, reducing wrist force to 1 Nm
• Motor Efficiency: Smart processor-controlled automatic shutdown
• Software: Modular, application-specific packages, adjustable torque limits
• Battery Concept: Switchable between 4 and 6 Ah
• Origin: Made in Germany
• Experience: 40 years in professional bolting technology

Flexibility in application is another hallmark of the EB-S 400. It offers modular software packages that are application-specific, allowing for methods like bolting according to the torque/rotation angle with adjustable minimum and maximum torque limitations. These features can be updated or retrofitted as per changing application needs.

The EB-S 400’s battery concept is equally impressive. It allows for a significant increase in bolting operations thanks to its innovative switching capability between 4 and 6 Ah. This feature ensures that the tool can keep up with the rigorous demands of continuous industrial use.

The Alkitronic EB-S 400 Battery Torque Multiplier is not just a tool but a testament to the fusion of advanced technology, user-centric design, and unparalleled efficiency, making it an essential asset in the arsenal of professional bolting technology.
