N-Tools torque multipliers for heavy-duty construction vehicles

SKU: N-Tools

Torque Multiplier combination and extension shaft.

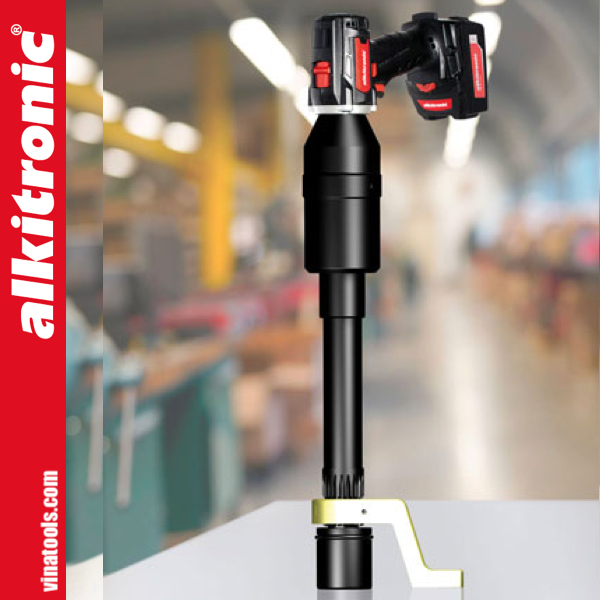

EA2-N driving by battery torque multipliers
EFCip-N with 14 models and according to IP54.
CLD-N pneumatic torque multipliers, ATEX upon on request.
There are 03 extension lengths 10, 12, 18 inchs

Price from:  9,500.0 11,000.0
(Price just for reference only)

Description

N-Tools torque multipliers for drop-center rims of heavy-duty construction vehicles. Pneumatic and electric torque multipliers for continuous rotation by tightening or loosening hard-to-reach, heavy-duty bolted connections, and deep-bed rims of heavy vehicles (mining industry).

N - Tool dùng cho các bulong nằn sâu trong hốc 3 biến thể của bộ nhân lực đầu dài Alkitronic ứng dụng cho xe cơ giới hạng năng Alkitronic

N-Tools Torques from 100 Nm up to 3,500 Nm

  • alkitronic EA2-N for comfortable operation at deep bolting connections due to extended square drive. Typical field of application: drop-center rims of heavy-duty vehicles.
  • Li-Ion battery driven 2-speed models with release function
  • Torque range: 190 Nm to 2,800 Nm.
  • Low noise emissions: No noise protection necessary.
  • Low weight and ergonomically designed.
  • Comfortable to operate. The motor unit can be rotated 360 degrees.
    One handed operation with CW/CCW.
  • Economic, safe operation. No weather-related costly downtime.
  • Permanent higher joint quality than ratchet torque tools by continuous rotation of the square drive.
  • Break-proof, and resistent to corrosion: motor housing made of special polymer.
  • EA2-N with two battery packs ensure up to 360 screw joints in a row.

Kích thước lắp ghép của N-tools với bộ nhân lực

  • Intelligent energy management and fast workflow: Smart electronics protect every battery cell from overcharging and depth discharge. The charger cools battery packs during recharging. This reduces charging times and enhances maximum performance and durability.

Economic, safe operation. No weather-related costly downtime.

  • Comfortable to operate. The motor unit can be rotated 360 degrees. Torque Multipliers, one handed operation with CW/CCW.
  • Permanently higher joint quality (compared to impact and hydraulic wrenches) by continuous rotation of the square drive.
  • Heavy duty, rugged housing made of cast aluminum. EA2-N motor housing made of special polymer: break-proof, and resistant to corrosion.

EA2-N Series, Li-Ion battery driven 2-speed models with release function:

EA2/80 EA2/100 EA2/150 EA2/200 EA2/280
Torque range Nm 190-850 130-1100 150-1400 250-2200 300-2800
Square drive 3/4″ 3/4″ 3/4″ 1″ 1″
Diameter D(mm) 46 46 46 56 56
Length extension N (inch) N12 N12 N10, N12 N10, N12 N12
N15, N18 N15, N18
Idle speed 1st Gear | 2nd Gear (rpm) 7 | 24 6 | 20 4 | 13 2 | 6.5 1.7 | 6
  • Low weight, ergonomically designed, low noise emissions.
  • No noise protection necessary.
  • Battery torque multipliers with two battery packs ensure up to 360 screw joints in a row.

CLD-N Series torque multipliers, pneumatic driven Models

CLD/L5 CLD/L6 CLD155 CLD225 CLD280
Torque range Nm 365-1080 495-1450 600-1700 900-2700 1200-3500
Square drive 3/4″ 3/4″ 1″ 1″ 1″
Diameter D(mm) 46 46 56 56 56
Length extension N (inch) N12 N12 N10, N12 N10, N12 N10, N12
N15, N18 N15, N18 N15, N18
Idle speed 1st Gear | 2nd Gear (rpm) 16 12 7 5 4
  • Ideal for use in explosion-proof working environment.
  • World proven reliable pneumatic drive motor.
  • Pneumatic driven models: ATEX approval on request

EFCip-N: Precise shut-off torque and constant torque accuracy at 100-

EFCip30 EFCip40 EFCip50 EFCip60 EFCip65
Torque range Nm 100-940 150-1450 190-1850 250-2350 290-2900
Square drive 3/4″ 3/4″ 1″ 1″ 1″
Diameter D(mm) 46 46 56 56 56
Length extension N (inch) N12 N12 N10, N12 N10, N12 N10, N12
N15, N18 N15, N18 N15, N18
Idle speed 1st Gear | 2nd Gear (rpm) 30 15 14 11 8
  • 253V / 45-66 Hz, even when operating on mobile units.
  • According to IP54
  • Low running costs. Maintenance-free, brushless, synchronous motor.
  • Easy connection to all international power grids, no adjustments necessary.
  SKU Price Add Torque NmIdle speedExtension
EA2/280-N-18  9,500.0
300-28001.7 | 6 rpm455mm
EFCip50-N12  10,600.0
190-185014 rpm302mm
EFCip60-N15  10,700.0
250-235011 rpm380mm
EFCip65-N18  11,000.0
290-29008 rpm455mm
  EA2/80-N Price on request
190-8507 | 24 RPM-
  EA2/100-N Price on request
130-11006 | 20 rpm-
  EA2/150-N Price on request
150-14004 | 13 rpm-
  EA2/200-N Price on request
250-22002 | 6.5 rpm-
  CLD/L5-N Price on request
365-108016 rpm-
  CLD/L6-N Price on request
495-145012 rpm-
  CLD155-N Price on request
-7 rpm-
  CLD225-N Price on request
900-27005 rpm-
  CLD280-N Price on request
1200-35004 rpm-
  EFCip30-N Price on request
100-94030 rpm302mm
  EFCip40-N Price on request
150-145015 rpm302mm
  • Pending orders
Category:
Specification
Series

N-Tools

Maker

Origin

Made in Germany
