Pipe cutters, Plastic pipe cutters MCC – Japan. No.1 cutting performance in industry. Durability, sharpness, & anti-pipe-cracking. Three great features in one. Ergonomic handle design gives you less stress during operation. Reinforced Mechanism. Rust-Free spring and heavy duty ratchet gear sustain a good working condition at any job site.

Quick release blade mechanism: It’s not necessary to open the handle with both hands to release the blade. Extreme cutting leverage design: less effort & less work in operation. Simple blade exchange: Only two steps to exchange the blade. Less risk to lose any parts (except VC-0363). Compact design: While still in a small and compact unit, the VC-0334 & 0348 still has the ability to cut larger pipe.

Specifications

Model	Product	Cutting Capacity		Weight	Spare blade
	Code	OD mm	OD inch	g
VC-0327	VC-27ED	27	1″	260g	VCE0327
VC-0334	VC-34ED	34	1.1/3″	290g	VCE0334
VC-0342	VC-42ED	42	1.5/8″	420g	VCE0342
VC-0348	VC-48ED	48	1.7/8″	400g	VCE0348
VC-0363	VC-63ED	63	2.1/2″	650g	VCE0363

Note: VC-0342 comes with a jaw attachment. A hole on blade can be used for reaming outside of pipe. Rectangle tubing materials can be cut by using a jaw attachment (color yellow object in the picture) as an optional part for item No. VC-0342.

Traditional plastic pipe cutter series

Simple Mechanism with the less components.

Original design since 1979 when patented in the US. Cutting Capacity Pipe O.D. mm (inch)

Model	Product Code	Capacity	inch	Weight g	Spare Blade
VC-0200	VC-26A	Ø26mm	1″	265	VCE0220
VC-0242	VC-42A	Ø42mm	1.5/8″	460	VCE0242
VC0163	VC-63	Ø63mm	2.1/2″	1070	VCE0163

Plastic tubing cutters – V-Shaped blade

Clean cut without deformation of pipes by unique V-shape blades. Good for polybutane, polyethylene, rubber tubes and soft plastic pipes. JTC-42 can cut both sleeve pipes and inner pipes simultaneously. Palm size and light weight.

Model	Capacity	inch	Weight (g)	Spare Blade No.
JTC-37	Ø37		220	JTCE37
JTC-42	Ø42		400	JTCE42
ADC-101	305		660	ADCE101
JPC-37	37mm	1.7/16″	0.15	JPCE37

ADC conduit pipe cutter. Designed for cutting ducts and covers of three sizes for air-conditioning. A cover and a duct can be cut together (see below picture). Equipped with quick opening mechanism and safety stopper.

Plastic tubing cutters  JPC-37, Single stroke, quick cut. Installed a reversible blade which provides an extra spare blade. Quick and easy continuous cutting work by spring loaded handle with long lasting aluminum handle.

Tubing cutters for corrugated stainless steel tubing

Designed for use in restricted spaces on small diameter. Light weight and durable aluminum body.

Model No.	Capacity	inch	Weight (kg)	Spare Blade
FTC-20	Ø8-20mm	5/16″-13/16″	0.24	FTCE-20
FTC-25	Ø8-25mm	5/16″-1″	0.27	FTCE-25
FTC-32	Ø20-32mm	1″-1.1/4″	0.29	FTCE-32

Good for CSST (corrugated stainless steel tubing), soft copper, brass, and plastic tubing.

Tubing cutters – with ball bearing roller

MCC Tubing cutters are designed specifically to make clean rotational cuts. Weather you are cutting copper tubing or stainless steel tubing with out the need to replace the cutting wheel. Well-designed components provide longer lasting sustainability making the cutter highly economical.

The heavy-duty cutting wheel with a bearing inside maximizes the durability of the cutting wheel when cutting stainless steel tubing. The compact design of MCC tubing cutters gives you a shorter range of motion and greater maneuverability. Six individually installed stainless steel ball bearings provide you with an accurate and effortless cut. An ergonomically designed handle allows you to attain a comfortable, yet firm grip while you work.

Model	Capacity	inch	Weight (kg)	Replacement Blade No.
TC-28	28mm	1.125″	0.15	TCE32
TC-32	32mm	1.375″	0.31	TCE32
TC-42	32mm	1.375″	0.41	TCE32

Compact & lightweight design increases your productivity. Ergonomically designed knob reduces stress on your hands substantially.

Pipe cutter – Heavy duty

MCC pipe cutter is durable and tough. The frame is made of strong special ductile iron, with wheel blades from special alloy steel that is drop forged, precision machined and heat treated. This cutter is operated by hand or drive unit.

Model No	Capacity Ømm	inch	Weight (g)	Spare Blade
PC-0101	13 – 40mm	1.¼”	1500	PCE0112
PC-0102	13 – 63mm	2″	2500	PCE0112
PC-0103	21 – 90mm	3″	3800	PCE0103

Heavy duty design for professional use, fast & clean pipe cutting

Four-wheel pipe cutters with bearing

Designed for work in area where a complete turn is impossible such as pipe against wall or ceiling. Only 130 degree swing to make a complete cut. Cuts stainless steel pipe with no problems. Bearing installed at every cutter wheels for smooth operation and precision cutting avoiding it from spiral rotation.

Easy setting by quick open-close design. Cuts stainless steel pipes with no problems. Wide range of capacity. From 21mm(Pipe OD) to 64mm can be cut by PCFB-50. High Grade Cutter Wheel: The most important part in pipe cutter is the cutter wheels. Many years of our experience in producing cutting tools let us found the best cutting edge design and the unique heat treatment that allows the cutter lasts longer than ever.

Only 130 degree swing: Against the conventional pipe cutters with single cutter wheel requires to turn the cutter around the pipe to compete a cut, this cutter is significantly easy to use. It can be perfect maneuverability for cutting a pipe in trench or against a wall where has no open space for cutter to turn around or pipe above your head where it’s difficult to turn the cutter around the pipe.

Specifications

Model No	Capacity Ømm	inch	Weight (kg)	Spare Blade
PCFB-25	21 – 38mm	1/2 – 1″	1.3	PCFBE25
PCFB-50	21 – 64mm	1/2 – 2″	2.3	PCFBE50

Easy cutting by bearing installed: We installed the high quality ball bearing in the cutter wheel. This reduces significantly the cutting effort. Heavy duty stainless pipe? No problems at all! Take MCC four wheel pipe cutter and just make your job easy and get it done right (available only PCFB-50).

Quick setting: Latest tool should be user-friendly design and easy to use and save time, rights? MCC made it as you exactly expected how the tool should be. Once you use this quick open-close design, can’t go back to the dinosaurs. It’s that easy.

Note: Please note that PCFB-25 is NOT equipped the bearing for cutter wheel.

Pipe cutters Elora – Germany

Series 179-16 pipe cutters for thin-walled metal tubes. With a cutting wheel and two guide rollers. With steel bearing spindle and ICS-wheel quick-change system

Yellow powder coating. Made of zinc die-cast

Model No	Length (mm)	For pipe Ø
179-16	55	3 – 16mm / 1/8 – 5/8″
179S-16	spare cutting wheel
179B-16	sprae bolt

Series 180-35 pipe cutter 3-36 mm made of magnesium die cast

• For thin-walled metal tubes
• With 4 guiding rolls + ICS-wheel quick-change system
• With integrated burr remover with NOGA wheel
• With steel bearing spindle
• Spare wheel in rotary knob cap

Model No	Length (mm)	For pipe Ø mm	Capacity Ø inch	Spare blade	Spare Bolt
180-35	160	3 – 36mm	1/8 – 1.3/8″	180-S35	180-B35
180-76	250	6 – 76mm	1/4-3″	180-S76A	180-B76
181-ST1	75	3 – 30mm	1/8 – 1.1/8″	181-ST S1	181-ST
181-ST2	160	3 – 35mm	1/8 – 1.3/8″	181-ST S2	181-ST
181-ST3	250	6 – 76mm	1/4 – 3″	181-ST S3	181-ST

• 180-S76A: spare cutting wheel for thin-walled metal tubes
• 180-S76B: spare cutting wheel for plastic and composite tubes

Series 180-76 pipe cutter 6-76 mm

• With built-in wheel ELORA-No. 180-S76B 30 x 6,2 mm for plastic and composite tubes
• Spare wheel in rotary knob cap ELORA-No. 180-S76A
• For thin-walled metal tubes 19 x 6,2 mm
• With 4 guiding rolls + ICS-wheel quick-change system
• Spare wheel in rotary knob cap
• With rapid feed
• made of die cast aluminum

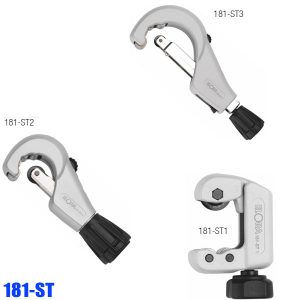

Pipe cutter fort thin-walled metal tubes Series 181-ST

• 181-ST1 – especially suitable for V2A tubes. With 2 needle bearing guide rollers made of stainless steel. With needle bearing cutting wheel for 2A pipes including spare wheel in the turning knob cap. With steel bearing spindle and ICS wheel quick-change system. Ergonomic rotary knob with integrated spare cutting wheel. Made of die-cast zinc
• 181-ST2 – as above, however with 4 needle guide rollers made of stainless steel. With removable tube deburrer + NOGA blade. Made of magnesium die-cast
• 181-ST3 – as above, however with 4 needle guide rollers made of stainless steel. With removable tube deburrer + NOGA blade. Made of aluminium die-cast

Series 182-26 plastic tube snip

For plastic- and composite tubes with 1 stainless steel wheel PTFE coated. Suitable for PE-, PP-, PVC-, PB- and VPE tubes and hoses

For clean, right-angled cuts. Made of magnesium die-cast. With 1 stainless steel blade, PTFE coated. 182-E42 suitable for PE-, PP-, PVC-, PVDF-, PB- and PU pipes and hoses. For clean, right-angled cuts. With ratchet feed. Made of magnesium die-cast

Model No	Length (mm)	For pipe Ømm	Capacity Ø inch	Spare blade	Spare Bolt
182-26	200	0 – 26mm	0-1″	182-E26	182-B
182-42	200	0 – 42mm	0 – 1.5/8″	182-E42	182-B
182-63	280	0 – 63mm	0 – 2.1/2″	182-E63	182-B

For tubes up to 63 mm / 2. For tubes with 50 mm diameter or smaller with 1 stainless steel blade PTFE coated. For plastic pipe and composite pipe cutting scissors with in 2 positions adjustable tube approaching system. Suitable for PE-, PP-, PVC-, PVDF-, PB- and VPE- pipes and hoses. For clean, right-angled cuts. With ratchet feed. Made of magnesium die cast.

Summary table of all the pipe cutter models, including basic technical specifications such as model code, product name, cutting capacity, weight, and spare blade code.

Model Code	Product Name	OD mm	OD inch	Spare Blade Code
VC-0327	VC-27ED	27	1″	VCE0327
VC-0334	VC-34ED	34	1.1/3″	VCE0334
VC-0342	VC-42ED	42	1.5/8″	VCE0342
VC-0348	VC-48ED	48	1.7/8″	VCE0348
VC-0363	VC-63ED	63	2.1/2″	VCE0363
VC-0200	VC-26A	Ø26	1″	VCE0220
VC-0242	VC-42A	Ø42	1.5/8″	VCE0242
VC0163	VC-63	Ø63	2.1/2″	VCE0163
JTC-37		Ø37		JTCE37
JTC-42		Ø42		JTCE42
ADC-101		305		ADCE101
JPC-37		37	1.7/16″	JPCE37
FTC-20		Ø8-20	5/16″-13/16″	FTCE-20
FTC-25		Ø8-25	5/16″-1″	FTCE-25
FTC-32		Ø20-32	1″-1.1/4″	FTCE-32
TC-28		28	1.125″	TCE32
TC-32		32	1.375″	TCE32
TC-42		32	1.375″	TCE32
PC-0101		13 – 40	1.¼”	PCE0112
PC-0102		13 – 63	2″	PCE0112
PC-0103		21 – 90	3″	PCE0103
PCFB-25		21 – 38	1/2 – 1″	PCFBE25
PCFB-50		21 – 64	1/2 – 2″	PCFBE50
179-16		3 – 16	1/8 – 5/8″
180-35		3 – 36	1/8 – 1.3/8″	180-S35
180-76		6 – 76	1/4-3″	180-S76A
181-ST1		3 – 30	1/8 – 1.1/8″	181-ST S1
181-ST2		3 – 35	1/8 – 1.3/8″	181-ST S2
181-ST3		6 – 76	1/4 – 3″	181-ST S3
182-26		0 – 26	0-1″	182-E26
182-42		0 – 42	0 – 1.5/8″	182-E42
182-63		0 – 63	0 – 2.1/2″	182-E63

Note: Some entries such as the Elora series and other special cutters provide lengths rather than weights for their specifications, and not all products have spare blades listed.
