Famag

Rapid drilling in soft wood, European hard wood, chipboard, MDF etc. Rapid chipping of solid wood and chipboards. Clearly less effort is needed and boring is more rapid than with the usual Forstner bit

1800 – 5000 rpm. e.g. Ø 35 mm 3000 rpm in European hard wood. Further details in the speed diagram

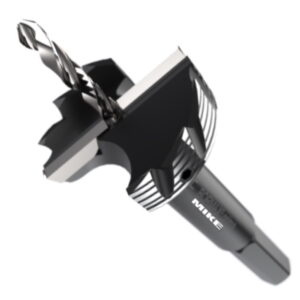

The first carbide tipped Forstner bit with centre point, carbide-tipped main cutting edge and toothed circumferential cutter. Hexagonal shank for a better power transfer

1500 – 8000 rpm. e.g. Ø 35 mm 3000 rpm in European hard wood. Further details in the speed diagram

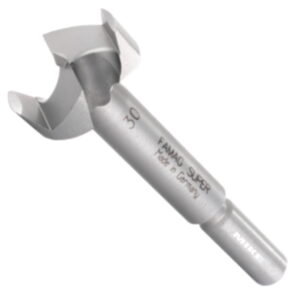

Traditional cylinder boring bit with centre point, two main cutting edges and two taper taps.
700 – 3000 rpm. e.g. Ø 15 mm 2300 rpm in soft wood. Further details in the speed diagram

Twofold ground main cutting edges and circumferential cutters. Effective length of the plug max. 70 mm

Place 1616 at the edge of the work piece in a way that the outside of the cutter is overlapping the edge, allowing fast chip ejection

“Lewis” pattern, crest of thread, main cutting edge and taper tap in premium quality. Version with stepped head and hexagonal shank from Ø 8mm.

500 – 2800 rpm. e.g. Ø 12 mm 2000 rpm in soft wood. Further details in the speed diagram

“Lewis” pattern with crest of thread, main cutting edge and taper tap, morse cone shank No. 2

1250 – 2500 rpm e.g. Ø 22 mm 1500 rpm in soft wood. Further details in the speed diagram

Specially formed channel for removing chips, teflon-coated, changeable crest of thread HSS, two carbide tipped main cutting edges, protruding cutting edges and cylindrical shank with three clamping surfaces. Ground by diamond wheels on CNC-machines

“Lewis” pattern with crest of thread, main cutting edge and bottom blade.
700 – 2250 rpm e.g. Ø 12 mm 1500 rpm in European hard wood. Further details in the speed diagram

Twist drill with long shank (SDS-plus) and specially ground roof-like tip which can be regrounded easily. Quality according to DIN 7490 and the valid safety regulations

“Lewis” pattern, with crest of thread, one main cutting edge and one taper tap. With lug for wooden handle
For drilling deep holes in soft wood (depending on the diameter) and also limited in European hard wood

Brad point drill bit with extra long brad point (ground three-edged), two main cutting edges, two taper taps, four grooves on the spiral.

800 – 2500 rpm e.g. Ø 16 mm 2000 rpm in soft wood

Premium version, fully ground quality with two main cutting edges and two taper taps. Specially ground spiral for a very good chip removal.
2400 – 8000 rpm e.g. Ø 4 mm 5000 rpm in European hard wood. Further details in the speed diagram

One-piece drill bit (C6,3) with brad point, two main cutting edges, two protruding cutting edges and a hexagonal shank for bit holder (1/4“; C 6,3).
Maximum rotation speed of the cordless screwdriver: recommended 3000 rpm

One-piece drill bit (C6,3) with brad point, two main cutting edges, two protruding cutting edges and a hexagonal shank for bit holder (1/4“; C 6,3).
Maximum rotation speed of the cordless screwdriver: recommended 3000 rpm

With brad point, two main cutting edges and protruding cutting edges.
1000 – 5000 rpm e.g. Ø 5 mm 5000 rpm in softwood. Further details in the speed diagram

With brad point, two main edges and protruding cutting edges.
Chrome Vanadium steel.
1500 – 4000 rpm e.g. Ø 5 mm 4000 rpm in soft wood. Further details in the speed diagram

Seven-edged countersink with pointed angle 90°, irregular pitch, with fully ground tool head for finest results.
1000 – 2500 rpm. e.g. Ø 16 mm 1800 rpm in soft wood. Further details in the speed diagram

500 – 2500 rpm. e.g. Ø 12 mm 2000 rpm in soft wood. Further details in the speed diagram
