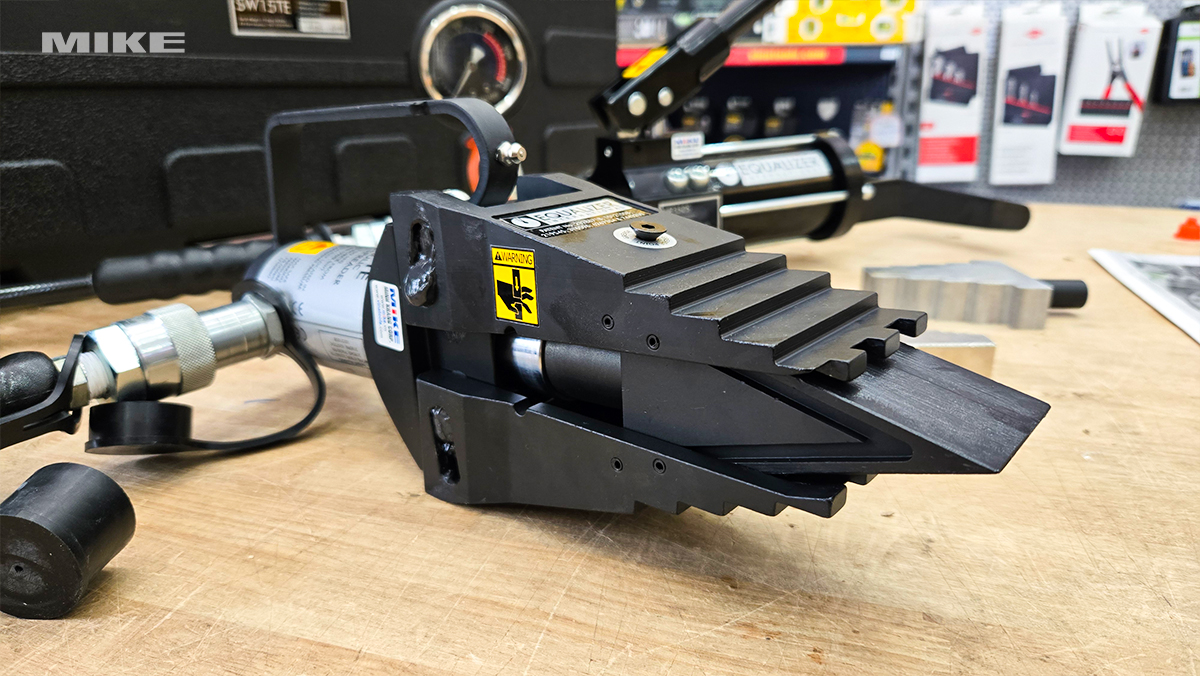

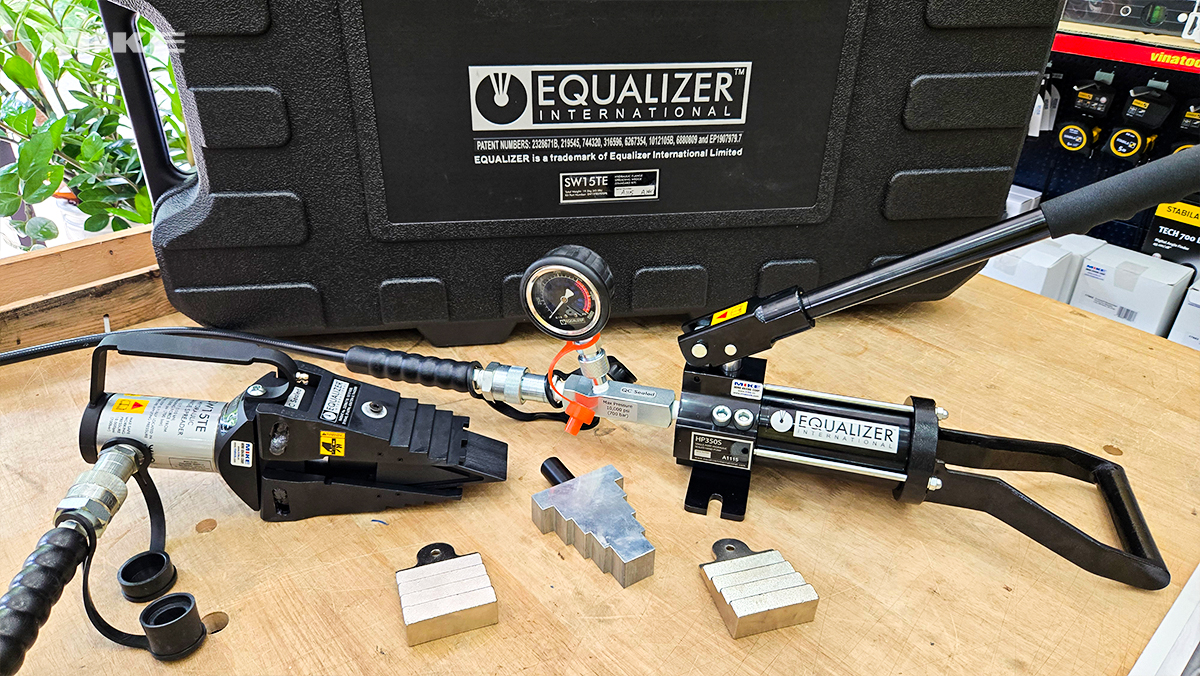

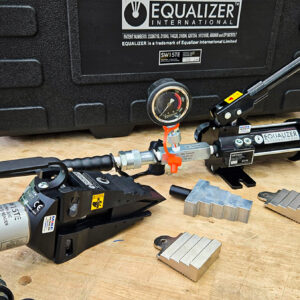

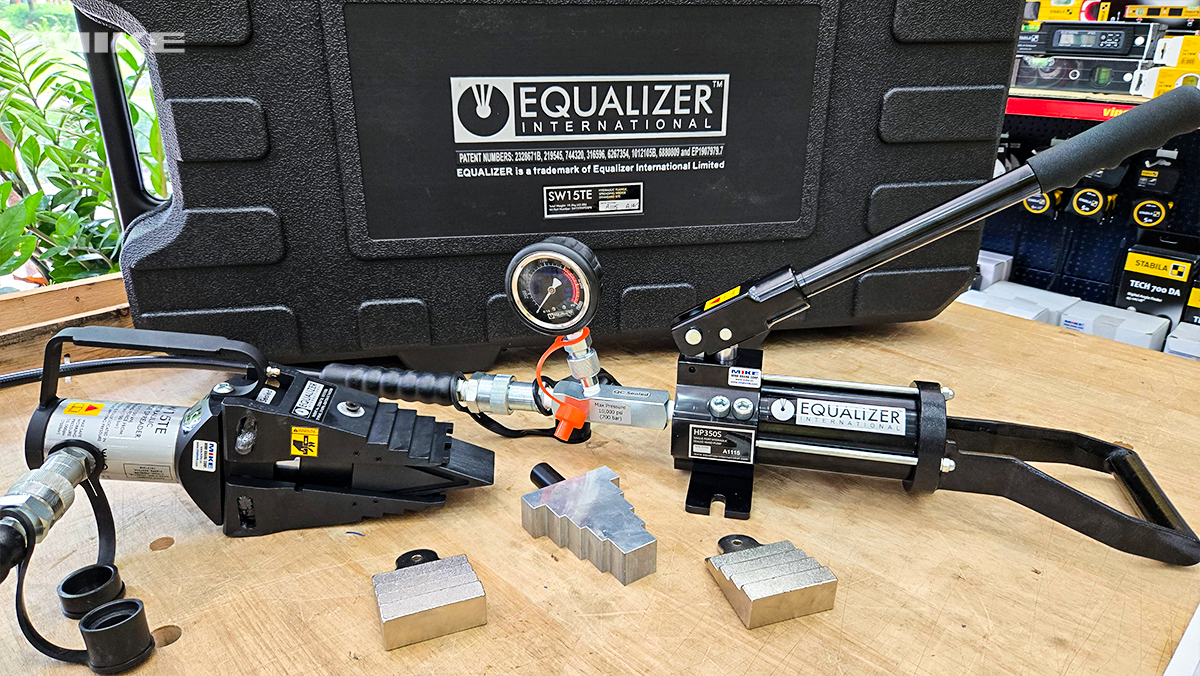

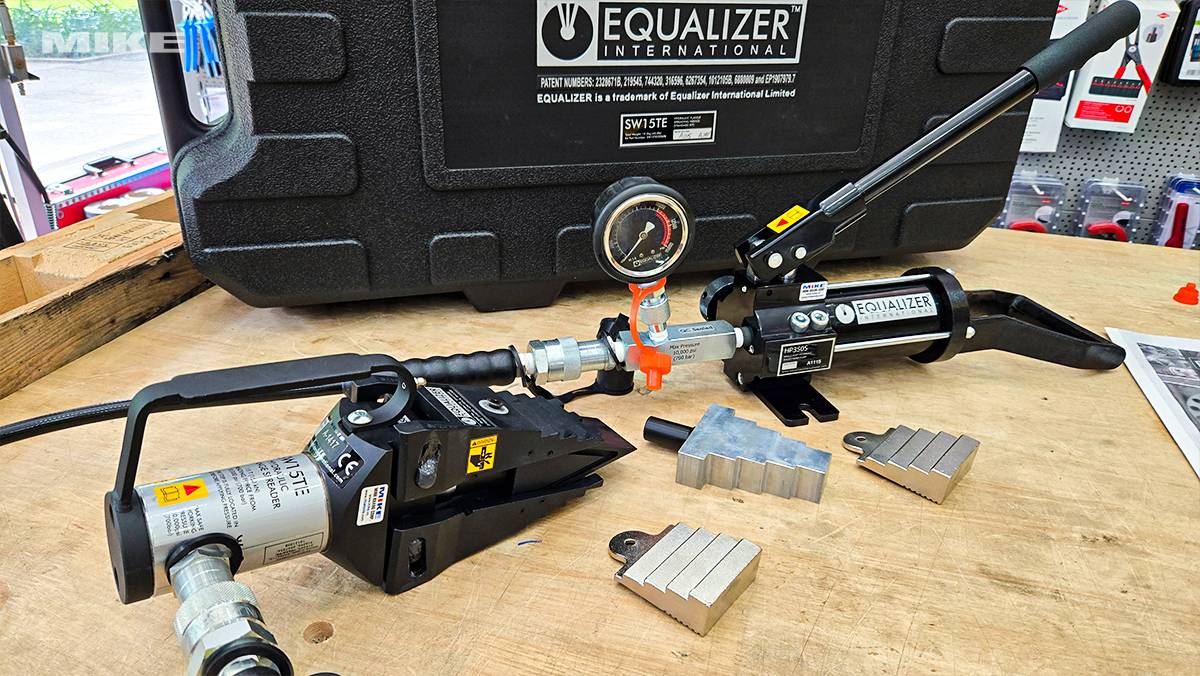

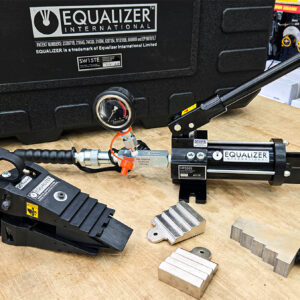

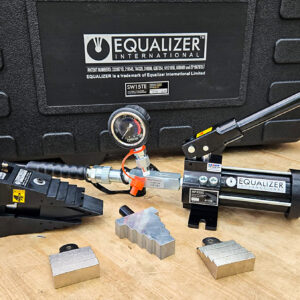

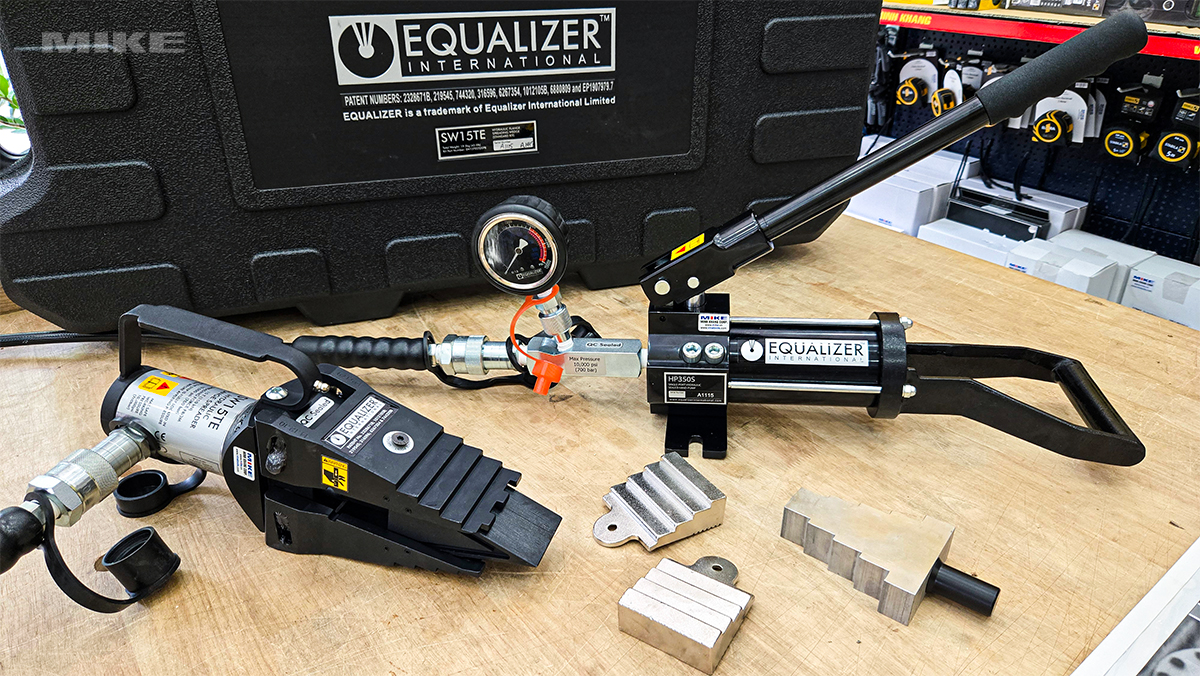

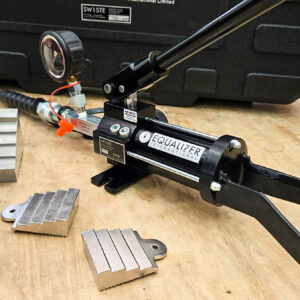

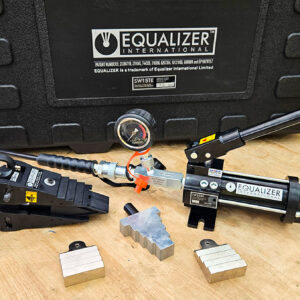

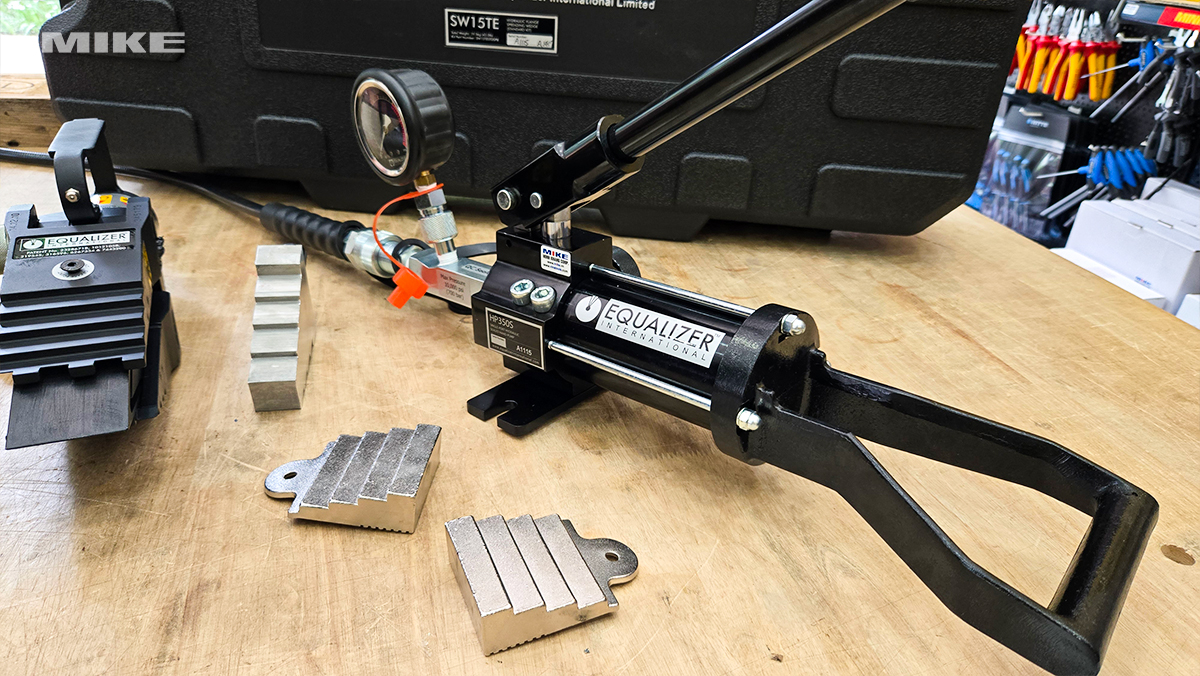

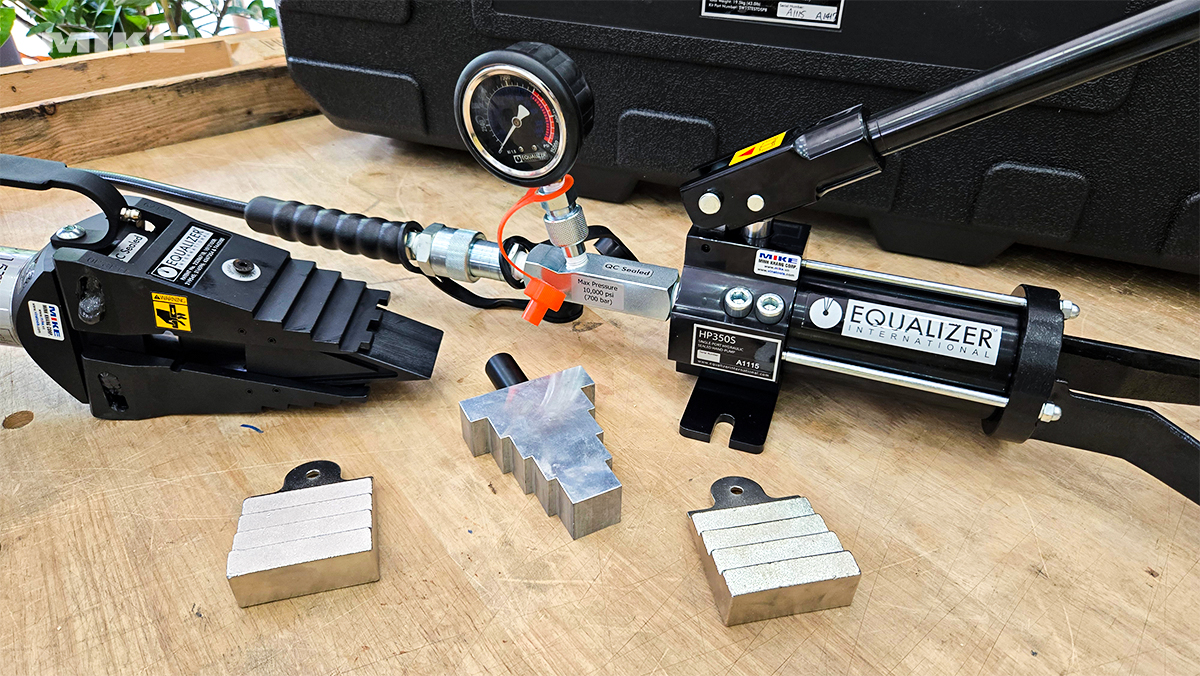

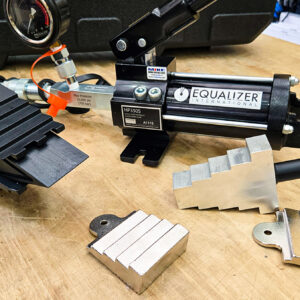

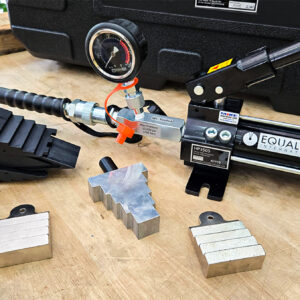

Hydraulic flange spreader 15 tons SW15TESTD, complete set

Hydraulic flange spreader 15 tons, single head, complete set SW15TESTD. The Equalizer™ range of patented flange spreading tools has been developed to aid and simplify the maintenance of flange joints. No longer will those tasked with separating flanges have to rely on using ropes and pulleys, podgers, tirfors, come-alongs or hammers – there is a safe, quick and effective alternative.

The Equalizer™ range of spreaders. These spreaders use mechanical and hydraulic principles for separating flanges and can spread small, medium or large flange joints. Tool selection is made on the basis of the access gap between the flange faces.

Equalizer SW15TE hydraulic separator works with an external flange 700 bar hydraulic pump. It is easier to use in tight spaces via external pump flange separation equipment. Hydraulic Flange Spreader is an ideal product for hard-working areas. It is recommended to use two separators simultaneously to more healthy and safe execution of the large flange in operation.

Hydraulic Flange Spreader SW15TESTD

Contraction is prevented in one direction of the flange with the two equipments. 31 tons of push / separation force is obtained with two hydraulic flange spreader.

• Capacity 15 ton
• Minimum gap 6 mm
• Spread range 81 mm
• Tool weight 14 kg
• Practical, lightweight
• Ergonomic
• With external pump
• Safe work
• Long-lasting structure
• Work faster, reduce costs

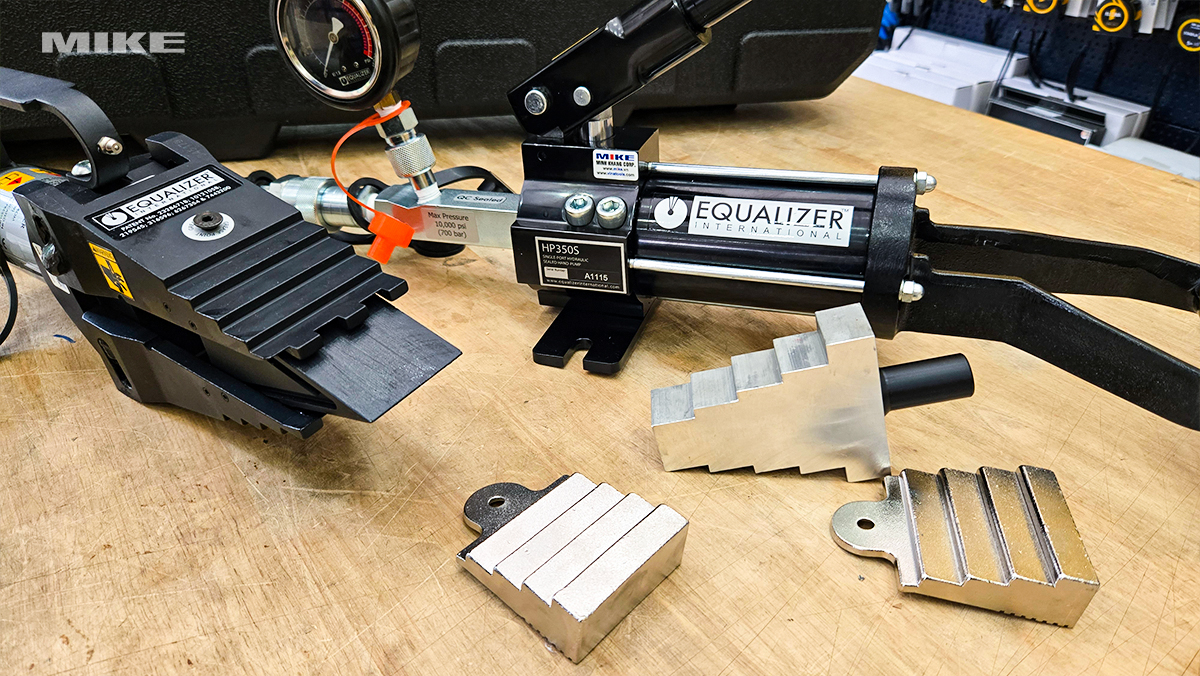

Flange Space is Enough for SW15TE with 6 mm gap is enough to start processing. Flange connections can be opened with the use of both stepped blocks up to 83 mm. This distance is good for the necessary repair and maintenance process.

[vinatools_gallery ids=64403]

Traditional Flange Spreading and Maintenance

Equalizer SW15TESTD external pump hydraulic flange spreader can be used in natural gas plants, oil refineries, water and chemical production lines. Allows the assembly process to be completed quickly and safely. Saves labor time. Reduces costs. Flange connection is indispensable for mounting and dismounting equipment.

• Risk and hazards for workers
• Labor costs are higher
• Needs more workers
• Repair takes more time
• Increase the cost are to be completed late for work

Equalizer International Flange Spreading system Advantages

The Equalizer SW9TM, SW14.5TI and SW15TESTD are aids for use in normal maintenance and installation procedures, and allow the spreading of flanges with an access gap of 6 mm (0.24”) or greater. For example, they may be used to assist in the replacement of ring and other type joints.

• You need fewer workers.
• Labor costs are reduced
• The process is quickly finished
• Commission the system earlier

The use of these instructions will promote safe use, and maximize the service life of the tools. It is recommended that the operator read the relevant sections of this instruction manual for the particular flange spreading wedge to be used.
