Mechanical Secure-Grip Flange Spreader Set SG6TMSTD, 6.7 ton
1 in stock (can be backordered)
Bolt-hole spreader for all flange types. Adjustable drive cones, 60kN spreading force. Set includes tool, caliper, torque wrench, safety block, collets, manual, carry case. SCH available for wider application. Dismantlable collet holders for opposite side insertion.
1 in stock (can be backordered)
The Mechanical Secure-Grip Flange Spreader, specifically the SG6TM model, is a versatile tool designed to be used on various flange types. It is capable of spreading flanges apart and removing spacers, wafers, or butterfly valves. The tool is equipped with collet holders that have adjustable drive cones, allowing for easy adjustment and positioning.
The bolt-hole sizes suitable for this flange spreader range from 0.94″ (24mm) to 1.18″ (30mm). It offers a spreading force of up to 6.7 imperial tons (60 kN). However, it is recommended to use the tool in pairs for optimal performance, which increases the spreading force to 13.4 imperial tons (120 kN).

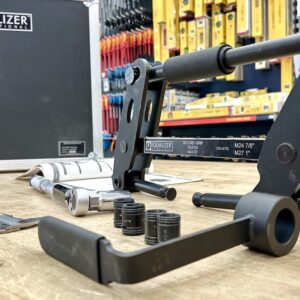

SG6TM Secure-Grip Flange Spreader

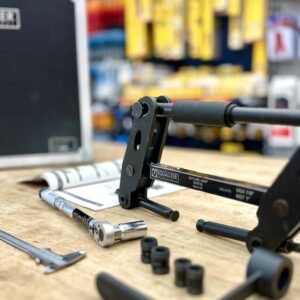

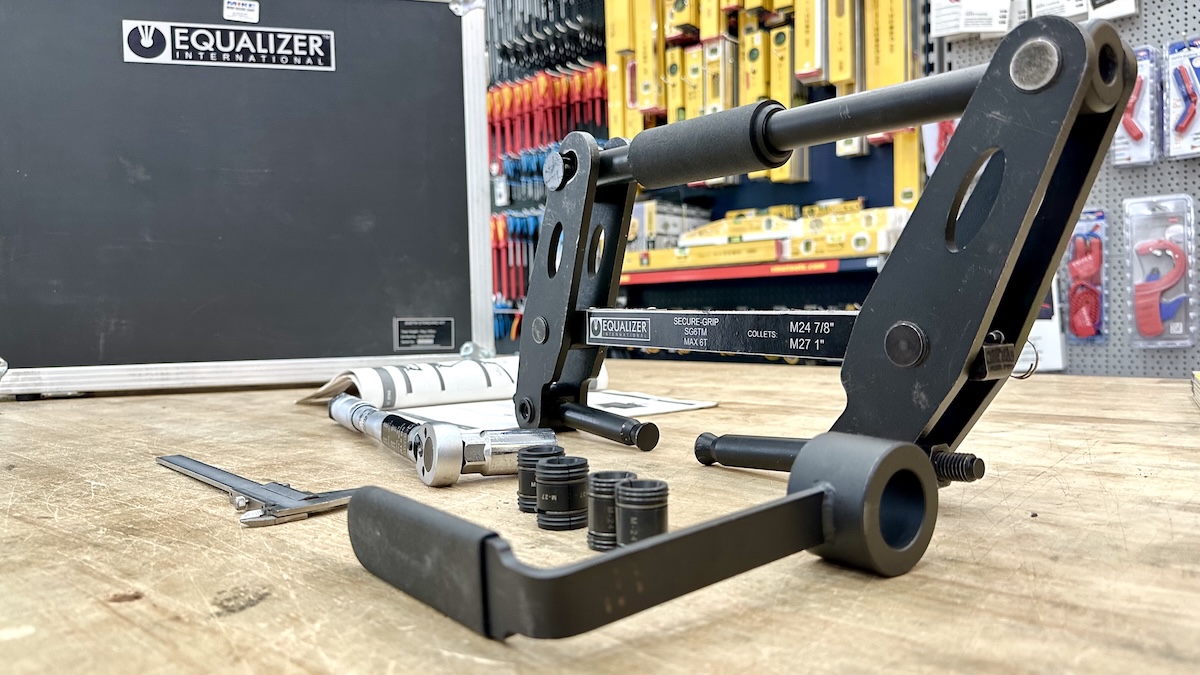

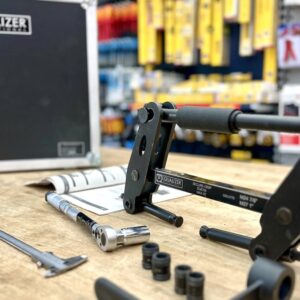

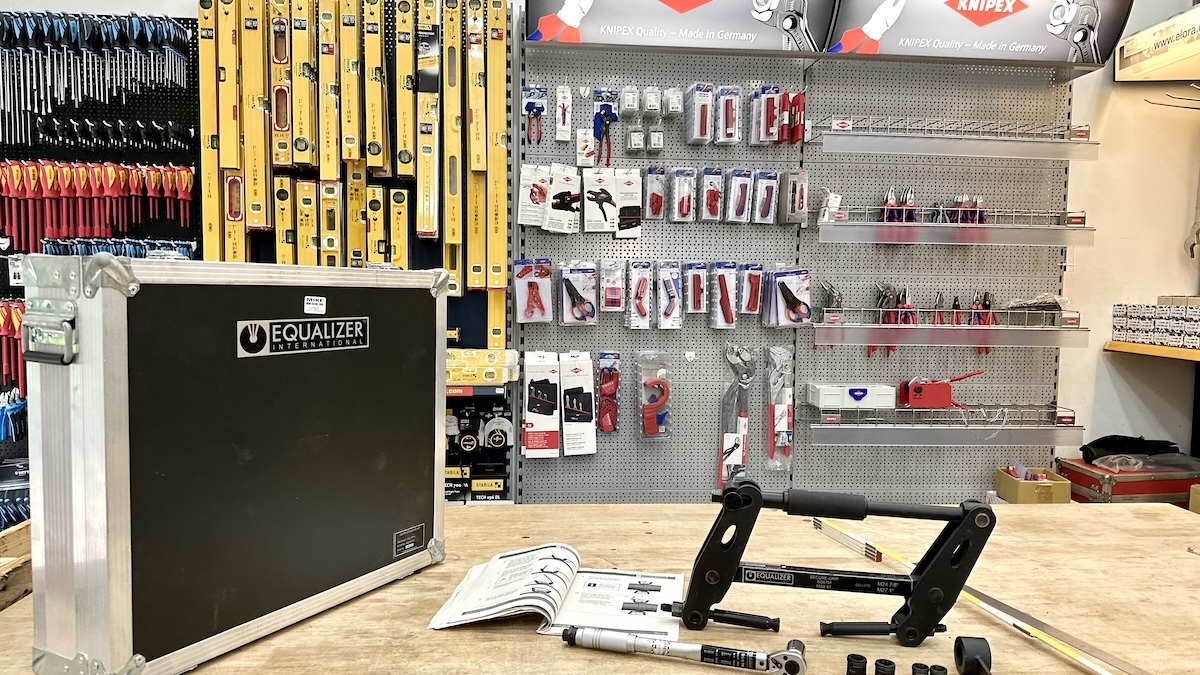

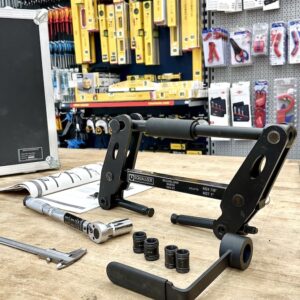

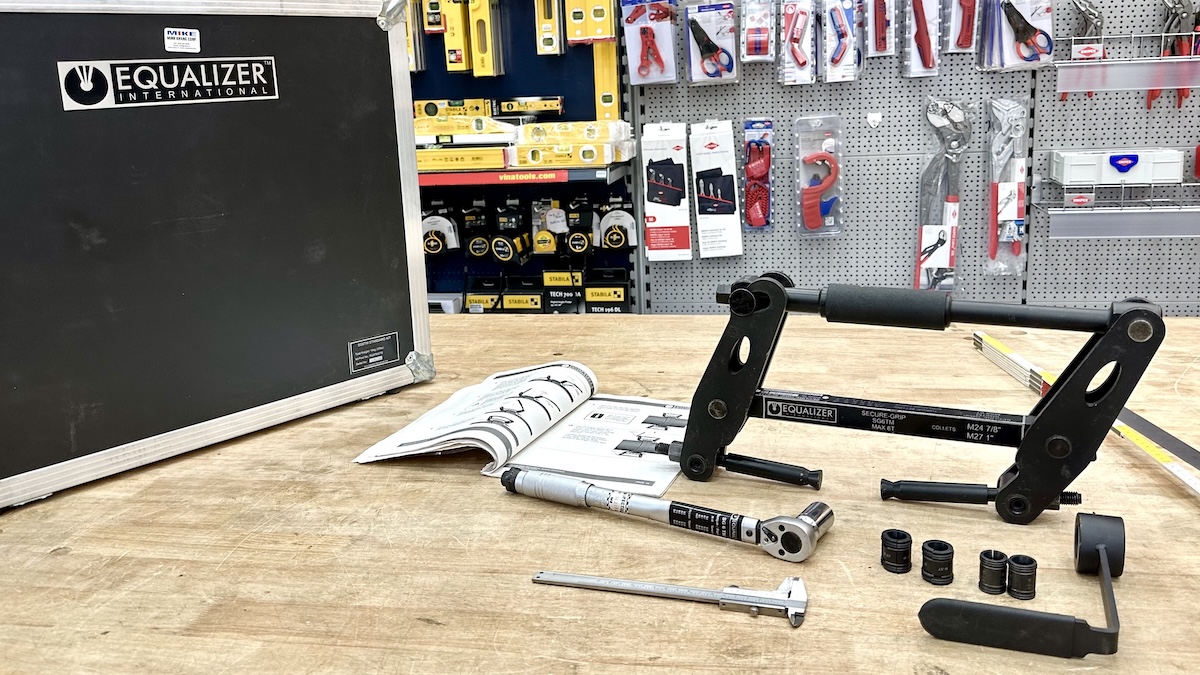

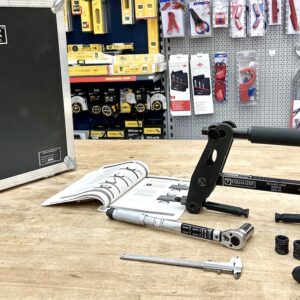

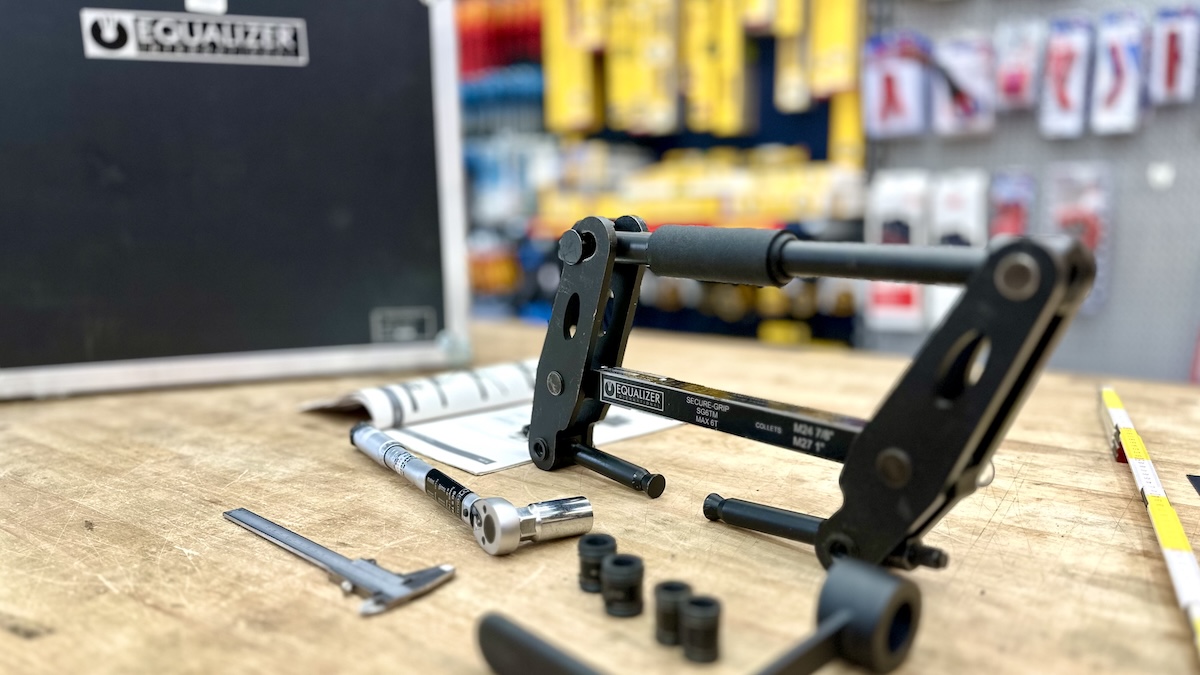

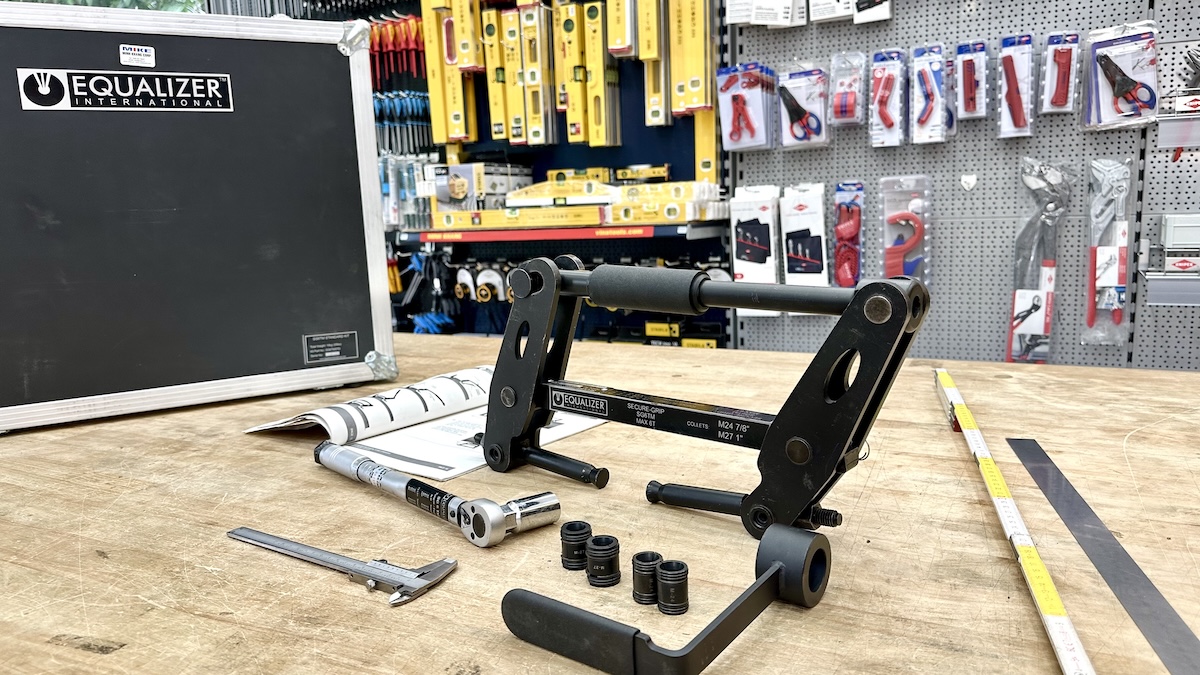

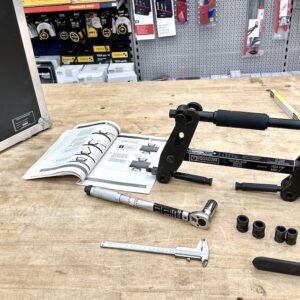

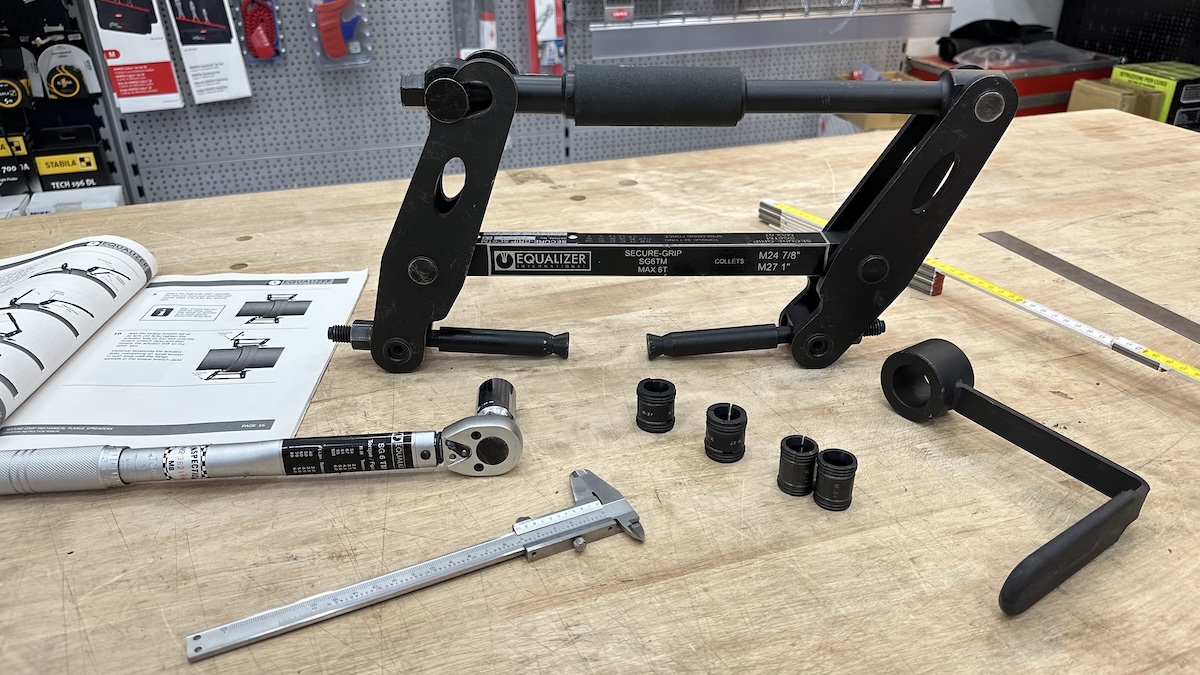

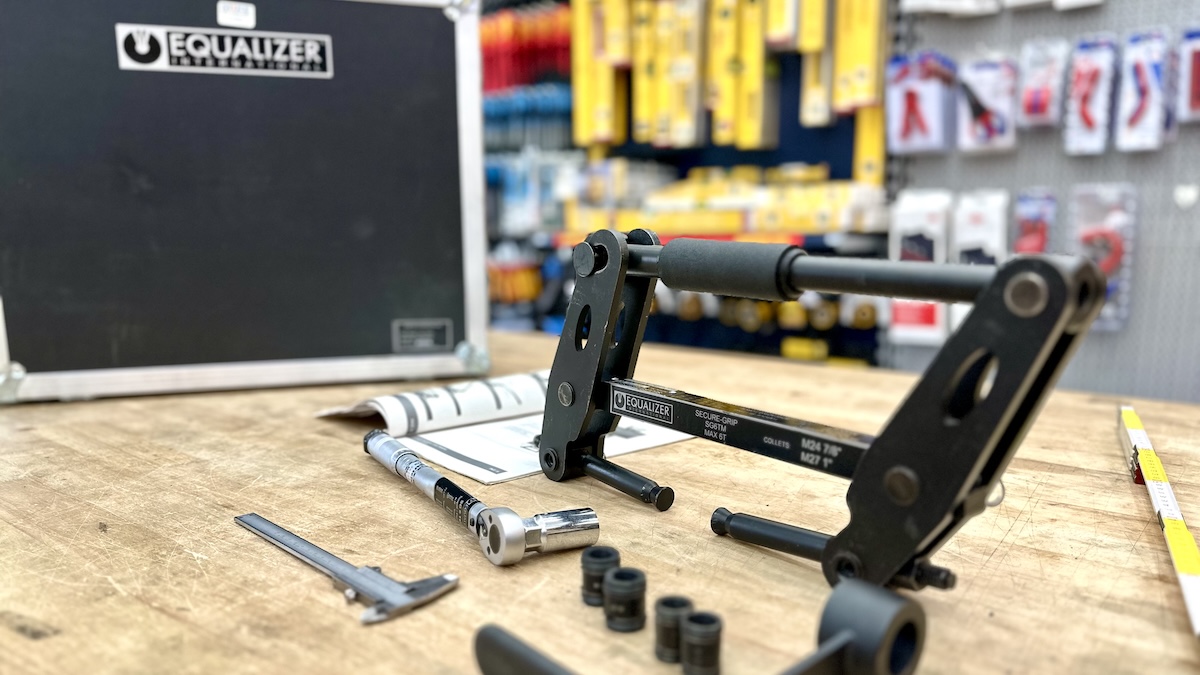

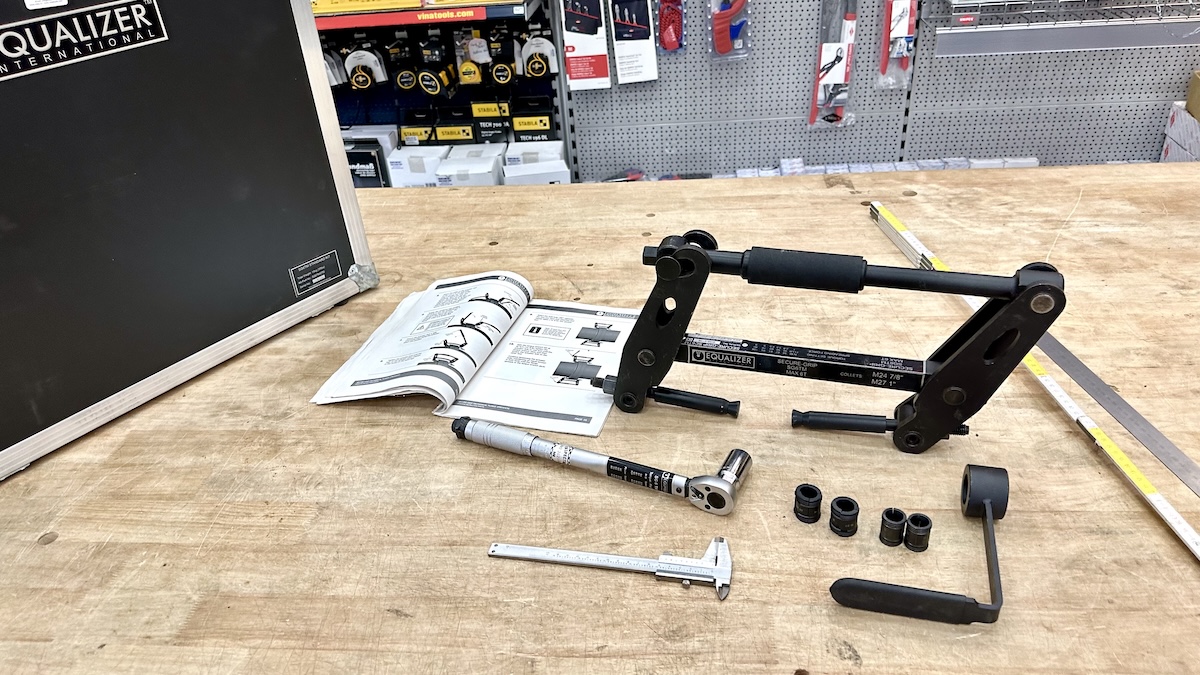

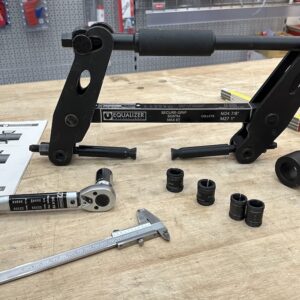

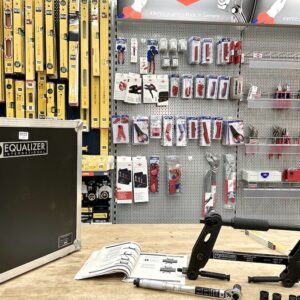

The set includes the SG6TM tool itself, a 6″ (150mm) Vernier caliper for precise measurements, a 3/8″ drive torque wrench with a 21mm socket for tightening purposes, a safety block for added security, two M24 (7/8″) collets, two M27 (1″) collets, an instruction manual for guidance, and a convenient carry case with protective foam inserts for storage and transportation.
Technical Specifications
- Maximum Operating Pressure: 689.48 bar
- Maximum Spread: 80 mm
- Power Source: Mechanical
- Maximum Operating Torque: 108.47 Nm
- Capacity: 6.07 metric tons
- Capacity: 60 kN
- Flange Minimum Access Gap A: 0 mm
- Flange Bolt-hole Diameter B: 23.88-29.97 mm
- Tip Clearance: 0 mm
- Usable on Flanges Specified for Bolt Sizes: M24, M27, 22.225 mm, 25.4 mm
- Weight: 16.01 kg
For enhanced versatility, Short Collet Holder Sets (SCH) are available separately, which provide an improved range of application. Additionally, the collet holders can be dismantled and inserted through bolt-holes from the opposite side, offering flexibility in challenging working conditions. Mechanical Secure-Grip Flange Spreader is a reliable and efficient tool for spreading and separating flanges in various industrial applications.
