Measuring wheel VOGEL 140210, measures up to 999,999m

A specialized hand-pushed measuring wheel capable of measuring distances up to 100,000m. It features a digital display and is controlled through a specialized function button. Easily collapsible for transportation and usable even in the rain. Vogel Germany.

A measuring wheel designed for length and distance, with an IP51 water-resistant rating. Digital Measuring Wheel. Vogel Germany. The wheel has a lightweight structure with a handle made of steel coated in black electrostatic paint. The distance is measured using a wheel, with a scale up to 999,999.0 m and multiple integrated functions.

The simplified function keys include only ON/OFF, and it automatically powers down after 3 minutes of inactivity to save battery life. The “Smart Wheel” feature is an intelligent function that automatically calculates the distance between two walls based on the wheel’s diameter. It has functions for holding measurement results, reading previous memory, and full reset. Measurements are displayed in various units: Meter / Feet / Yard / m² / feet² / yard² / m³ / feet³ / yard³

The length measuring wheel can be compactly folded for transport, specially designed for outdoor measurements. It has a battery-powered measuring system. The display is a large 12mm liquid crystal display, easy to read. The LCD has a backlight for convenient reading in sunlight. The control keyboard is resistant to dirt, drops, and water. Electronic Length Measuring Wheel.

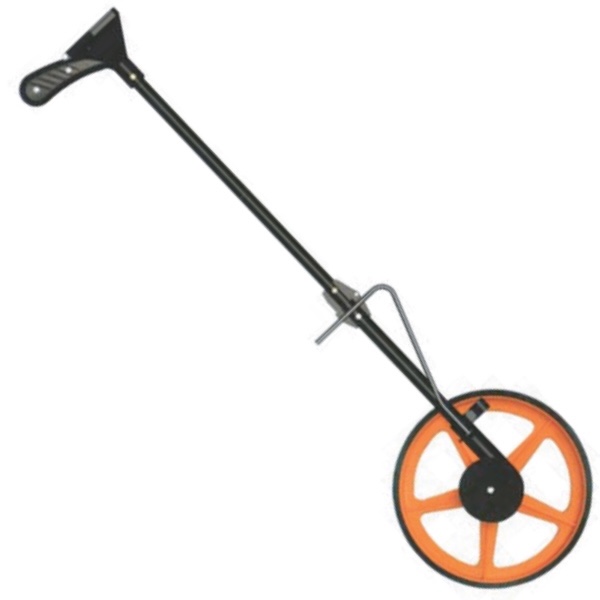

Measuring wheel VOGEL 140210

An electronic length measuring wheel is a precision tool used for measuring lengths easily and accurately. Designed for outdoor use, it has a light steel structure with a black paint coating, making it durable and robust.

• Model: 140210
• Scale: 999,999/999,999.9 m/Ft
• Reading accuracy: ± 0.1m
• Tolerance: ± 0.5%
• Wheel diameter: 318mm
• Suitable for outdoor use with a carry bag.
• Drip-proof water resistance rating of IP51.
• Battery operated.
• Comes with a factory testing certificate.
• Packaged in a cardboard box.
• Physical dimensions: 1122 x 318 x 85mm
• Weight: 1.6kg

This device features a large LCD with 12mm high digits and a backlight for easy data reading in low light conditions. The measuring wheel’s keypad is designed to be dust and water drop resistant, ensuring durability and accuracy of the buttons.

This wheel has an ON/OFF switch, automatically shutting off after about 3 minutes of inactivity to conserve battery life. It also features a “Smart Wheel” function that automatically calculates the wheel diameter to accurately measure the length from one wall to another.

Function keys and applications of the length measuring wheel

The Start/Stop mode helps avoid unnecessary measurements due to improper use. Additionally, the wheel features a HOLD function to store measurement results, a memory function for previous values, and a reset button to reset settings.

This wheel can display measurements in units such as meters, feet, yards, square meters, square feet, square yards, cubic meters, cubic feet, and cubic yards. It comes with a rubber-coated plastic wheel and a stand for storage when not in use. With an application range from -10 °C to +60 °C, the wheel can be used in various conditions. The handle is made of ABS plastic for comfortable use.

The wheel comes with four 1.5V (AAA type) batteries and a user manual for immediate use. This length measuring wheel is designed for accuracy, convenience, and durability in measurement processes. With a lightweight structure and black painted steel material, it is impact-resistant and long-lasting.

The large LCD with 12mm high digits allows for easy and clear reading of measurements. The backlight provides sufficient light to ensure easy data reading even in low-light environments. The dust and water drop resistant keypad protects the wheel from external impacts and ensures the stability of the button functions. You can confidently use it in harsh conditions without worry of damage.

The “Smart Wheel” function automatically calculates the wheel diameter, helping to accurately measure the length from one wall to another. This eliminates the complexity of calculations and ensures precise and reliable measurement results.

The Start/Stop mode helps avoid unnecessary measurements when not in use. The HOLD function allows storing measurement results, helping you remember and review them later. The reset button enables resetting the settings to their original state. This wheel offers a variety of measurement units such as meters, feet, yards, square meters, square feet, square yards, cubic meters, cubic feet, and cubic yards. This makes it easy to switch between units to meet the requirements of different measuring tasks.

With a range from -10 °C to +60 °C, you can use this wheel in various weather conditions and environments. The ABS plastic handle provides comfort during extended use. The wheel comes with four 1.5V (AAA type) batteries, allowing for immediate use. The included
