Hydraulic wedge BETEX 15TLS Duo-set 30 ton, 700 bar

BETEX 15 TLS Duo-set (Order code: 789162) is a professional-grade hydraulic toolset engineered for synchronized lifting and spreading tasks in industrial maintenance environments. This patented solution combines two hydraulic lifting spreaders, each offering a 15-ton capacity, for a total force of 30 tons, enabling users to execute perfectly balanced operations with precision and safety.

• Dual operation design: Includes two single-acting hydraulic spreaders, each capable of lifting or spreading up to 15 tons. Ideal for applications where even force distribution is critical, preventing tilting or misalignment during lifting.
• Minimal insertion clearance: Can be inserted into tight spaces as narrow as 5 mm, with a maximum jaw opening of 40 mm. This allows the tools to function effectively in confined or restricted access areas.

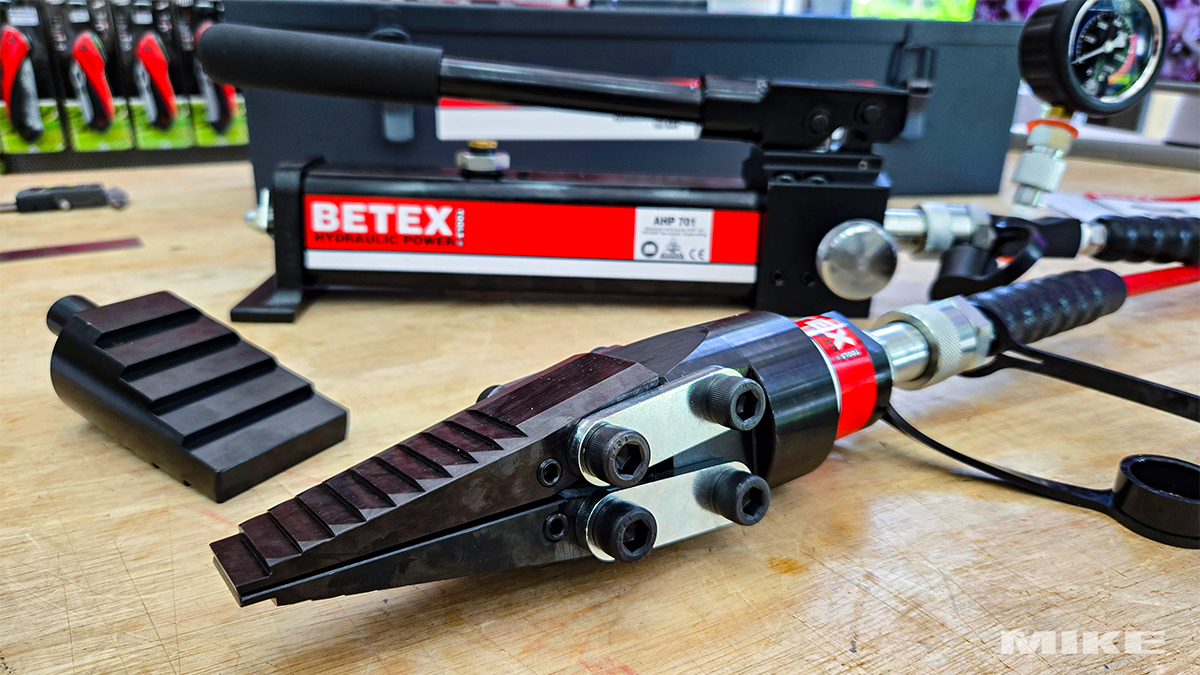

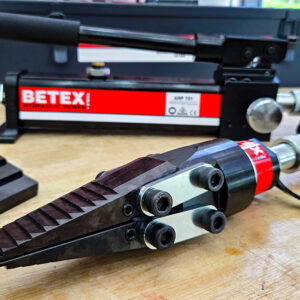

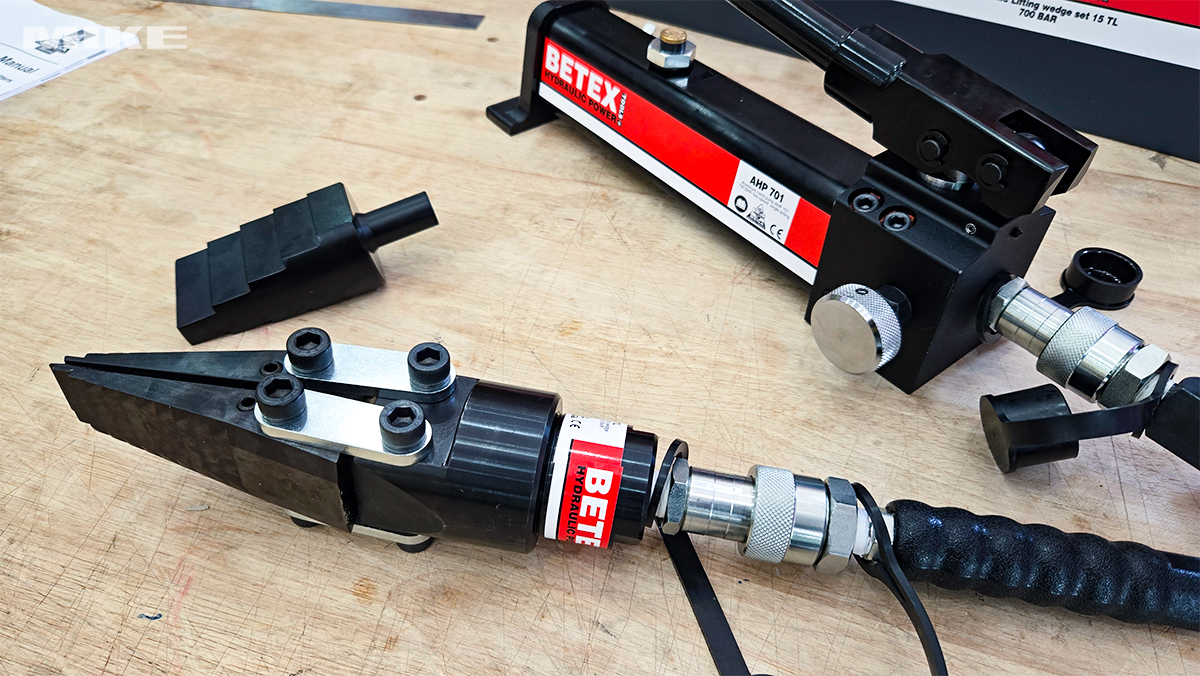

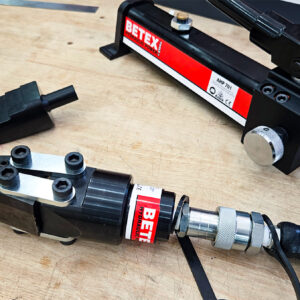

• High-strength construction: The slim jaws are made of hardened, high-quality steel, ensuring reliable performance and resistance to wear, even under demanding conditions.

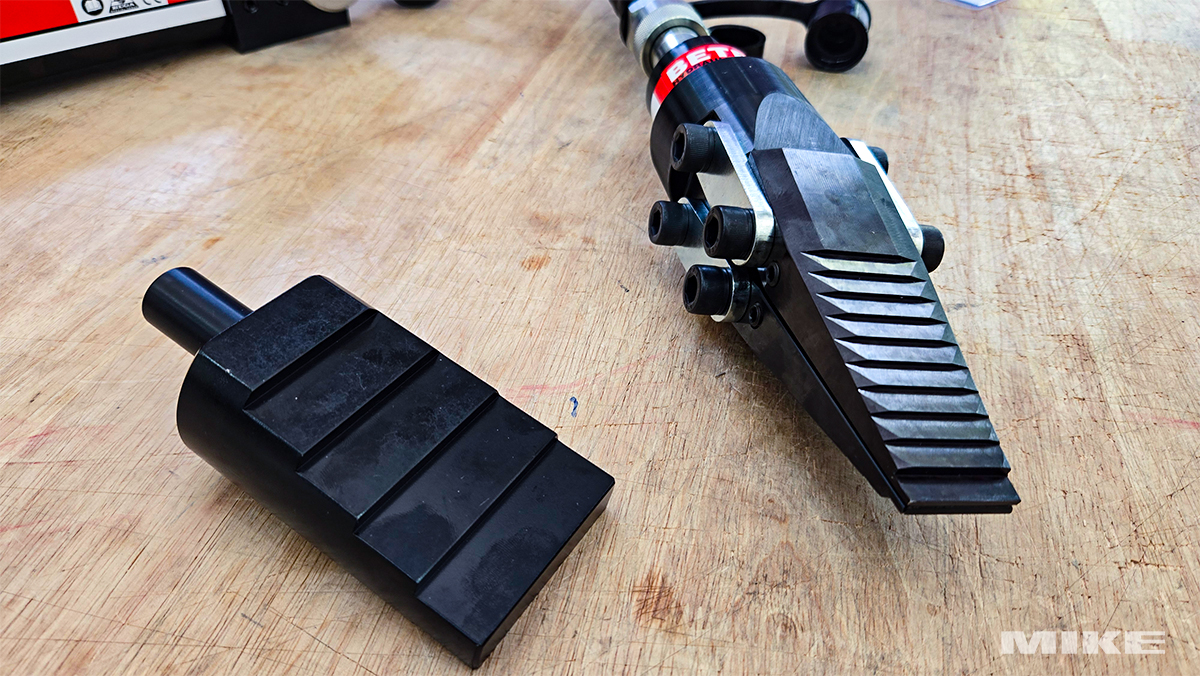

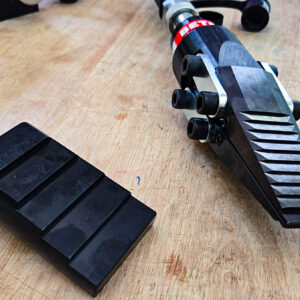

• Safe load handling: Comes with multi-stage safety blocks to lock the lifted load securely, enabling the operator to safely remove the wedge or spreader after use.

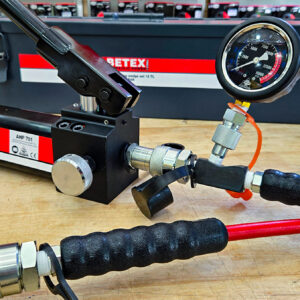

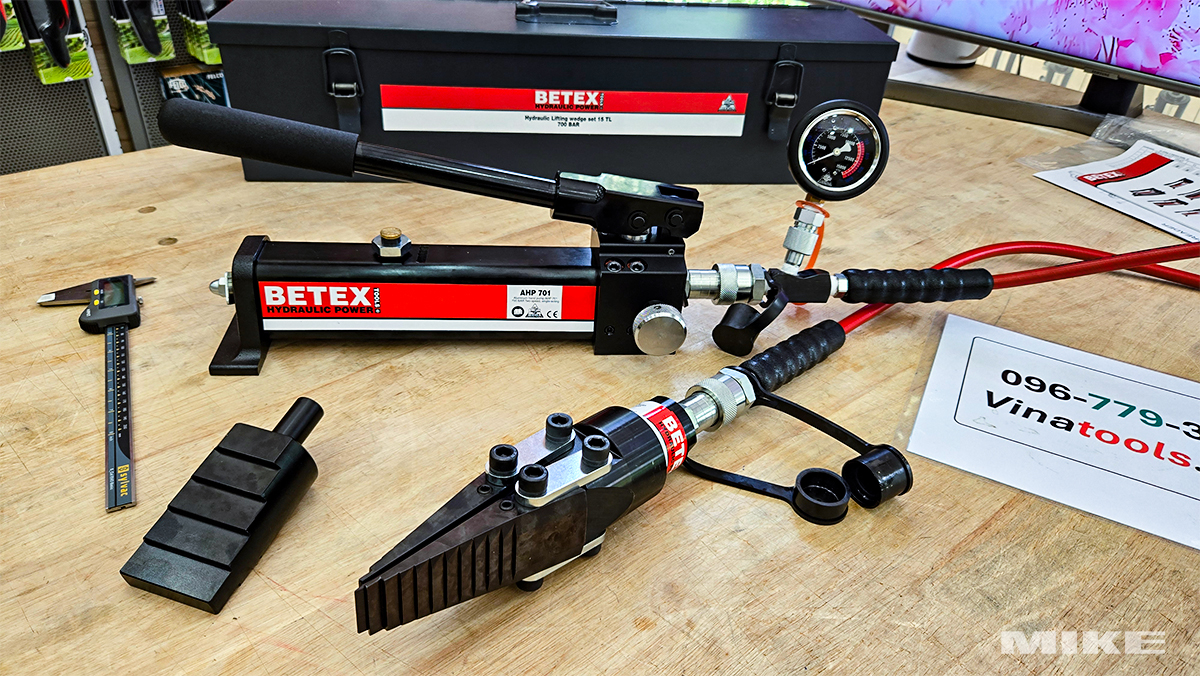

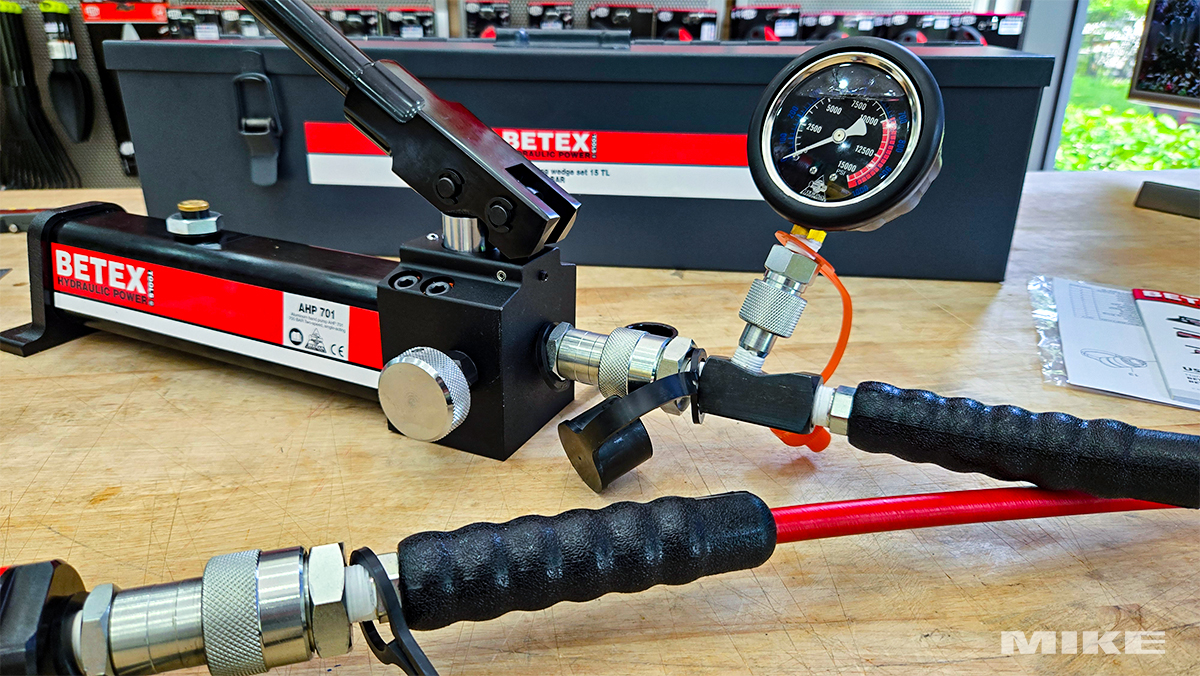

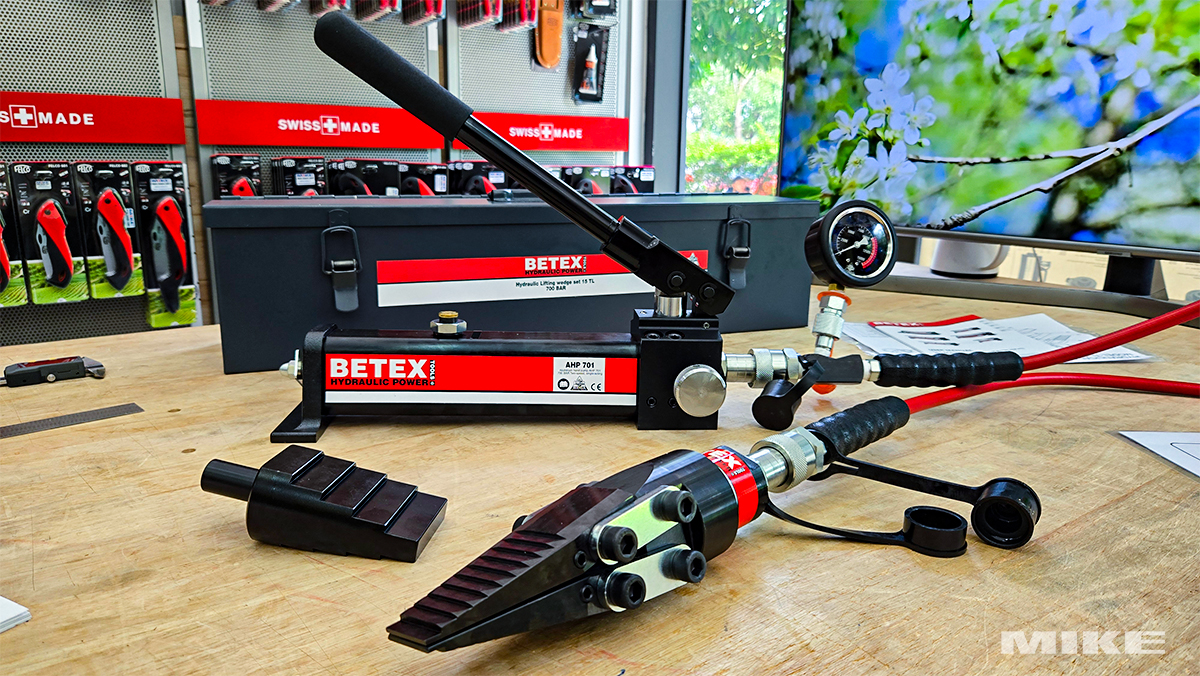

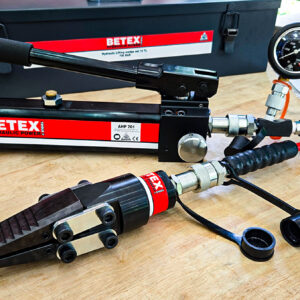

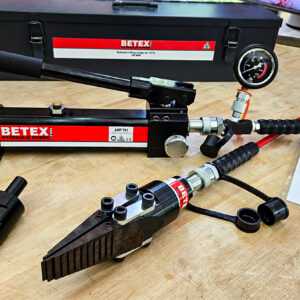

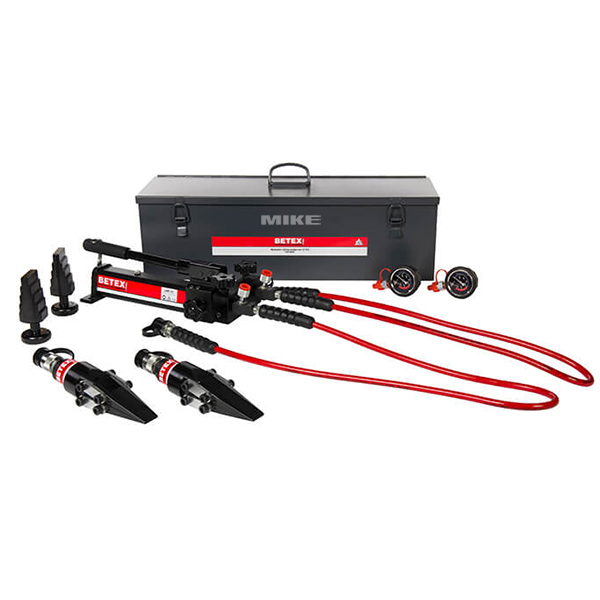

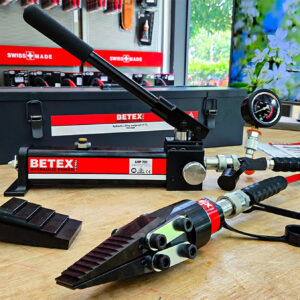

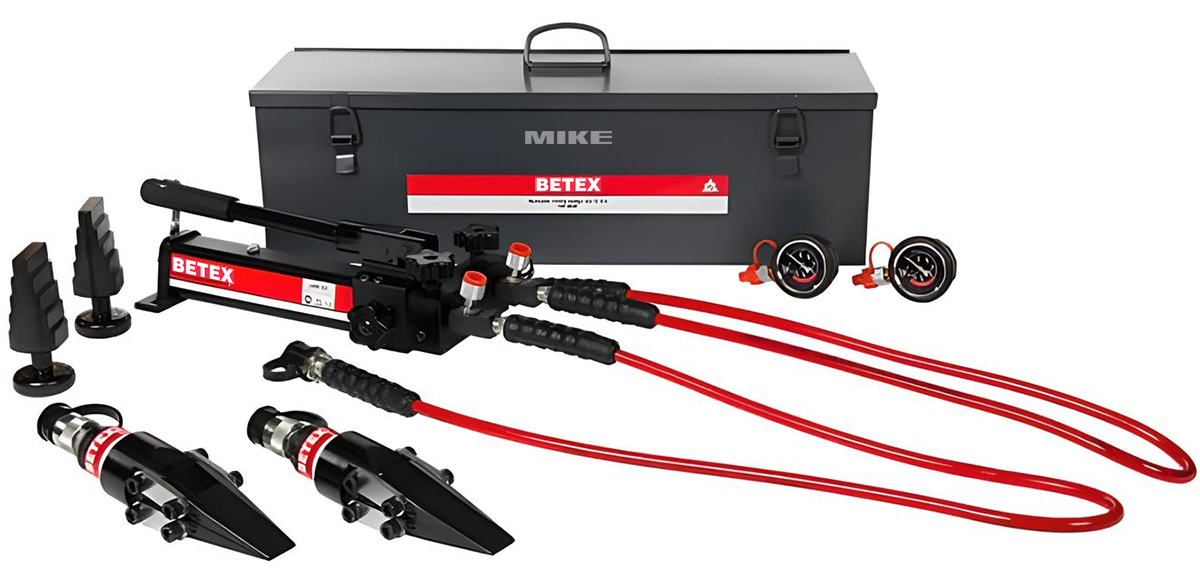

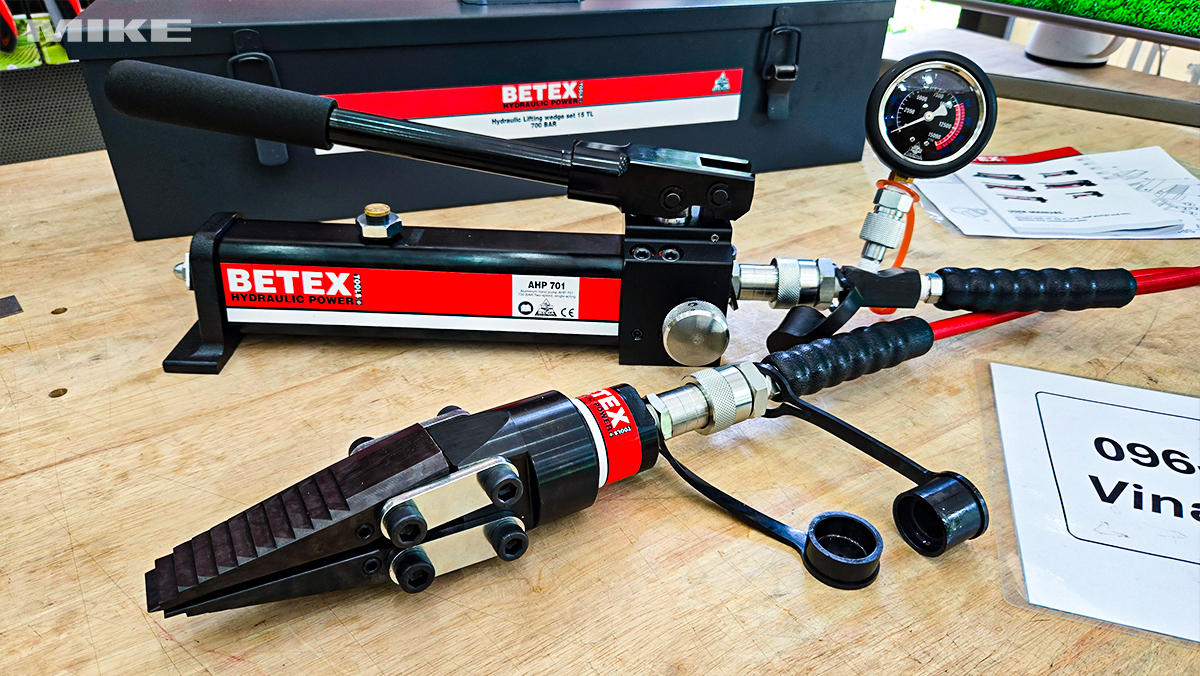

• Complete set: The duo-set includes two hoses (1.5 meters each), a 2-stage hand pump with manifold for separated oil flows, two pressure gauges with T-adapters, full quick coupler systems, and a durable case for easy transport and storage.

Hydraulic wedge BETEX 15TLS Duo-set 30 ton, 700 bar
Technical specifications

BETEX 15 TLS Duo-set is purpose-built for maintenance professionals handling alignment of shafts, lifting motors or gearboxes, spreading flanges, and other precision operations.

With its user-friendly design and compact form, this duo-set provides safe, accurate, and labor-saving performance in workshop, offshore, or on-site scenarios.

• Operation: Lifting & spreading
• Capacity: 2 × 15 tons

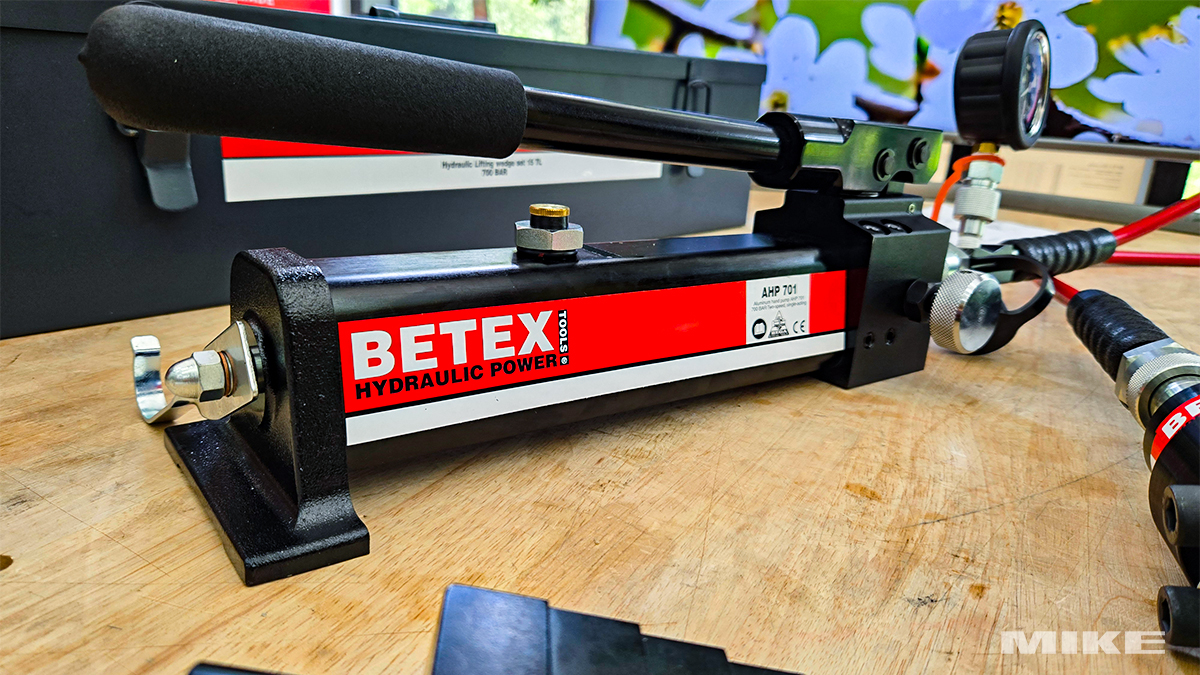

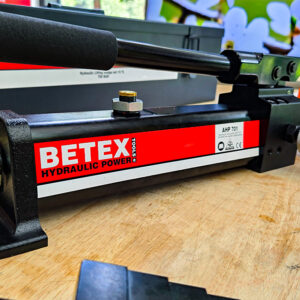

• Pump type: Single-acting, 2-stage hand pump
• Maximum operating pressure: 700 bar
• Minimum jaw opening (A): 5 mm
• Maximum jaw opening (B): 40 mm
• Total length (L): 235 mm
• Weight: 28 kg (complete set)
• 2×15 ton lifting and spreading force
• Works in gaps from 5 to 40 mm
• High-quality hardened steel jaws
• Single-acting hydraulic operation (700 bar)
• Includes 2 hoses (1.5 m), pump, and safety blocks
• Dual spreaders for balanced, even load handling
• Lightweight and compact – only 28 kg (complete)
• Supplied in a durable transport cas
