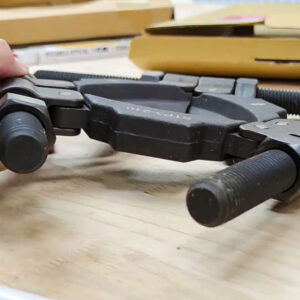

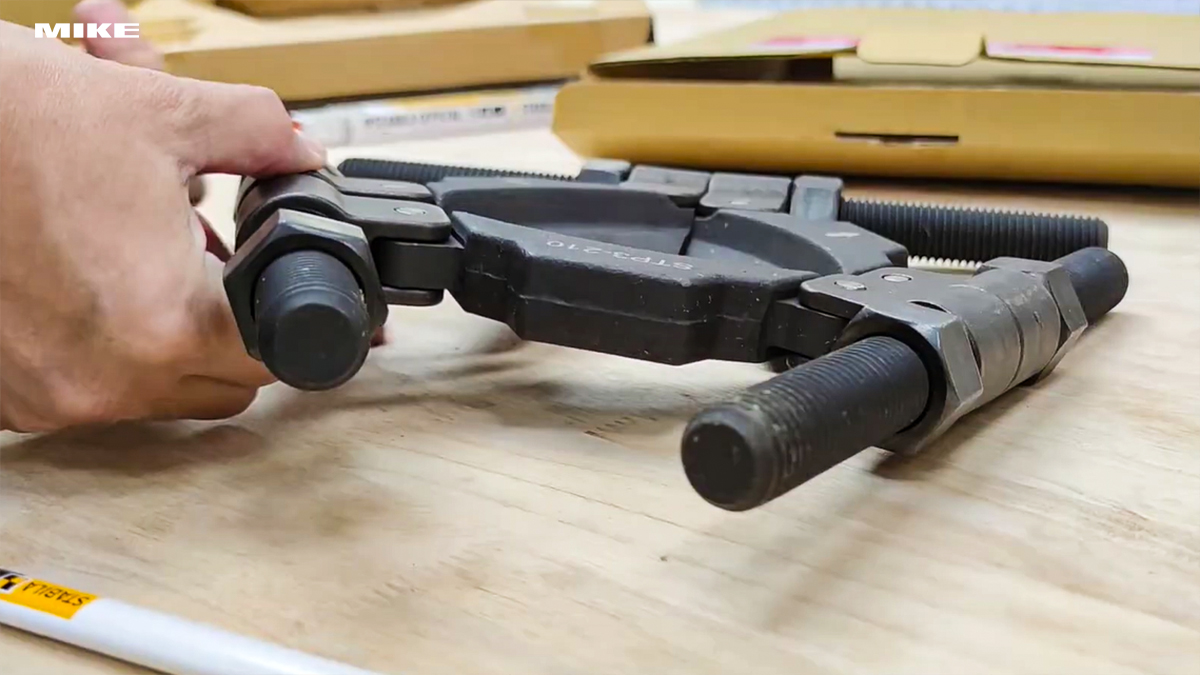

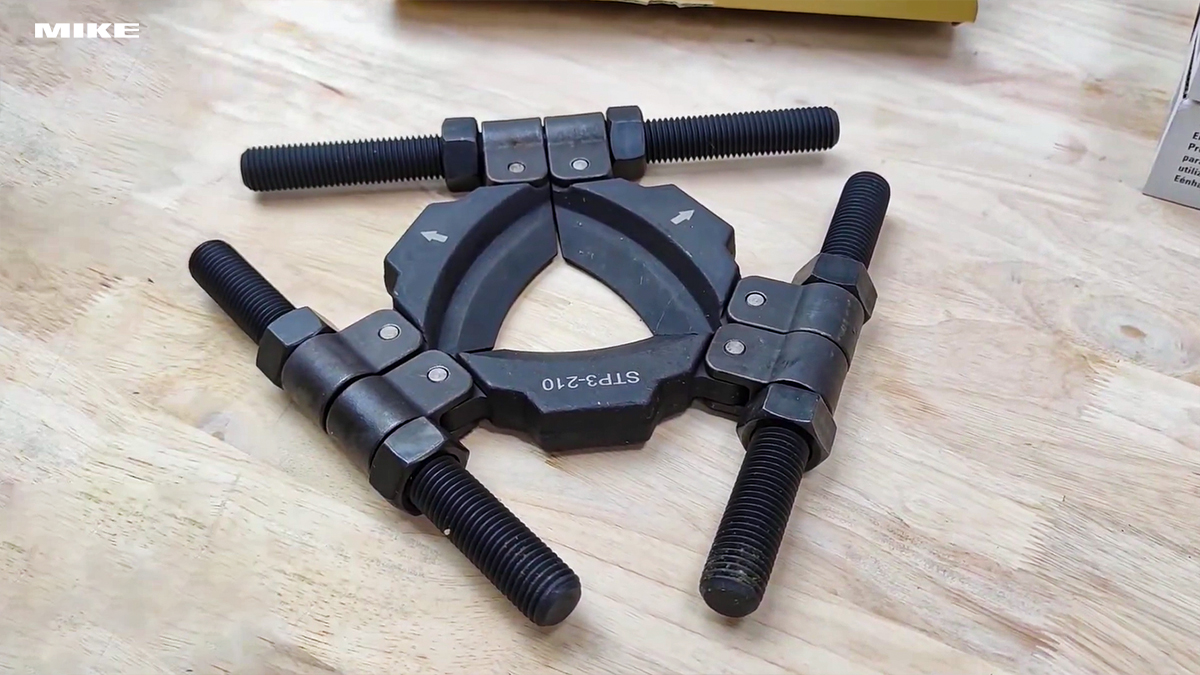

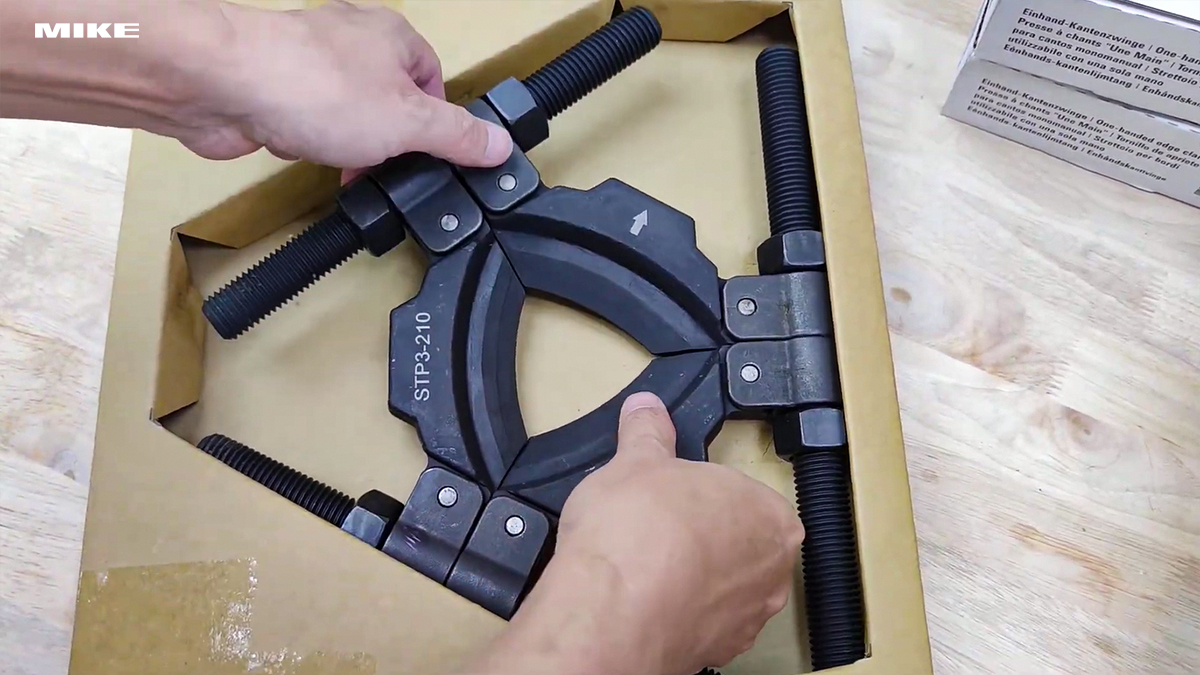

Tri-Section Pulling Plates BETEX STP-3 for 3-arm hydraulic pullers

SKU: STP 3

designed for 3-arm hydraulic pullers, offer a unique, patented design for maximum spread and even force distribution. Suitable for various shaft diameters, these plates ensure safe, efficient bearing handling without damage, available in four sizes for diverse applications.

Price from:  310.0 2,500.0
(Price excluding tax, for reference only.)

Description

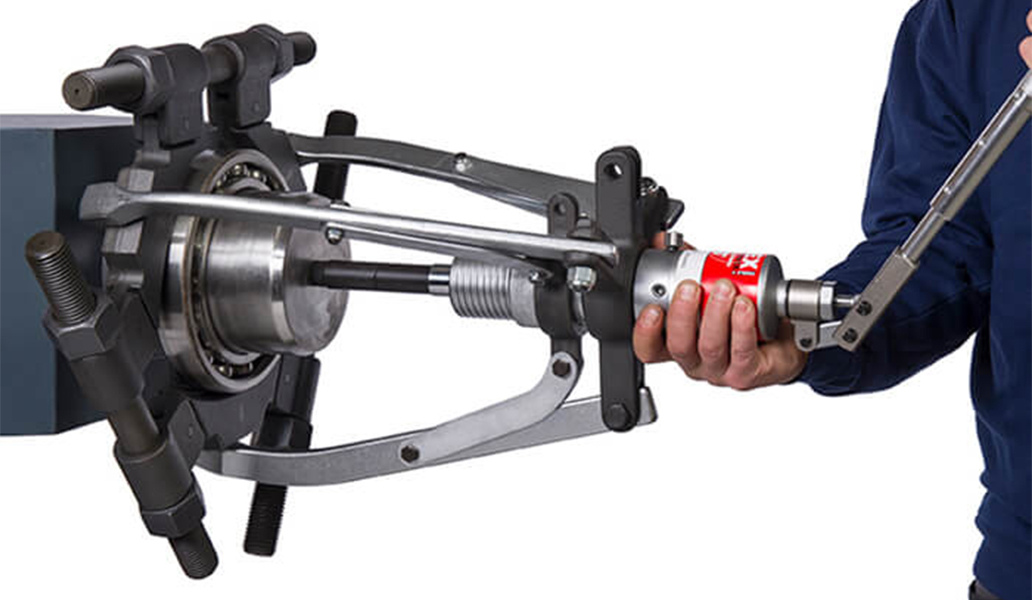

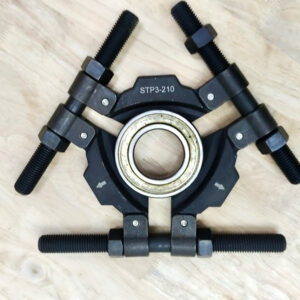

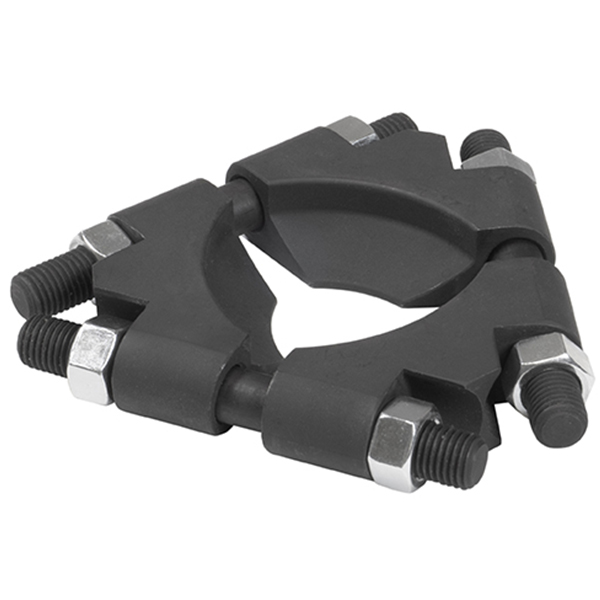

Tri-Section Pulling Plates BETEX STP-3, designed for use with 3-arm (hydraulic) pullers, embody a unique and patented design that maximizes efficiency in mechanical operations. These plates stand out due to their capability to create maximum spread while applying an even force, crucial for handling delicate components like bearings.

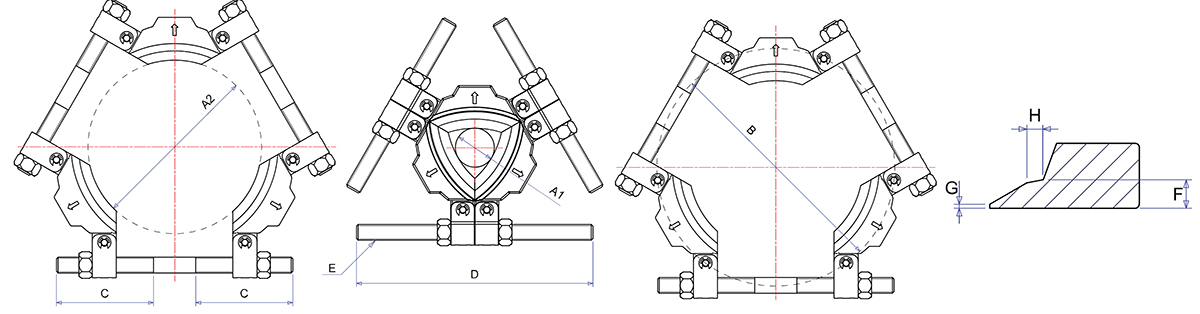

Model Art. no. Capacity Shaft dia.
min
Spread
max
B C D E/F G H Weight
(kg)
Tri-section 160 791160 6 26 160 216 105 240 5/8”-11UNC 8 2 6.5 / 3.5
Tri-section 210 791210 8 50 210 280 117 285 7/8”-14UNF 10 2 9 / 5.5
Tri-section 340 791340 20 90 340 460 175 430 1 1/4”-12UNF 14 2 8 / 18
Tri-section 495 791495 30 140 495 660 235 610 1 3/4”-12UNF 20 2 12 / 45

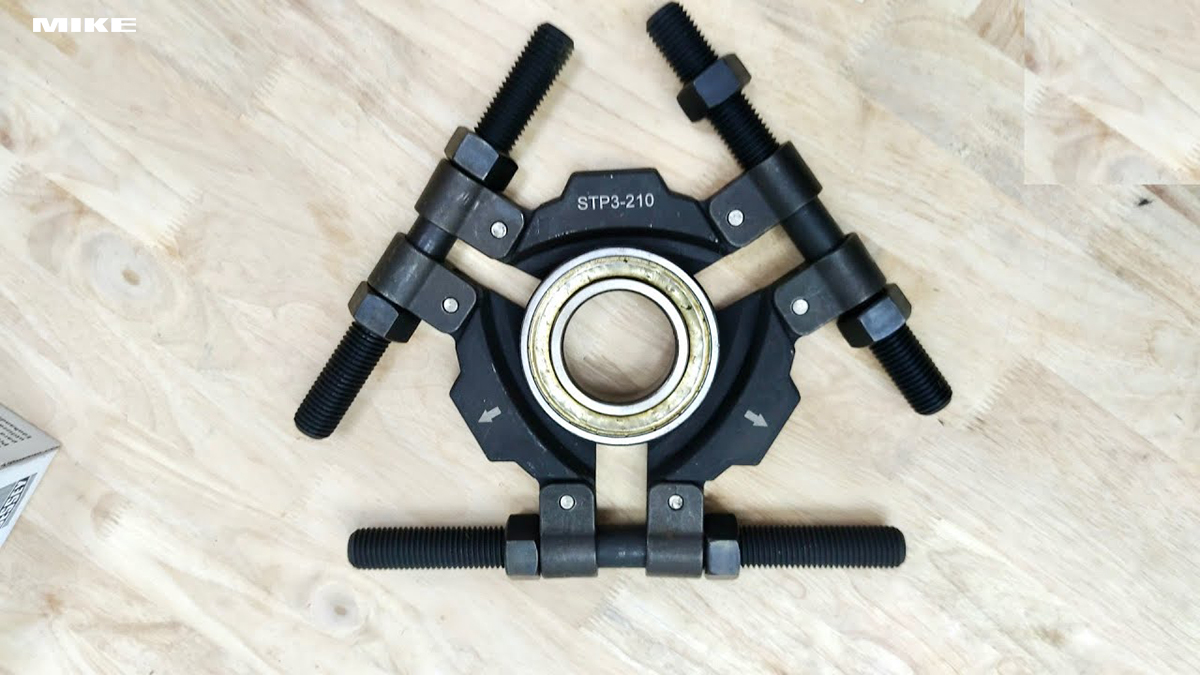

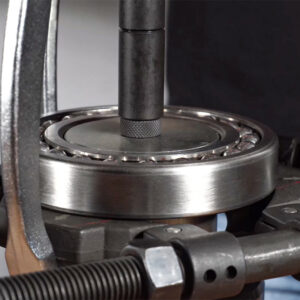

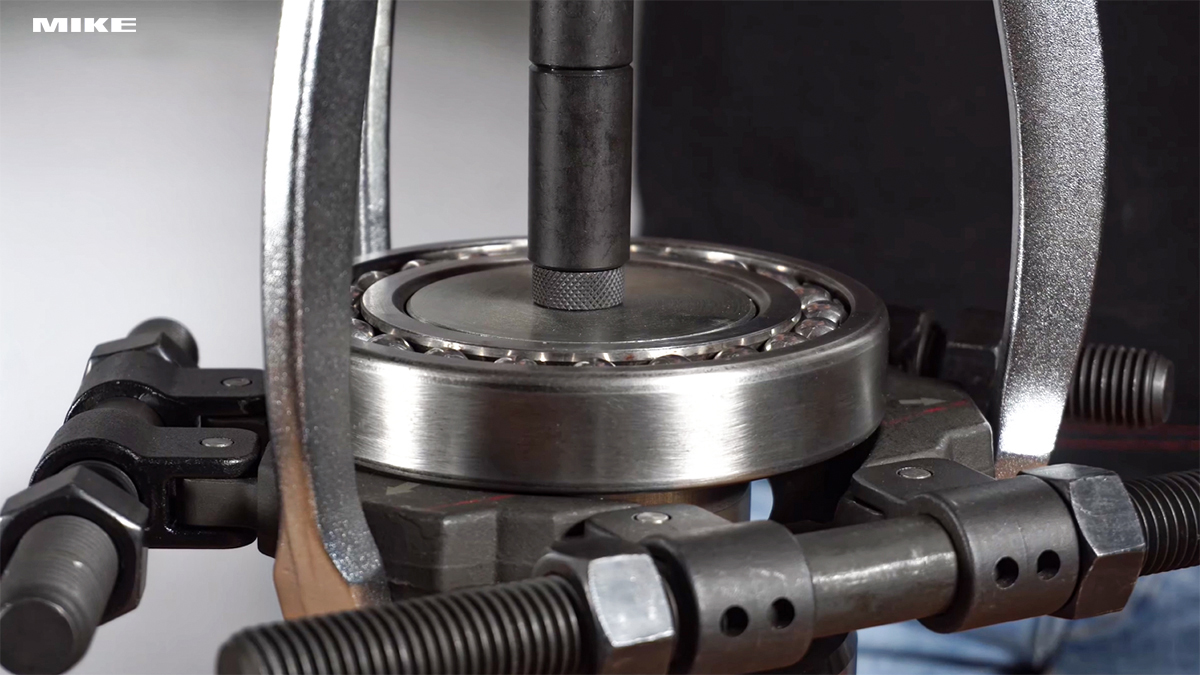

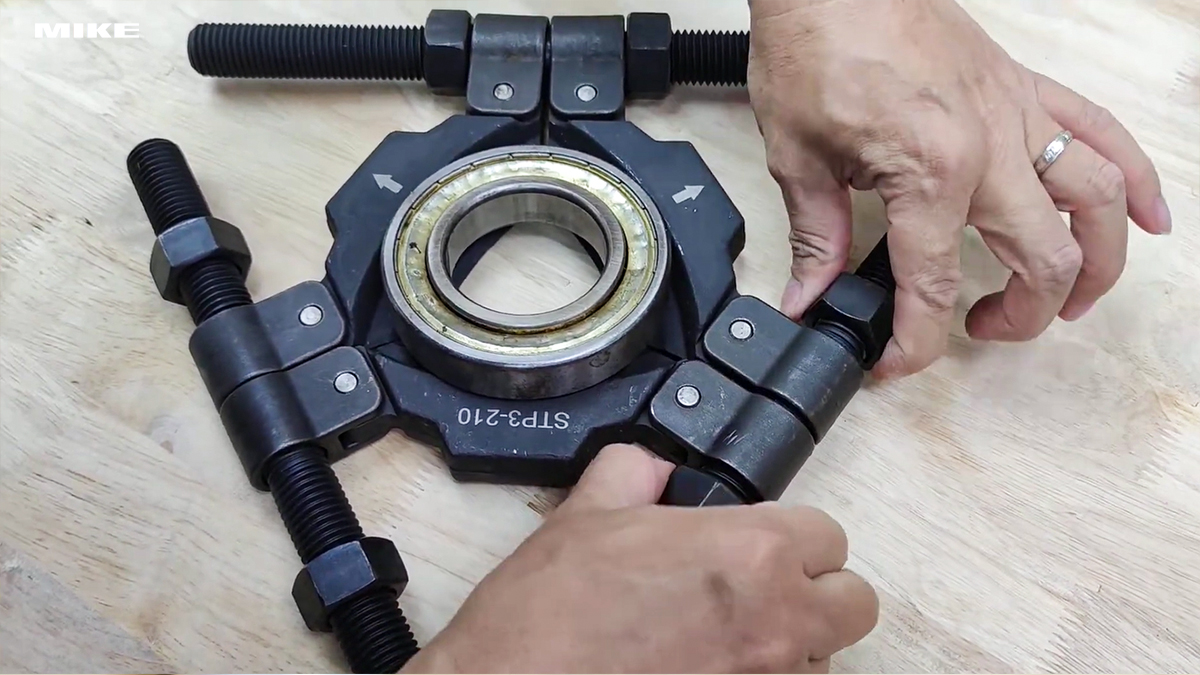

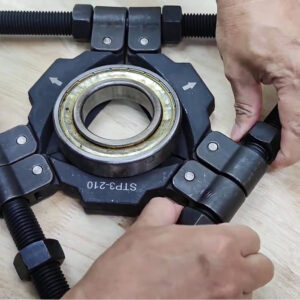

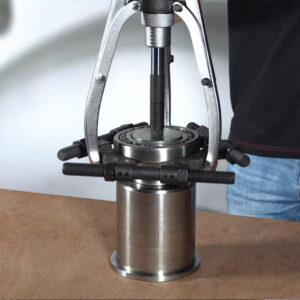

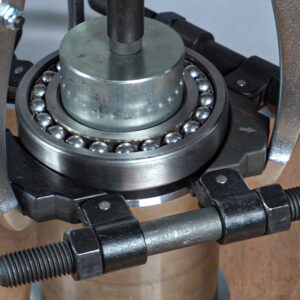

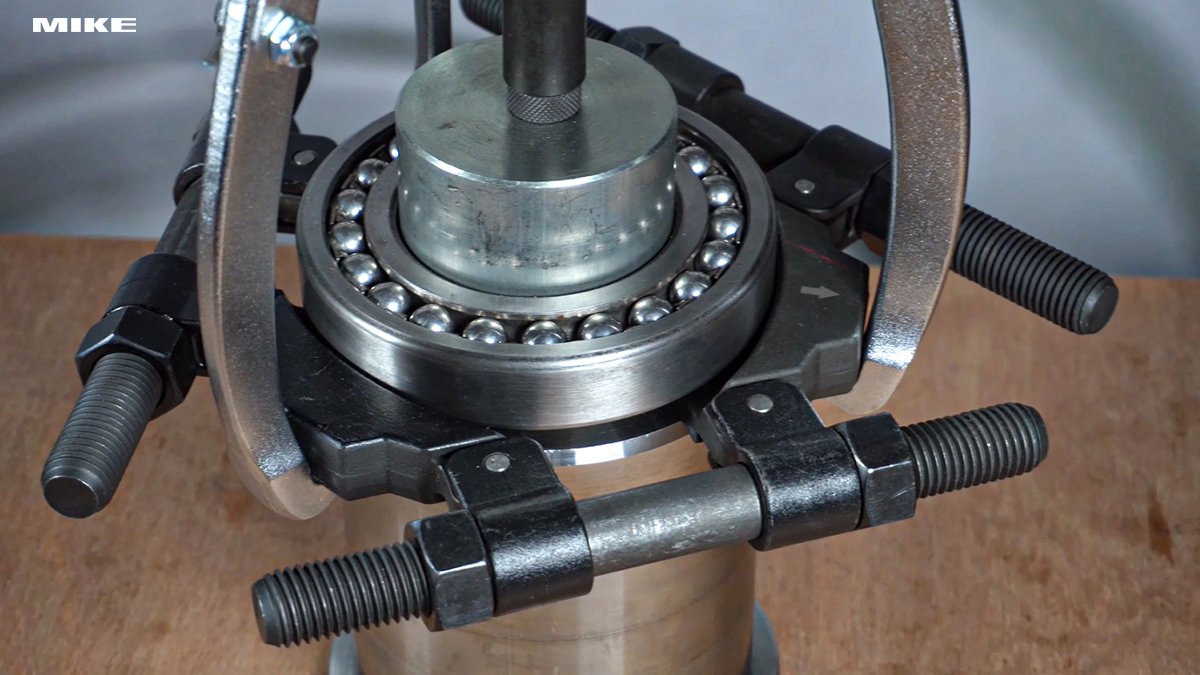

Specifically, they can be mounted behind both the inner and outer bearing rings, a design choice that significantly reduces the risk of damage to bearings. This is because it prevents the transmission of pulling force through the moving parts of the bearing.

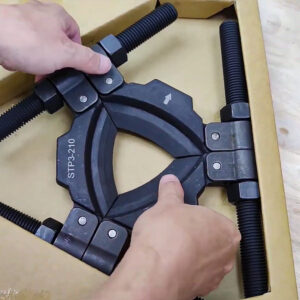

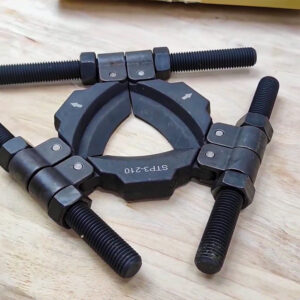

The advantages of the BETEX STP-3 are numerous. Firstly, the innovative design incorporates a hinge mechanism, ensuring maximum spread. This feature is especially beneficial when working with parts that require careful handling. Additionally, the presence of three pulling plates means the force exerted is evenly distributed. This uniform distribution of force is a key factor in preventing damage and ensuring efficient operation.

Tri-Section Pulling Plates BETEX STP-3

Another benefit is the compatibility of these plates with all 3-arm pullers, making them versatile tools in various mechanical applications. To cater to a wide range of needs, the plates are available in four different sizes, suitable for shaft diameters ranging from 26 to 495 mm.

This range covers a significant spectrum of mechanical requirements, making these plates a go-to solution for many professionals.

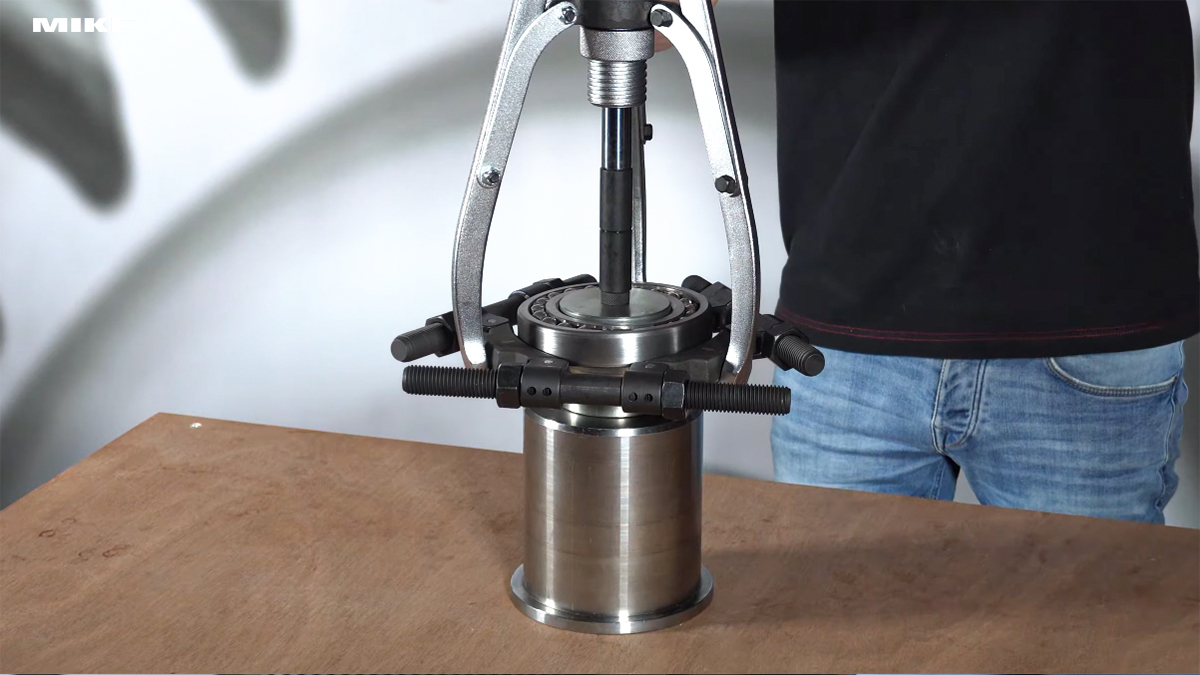

  • Designed for use with hydraulic and mechanical pullers.
  • Provides three equal bearing contact points for balanced load distribution.
  • Prevents damage to the shaft and component during pulling operations.
  • Ensures secure grip under high pulling forces.
  • Works with bearing splitters and puller sets for versatile applications.
  • Available in various sizes to match different bearing dimensions.

The product line includes several models, each designed for specific pullers and capacities. For instance, the Tri-section 160 model, compatible with HP/HSP43 and 63 pullers, has a maximum spread of 216 mm and a capacity of 6 tons, weighing 3.5 kg. Similarly, the Tri-section 210, 340, and 495 models cater to increasingly larger sizes and capacities, with the largest, the 495 model, offering a spread of 660 mm and a capacity of 30 tons, weighing 45 kg.

Tri-Section Pulling Plates BETEX STP-3 are an essential tool in the realm of mechanical maintenance and repair. Their patented design, compatibility with various pullers, range of sizes, and ability to evenly distribute force make them a valuable asset for professionals seeking efficient and safe operations in mechanical tasks.

SKU Price Add CapacityMin. spreadMax. spread
Tri-section 160  310.0
6 tons26mm160mm
Tri-section 210  348.0
8 tons50mm210mm
Tri-section 340  1,100.0
20 tons90mm340mm
Tri-section 495  2,500.0
30 tons140mm495mm
