Radius Gauges for testing of raised and recessed curves

Vogel Germany offers a comprehensive range of radius gauges designed for external and internal radius measurement. These gauges are essential for quality inspection in metalworking, machining, and toolmaking.

The six types include:

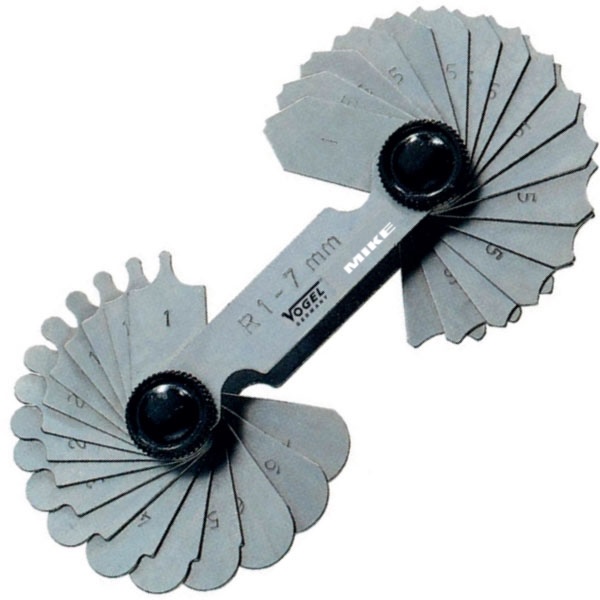

• Convex/Concave Radius Gauge Set: Covers radii from R1 to R7 mm. Each leaf is precisely ground to ensure accurate comparison.
• Special Radius Gauge for Grooves: Tailored for measuring internal groove fillets and concave radii in confined areas.
• Convex Radius Gauge (larger ranges): Available up to R15 mm for checking outer radii on shafts and components.
• Concave Radius Gauge (larger ranges): Ideal for verifying internal radii in bores and milled corners.
  Radius Gauge with Inch Graduation: Offers radius leaves in inches, useful in export-oriented production or legacy equipment.

carbon steel	stainless steel

Adjustable Radius Template (Flexible Steel): A bendable strip to quickly trace or check non-standard curves.
Manufactured in stainless steel with etched markings, these gauges deliver durability and readability in workshop conditions. Whether you’re checking radii for conformity or reverse-engineering parts, Vogel Germany’s radius gauges ensure consistency in dimensional control.
