Precision depth gauge 2308xx, according to DIN 863
SKU: 2308xxFeatures matt chrome finish, hardened and ground measuring pin, lapped measuring face, and a ratchet stop for constant measuring pressure. Clamping wheel enables quick and secure locking. Includes interchangeable 4.0 mm rods for extended depth range.
Price from: € 655.0 – € 1,351.0
(Price excluding tax, for reference only.)
Depth gauge micrometers from Vogel Germany combine durable construction, high measurement repeatability, and a structure that meets the strict DIN 863 standard. Designed for reliable use in calibration and inspection applications, these micrometers offer excellent accuracy across a wide range of depth measurement needs from 0–75 mm to 0–300 mm.
The Vogel Germany 2308xx series precision depth micrometers are engineered to meet the rigorous DIN 863 standard, making them highly suitable for calibration tasks and professional measurement applications. The drum and sleeve are finished in a non-reflective matt chrome, ensuring excellent readability even under bright lighting conditions.
Article no. | Measuring range |
Resolution | Base size | Pin diameter |
No. of | Max. error |
---|---|---|---|---|---|---|
mm | mm | mm | mm | rods | mm | |
230812 | 0 – 75 | 0.01 | 50 × 17 | 4.0 | 3 | 0.005 |
230814 | 0 – 100 | 0.01 | 100 × 17 | 4.0 | 4 | 0.005 |
230815 | 0 – 150 | 0.01 | 100 × 17 | 4.0 | 6 | 0.006 |
230816 | 0 – 200 | 0.01 | 100 × 17 | 4.0 | 8 | 0.007 |
230818 | 0 – 300 | 0.01 | 100 × 17 | 4.0 | 12 | 0.009 |
All measuring pins and contact surfaces are hardened and finely ground to enhance mechanical durability and ensure consistent repeatability across repeated use. The measuring face is precision ground and lapped to provide stable and accurate contact with the measured surface.

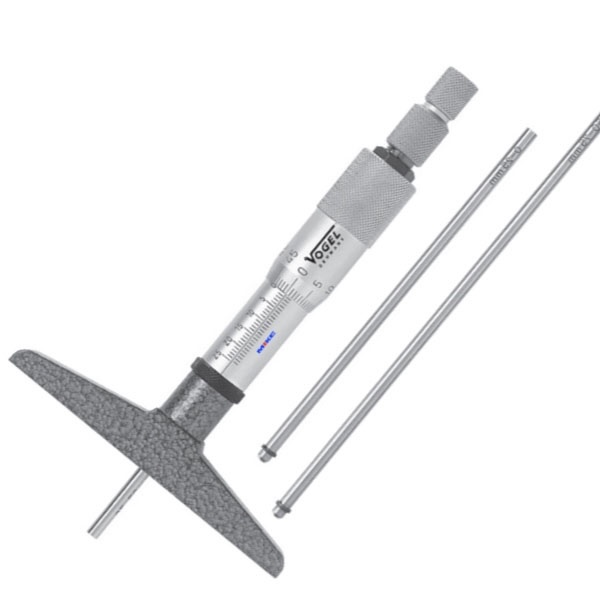

Precision depth gauge 2308xx,
according to DIN 863 Vogel Germany
A clamping wheel allows for fast and reliable locking during measurement, while the integrated ratchet mechanism ensures constant measuring pressure. Each model comes equipped with a set of interchangeable measuring rods, all with a 4.0 mm diameter, allowing users to cover a wide range of depth measurements with high precision.
- high standard quality, for calibration purposes
- drum and sleeve matt chrome finish
- measuring pin and surface hardened and fine ground
- measuring face plane ground and lapped
- clamping wheel for quick and precise fixing
- with ratchet for constant measuring pressure
SKU | Price | Add | Measuring range | Measuring Bridge | quantity of pins |
---|---|---|---|---|---|
230812 | € 655.0 | 0 - 75mm | 50x17mm | 3 | |
230814 | € 720.0 | 0 – 100mm | 100x17mm | 4 | |
230815 | € 842.0 | 0 – 150mm | 100x17mm | 6 | |
230816 | € 977.0 | 0 – 200mm | 100x17mm | 8 | |
230818 | € 1,351.0 | 0 – 300mm | 100x17mm | 12 |
