Middle Frequency Quick Heater 44kW – V3.0 – BETEX Netherland

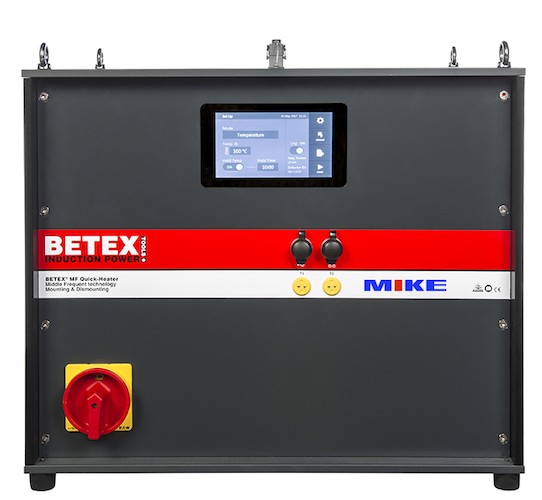

The BETEX Middle Frequency Quick Heater 44kW – V3.0 is a cutting-edge solution designed for precision heating applications. This model boasts a compact design, featuring a large 7″ display that provides users with a clear, interactive interface. The heater operates on a 44kW power output and a voltage of 400V, accommodating a broad range of industrial requirements.

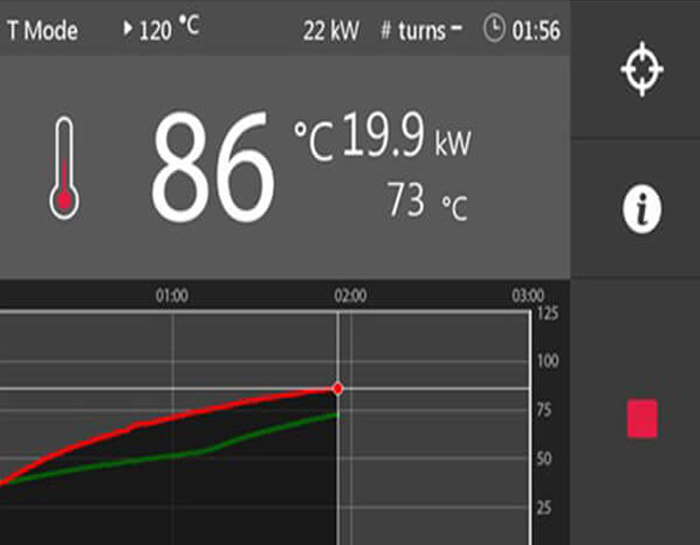

Key to its operation is the ability to heat according to a preset temperature/time curve, ensuring precise control over the heating process. This functionality is complemented by the display of temperature development in a chart form, allowing users to visually monitor the heating cycle’s progress. Additionally, the heater offers a logging function, enabling the storage of data directly on the device or exporting it to a USB stick for further analysis or record-keeping.

The smart electronics within the heater are engineered to ensure the optimal operating frequency, adapting to various operational needs. This is further supported by adjustable power control, which allows users to fine-tune the heating intensity. The device also provides guidance on achieving optimal heating outcomes, suggesting adjustments to the number of windings based on the specific task at hand.

Middle Frequency Quick Heater 44kW – V3.0

Another notable feature is the dual temperature sensing capability, which monitors the temperature differential (ΔT) to ensure even heating across the workpiece. The heater also offers the flexibility to operate multiple units in tandem, expanding its utility for larger or more complex heating tasks.

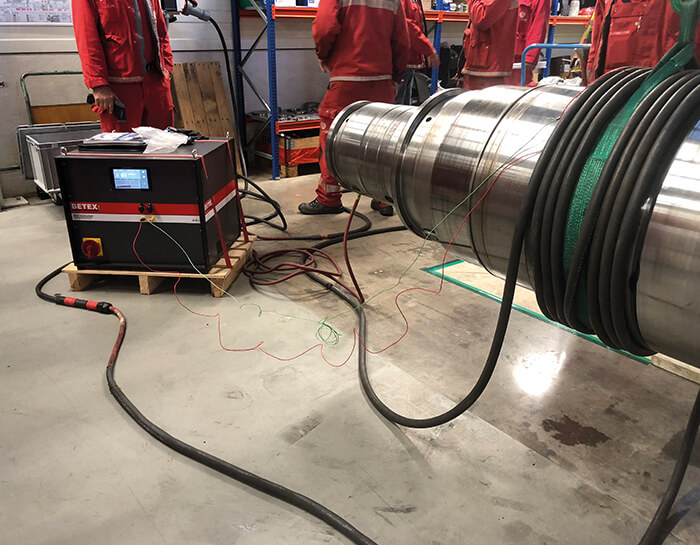

For applications requiring tension-free heating, the BETEX MF Generator 3.0 – 44kW provides options for both fixed and flexible inductors, catering to a wide range of workpiece configurations. Fixed inductors are ideal for tasks such as removing labyrinth rings and sleeves, while flexible inductors can be adapted to suit the specific shape and size of the workpiece, whether wrapping around or being placed inside it.

The product specifications highlight its robust capabilities, including a 44kW power rating, 63 Ampere current, and a temperature accuracy of ±3.5°C. It supports temperature sensing up to 300°C and includes additional inputs for extra thermo couples. The generator’s dimensions are 600x650x580 mm, and it features forced air cooling for efficient operation.

The heating process can be precisely managed through the touchscreen interface, which allows for setting power, temperature, and heating curves, as well as timers and operational modes. Connectivity options include USB and network connections, facilitating easy integration into existing systems.

Middle Frequence GENERATOR 3.0 – 44kW

• Compact design with large 7″ display
• Heats according to preset temperature/time curve
• Shows temperature development in chart form
• Option of logging the heating cycle
• Log function to store data or export to a USB-stick
• Smart electronics ensure optimal operating frequency
• Adjustable power control
• Advises user on optimal heating (more/fewer windings)
• Dual temperature sensing (monitoring ΔT)
• Option to operate several heaters together

Product specifications

• Power: 44kW
• Voltage: 400V
• Ampere: 63A
• Temperature accuracy: ±3.5°C
• Max temperature sensor: 300°C
• Display: 7-inch touchscreen
• Heating curve display
• Log function for data storage/export
• Smart electronics for optimal frequency
• Adjustable power control
• Dual temperature sensing (ΔT monitoring)
• Option for multiple heaters operation
• Fixed and flexible inductors available
• Dimensions: 600x650x580 mm
• Forced air cooling
• USB and network connection
• Signaling: operational state, error message, end heating cycle (Acoustic signal/light option)
• Weight: 78 kg

The device also features comprehensive signaling options for operational states, error messages, and the completion of heating cycles, including both acoustic signals and light options. This ensures that users are well-informed of the heater’s status at all times.

BETEX Middle Frequency Quick Heater 44kW – V3.0 represents a highly advanced and versatile heating solution. Its combination of precise control, flexible operation, and comprehensive monitoring capabilities makes it an invaluable tool for a wide range of industrial heating applications.
