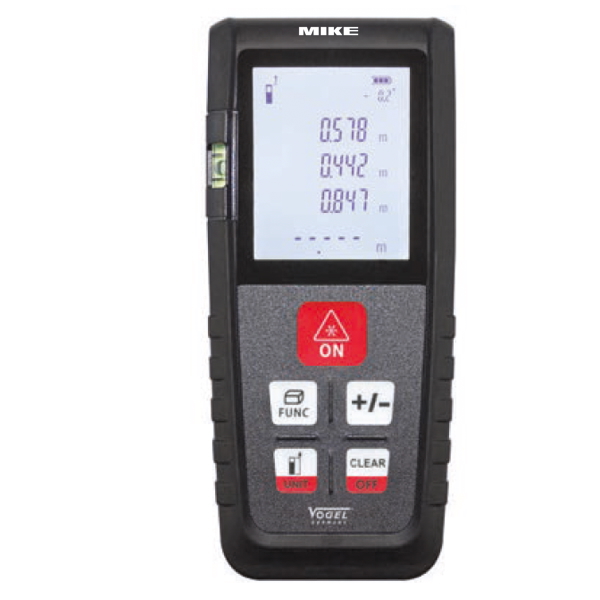

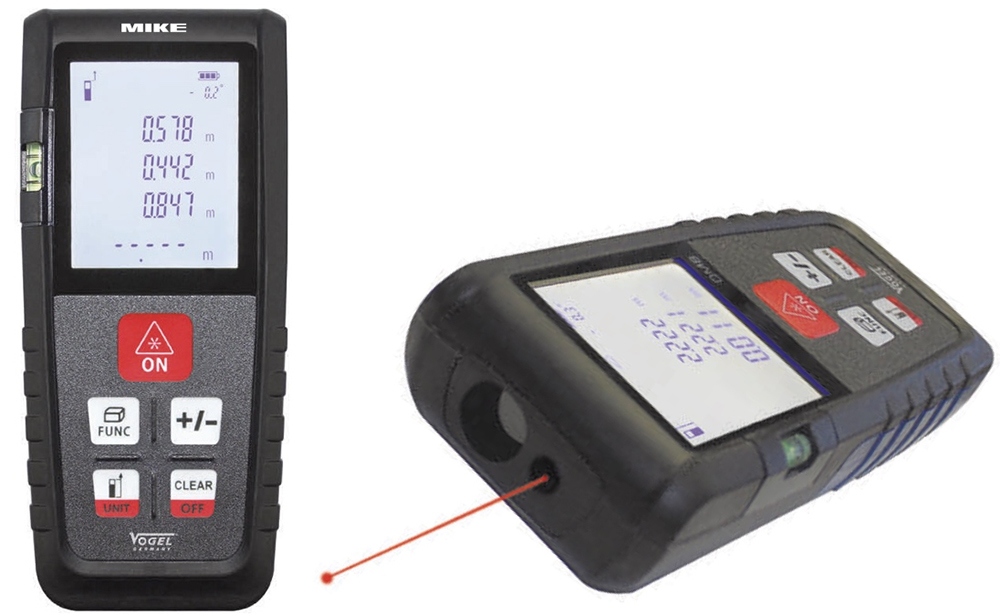

Laser Distance Meter measuring ranger 0.05 – 100m Vogel Germany


Available on backorder

SKU: 140132

This laser distance meter has a range of 0.05-100m, 1mm accuracy, an angle sensor, integrated water foam, backlit display, and is effective both indoors and outdoors. Dimensions are 117x52x27mm. VOGEL Germany.

Available on backorder


Laser distance meter up to 100m, accuracy up to 1mm. About this measuring range this machine is not much different from 140134 except with the addition of an angle sensor. On the camera body is also integrated with a horizontal water foam. Useful when you place the unit on a Tri-pod tripod. The screen has backlit, clear display in many environmental lighting conditions. The highest use efficiency for the indoor environment, but outdoors, under the shade is still highly effective.


  1. Measuring Range: The device can measure distances from 0.05 meters (50 millimeters) up to 100 meters.
  2. Accuracy: The accuracy of the measurements is up to 1 millimeter (0.001 meters) within the specified measuring range. However, the maximum total accuracy of the device is 2 millimeters.
  3. Angle Sensor: This model includes an angle sensor, which allows for measuring not only distances but also angles. This can be useful for various applications that require angle measurements.
  4. Integrated Horizontal Water Foam: The laser distance meter has a horizontal water foam integrated into the camera body. This feature helps when placing the unit on a tripod, ensuring stability and accurate measurements.
  5. Backlit Display: The device’s screen has a backlight, which provides clear visibility in different environmental lighting conditions. This feature allows for easy reading of measurements even in low light or dark environments.
  6. Indoor and Outdoor Use: The laser distance meter is highly efficient for indoor use. However, it can still be effective outdoors, particularly under shade or in areas with reduced direct sunlight.
  7. Laser Specifications: The laser used in the device has a wavelength range of 620 to 690 nanometers. The maximum power output of the laser is 1 milliwatt, which ensures safe operation.
  8. Dimensions: The device has dimensions of 117 x 52 x 27 millimeters, indicating its physical size.

Laser Distance Meter 140132 ranger 100m

Measuring range 0.05 – 100 m. reading 0.001 m. max. total accuracy 2 mm. laser wavelength 620 ~ 690 nm. max 1 mW. article dimension 117 x 52 x 27 mm.

Laser Distance Meter measuring ranger 0.05 – 100m

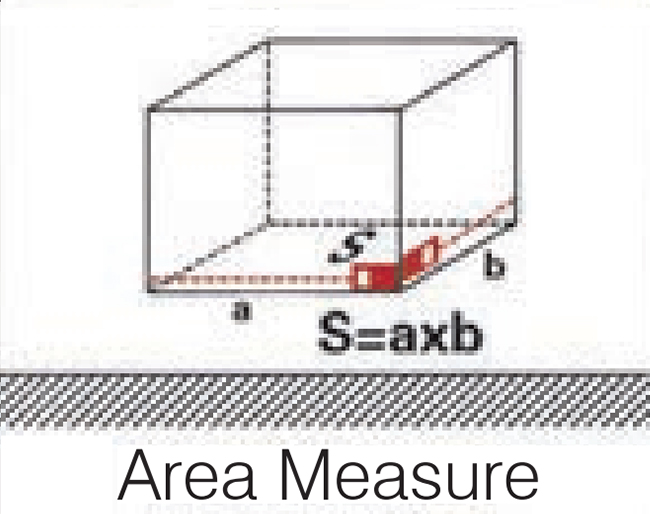

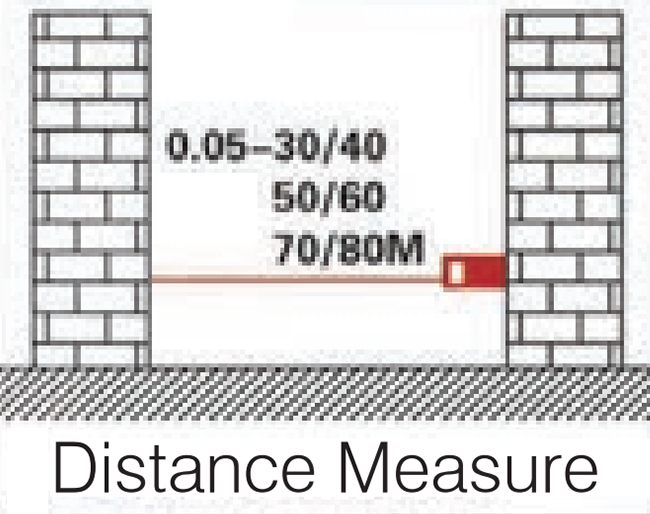

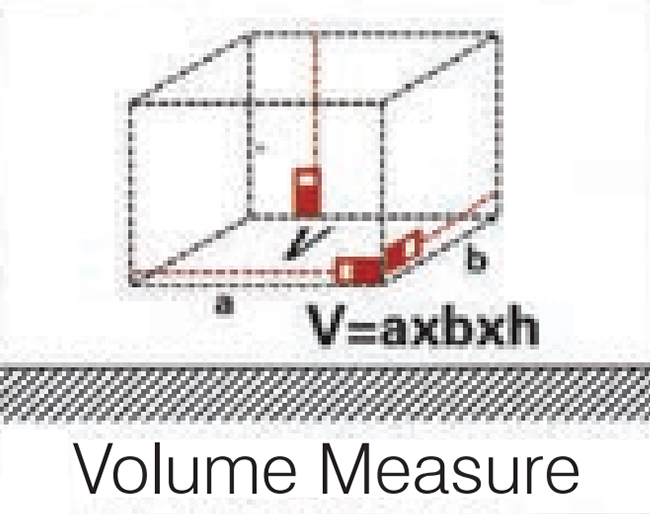

  • The instrument measures distance. area and volume
  • Distances can be added or subtracted

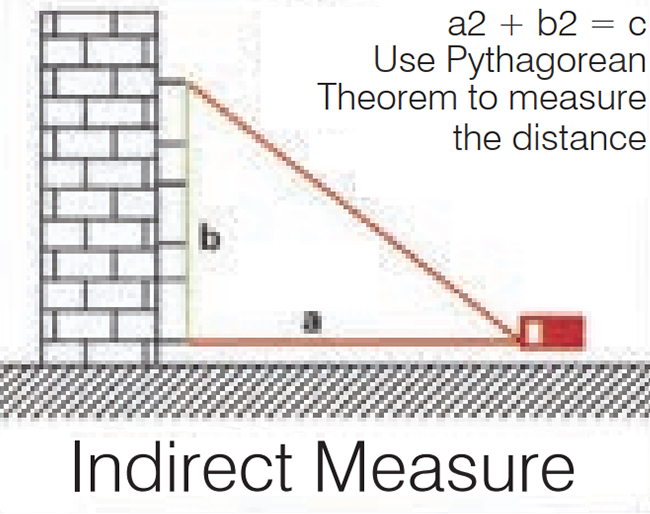

  • Indirect measuring for height measuring
  • Calculation of angles and triangular areas. trapezoidal faces and much more
  • Pythagoras-Function 1: calculation of distance using two related measurements
  • Pythagoras-Function 2: calculation of distance using tree related measurements
  • Angle sensor 0° – 150°
  • „Low-battery-display“. with backlight. memory function for 50 measurements
  • Measuring in meter. inch or engl. feet switchable. measurement speed 0.5 sec.
  • Autom. power off: laser beam after ~ 30 sec.. device after ~ 180 sec.
  • Operation temperature -10 °C ~ +40 °C. storage temperature -20 °C ~ +65 °C
  • User-friendly rubber buttons. sound signal by pressing the buttons
  • Laser class II. FCC test (part 15). EN 60825-1:2007
  • Laser parameter 620 – 690 nm. output max. 1 mW
  • Carrying bag with belt loop. hand loop. 2x 1.5 V battery (type AAA. art.-no.: 90002) and operation manual

Overall, this laser distance meter offers a wide measuring range, high accuracy, an angle sensor, and a backlit display for convenient use in various lighting conditions. It can be particularly useful for both indoor and outdoor applications, providing reliable distance and angle measurements.
