Flat hydraulic cylinders BETEX NSLS, low height, spring return
SKU: NSLSXi lanh thủy lực BETEX NSLS: chiều cao thấp, hồi phục bằng lò xo, tác động đơn, tải trọng 5-150 tấn, hành trình 6-17 mm, ứng dụng 700 bar, piston mạ cứng, đầu xi lanh đánh bóng bằng có thể, hoàn thiện bằng nitrua đen, thiết kế nhỏ gọn.
Price from: € 272.0 – € 2,387.0
(Price excluding tax, for reference only.)
BETEX NSLS series represents a line of precision-engineered hydraulic cylinders, characterized by low-profile construction and spring-return mechanism. These single-acting cylinders are specifically designed for applications where space constraints are critical, yet high load capacity and reliable force delivery are still required.
![]() |
![]() |
![]() |

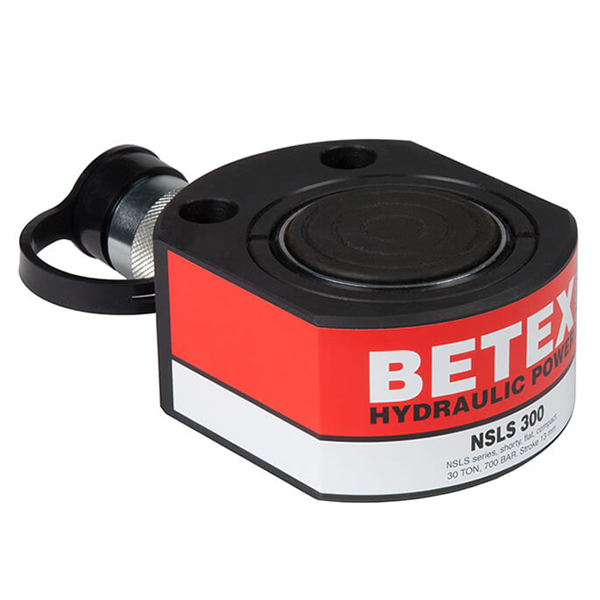

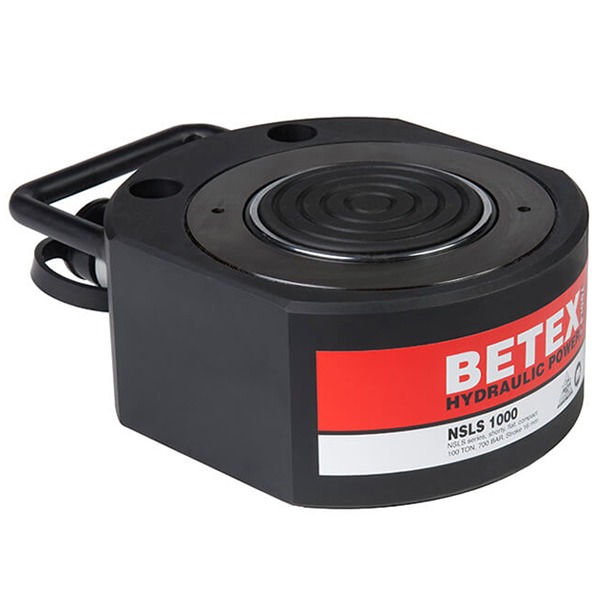

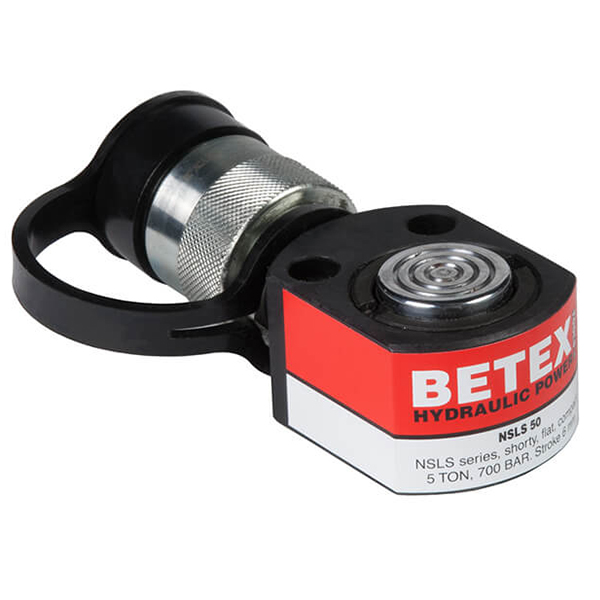

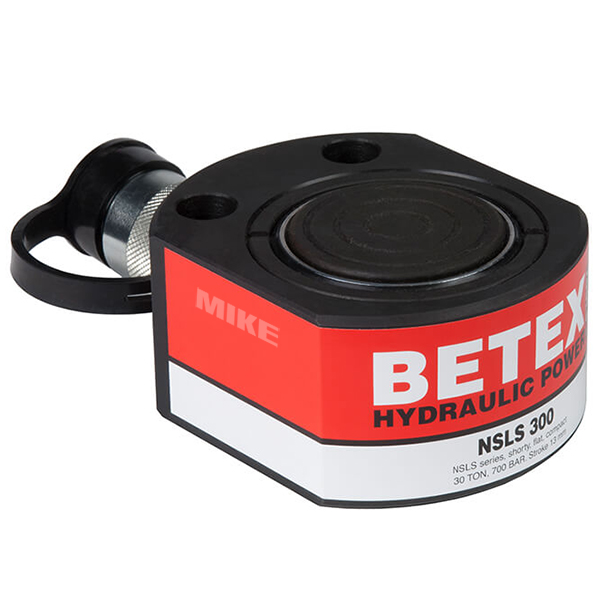

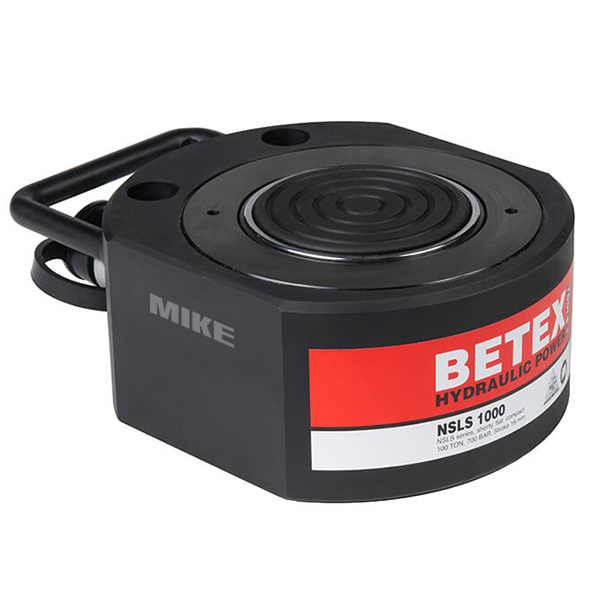

NSLS 50 | NSLS 300 | NSLS 1000 |
This product line covers a broad capacity range from 5 to 150 tons, making it suitable for a wide spectrum of industrial applications. The cylinders feature a short stroke of 6 to 17 mm, aligning with their low-profile design. They are engineered to operate under a maximum working pressure of 700 bar (10,000 psi), ensuring both durability and applicability in high-demand tasks.
Flat hydraulic cylinders BETEX NSLS
low height, spring return
A key feature of the BETEX NSLS cylinders is the hardened chrome-plated piston, which enhances strength and wear resistance. The piston rods are roller-burnished to achieve a smooth and precise surface finish, while the exterior is sandblasted and coated with a nitride layer to further improve durability and surface protection.
This finishing method not only ensures smooth operation but also enhances resistance to corrosion and external damage.
- Low-profile design
- Spring-return mechanism
- Single-acting cylinder
- Capacity range: 5 to 150 tons
- Stroke length: 6 to 17 mm
- Maximum working pressure: 700 bar (10,000 psi)
- Hardened piston for high durability
- Internal ram surface roller-burnished for smooth performance
- External black nitride coating for corrosion protection
- Compact “pancake” cylinder configuration
- Multiple models available for various tasks and dimensions
These cylinders are also referred to as “pancake cylinders” due to their compact, low-profile design. This self-contained structure makes them particularly valuable in confined spaces where traditional hydraulic cylinders cannot fit.
Model | Capacity ton | Stroke mm | Oil capacity cm³ | Installation height min mm | Installation height max mm | Weight g |
NSLS 50 | 5 | 6 | 4,5 | 33 | 39 | 1000 |

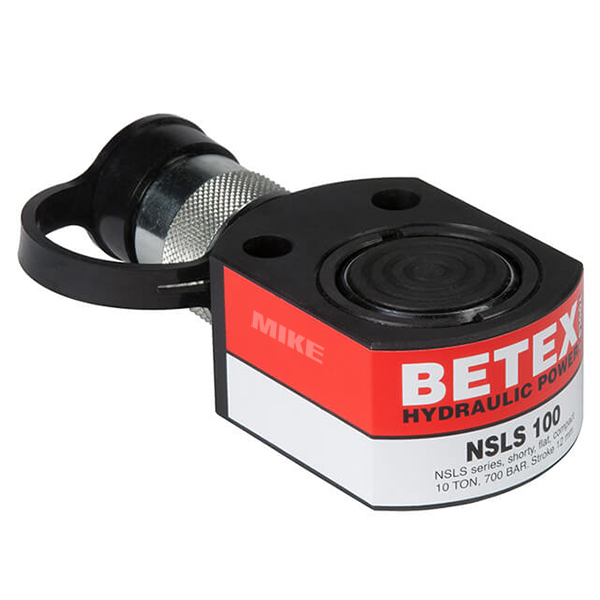

NSLS 100 | 10 | 12 | 18,0 | 42 | 54 | 1400 |

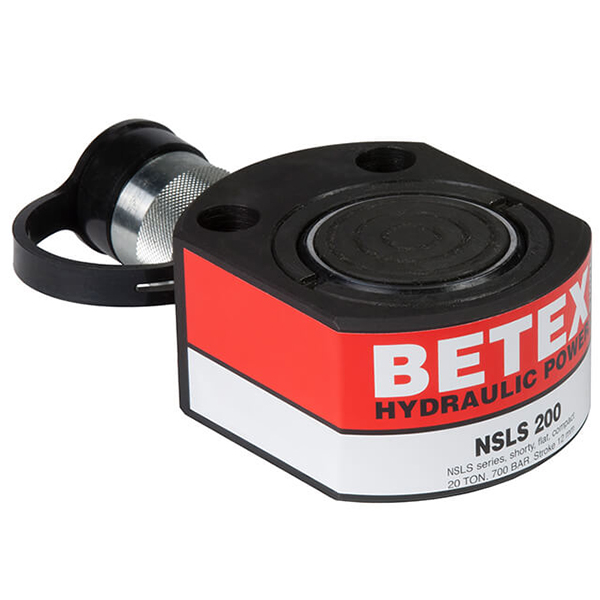

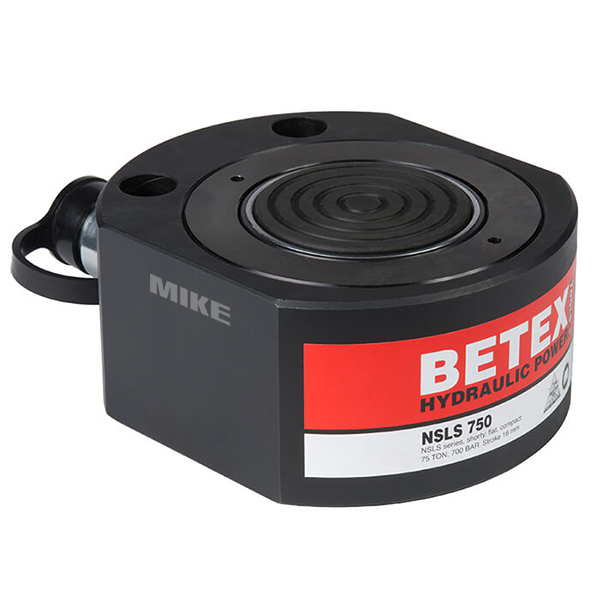

NSLS 200 | 20 | 12 | 34,0 | 51 | 63 | 3100 |
NSLS 300 | 30 | 13 | 54,0 | 58 | 71 | 4500 |
NSLS 500 | 50 | 16 | 113,0 | 66 | 82 | 6800 |
NSLS 750 | 75 | 16 | 180,0 | 79 | 95 | 11300 |
NSLS 1000 | 100 | 16 | 229,0 | 85 | 101 | 14500 |

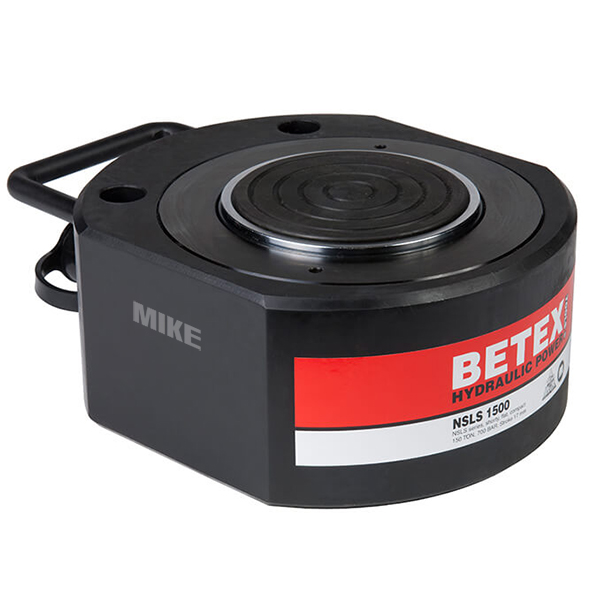

NSLS 1500 | 150 | 17 | 363,0 | 100 | 117 | 26300 |
This product line includes multiple models, each differing in load capacity, stroke length, oil volume, closed height, extended height, and overall weight. For example, the NSLS50 model provides a 5-ton capacity with a 6 mm stroke, while the NSLS1500 model is capable of handling 150 tons with a 17 mm stroke. The weight range extends from 1,000 g to 26,300 g, reflecting the series’ broad diversity in size and performance characteristics.

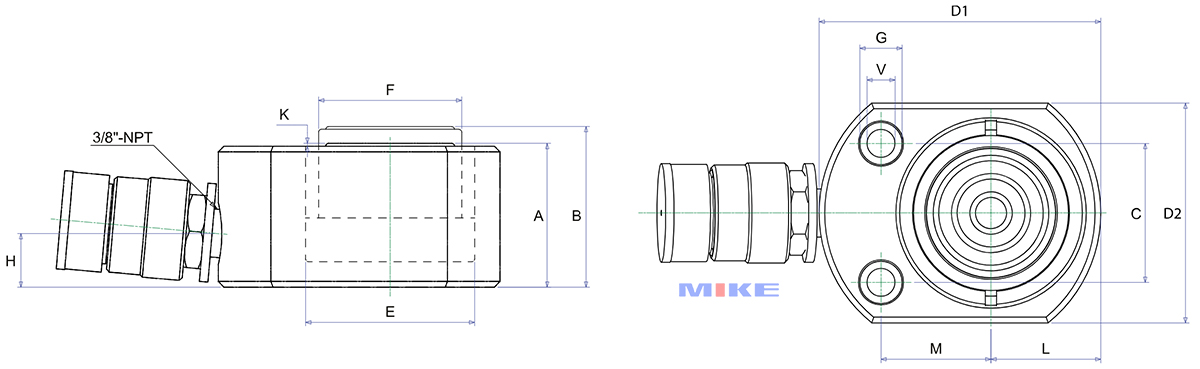

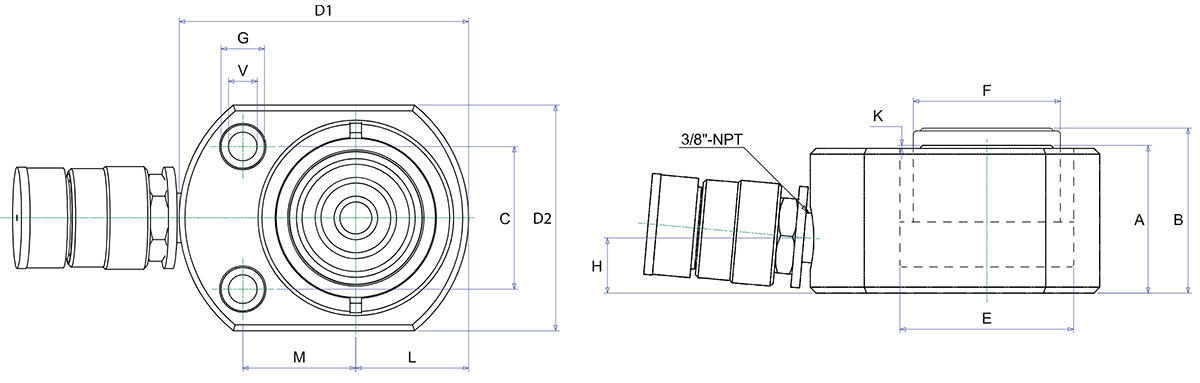

BETEX NSLS size information
Model | C | D1 | D2 | E ø | F ø | Đi | H | K | L | M | V ø |
NSLS 50 | 28,5 | 58,5 | 44 | 31 | 25,4 | 9,5 | 16 | 1 | 22 | 22 | 5.3 |
NSLS 100 | 36,5 | 82,5 | 60 | 44 | 38 | 11 | 19 | 1 | 30 | 34 | 7,5 |
NSLS 200 | 49,3 | 100 | 78 | 60 | 50,8 | 15 | 19 | 1 | 39 | 39 | 10 |
NSLS 300 | 52,3 | 117,5 | 95 | 73 | 63,5 | 16 | 19 | 2 | 47,5 | 47,5 | 10 |
NSLS 500 | 66,5 | 145 | 115 | 95 | 70 | 19 | 19 | 2 | 57,5 | 58 | 11 |
NSLS 750 | 76,2 | 170 | 145 | 120 | 82,5 | 20,5 | 19 | 2 | 72,5 | 70 | 13,5 |
NSLS 1000 | 76,2 | 185 | 160 | 135 | 92 | 20,5 | 19 | 2 | 80 | 78 | 13,5 |
NSLS 1500 | 117 | 225 | 195 | 165 | 115 | 20,5 | 23 | 2 | 97,5 | 85 | 13,5 |
BETEX NSLS hydraulic cylinders are engineered for applications requiring high operational capacity within restricted spaces. Their compact design, combined with multi-functionality, short stroke lengths, high working pressure capability, robust structural configuration, and an efficient spring-return mechanism, make them an indispensable tool across a wide range of industrial sectors.
SKU | Price | Add | Capacity | Stroke | Oil capacity |
---|---|---|---|---|---|
NSLS 50 | € 272.0 | 5 tons | 6mm | 4.5ml | |
NSLS 100 | € 379.0 | 10 tons | 12mm | 18ml | |
NSLS 200 | € 539.0 | 20 tons | 12mm | 34ml | |
NSLS 300 | € 616.0 | 30 tons | 13mm | 54ml | |
NSLS 500 | € 872.0 | 50 tons | 16mm | 113ml | |
NSLS 750 | € 1,278.0 | 75 tons | 16mm | 180ml | |
NSLS 1000 | € 1,739.0 | 100 tons | 16mm | 229ml | |
NSLS 1500 | € 2,387.0 | 150 tons | 17mm | 363ml |
