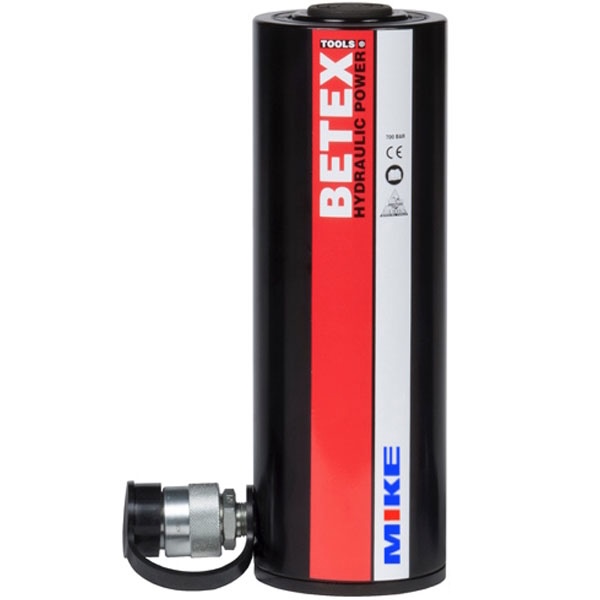

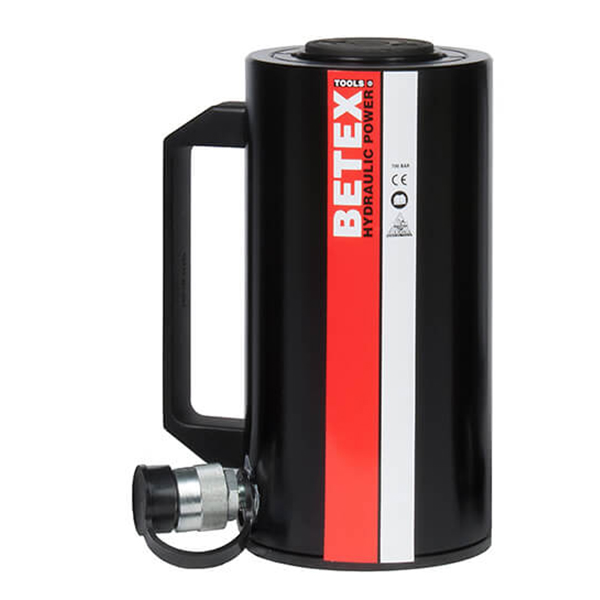

Aluminium hydraulic cylinders, aluminium, spring return, single acting
SKU: SSA
Description
LIGHT WEIGHT ALUMINIUM CYLINDERS
BETEX SSA-Series, spring return, single acting
Capacity : 50 – 100 ton
Stroke : 50 -250 mm
Max working pressure : 700 bar
Custom stroke lengths and capacities are available

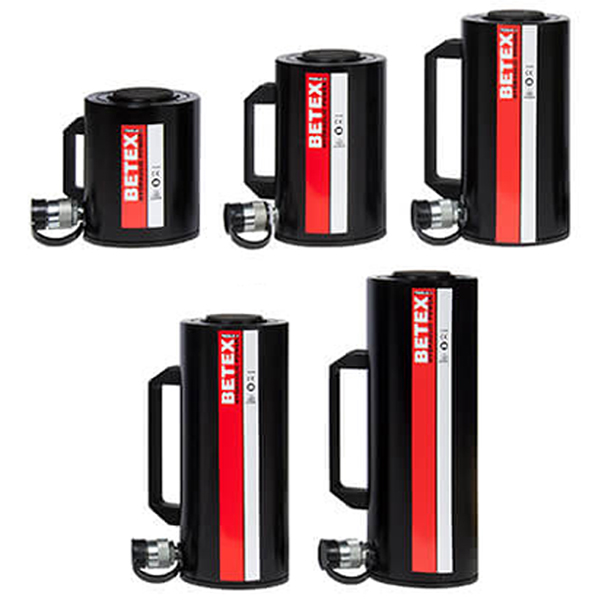

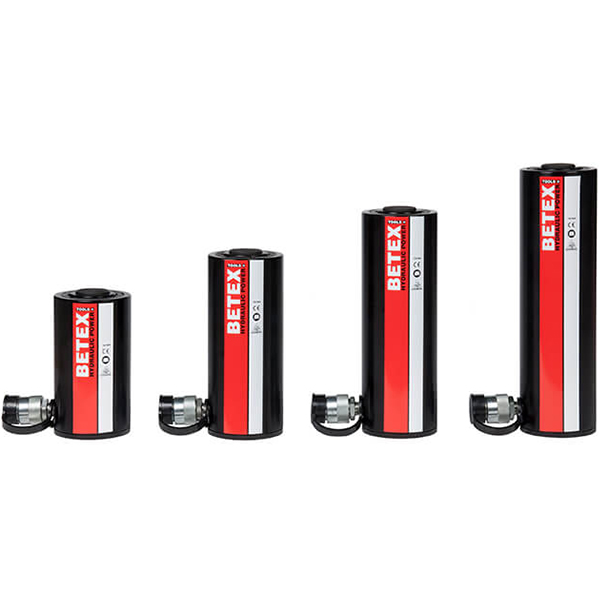

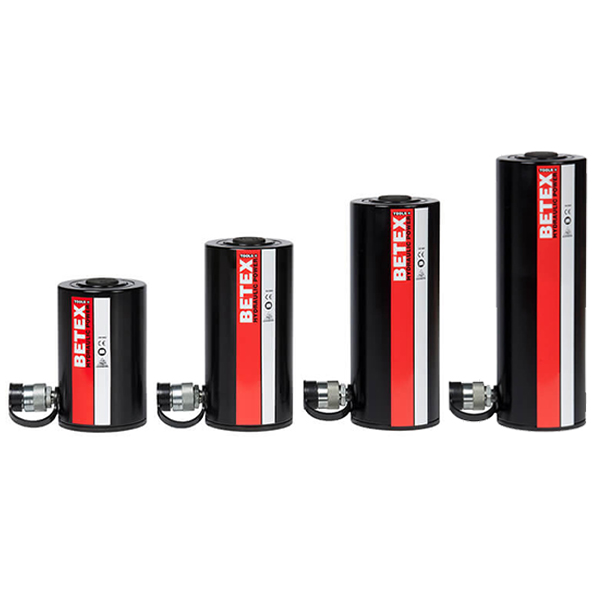

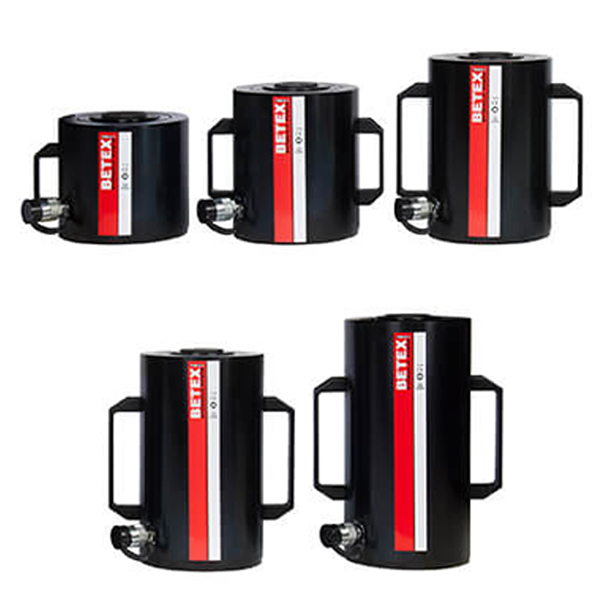

- 8 standard models available for 50 to 100 tons
- Up to 60% lighter than steel cylinders
- Heavy duty spring for easy and full retraction
- Large saddle surface for angle load protection
- High-flow quality couplers
- All models are provided with carry handles
- Rod wiper protects inner rod from dirt
- Hard-anodized housing and piston reduce wear and corrosion
- Rams inside roll-polished, the black hard-anodized housing reduces wear and corrosion.
|
Model
|
Cap
ton
|
Stroke
mm
|
Oil cap cm3
|
Height mm
|
Weight
Kg
|
|
|
Collapsed
|
Extended
|
|||||
|
SSA 202
|
20
|
50
|
166
|
168
|
218
|
4.3
|
|
SSA 204
|
20
|
100
|
332
|
218
|
318
|
5
|
|

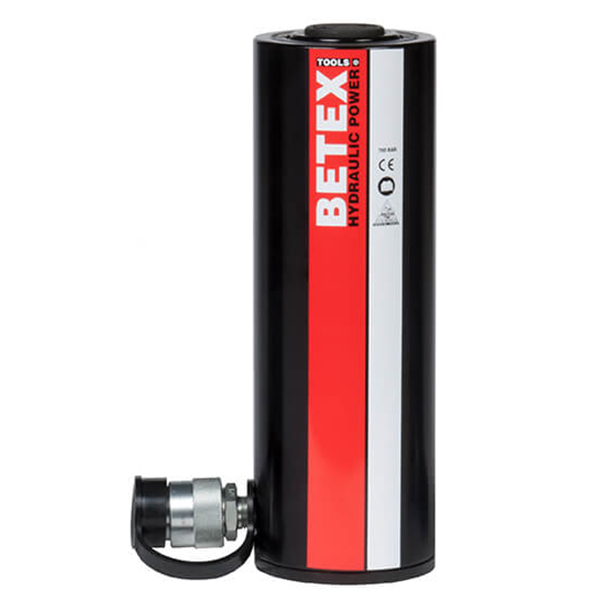

SSA 206
|
20
|
150
|
498
|
268
|
418
|
5.7
|
|
SSA 208
|
20
|
200
|
664
|
318
|
518
|
6.5
|
|
SSA 302
|
30
|
50
|
221
|
175
|
225
|
6
|
|
SSA 304
|
30
|
100
|
442
|
225
|
325
|
6.9
|
|

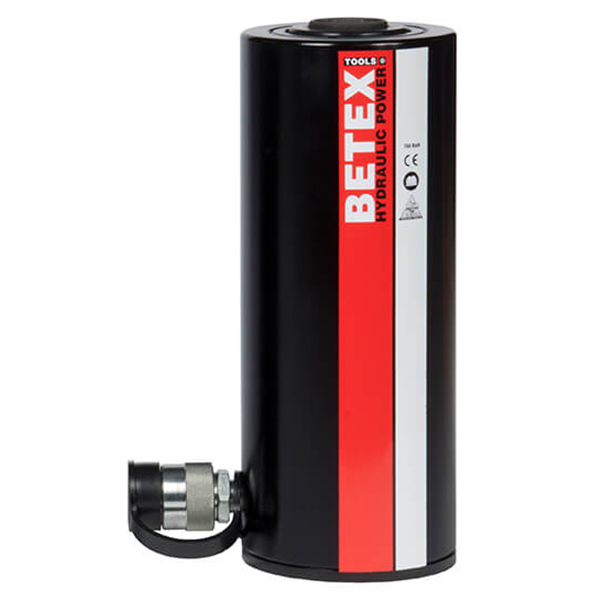

SSA 306
|
30
|
150
|
663
|
275
|
425
|
7.9
|
|
SSA 308
|
30
|
200
|
884
|
325
|
525
|
8.8
|
|
SSA 502
|
50
|
50
|
354.5
|
171
|
221
|
6
|
|
SSA 504
|
50
|
100
|
709
|
221
|
321
|
7.7
|
|
SSA 506
|
50
|
150
|
1063.5
|
271
|
421
|
12.7
|
|
SSA 508
|
50
|
200
|
1418
|
321
|
521
|
13.5
|
|
SSA 5010
|
50
|
250
|
1772.5
|
371
|
621
|
16.4
|
|
SSA 1002
|
100
|
50
|
715.5
|
185
|
235
|
18.2
|
|
SSA 1004
|
100
|
100
|
1431
|
235
|
335
|
20.5
|
|

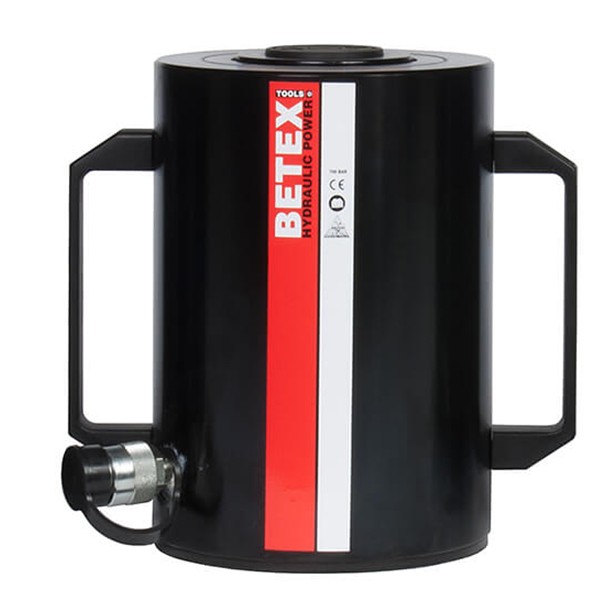

SSA 1006
|
100
|
150
|
2146.5
|
285
|
435
|
22.7
|
|
SSA 1008
|
100
|
200
|
2860
|
335
|
535
|
28.5
|
| SKU | Add | Capacity | Stroke | pa_dung-tich-dau-cua-xylanh |
|---|---|---|---|---|
| SSA 202 | 20 tons | 50mm | - | |
| SSA 204 | 20 tons | 100mm | - | |
| SSA 206 | 20 tons | 150mm | - | |
| SSA 208 | 20 tons | 200mm | - | |
| SSA 302 | 30 tons | 50mm | - | |
| SSA 304 | 30 tons | 100mm | - | |
| SSA 306 | 30 tons | 150mm | - | |
| SSA 308 | 30 tons | 200mm | - | |
| SSA 502 | 50 tons | 50mm | - | |
| SSA 504 | 50 tons | 100mm | - | |
| SSA 506 | 50 tons | 150mm | - | |
| SSA 508 | 50 tons | 200mm | - | |
| SSA 5010 | 50 tons | 250mm | - | |
| SSA 1002 | 100 ton | 50mm | - | |
| SSA 1004 | 100 ton | 100mm | - | |
| SSA 1006 | 100 ton | 150mm | - | |
| SSA 1008 | 100 ton | 200mm | - | |
| SSA 10010 | 100 ton | 250mm | - |
