Electric hydraulic workshop presses BETEX WSPE
SKU: WSPEBETEX WSPE electric hydraulic presses range from 30 to 300 tons, featuring dual-speed pistons, welded frames, adjustable surfaces, precision controls, and optional accessories for diverse and precise pressing tasks.
BETEX WSPE series of electric hydraulic workshop presses are designed for a multitude of applications such as assembly, straightening, and component testing. With capacities ranging from 30 to 300 tons, these presses meet the needs of both small workshops and industrial environments.
![]() |
![]() |
60 tons | 300 tons |
A standout feature of the BETEX WSPE series is the dual-speed piston, which can adjust its speed in response to material resistance, ensuring efficiency and precision. This unique function allows for rapid movement that shifts to a more controlled speed upon encountering counter pressure, an invaluable feature when consistency and precision are required.
List of BETEX WSPE models
These presses boast a robust steel frame, expertly welded for stability and to guarantee a long lifespan, even under rigorous use. The work surface height is readily adjustable to accommodate different project requirements, enhancing the versatility of these machines.
Product Workshop press BETEX |
Voltage (V) | Capacity (ton) | Stroke (mm) | Maximum Pressure (bar) | Type Cylinder | Working Width (mm) | Engine (kW) | Weight (kg) |
---|---|---|---|---|---|---|---|---|

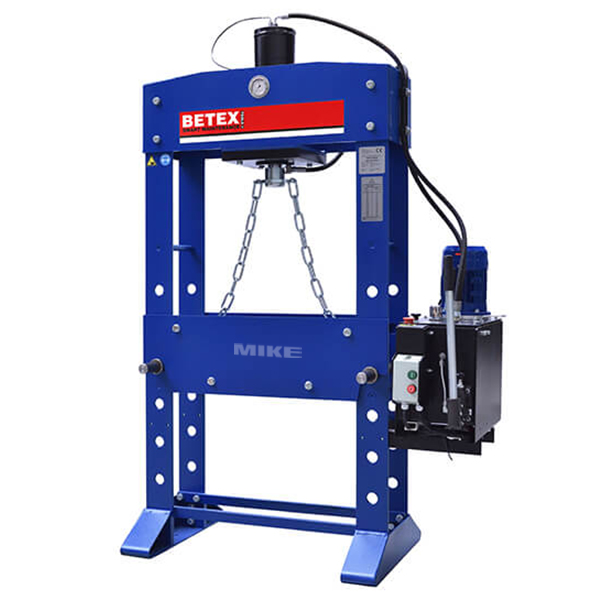

7513004 – WSPE30 S380 W750 | 400 | 30 | 380 | 221 | Fixed | 750 | 1.5 | 385 |
7513005 – WSPE60 S380 W750 | 400 | 60 | 380 | 259 | Moveable | 750 | 1.5 | 540 |

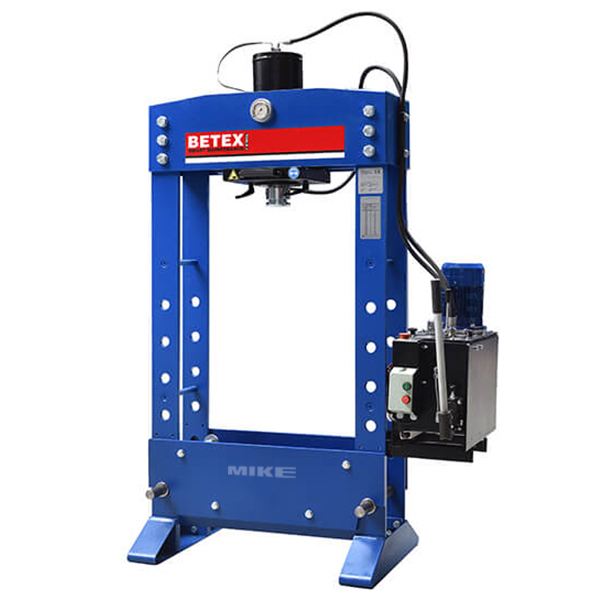

7513006 – WSPE100 S380 W1100 | 400 | 100 | 380 | 258 | Moveable | 1100 | 2.2 | 970 |
7513008 – WSPE100 S380 W1500 | 400 | 100 | 380 | 258 | Moveable | 1500 | 2.2 | 1145 |

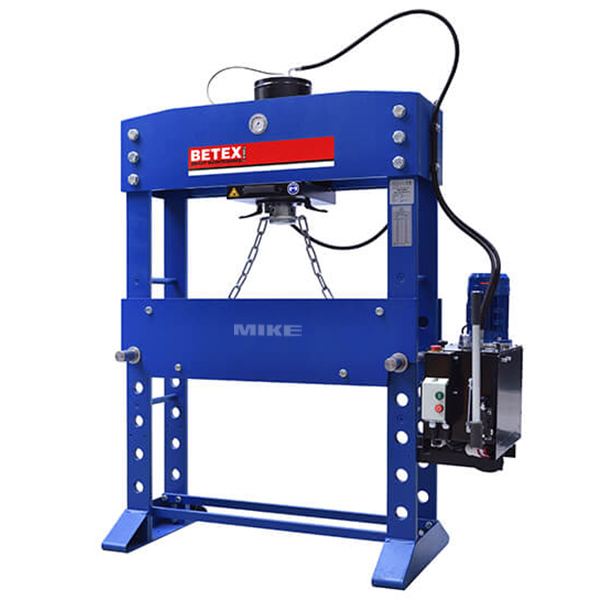

7513007 – WSPE160 S400 W1100 | 400 | 160 | 400 | 255 | Moveable | 1100 | 3.0 | 1195 |
7513009 – WSPE160 S400 W1500 | 400 | 160 | 400 | 255 | Moveable | 1500 | 3.0 | 1430 |
7513010 – WSPE200 S400 W1300 | 400 | 200 | 400 | 243 | Moveable | 1300 | 3.0 | 1690 |

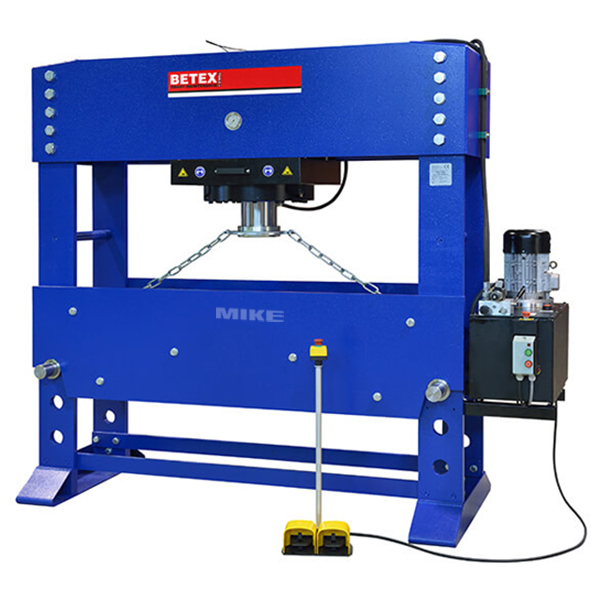

7513011 – WSPE300 S480 W1750 | 400 | 300 | 480 | 260 | Moveable | 1750 | 5.5 | 3150 |
7513016 – WSPE30 S380 W750 USA | 220 | 30 | 380 | 221 | Fixed | 750 | 1.5 | 385 |
7513017 – WSPE60 S380 W750 USA | 220 | 60 | 380 | 259 | Moveable | 750 | 1.5 | 540 |
7513018 – WSPE100 S380 W1100 USA | 220 | 100 | 380 | 258 | Moveable | 1100 | 2.2 | 970 |
7513020 – WSPE100 S380 W1500 USA | 220 | 100 | 380 | 258 | Moveable | 1500 | 2.2 | 1145 |
7513019 – WSPE160 S400 W1100 USA | 220 | 160 | 400 | 255 | Moveable | 1100 | 3.0 | 1195 |
7513021 – WSPE160 S400 W1500 USA | 220 | 160 | 400 | 255 | Moveable | 1500 | 3.0 | 1430 |
7513022 – WSPE200 S400 W1300 USA | 220 | 200 | 400 | 243 | Moveable | 1300 | 3.0 | 1690 |
7513023 – WSPE300 S480 W1750 USA | 220 | 300 | 480 | 260 | Moveable | 1750 | 5.5 | 3150 |
Hydraulic workshop presses for the 100 to 200-ton versions, a double-acting hand pump is included, offering meticulous control over the piston for high-precision operations. The larger models (except for the 30 and 60-ton versions) feature a horizontally movable cylinder on the upper frame, allowing for a wide range of movement and positioning.
BETEX WSPE series of electric hydraulic workshop presses
To further enhance precision, a joystick is provided for meticulous piston control, and a gauge for precise pressure readings is standard. Additionally, the presses come with a 220V CEE connector, allowing operators to easily connect auxiliary equipment such as lamps or drills directly to the press for increased functionality.
![]() |
|
While the presses come without oil, the recommended type is Tellus 46 for optimal performance. Optional accessories include a foot pedal for hands-free operation, enhancing safety and convenience, and a set of V blocks for supporting various shapes and sizes of workpieces.
The BETEX WSPE electric hydraulic presses represent a fusion of strength, versatility, and control, engineered to serve workshops with a commitment to quality and precision in their pressing operations.
SKU | Price | Add | Capacity | Working width | Working pressure | Stroke | Power |
---|---|---|---|---|---|---|---|
7513004 | Price on request | 30 tons | 750mm | 221 bar | 380mm | 400V-1.5kW | |
7513005 | Price on request | 60 tons | 750mm | 259 bar | 380mm | 400V-1.5kW | |
7513006 | Price on request | 100 tons | 1100mm | 258 bar | 380mm | 400V-2.2kW | |
7513008 | Price on request | 100 tons | 1500mm | 258 bar | 380mm | 400V-2.2kW | |
7513007 | Price on request | 160 tons | 1100mm | 255 bar | 400mm | 400V-3kW | |
7513009 | Price on request | 160 tons | 1500mm | 255 bar | 400mm | 400V-3kW | |
7513010 | Price on request | 200 tons | 1300mm | 243 bar | 400mm | 400V-3kW | |
7513011 | Price on request | 300 tons | 1750mm | 260 bar | 480mm | 400V-5.5kW | |
7513016 | Price on request | 30 tons | 750mm | 221 bar | 380mm | 220V-1.5kW | |
7513017 | Price on request | 60 tons | 750mm | 259 bar | 380mm | 220V-1.5kW | |
7513018 | Price on request | 100 tons | 1100mm | 258 bar | 380mm | 220V-2.2kW | |
7513020 | Price on request | 100 tons | 1500mm | 258 bar | 380mm | 220V-2.2kW | |
7513019 | Price on request | 160 tons | 1100mm | 255 bar | 400mm | 220V-3kW | |
7513021 | Price on request | 160 tons | 1500mm | 255 bar | 400mm | 220V-3kW | |
7513022 | Price on request | 200 tons | 1300mm | 243 bar | 400mm | 220V-3kW | |
7513023 | Price on request | 300 tons | 1750mm | 260 bar | 480mm | 220V-5.5kW |
