Hydraulic spreader duo set BETEX 15 TL, 30 tons dual lifting heads

Hydraulic spreader duo set BETEX 15 TL is a professional-grade double hydraulic wedge system designed for precise and synchronized lifting, spreading, and separation tasks in industrial maintenance and assembly operations. Each lifting head delivers a force of 15 tons, combining to achieve a total load capacity of 30 tons when used together.

This dual-head configuration enables operators to lift or separate components simultaneously at two points, either symmetrically or in supportive tandem alignment, ensuring balance and stability under load.

Hydraulic spreader duo set BETEX 15 TL
30 tons dual lifting heads

Engineered for efficiency and reliability, the BETEX 15 TL Duo-set operates at a working pressure of 700 bar, powered by a two-stage manual hydraulic pump. The system ensures controlled and linear lifting movement, eliminating tilting or misalignment of the load.

Its minimum wedge entry of 5 mm and maximum spread of 40 mm make it suitable for applications where access is limited, such as separating machine housings, aligning shafts, or lifting heavy flanges.

• Model: BETEX 15 TL Duo-set
• Order number: 789181
• Capacity: 15 tons per head (combined capacity of 30 tons with two heads)
• Number of spreader heads: 2
• Minimum wedge tip: 5 mm
• Maximum wedge thickness: 40 mm
• Hydraulic pump: Hand-operated
• Hydraulic wedge length: 235 mm
• Weight: 28 kg

Each BETEX 15 TL hydraulic wedge is manufactured from high-strength hardened steel to withstand repeated load cycles without deformation.

Industrial Applications and Advantages of BETEX 15 TL Hydraulic Wedge Set

BETEX 15 TL Duo-set provides precise, perpendicular lifting suitable for maintenance and repair tasks such as engine, gearbox, and flange disassembly. Its compact structure allows it to perform effectively in confined spaces, offering mechanical control where traditional lifting tools cannot operate. The wedge design maintains uniform pressure distribution, minimizing component stress and enhancing operational safety.

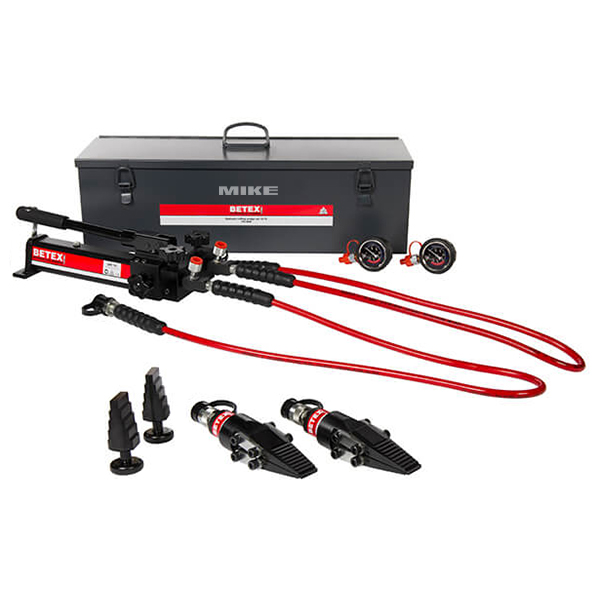

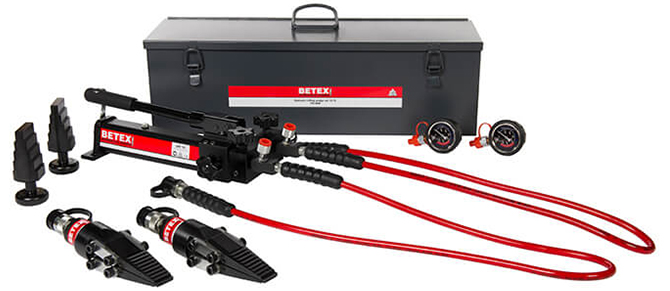

Complete set includes:

• 2 hydraulic spreader heads, each with 15-ton capacity
• 2 hydraulic hoses, 1.5 m each, maximum pressure 700 bar, with rubber dust caps4 quick couplers pre-mounted on the hydraulic hoses
• 2 stepped safety blocks
• 2 pressure gauges with T-adapters
• 1 hand-operated, two-stage hydraulic pump
• 1 steel carrying case
• User manual

This hydraulic spreader set is particularly valued for its accuracy, ease of handling, and versatility. Its dual-spreader configuration delivers balanced force application, reducing the risk of uneven lifting or lateral stress on the workpiece. The ergonomic pump system allows single-operator use, while the integrated pressure gauges provide continuous load monitoring to ensure safe operation.
