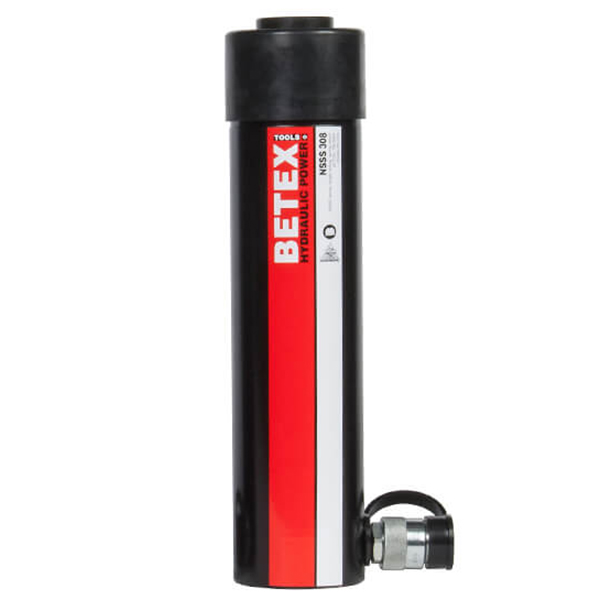

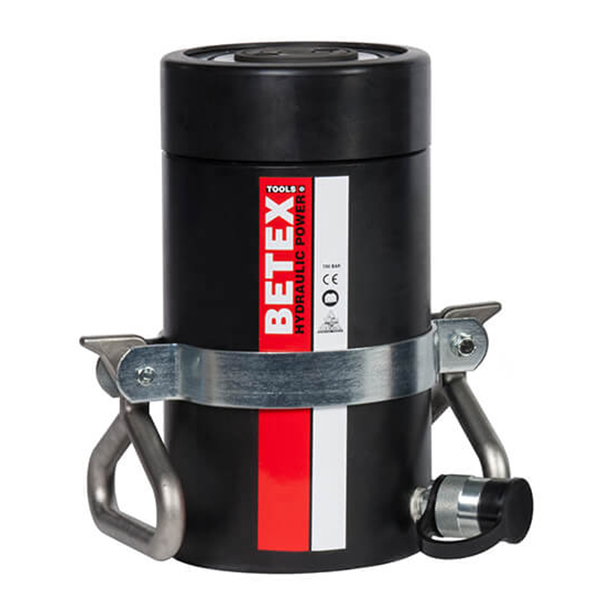

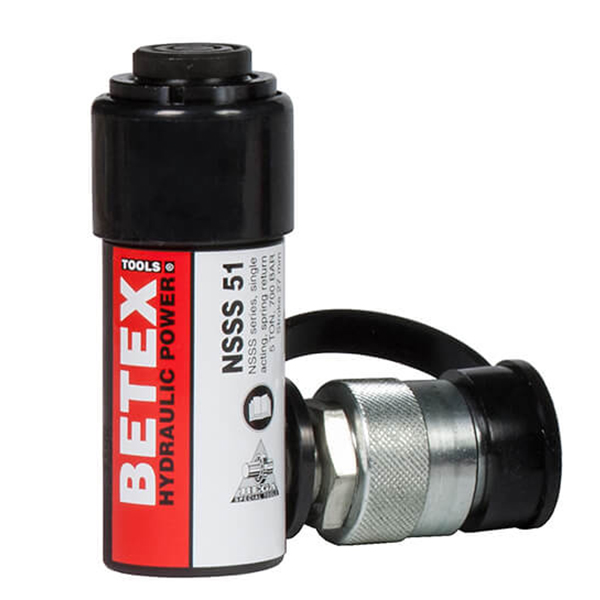

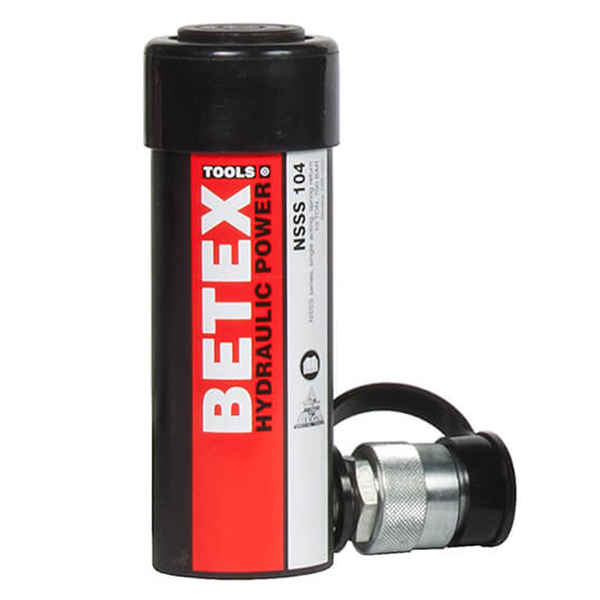

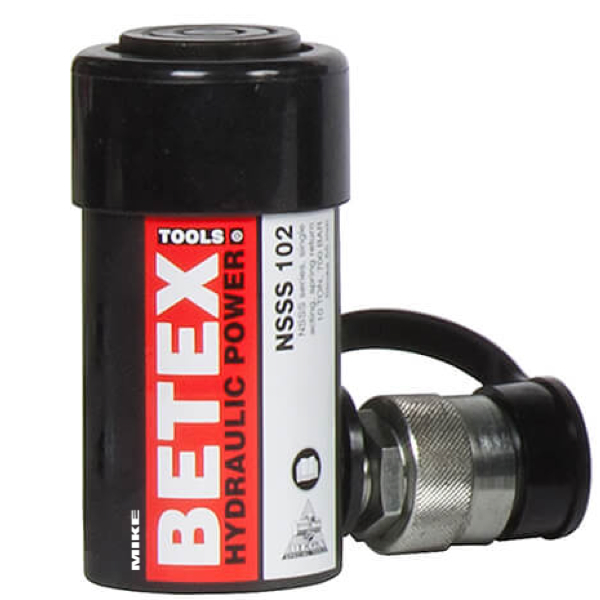

Hydraulic single acting cylinder BETEX NSSS, spring return

BETEX NSSS hydraulic cylinder works at 700 bar. It delivers strong linear force for lifting and pressing tasks. The spring return system retracts the piston automatically after pressure release. This design shortens cycle time and increases efficiency in service or production work. A 3/8″ NPT port connects easily to standard hydraulic pumps.

The piston has a hard-chromed surface to resist wear. The cylinder wall is roll-polished to reduce friction and ensure smooth operation. The outer body receives a black nitride coating that protects against corrosion. Every unit includes a female coupler and dust cap.

Hydraulic single acting cylinder BETEX NSSS, spring return

BETEX NSSS cylinders come in many versions. Capacity ranges from 5 to 100 tons. Stroke options run from 26 to 356 mm. These options cover light alignment jobs and heavy lifting work.

• Type: Single acting, spring return
• Max working pressure: 700 bar
• Piston: Hard-chromed finish
• Inner surface: Roll-polished
• Exterior: Black nitride coating
• Connection: 3/8” NPT female port
• Coupler and dust cap included
• Stroke: 26–356 mm
• Capacity: 5–100 tons
• Return system: Spring return
• Weight: 1–59 kg
• Works with all BETEX pumps and hoses

Applications BETEX NSSS

BETEX NSSS hydraulic cylinders handle lifting, pressing, and alignment work. They perform well in machinery maintenance and steel structure assembly. Typical uses include removing bearings, pushing shafts, or positioning frames. Engineers use them with BETEX hydraulic pumps for safe and fast operation in workshops and industrial plants.
