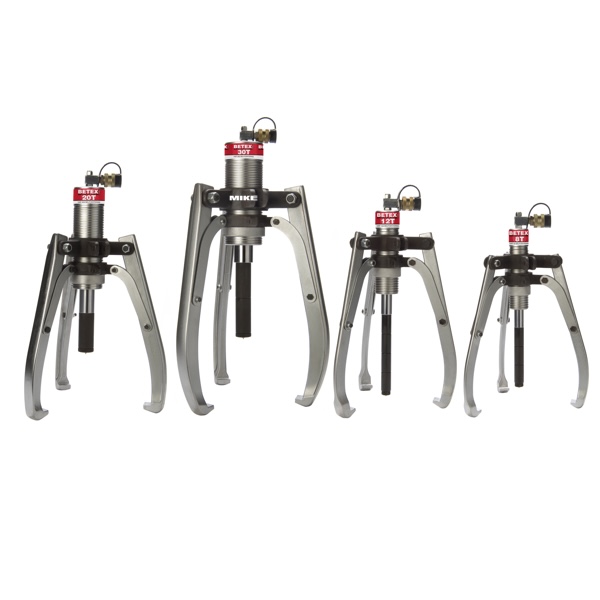

Hydraulic pullers BETEX HXP 2/3-arm pullers, self-centering

BETEX HXP self-centering hydraulic pullers are engineered for reliable dismounting of bearings, couplings, rings, wheels, and pulleys. With capacities ranging from 8 to 50 tons, they combine versatility, operator safety, and robust performance.

The design allows easy conversion between 2-arm and 3-arm configurations. Arms slide inwards or outwards simultaneously, ensuring perfect centering on the workpiece. This self-centering system distributes force evenly, eliminating bending or deflection. Stronger pulling force results in tighter jaw grip, avoiding damage to shafts or components.

Hydraulic pullers BETEX HXP, dimensions

Hydraulic pullers BETEX HXP 2/3-arm pullers, self-centering, provide safe and efficient dismounting solutions for industrial applications. Their unique self-centering system, high pulling capacities, and flexible 2-arm/3-arm conversion make them a reliable tool for workshops and maintenance teams.

Supplied with safety accessories and compatible with BETEX pump sets, the HXP series ensures professional performance in demanding tasks. Designed for safe, efficient dismounting of bearings, couplings, rings, and similar components.

Hydraulic pullers BETEX HXP 2/3-arm pullers, self-centering

All models are supplied with adapter and shaft protector. The 8- and 12-ton pullers include a safety net, while the 20–50 ton versions are supplied with a safety blanket. The HXP503 is also available in a mobile crane configuration (HXPC 50T). Each puller is stored in a robust carrying case for portability and protection.

• Capacities from 8 to 50 tons.
• Self-centering mechanism with simultaneous arm movement.
• Convertible 2-arm or 3-arm design.
• Jaws grip tighter as force increases.
• Prevents damage to shaft and component.
• Supplied with adapter and shaft protector.
• Includes safety net (HXP83, HXP123) or safety blanket (HXP203–503).
• HXP503 available with mobile crane (HXPC 50T).
• Delivered in sturdy carrying case.
• Requires separate 2-stage hand pump.
• Operable by one person, reducing setup time and labor.

The HXP series requires a separate 2-stage hand pump, available as an accessory. When used with BETEX bearing splitters or 700 bar pump sets, these pullers provide a complete solution for maintenance and industrial dismounting tasks.

Packaging and handling for BETEX HXP

BETEX HXP pullers are supplied in dedicated protective packaging depending on model capacity.

• HXP 83 and HXP 123: delivered in a molded ABS plastic case for portability and protection.
• HXP 203 and HXP 303: packed in powder-coated steel cases, ensuring durability for heavier pullers.
• HXP 503: classified as extra heavy-duty, supplied on a wooden pallet. Handling requires a jib crane or suitable trolley for safe transport and operation.

Identification note

The article number (Art. No) is used exclusively in documentation, quotations, and import/export paperwork. It does not appear on the puller itself. When ordering or referencing BETEX HXP models, always use the correct Art. No in official documents to avoid confusion. Product identification on the puller is provided by model marking and accompanying documentation, not by the Art. No.

Guidelines for pump selection

To operate BETEX HXP pullers effectively, it is essential to choose the correct hydraulic pump.

• Pressure requirement: All HXP pullers are designed for pumps rated at 700 bar.
• Oil capacity: Select a pump with a minimum oil capacity of 500 cc, ensuring the hydraulic cylinder can be completely filled for each model.
• Complete set option: If no pump is available, consider purchasing a complete set including pump, hoses, gauge, and fittings. This avoids compatibility issues and ensures readiness for use.
• Hydraulic hoses: The hose length must be chosen according to the working environment. Short hoses require the operator to stand closer to the workpiece, while longer hoses provide the option to work at a safer distance.
• Compatibility: BETEX recommends using original BETEX 2-stage hand pumps or BETEX pump sets (700 bar) for reliable performance.
