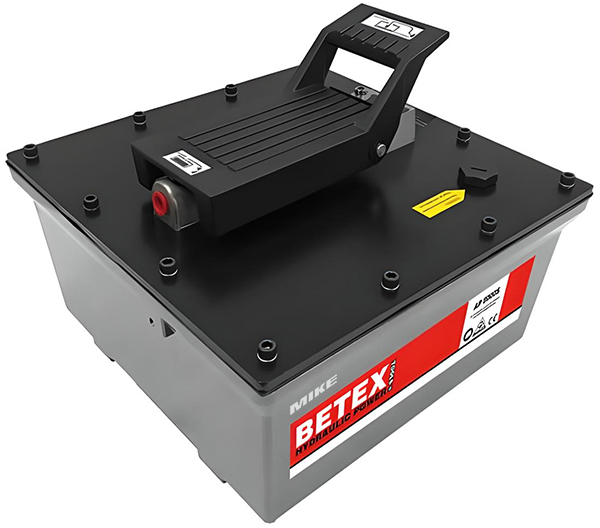

Foot pump BETEX AP 8000S air hydraulic, maximum 700 bar

BETEX AP 8000S air hydraulic foot pump is an advanced and efficient solution designed primarily for use with single-acting cylinders and tools, such as those in the Betex cylinder series. This pump exemplifies robust and reliable construction, with most of its components made from durable aluminum alloy, ensuring a long service life as well as ease of operation and portability.

A key safety feature of the AP 8000S is its automatic 10,000 psi overload-relief valve. This integral component protects the hydraulic system’s components and ensures safe operation by preventing over-pressurization. Such a feature is crucial in maintaining the integrity of the hydraulic system and safeguarding the operator.

Foot pump BETEX AP 8000S air hydraulic
maximum 700 bar

The hydraulic pump also boasts a new inlet/outlet design that incorporates a slow deflation function. This innovative feature not only reduces operational noise but also allows for multidirectional operation, enhancing the pump’s versatility and ease of use in various settings.

Significantly, the AP-D models within this range are specifically tailored for double-acting cylinders. They eliminate the need for an additional control valve and connecting pieces, streamlining the setup and use of the pump with double-acting systems.

The AP 8000S model is also available as part of a set, offering greater convenience and value to users. This set is likely to include additional components or accessories that complement the pump’s functionality. The AP 8000 series introduces an impressive capacity of 7200cc, marking a significant advancement in the range’s capabilities.The operational specifications of the AP 8000S are notable: it is designed for single-acting operations with a maximum pressure of 700 bar.

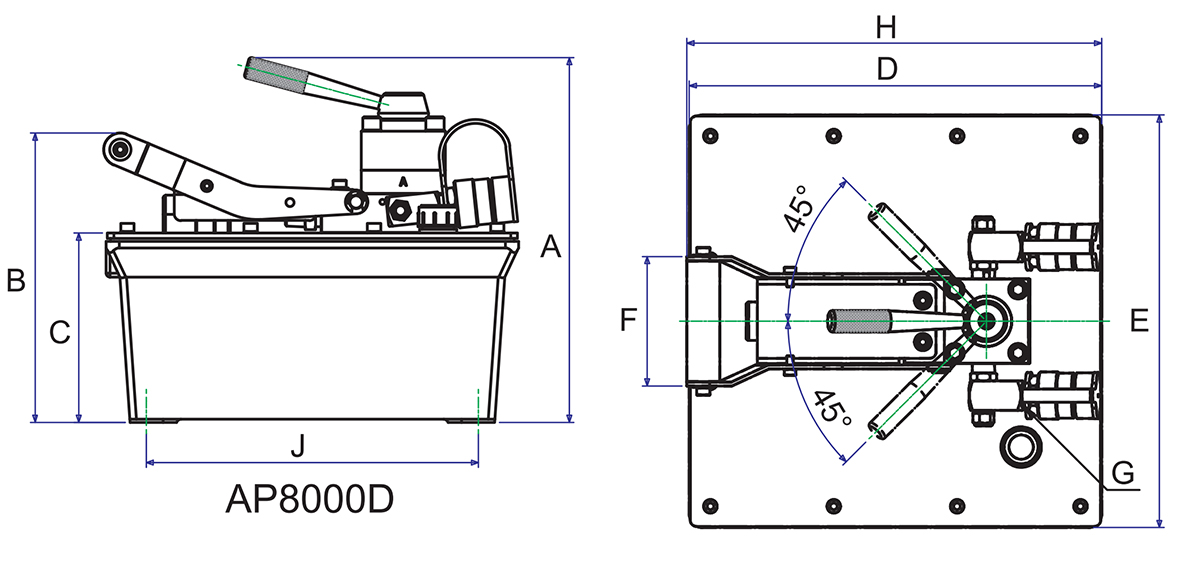

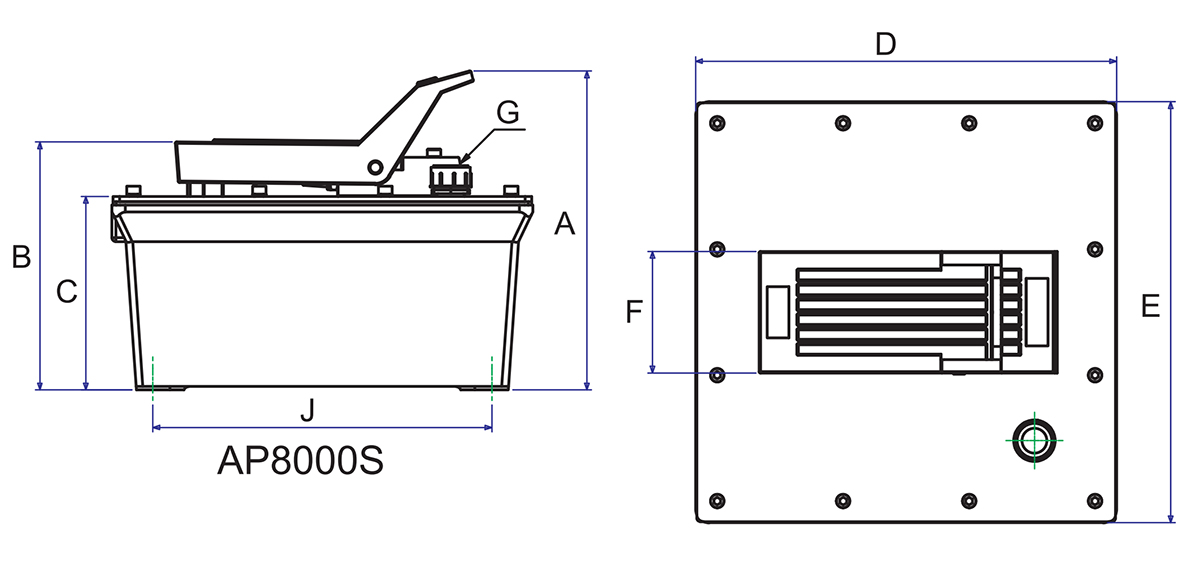

Foot pump BETEX AP 8000S air hydraulic 72000624		Foot pump BETEX AP 8000D air hydraulic 72000625
A (mm): 236 B (mm): 184 C (mm): 143 D (mm): 311.6 E (mm): 311.6	F (mm): 90 G (mm): 3/8”-NPT H (mm): – J (mm): 251 Weight : 19.1 kg	A (mm): 276 B (mm): 218 C (mm): 143 D (mm): 311.6 E (mm): 311.6	F (mm): 98 G (mm): 3/8”-NPT H (mm): 313 J (mm): 251 Weight : 31.5 kg

The pump operates effectively within an air pressure range of 5 to 8 bar. The reservoir content is 8000cc, with a usable oil capacity of 7200cc. The oil capacities for the first and second stages are 1250cc and 195cc, respectively. The pump weighs 19.1 kg, which is relatively lightweight considering its robust construction and capabilities.

BETEX AP 8000S air hydraulic foot pump stands out for its durable construction, safety features, innovative design for noise reduction and multidirectional operation, and suitability for both single and double-acting cylinders. Its high capacity and efficient operation make it an essential tool for a wide range of industrial applications.
