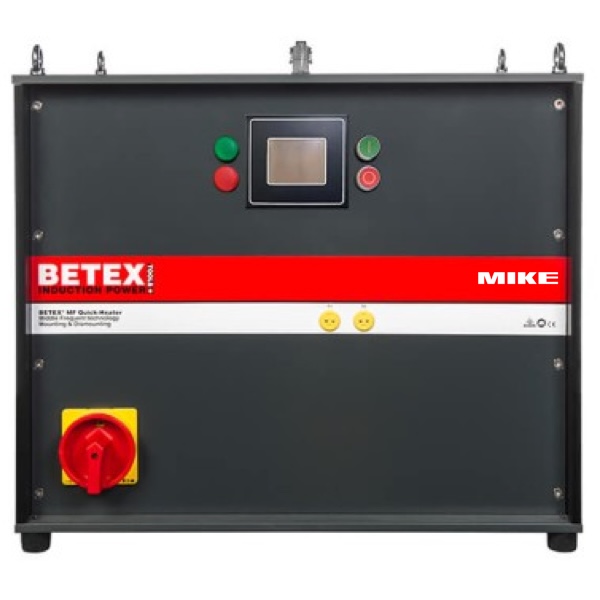

BETEX MF Generator 2.5 – 44kW, High-Power Induction Heating

BETEX MF Generator 2.5 – 44kW is a medium-frequency induction heating system engineered for the controlled mounting and dismounting of metal components. Operating at 10–25 kHz and delivering up to 44 kW, it uses forced air cooling and supports heating up to 300 °C. The generator features a compact body, equipped with a 3.5-inch color touchscreen that allows direct control of heating power, temperature, and duration.

The unit includes two magnetic temperature sensors rated for 300 °C, enabling real-time ΔT (Delta T) monitoring. This function helps avoid internal stress by limiting the maximum temperature difference between two measured points. Users can track both setpoint and actual values for temperature, power, and frequency on the display.

The system is compatible with both fixed and flexible inductors, depending on the workpiece geometry. It is used in industrial applications such as mounting or dismounting bearings, sleeves, labyrinth rings, and coupling components—especially in sectors like rail transport, steel processing, wind power, and heavy machinery. All heating operations are flame-free, without the use of oil or gas, minimizing energy loss and safety risk.

BETEX MF Generator 2.5 – 44kW
High-Power Induction Heating

Signals via flashing and continuous lights, combined with acoustic feedback, assist the operator throughout the process. With CE and UKCA certification, the BETEX MF Generator 2.5 – 44kW meets standard requirements for industrial use in environments where repeatable, controlled heating is essential.

• Power output: 44 kW
• Voltage / Current: 3~400 V / 63 A
• Frequency range: 10–25 kHz
• Max. temperature: 300 °C / 572 °F
• Accuracy: ±3.5 °C / ±38.2 °F
• Display: 3.5-inch color touchscreen
• Dual temperature sensor (ΔT monitoring)
• Setpoint control: power, temperature, timer (via touchscreen)
• Digital readings: time, power, frequency, temperature
• Inductor recognition: supported
• Extra thermocouple input: available
• No USB or network connection
• No data logging function
• Signaling: green flashing light (active), red light + buzzer (error), green light + buzzer (cycle complete)
• Cooling: forced air
• Dimensions (L×W×H): 600 × 650 × 580 mm
• Weight: 78 kg
• Certifications: CE + UKCA
• Compatible with fixed and flexible inductors

BETEX MF Generator 2.5 – 44kW delivers high power, flexibility, and precision in a compact footprint. With dual sensor ΔT monitoring, adjustable setpoints, and safe, oil-free operation, it offers unmatched performance for the heating of large, heavy, and high-value components. An ideal solution for applications where downtime is costly and precision is non-negotiable.
