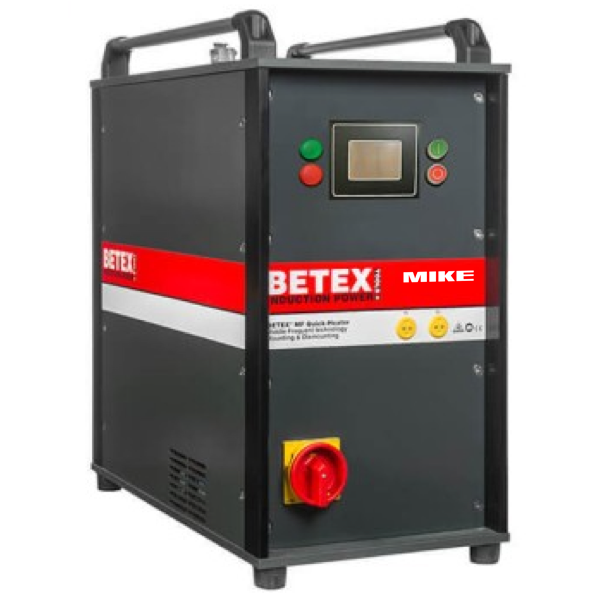

BETEX MF Generator 2.5 – 10kW for Mounting & Dismounting

BETEX MF Generator 2.5 – 10kW is a compact medium-frequency induction heating system, engineered for fast and controlled mounting or dismounting of transmission components such as bearings, labyrinth rings, couplings, and bearing housings. With its adjustable power control, dual temperature sensing (ΔT monitoring), and advanced safety features, this 10kW generator offers a clean, safe, and energy-efficient alternative to traditional heating methods.

The generator features an intuitive 3.5” touchscreen interface that provides real-time readings for power, temperature, and frequency. It allows operators to precisely control:

• Setpoint power
• Setpoint temperature
• Timer-based heating
• Temperature difference monitoring (ΔT)

Heating stops automatically once the preset temperature or time is reached, helping to avoid overheating and thermal stress on components.

BETEX MF Generator 2.5 – 10kW
for Mounting & Dismounting

BETEX MF Generator 2.5 – 10kW is a powerful yet compact induction heating system that combines precision, safety, and operational efficiency. Designed for professionals in maintenance, overhaul, and production, it supports both quick disassembly and stress-free mounting with a wide selection of compatible inductors and accessories.

• Power rating: 10 kW
• Voltage / Current: 3-phase, 400 V / 16 A
• Frequency range: 10–25 kHz
• Cooling system: Forced air cooling
• Maximum temperature: 300 °C / 572 °F
• Accuracy: ±3.5 °C / ±38.2 °F
• Display: 3.5-inch color touchscreen
• Setpoint controls:
  Setpoint power – via touchscreen
  Setpoint temperature – via touchscreen
  Setpoint timer – via touchscreen
• ΔT (Delta T) monitoring: Yes (dual temperature probes)
• Inductor recognition: Yes (supports automatic configuration)
• Extra thermocouple input: Yes
  Signal lights (status indicators):
• Green flashing light (operational)
• Red continuous light + buzzer (error)
• Green continuous light + buzzer (end of heating cycle)
• USB / Network connection: No
• Heating log function: No
• Dimensions (L × W × H): 600 × 300 × 600 mm
• Weight: 46 kg
• Compatible with: Flexible and fixed inductors, up to 300 °C
• Certifications: CE + UKCA

This generator is suitable for both mounting and dismounting of metal parts.

Dismounting: Bearings, labyrinth rings, inner rings (NU, NJ), and shaft seals in railways and metros.
Mounting: Bearings, sleeves, couplings, large gears, and power transmission elements in sectors like steel plants, wind turbines, and papermills.

Flexible Inductors

Ideal for variable shapes.

• Can be wrapped around, inside, or on the surface of components.
• Power rating: 10kW
• Available lengths: 15, 20, 25, 30, 35m
• Max temperatures: 180°C or 300°C
• Cable diameters: Ø12–20 mm

Fixed Inductors: Used for repetitive or high-precision applications. Often integrated with SMART inductor recognition for automatic settings.

Supporting Accessories

Unlike oil baths or gas burners, the BETEX MF Generator 2.5, 10kW generator ensures zero flame, smoke, or fume emission. It preserves lubrication quality on sealed bearings and enhances workplace safety and cleanliness. To optimize operation and ensure safety, Schaeffler Smart Maintenance offers:

• Magnetic holders for flexible inductors (5 pcs/box)
• Signal tower for MF V2.5/V3.0 status indication (optional)
• Magnetic temperature sensors up to 350°C (green/red variants)
• Heat-resistant gloves rated for 250°C or 300°C
• Connection sets with or without inductor recognition
• Clean and Eco-friendly Heating

BETEX MF Generator 2.5 smart design and forced air cooling remove the need for water-based cooling, further simplifying operation and reducing maintenance. This model is a solid choice for any application where clean, controlled, and repeatable heat is essential for the protection and reuse of valuable components.

Accessories and Options for BETEX MF Generator 2.5 – 10kW

Package contents of BETEX MF Generator 2.5 – 10kW
