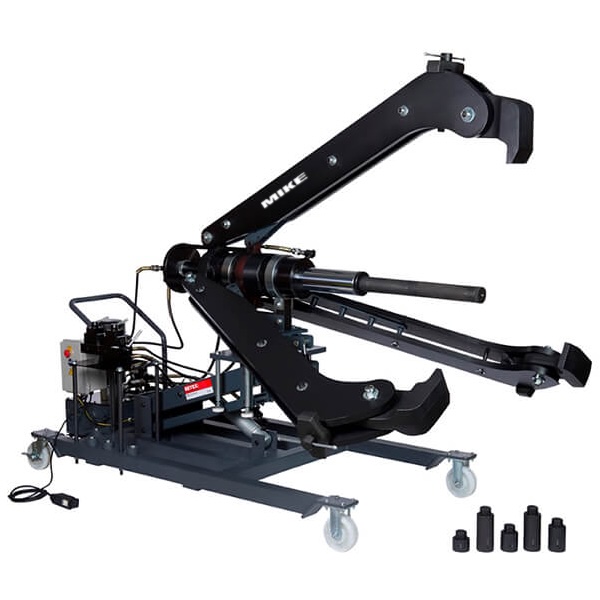

BETEX HXPM 150 Tons 3-Arm Hydraulic Puller – Art. no. 700025

BETEX HXPM 150 3-arm hydraulic puller is a powerful, mobile electrohydraulic system for safely dismounting large transmission components such as bearings, couplings, gear wheels, and wheels. Engineered for intensive industrial use, it offers 150-ton pulling force and a self-centering design that guarantees simultaneous arm movement, precision alignment, and safer operation by a single technician.

Equipped with a double-acting hydraulic cylinder and operated via remote control, the HXPM 150T ensures secure gripping, reliable arm movement, and protection against overload thanks to its integrated safety valve. The stronger the pulling force, the tighter the jaws grip—eliminating the risk of slipping or deformation under high load.

BETEX HXPM 150 Tons 3-Arm
Hydraulic Puller – Art. no. 700025

Adjustable jaw tips enhance grip on irregular shapes, while the mobile frame with braked castor wheels supports maneuverability and stability.

• Item number: 700025
• Pulling capacity: 150 tons
• Stroke: 330 mm
• Spread range: 300–1650 mm
• Max shaft length: 1175 mm
• Height from center: 830–1330 mm
• Weight: 1223 kg
• Dimensions (L×W×H): 2990 × 1030 × 1390 mm
• Certification: CE + UKCA

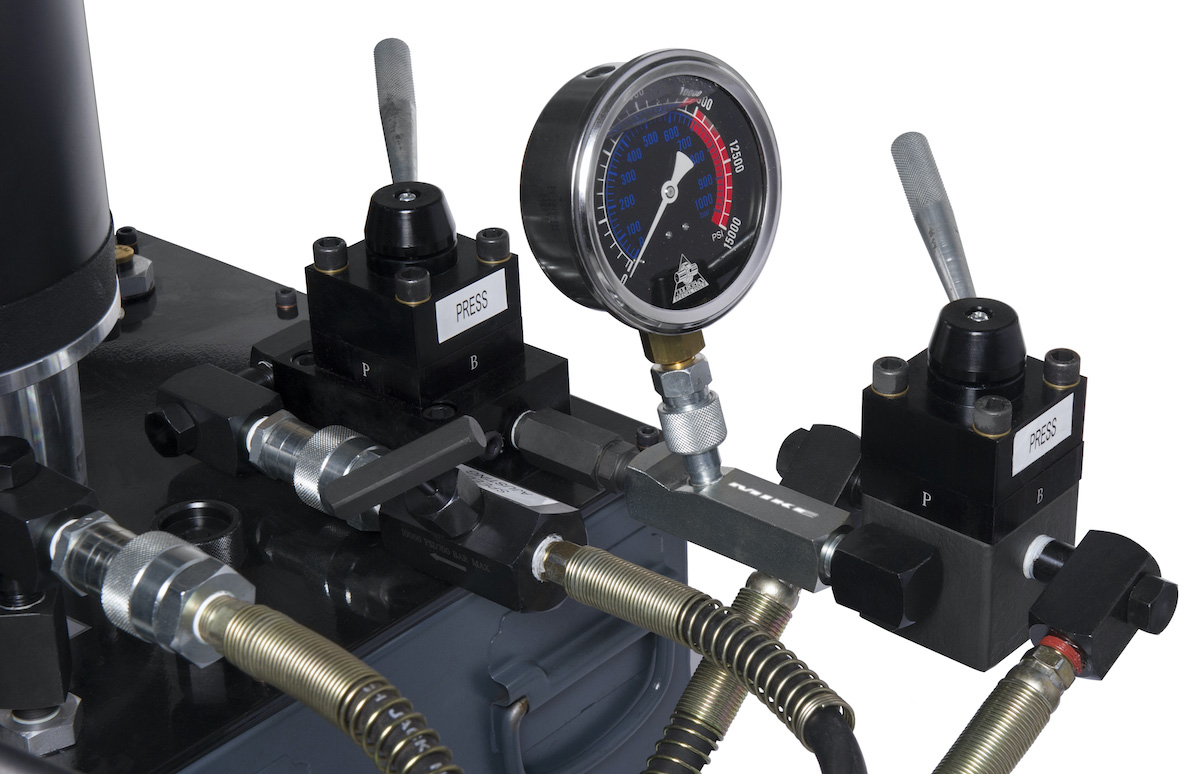

BETEX HXPM 150 Tons hydraulic puller uses a 400V electrohydraulic 2-stage pump (max 700 bar) delivering up to 9.5 L/min at 7 bar counter pressure. This pump drives the double-acting cylinder that performs both the clasping and separation of arms.

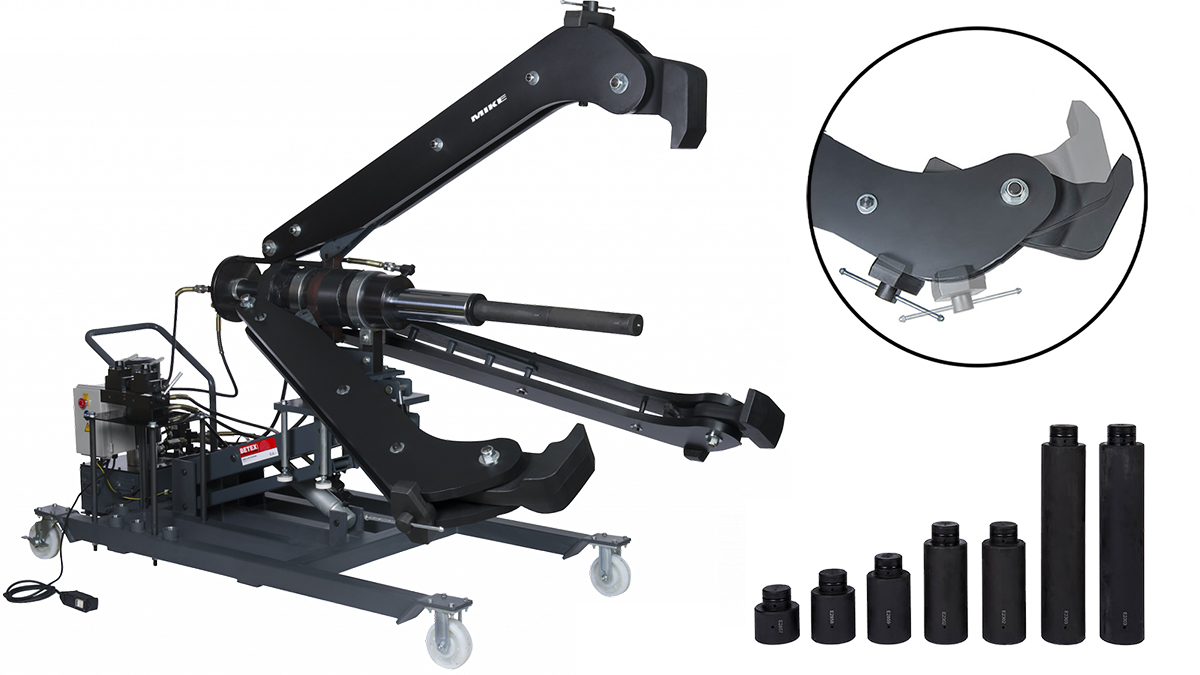

The result is a stable, controlled extraction without the risk of side loads or mechanical strain. The total lifting stroke is 330 mm, and the tool includes 7 shaft adapters/extensions for a combined reach of 1125 mm.

Highlights for BETEX HXPM 150

• Self-centering arms: Automatically stay aligned and move simultaneously, reducing setup time and error.

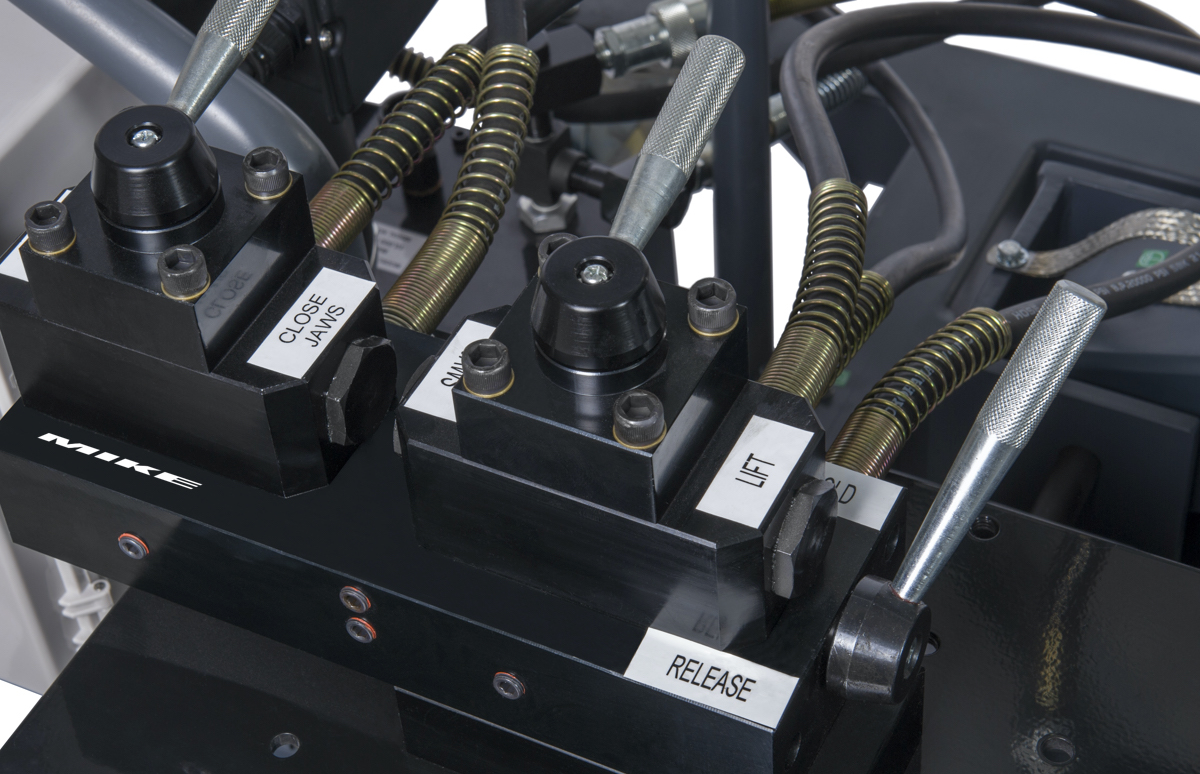

• Single-operator use: Ergonomic design and remote control allow one person to handle dismounting operations.
• Overload protection: Integrated safety release valve ensures operations stay within safe force limits.
• Safe gripping: Tighter grip as pulling force increases, eliminating slippage.
• Adjustable jaw tips: Optimize contact with various shapes and surfaces.
• Mobile and stable: Four-wheel base with two fixed wheels and two braked castors for controlled mobility.

Advantages of the BETEX HXPM Series

• Damage-free dismounting: Even pressure distribution prevents damage to shafts and parts.
• Efficient maintenance: Rapid setup, precision operation, and ergonomic handling reduce downtime.
• Long service life: High-quality hydraulic and mechanical construction ensures reliable industrial performance.
• Modular: Shaft extensions and adjustable arms accommodate various sizes and geometries.

This model is part of BETEX’s HXPM range of mobile self-centering hydraulic pullers, known for reliability and ease of use in MRO and OEM environments worldwide. Certified for both CE and UKCA compliance, it meets the latest safety and quality standards.
