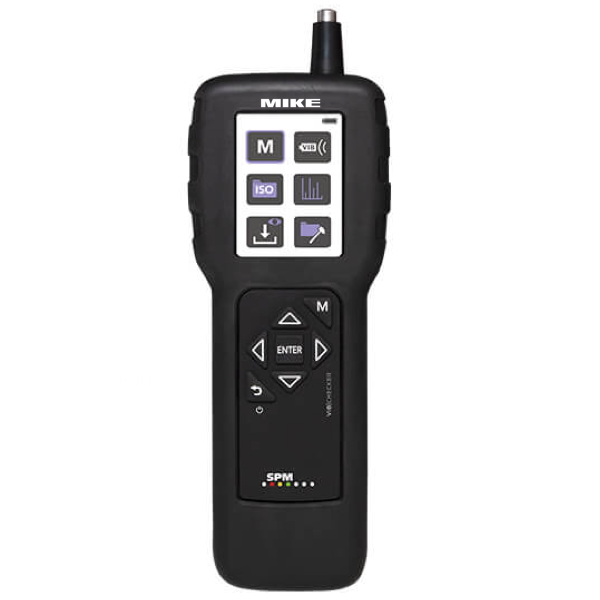

VibChecker VC200 vibration meter – BETEX Netherlands

VibChecker VC200 is a user-friendly, durable, and cost-effective tool for vibration measurement in industrial machinery, crucial for maintenance and avoiding equipment failure. It’s lightweight, compact, and designed for both beginners and experienced users, covering essential vibration monitoring needs.

Features and Benefits VibChecker VC200 vibration meter

• Measures vibrations in a frequency range of 10-1000 Hz, suitable for most industrial applications.
• Automatically assesses measurement results against ISO standards, providing immediate feedback.
• Stores results for later analysis and follow-up, enhancing maintenance records.
• Uses a color-coded LED system (green-yellow-red) to indicate vibration severity, simplifying interpretation.
• Displays real-time FFT spectrum for easy identification of vibration patterns and potential faults.
• Equipped with a built-in accelerometer for accurate readings.
• Features a large display and convenient button operation, making it easy to use.
• The device’s symbols are clear and easily understandable.

Technical Specifications

• Frequency range: 10-1000 Hz.
• Measures vibration in terms of speed (100 mm/s RMS at 80 Hz), acceleration (100 m/s2 at 10-1000 Hz), and displacement (100 μm at 80 Hz).
• Evaluates condition according to ISO2372 and ISO10816, part 2, 34 for speeds over 600rpm.
• Offers a linear spectrum with 200 lines, optical zoom, and marking points.
• Operates in temperatures ranging from -10 to +50°C (14 to 122°F).
• 2.4” color TFT LCD display for clear visuals.
• Made with durable Copolyester/TPE, and has an IP65 protection class.
• Powered by a 3.63V lithium-ion battery or USB, with over 25 hours of normal use.
• Dimensions: 207 x 74 x 41 mm, weighing 0.335 kg.

BETEX VibChecker VC200 is an essential tool for routine maintenance, helping detect early signs of mechanical issues in industrial machines through effective vibration analysis.

VibChecker VC200’s FFT (Fast Fourier Transform) spectrum display is a key feature that enhances its vibration analysis capabilities. This display translates vibration data into a frequency spectrum, making it easier to identify specific vibration patterns and potential faults in machinery.

1. Detailed Vibration Analysis: The FFT spectrum breaks down complex vibration signals into individual frequency components. This helps in pinpointing the exact source of abnormal vibrations, such as unbalance, misalignment, or bearing faults.
2. Real-Time Visualization: The real-time display of the FFT spectrum allows users to see vibration frequencies as they are being measured. This immediate feedback is crucial for on-the-spot diagnostics and decision-making.
3. Pattern Recognition: By displaying vibration data in a spectral format, it becomes easier to recognize patterns and anomalies. Regular patterns might indicate normal operation, while irregular or unexpected patterns can signal a problem.
4. Ease of Use: The VibChecker VC200 presents this complex data in a user-friendly manner, with clear visuals on its TFT LCD display. This makes it accessible not only to seasoned professionals but also to those new to vibration analysis.
5. Advanced Diagnostics: The FFT spectrum is essential for advanced diagnostic procedures, enabling users to conduct in-depth analyses of the machinery’s condition without the need for more complex and expensive equipment.

FFT spectrum display on the VibChecker VC200 transforms vibration data into an easily interpretable visual format, aiding in the quick identification of mechanical issues and ensuring effective preventive maintenance.
