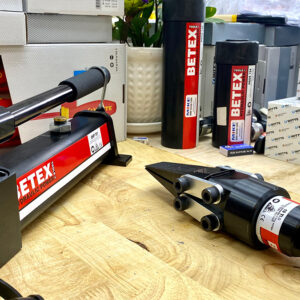

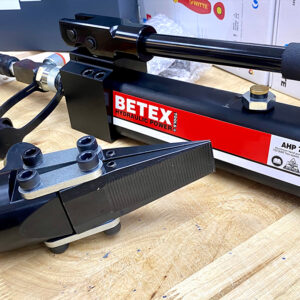

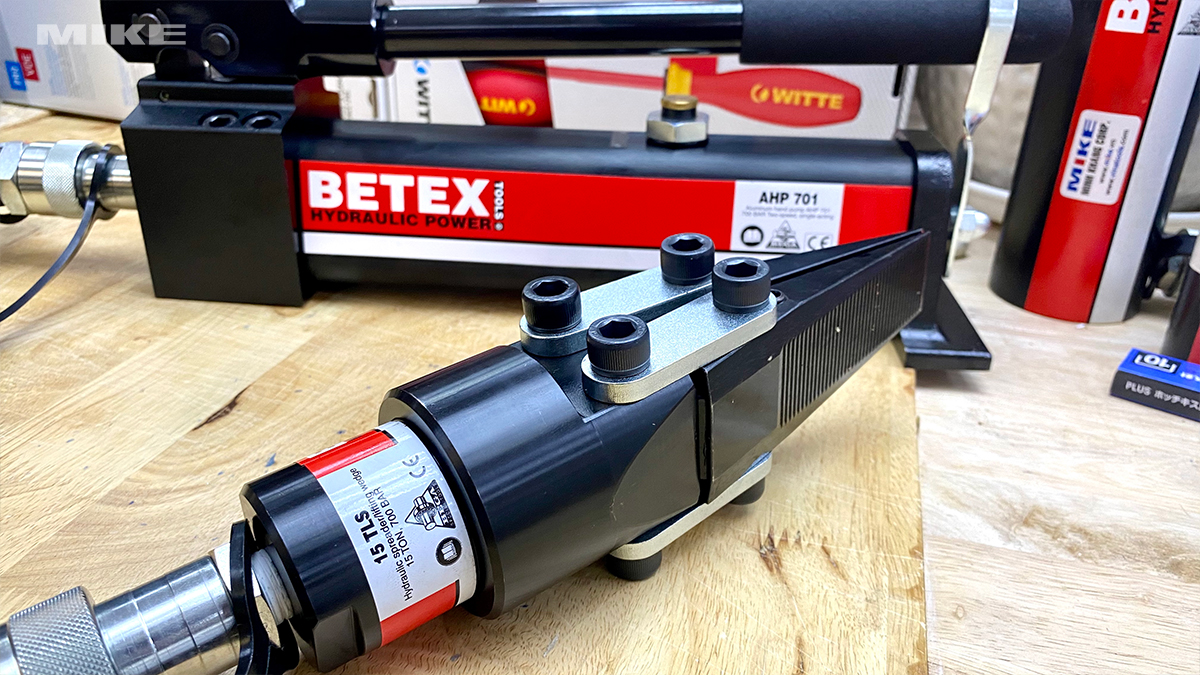

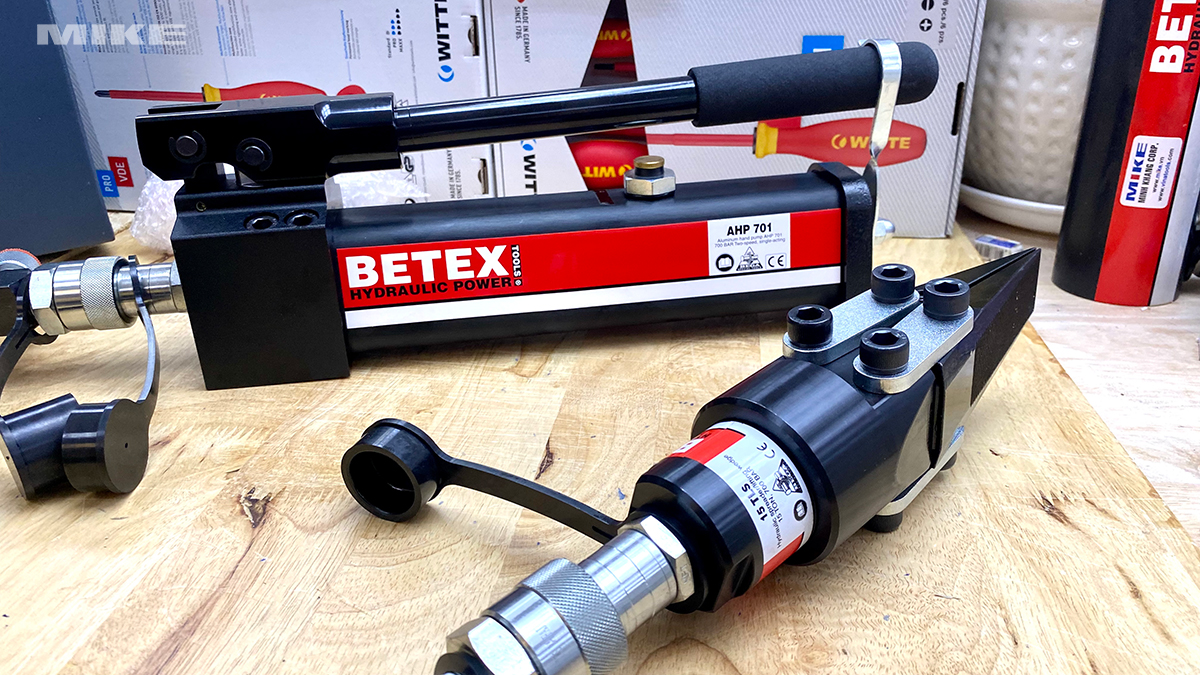

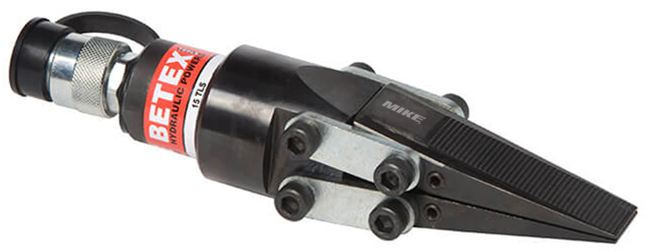

Hydraulic spreader BETEX 15 TLS, 15 tons, 700 bar
Available on backorder
15 tons of lifting force at 700 bar. This single-acting tool performs precise lifting, spreading, and alignment where access is restricted. Made of hardened steel with a 5 mm thin nose, it fits openings from 5 to 43 mm. Supplied without pump, hose, or accessories.
Price from: € 1,350.0
(Price excluding tax, for reference only.)
Available on backorder

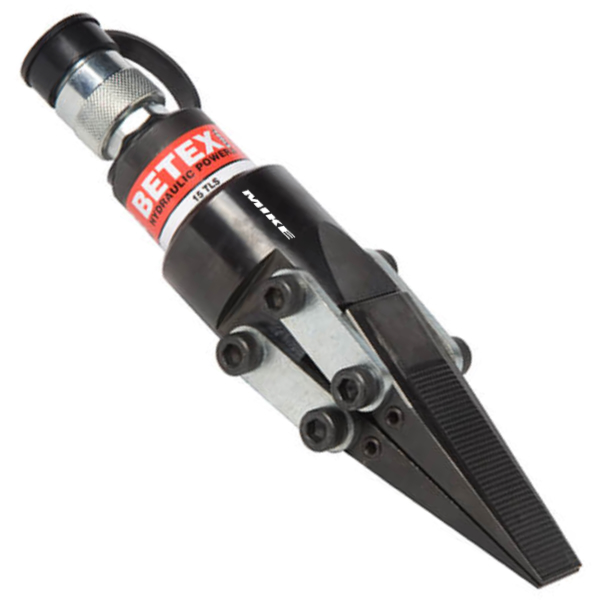

Hydraulic spreader BETEX 15 TLS is a compact, single-acting hydraulic wedge for lifting or separating heavy components in tight spaces. Designed for perpendicular lifting, it enables precise height adjustments and shaft alignment with minimal effort.
With a maximum capacity of 15 tons and a working pressure of 700 bar (10,000 psi), this tool is suitable for maintenance, assembly, and repair operations. It fits openings from 5 to 43 mm, providing flexibility in a wide range of applications.
Hydraulic spreader BETEX 15 TLS, 15 tons, 700 bar

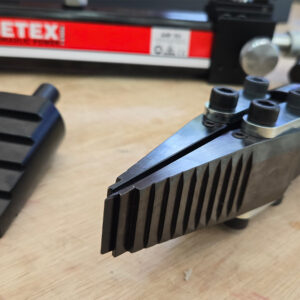

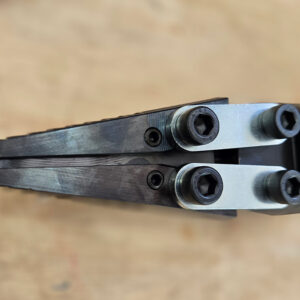

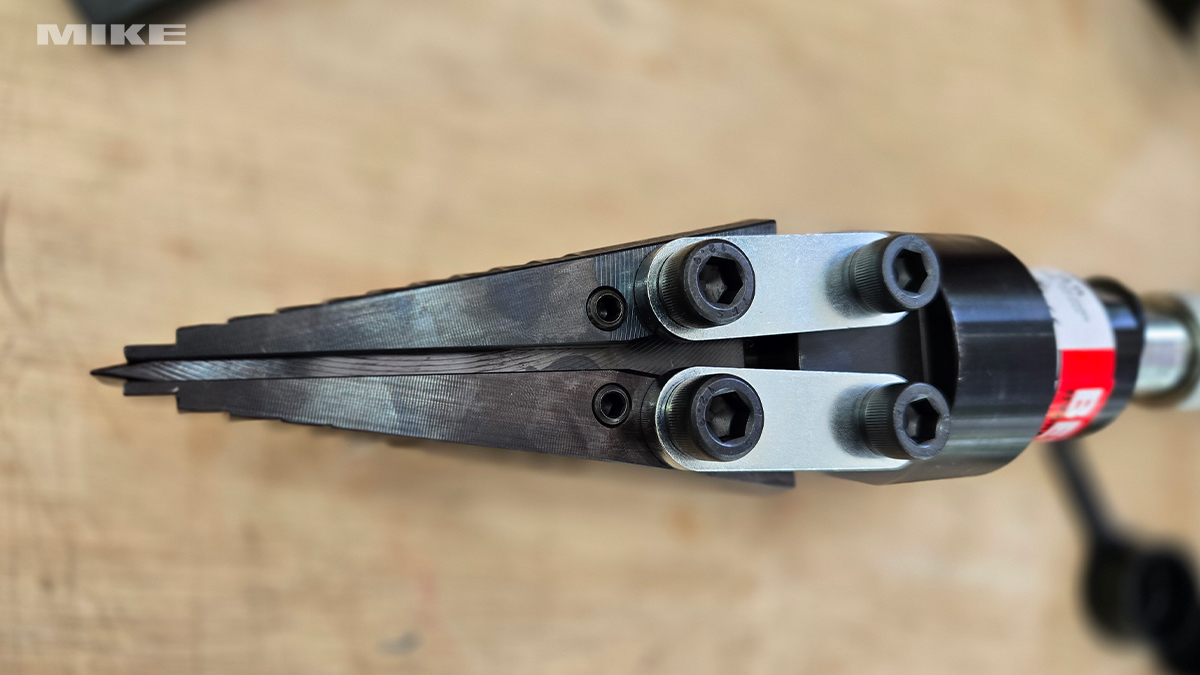

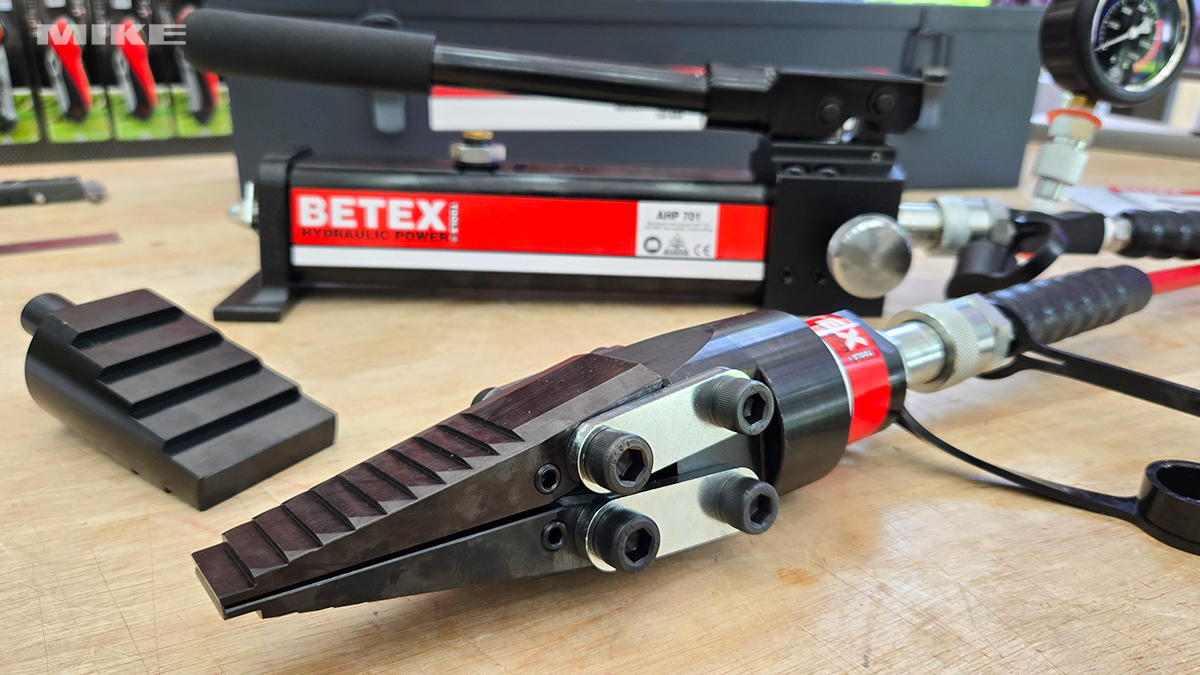

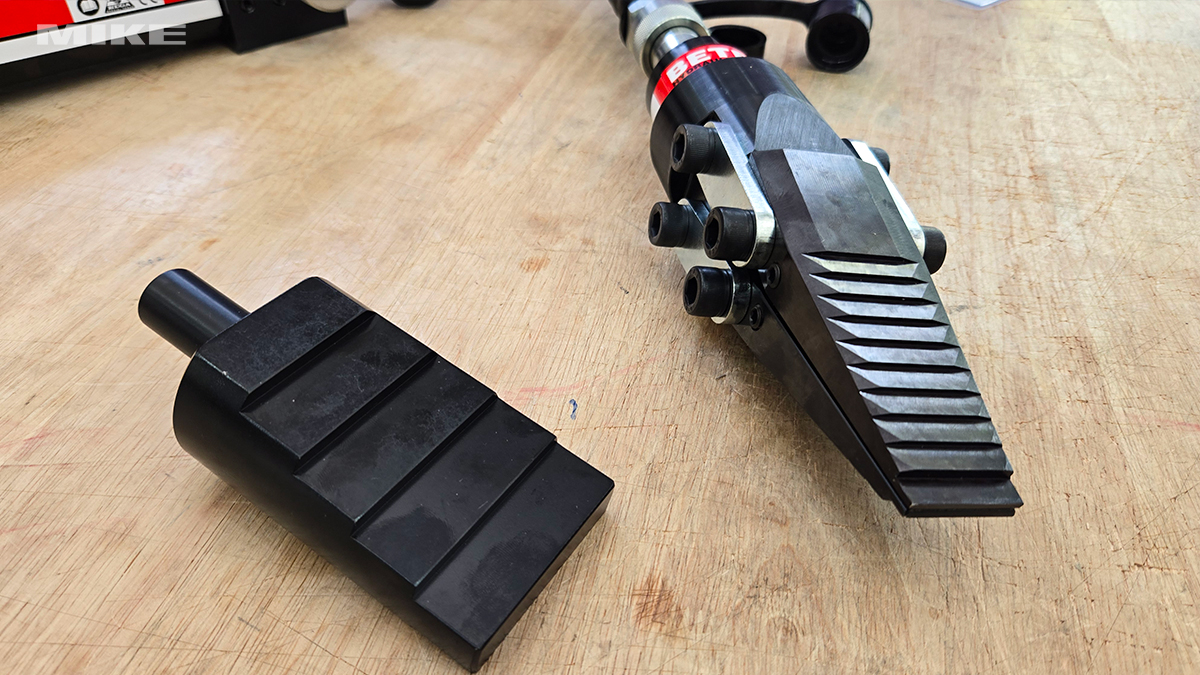

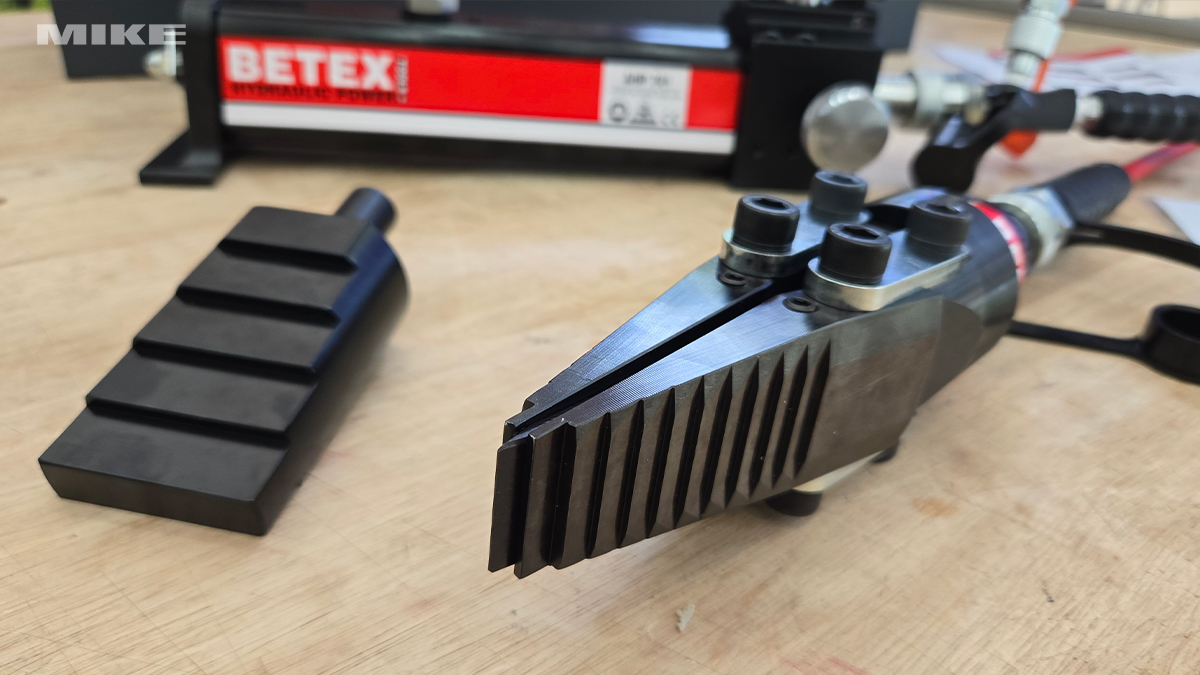

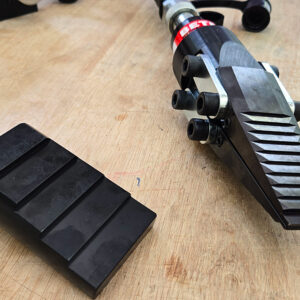

The BETEX 15 TLS is made of high-quality hardened steel, ensuring durability and resistance to wear under heavy loads. The slim 5 mm nose thickness allows insertion where conventional tools cannot fit. A stepped safety block can be used to secure the load when the wedge is removed.
This model is delivered without pump, hose, or gauge, making it ideal for users who already own compatible 700 bar hydraulic systems.
- Article number: 789150
- Maximum capacity: 15 tons
- Pump type: Single-acting
- Maximum operating pressure: 700 bar / 10,000 psi
- Opening range: 5–43 mm
- Dimensions (A × B × L): 5 × 40 × 235 mm
- Nose thickness: 5 mm
- Weight: 8 kg
- Threading: 3/8 inch NPT
- 5-ton lifting and spreading force at 700 bar
- Fits narrow openings from 5 to 43 mm
- Slim 5 mm hardened steel nose for tight access
- Single-acting operation for easy handling
- Allows perpendicular and controlled lifting
- Compact and lightweight for field or workshop use
- Compatible with standard 700 bar pumps and hoses
- Delivered without hydraulic pump or accessories
Applications
- Shaft alignment and leveling
- Separation of flanges, couplings, or machine parts
- Lifting and positioning during installation or repair
- Maintenance and inspection of heavy assemblies
Benefits
- Compact design fits where standard jacks cannot reach
- Enables precise, perpendicular lifting with minimal setup
- Durable hardened steel ensures long working life
- Flexible integration with any 700 bar hydraulic system
- Safe, efficient operation in confined spaces
