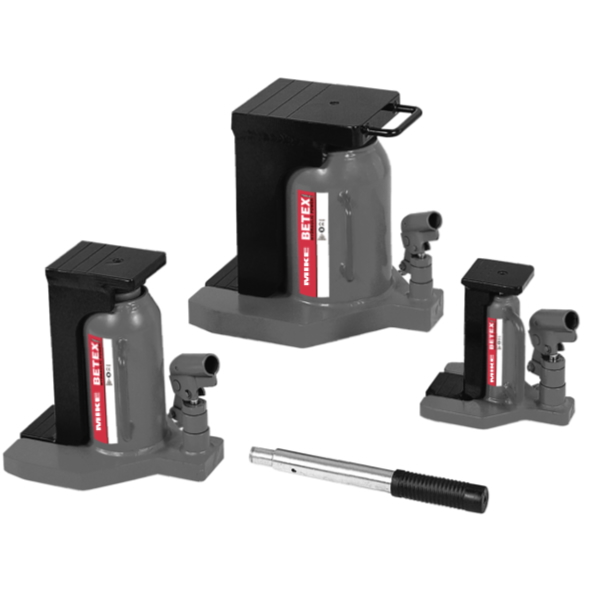

BETEX Toe jacks – Hydraulic lifting solutions from 2.5 to 50 tons
SKU: BETEX TOEwith robust forged bases and heat-treated, chrome-plated hydraulic rods. They feature low toe heights, internal safety valves, welded housings against leakage, and swivel sockets for easy operation. A removable handle ensures convenient handling. Reliable tools for machinery lifting, positioning, and maintenance tasks.
Price from: € 837.0 – € 5,900.0
(Price excluding tax, for reference only.)
BETEX Toe jacks are hydraulic lifting tools engineered for safe handling of heavy machinery and equipment. With models ranging from 2.5 to 50 tons capacity, they combine robust construction with practical features that simplify lifting in confined areas.
Each unit is manufactured with a forged base and a welded housing to eliminate leakage risks. The hydraulic rod is heat-treated and chrome-plated, which extends seal life and ensures consistent operation under heavy loads.
Designed for versatility, the toe jacks feature very low toe heights, enabling operators to engage under machinery or structures with limited ground clearance. Internal safety valves prevent the system from being overloaded, while swivel sockets allow easier pump positioning.
| Model | Capacity (tons) | Stroke | height (mm) | Piston | Base | Toe plate | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| Top | Toe | mm | Min | Max | Ømm | LxW mm | LxW mm | kg | |
| TOE-025 | 2.5 | 1.2 | 100 | 194 | 294 | 19 | 140×190 | 65×50 | 7.4 |
| TOE-040 | 4 | 2 | 110 | 204 | 314 | 25 | 150×200 | 65×50 | 9 |
| TOE-060 | 6 | 3 | 110 | 212 | 322 | 36 | 160×217 | 65×50 | 11.3 |
| TOE-100 | 10 | 5 | 130 | 258 | 388 | 40 | 189×242 | 75×55 | 17 |
| TOE-160 | 16 | 8 | 131 | 275 | 406 | 52 | 211×256 | 90×55 | 23.2 |
| TOE-200 | 20 | 10 | 140 | 303 | 443 | 56 | 228×274 | 100×60 | 33.1 |
| TOE-300 | 30 | 15 | 147 | 322 | 469 | 70 | 259×305 | 110×60 | 52 |
| TOE-500 | 50 | 25 | 148 | 333 | 481 | 90 | 299×347 | 150×60 | 84 |
Each model can be operated manually by hand, and the removable handle enhances mobility and convenience. For optimal performance, BETEX shims can be used in combination with the jacks during lifting operations
BETEX Toe jacks: Hydraulic lifting solutions
Low toe entry and integrated safety valves make them suitable for demanding lifting operations in workshops, factories, and maintenance sites. By combining robust construction with operator-friendly features, they meet the essential requirements for reliable hydraulic lifting.
- Heat-treated, chrome-plated hydraulic rod: increases durability and seal life.
- Internal safety valve: protects against overloading beyond rated capacity.
- Welded housing and forged base: prevents leakage and enhances strength.
- Low toe heights: enables lifting from tight clearances.
- Swivel sockets: simplify operation and positioning.
- Removable handle: easy to carry and operate manually.
- Installation and alignment of heavy machinery.
- Maintenance of presses, injection molding machines, and rolling equipment.
- Lifting and positioning in production and assembly workshops.
- Use in combination with shims for stable, gradual lifting.
BETEX Toe jacks provide a complete solution for lifting tasks in industrial environments, offering capacities from 2.5 to 50 tons. Their forged bases, welded housings, and chrome-plated hydraulic rods ensure durability and safe performance.
| SKU | Price | Add | Capacity | Stroke |
|---|---|---|---|---|
| TOE-025 | € 837.0 | 2.5 tons | 100mm | |
| TOE-040 | € 920.0 | 4 tons | 110mm | |
| TOE-060 | € 1,028.0 | 6 tons | 110mm | |
| TOE-100 | € 1,198.0 | 10 tons | 130mm | |
| TOE-160 | € 1,490.0 | 16 tons | 131mm | |
| TOE-200 | € 2,180.0 | 20 tons | 140mm | |
| TOE-300 | € 3,360.0 | 30 tons | 147mm | |
| TOE-500 | € 5,900.0 | 50 tons | 148mm |
