BETEX Stainless Steel Shims, Size A 50×50 mm for bolt M12

SKU: B0500xx

Made from AISI 304 stainless steel, these corrosion-resistant shims feature a 13 mm center hole and come in 12 thicknesses from 0.025 mm to 3.00 mm. Each shim is etched with its thickness for quick identification and reuse. Ideal for aligning motors, gearboxes, pumps.

Price from:  9.0 43.3
(Price excluding tax, for reference only.)

Description

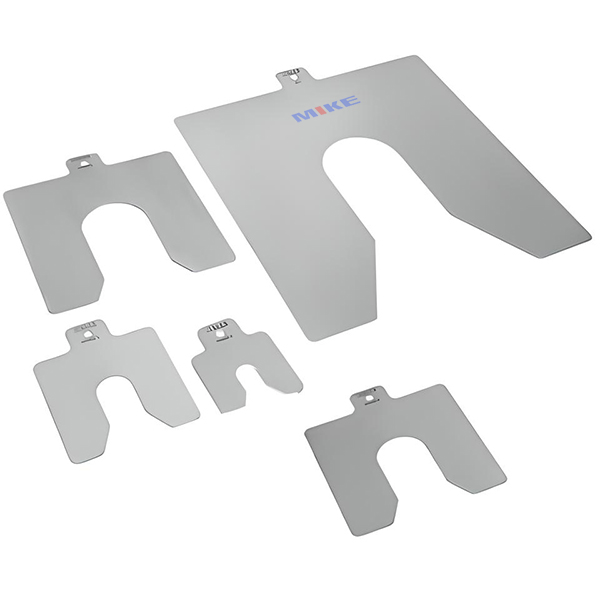

BETEX stainless steel solid shims in size A (50×50 mm) are designed for fast and precise machine alignment tasks. Manufactured from high-grade stainless steel (AISI 304 / DIN 1.4301), these shims provide excellent corrosion resistance, long-term durability, and dimensional stability across a wide range of environments.

Solid stainless steel shims BETEX B075, size M20

Each shim comes pre-cut and burr-free with smoothed edges, making them safe to handle and easy to insert under machine feet or components.

BETEX Stainless Steel Shims
Size A 50×50 mm for bolt M12

This specific variant, Size A, is compatible with M12 bolts and features a center hole diameter of 13 mm. These shims are widely used for aligning motors, gearboxes, pumps, and other critical industrial machinery.

  • Material: High-quality stainless steel (AISI 304)

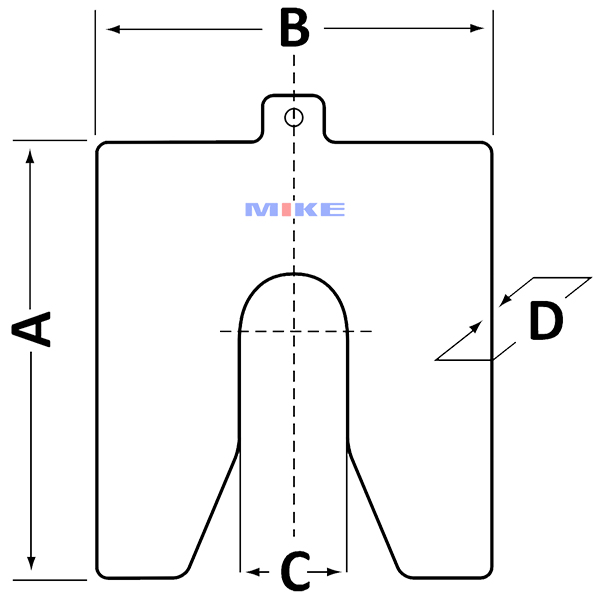

  • Dimensions (A x B): 50 mm height × 50 mm width
  • Center Hole (C): 13 mm diameter, suited for M12 bolts
  • Thickness Options: Available in 12 standard thicknesses ranging from 0.025 mm to 3.00 mm
  • Packaging: Supplied in packs of 10 pieces per thickness
  • Etched Identification: Each shim is permanently marked with its thickness for quick identification
  • Reusable: Can be used multiple times without deformation

These shims are particularly effective in achieving consistent vertical alignment, reducing mechanical stress on rotating parts, and preventing premature wear or vibration-related failures. They’re often used alongside jacks, spreaders, and other alignment equipment to speed up setup processes in maintenance and production environments

Applications

  • Motor and pump base leveling
  • Gearbox positioning
  • Vertical alignment of machine feet
  • Use in combination with mechanical or hydraulic spreaders
  • Alignment in tight or fixed bolt-hole assemblies requiring M12 bolts
SKU Price Add Shim thicknessBolt sizeMOQ
B0500025  12.6
0.025mmM1210
B050005  9.8
0.05mmM1210
B050010  9.0
0.10mmM1210
B050015  10.2
0.15mmM1210
B050020  9.9
0.20mmM1210
B050025  10.3
0.25mmM1210
B050040  11.2
0.40mmM1210
B050050  12.2
0.50mmM1210
B050070  12.6
0.70mmM1210
B050100  13.6
1.00mmM1210
B050200  21.1
2.00mmM1210
B050300  43.3
3.00mmM1210
