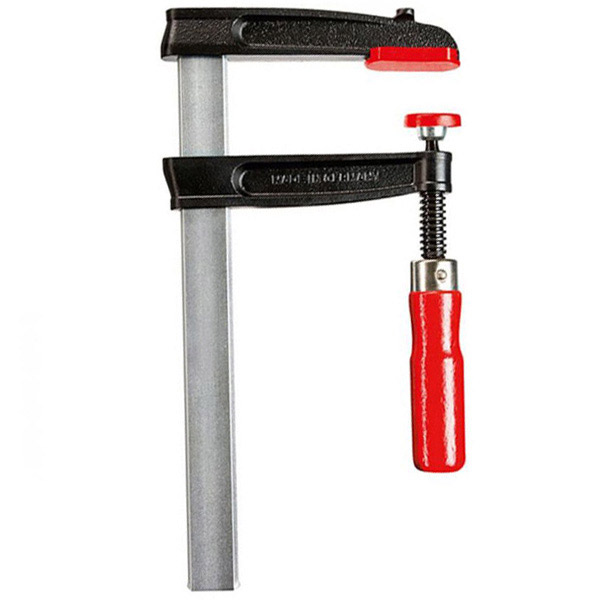

Malleable cast iron screw clamp TGRC with wooden handle

Malleable cast iron screw clamp TGRC with wooden handle

Import from
Germany
Country of origin
Made in Germany

BESSEY TGRC clamp features a durable malleable cast iron body, ergonomic wooden handle, and adjustable jaw 100-1500mm with 5500 N clamping force. Ideal for woodworking, DIY, and construction. Requires regular maintenance for optimal performance.

Tick the rows you need in the table below, then press this button.

Description

BESSEY TGRC malleable cast iron screw clamp features a reliable and ergonomically designed wooden handle, catering to a broad range of clamping needs with its adjustable jaw opening from 100mm to 1500mm. This tool delivers a clamping force of up to 5,500 N, ensuring a strong, stable grip for various tasks.

Malleable cast iron screw clamp TGRC with wooden handle Malleable cast iron screw clamp TGRC with wooden handle

Key specifications include:

  • Type: F-clamp with wooden handle
  • Model: BESSEY TGRC
  • Material: Reinforced malleable cast iron with a powder-coated finish
  • Jaw Opening: Adjustable from 100 to 1500mm
  • Clamping Force: Up to 5,500 N
  • Handle: Ergonomically shaped wood, water-based paint
  • Rail: Steel solid flat rail, cold-drawn, galvanized, with serration for enhanced grip
  • Spindle: Steel with trapezoidal thread, burnished finish
  • Pressure Plate: Steel, cold-pressed, galvanized
  • Protective Caps: Plastic, safeguarding clamping surfaces

Ideal for applications in interior fittings, shell construction, DIY projects, furniture making, joinery, kitchen construction, shop fitting, carpentry, and woodworking. This clamp offers robust and rigid clamping capabilities.

Malleable cast iron screw clamp TGRC
with wooden handle

Safety and Maintenance Guidelines:

  • Screw clamp is not intended for lifting, pulling, or transporting.
  • Manual clamping is recommended, without the use of auxiliary tools.
  • Avoid misuse to prevent personal injury or material damage.
  • Do not alter or modify the clamp. Use only in its original condition and with original spare parts if necessary.

Regular maintenance is crucial to ensure a secure hold and prevent the sliding bracket from slipping. Users should clean the rails with solvent, keep them free from grease, oil, dried glue, waxes, and silicone-based release agents. The rail’s fluting and the spindle should be cleaned with a steel brush and oiled regularly. If the lower part slips, adjust the grub screw a quarter turn further. The pressure plate also requires regular cleaning and oiling.

Category:

price & order

Select SKU Price Buy Qty Opening jaw Throat depth Rail
TGRC10
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 100mm 50mm 15 x 5mm
TGRC15B5
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 150mm 50mm 15 x 5mm
TGRC20B5
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 200mm 50mm 15 x 5mm
TGRC12
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 120mm 60mm 20 x 5mm
TGRC15B6
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 200mm 60mm 20 x 5mm
TGRC20B6
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 300mm 60mm 20 x 5mm
TGRC16
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 160mm 80mm 25 x 6mm
TGRC20B8
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 200mm 80mm 25 x 6mm
TGRC25B8
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 250mm 80mm 25 x 6mm
TGRC30B8
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 300mm 80mm 25 x 6mm
TGRC20
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 200mm 100mm 27 x 7mm
TGRC25S10
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 250mm 100mm 27 x 7mm
TGRC30S10
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 300mm 100mm 27 x 7mm
TGRC40S10
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 400mm 100mm 27 x 7mm
TGRC25
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 250mm 120mm 29 x 9mm
TGRC30S12
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 300mm 120mm 29 x 9mm
TGRC40S12
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 400mm 120mm 29 x 9mm
TGRC50S12
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 500mm 120mm 29 x 9mm
TGRC60S12
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 600mm 120mm 29 x 9mm
TGRC80S12
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 800mm 120mm 29 x 9mm
TGRC100S12
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 1000mm 120mm 29 x 9mm
TGRC30
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 300mm 140mm 32 x 10mm
TGRC40S14
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 400mm 140mm 32 x 10mm
TGRC50S14
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 500mm 140mm 32 x 10mm
TGRC60S14
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 600mm 140mm 32 x 10mm
TGRC80S14
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 800mm 140mm 32 x 10mm
TGRC100S14
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 1000mm 140mm 32 x 10mm
TGRC150S14
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 1500mm 140mm 32 x 10mm
TGRC40
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 400mm 175mm 32 x 10mm
TGRC50S17
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 500mm 175mm 32 x 10mm
TGRC60S17
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 600mm 175mm 32 x 10mm
TGRC80S17
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 800mm 175mm 32 x 10mm
TGRC100S17
Malleable cast iron screw clamp TGRC with wooden handle
 🛒 1000mm 175mm 32 x 10mm
