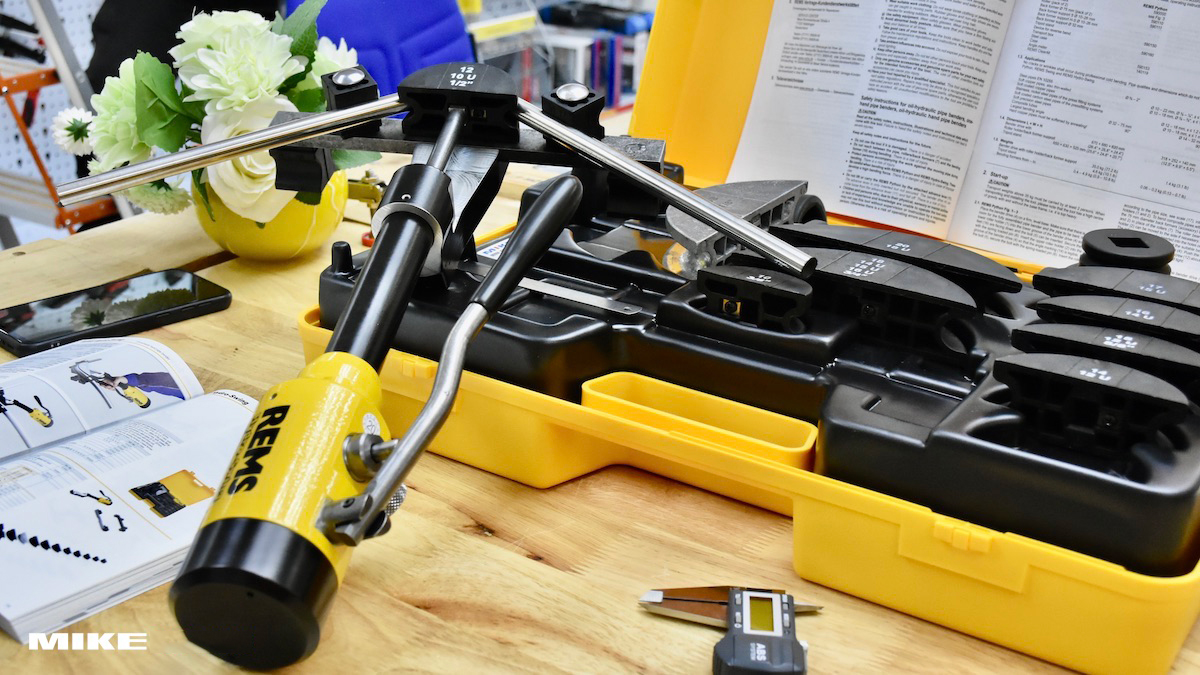

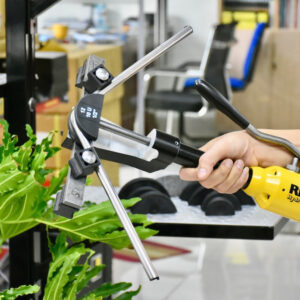

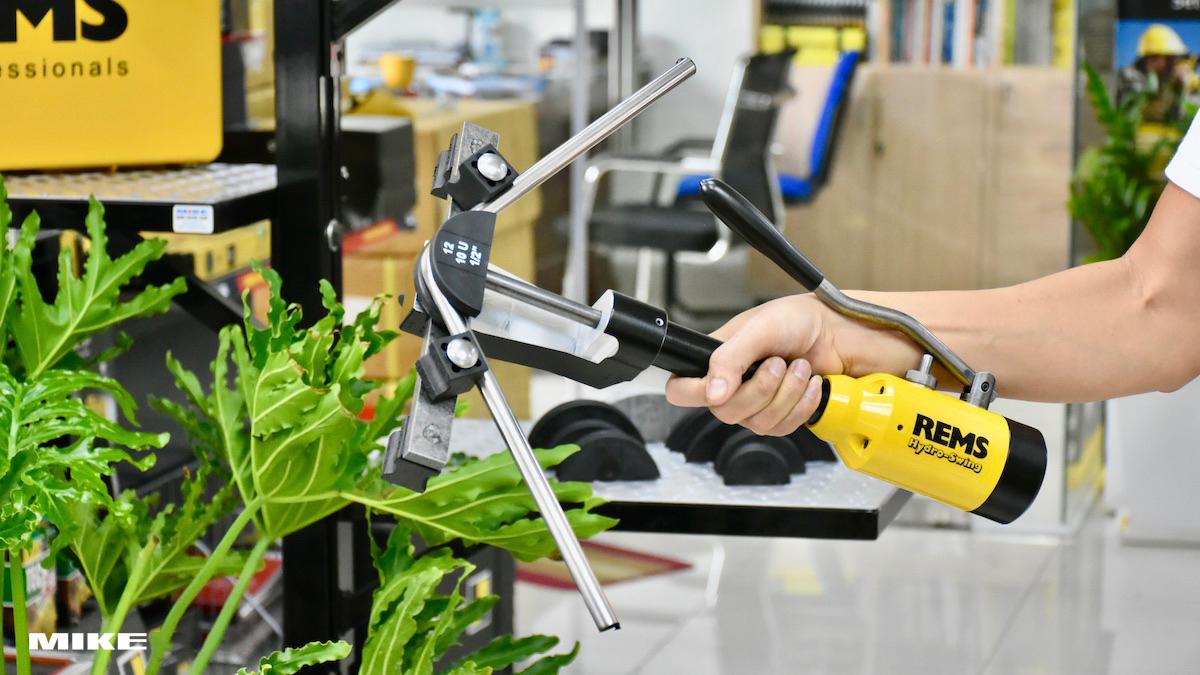

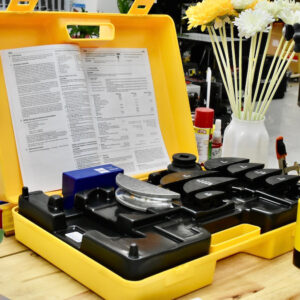

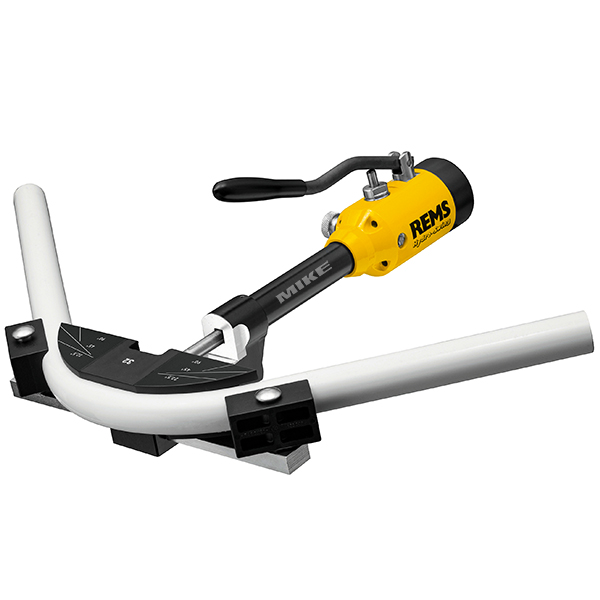

REMS Hydro-Swing Oil-hydraulic hand pipe bender up to 32mm

SKU: REMS Hydro-Swing

Soft copper pipes Ø 10 – 22 mm, Ø ⅜ – ⅞”, s ≤ 1 mm, soft. Coated copper pipes Ø 10 – 18 mm, Ø ⅜ – ⅝”, s ≤ 1 mm, pipes of the press fitting. systems made of stainless, nickel steel Ø 12 – 22 mm, s ≤ 1.2 mm, soft, coated carbon steel Ø 12 – 18 mm, s ≤ 1.2 mm, soft precision steel pipes Ø 10 – 22 mm, s ≤ 1.5 mm, composite tubes Ø 14 – 32 mm.

Description

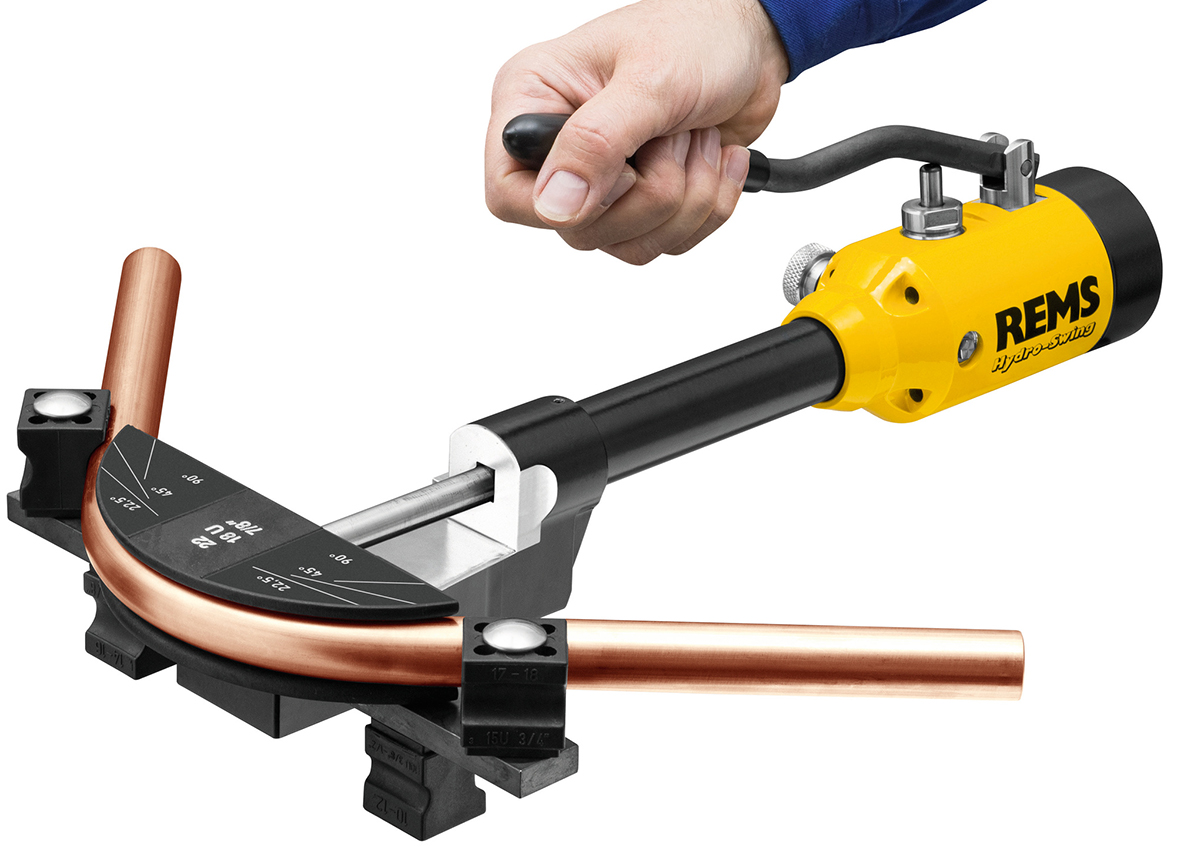

REMS Hydro-Swing – bending tubes where they are installed. Universally usable for many pipe types. Effortless working due to oil-hydraulic force transmission.

Universal use

For sanitary, heating, air conditioning, refrigerating and hydraulic applications. Also for copper thin-walled heating tubes according to EN 1057 and for tubes of press fitting systems.

Cost advantage

Bender recovered after a few bends through savings on fi ttings. No costs for fittings, storage, procurement. Savings in soldering joints, pressing joints and working hours. Higher safety thanks to fewer pipe joints.

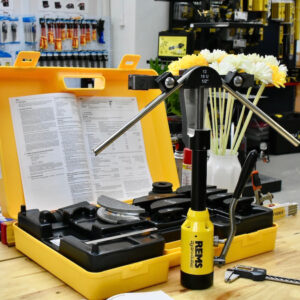

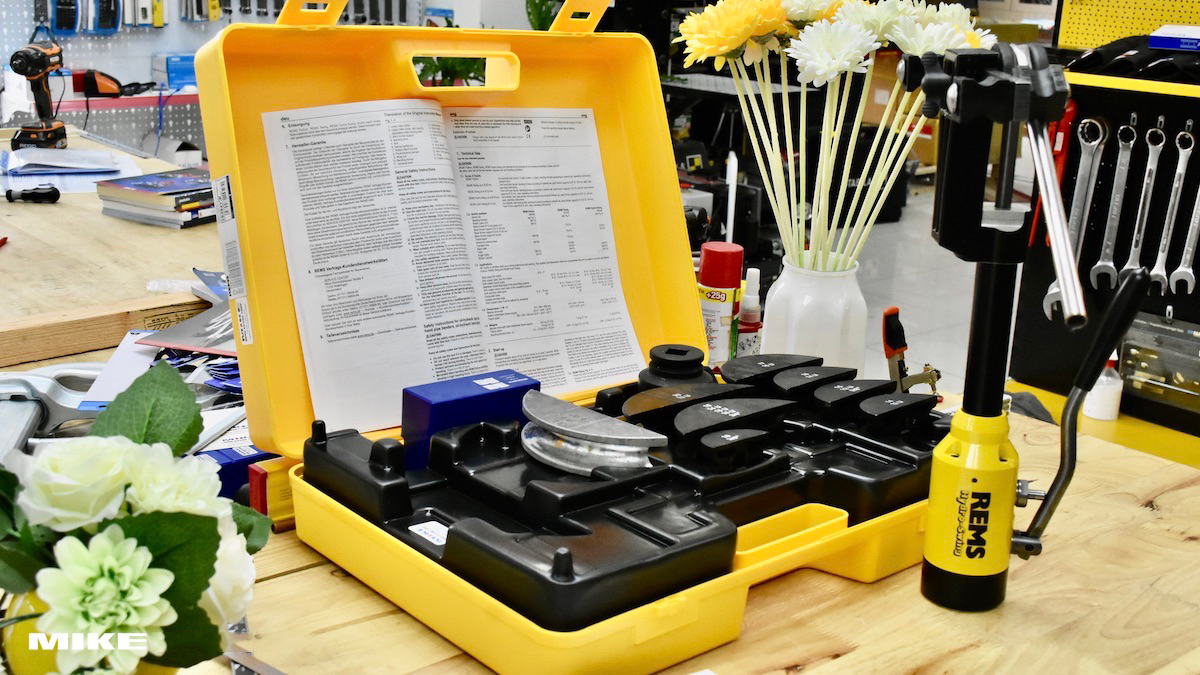

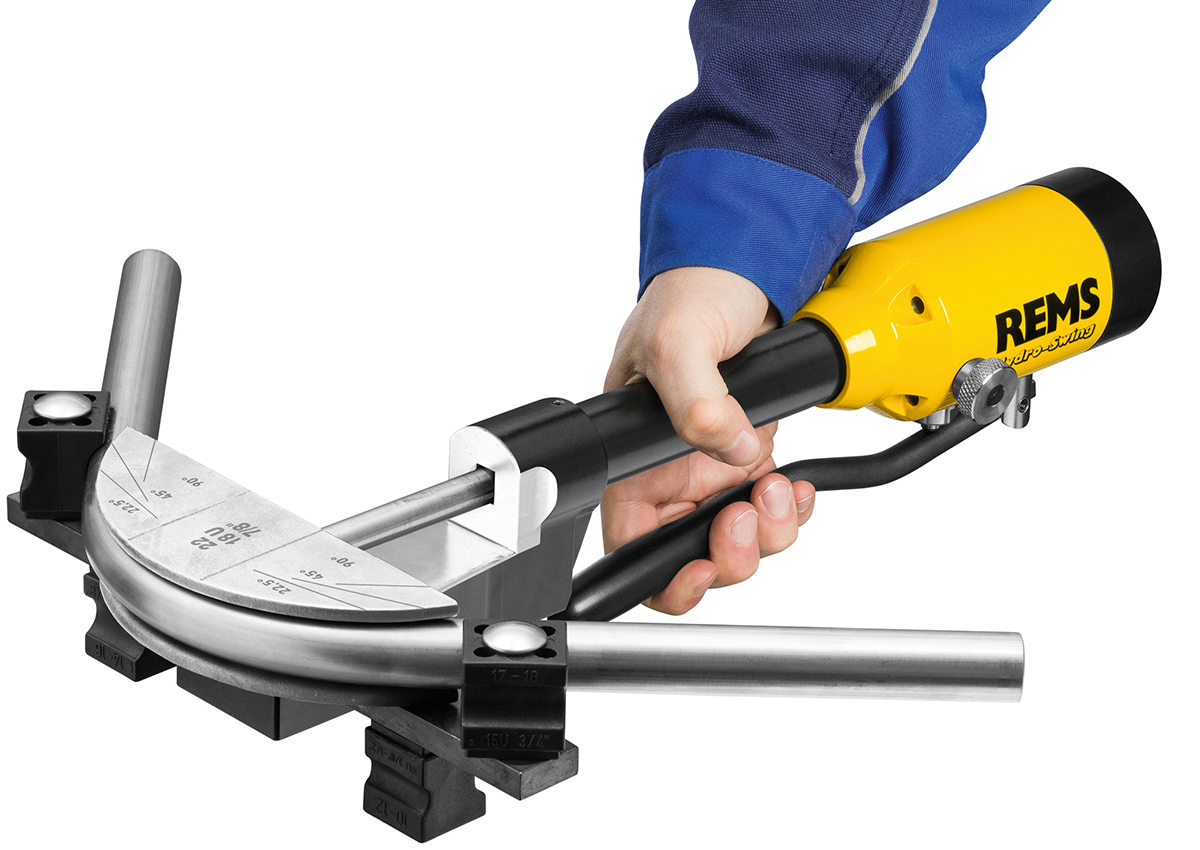

REMS Hydro-Swing Oil-hydraulic hand pipe bender

  • Robust, compact drive unit with closed, maintenance-free hydraulic system.
  • Handy and light, only 2.4 kg. Can be used anywhere, even in confi ned spaces.

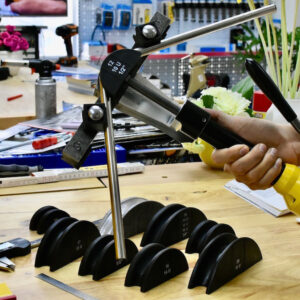

  • Easy, quick working, e.g. Ø 22 mm copper pipe bend in just 18 s. Marked bending formers for exact bending. Overbend, tier bend possible. Easy and rapid changing of bending formers. Back former support H-S Ø 10 – 26 mm, rotatable according to the size of the pipe to be bent, with back formers for pipes Ø 10 – 26 mm, ⅜ – ⅞”.
  • Back former support Ø 32 mm with back formers for pipes Ø 32 mm.

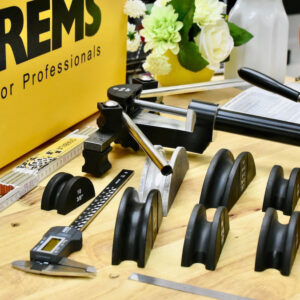

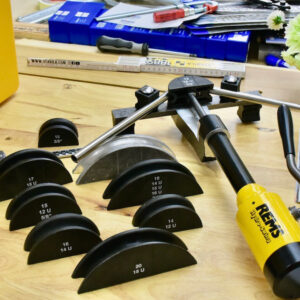

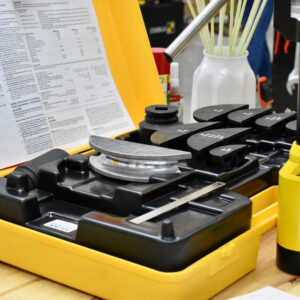

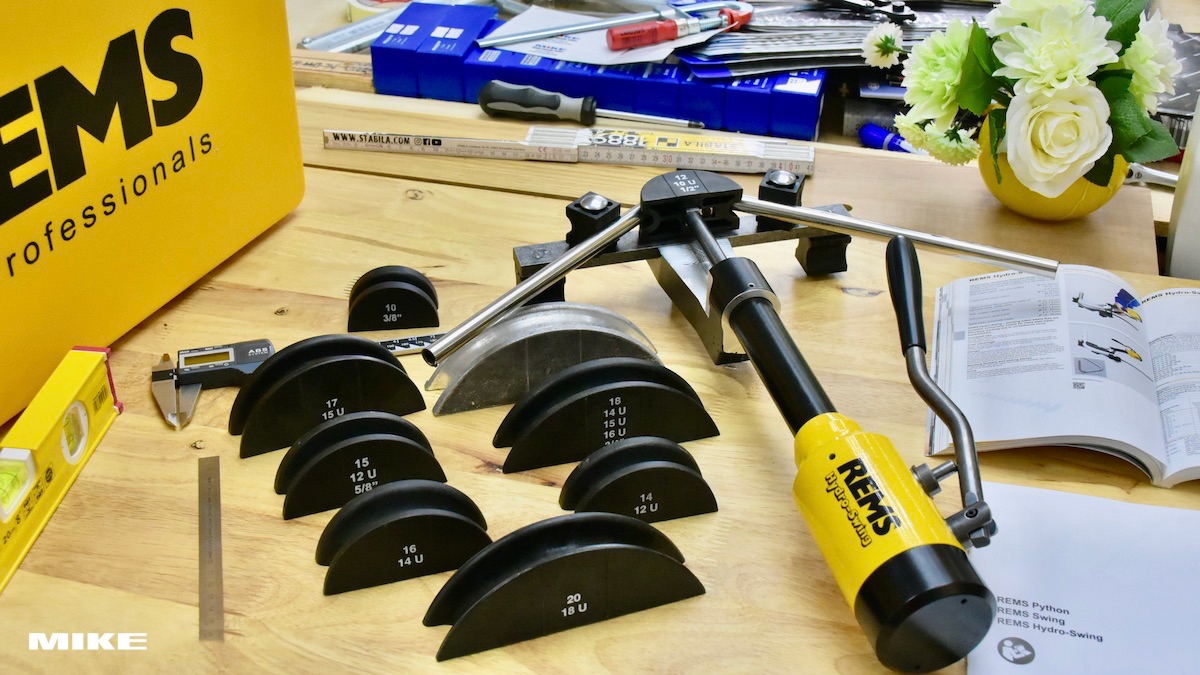

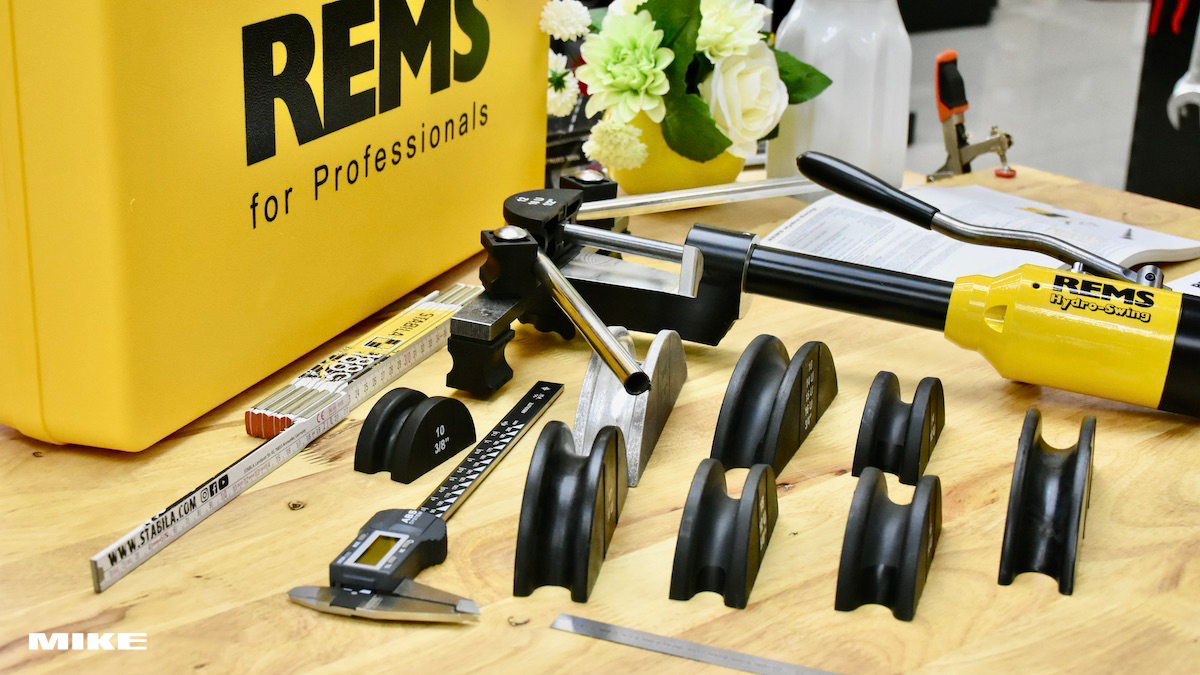

  • Bending formers and sliding pieces
  • In high-strength, high-slide, glass-fi bre reinforced polyamide. See table on

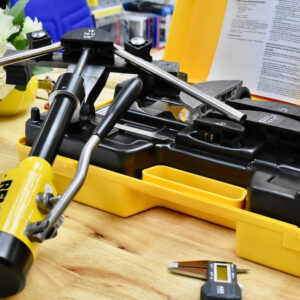

Drive Unit

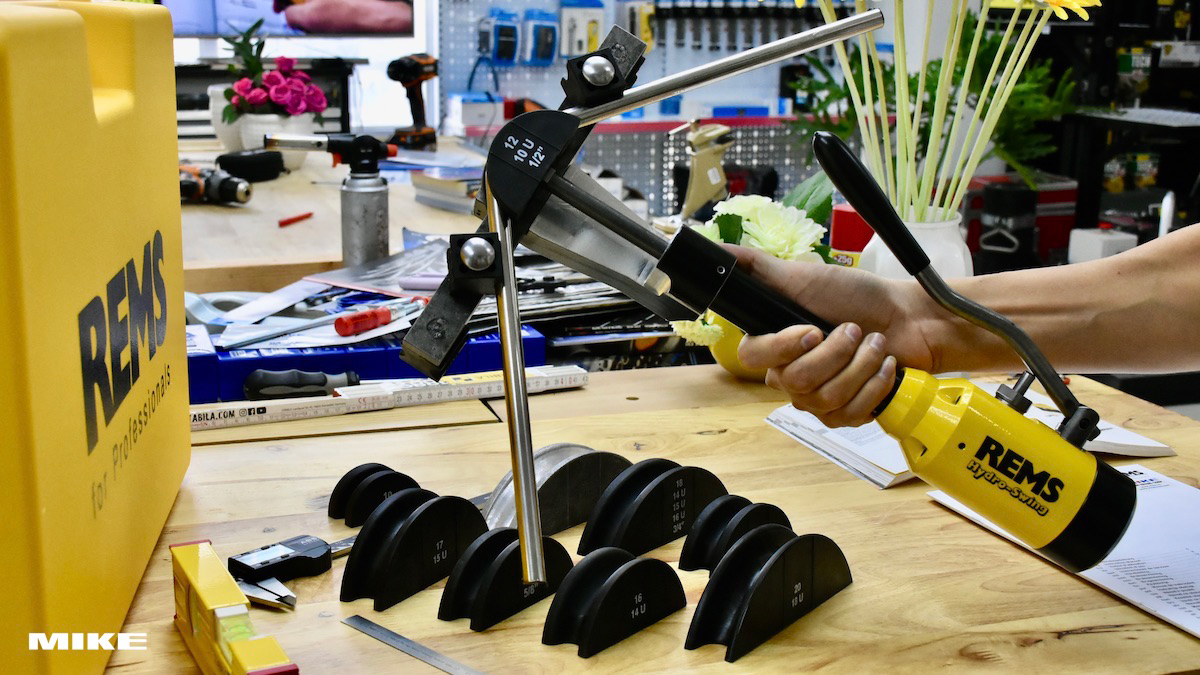

Oil-hydraulic drive unit with hydraulic cylinder made from high-quality, rolled hydraulic tube. Ergonomically designed thrust lever for strength saving pressure build-up with manual hydraulic pump. Reliable hydraulic thrust with overload protection in the foremost piston position and overpressure valves for safe working.

SKU Price Add pa_bo-khuon-cho-ong
153528 Price on request
-
153527 Price on request
-
153521 Price on request
-
153520 Price on request
-
153525 Price on request
-
153522 Price on request
-
153529 Price on request
-
153523 Price on request
-
153501 Price on request
-
153115 Price on request
-
153500 Price on request
-
153570 Price on request
-
