REMS Cut 110P Set – Pipe cutting and pipe chamfering tool

REMS Cut 110P Set is a tool designed for precision cutting and chamfering of welded pipes. It is a robust quality tool that enables right-angle cutting, versatile for use whether by hand, in a parallel vise, or mounted on a workbench. It is suited for welded drainage pipes or downpipes made from materials such as copper, titanium zinc, and stainless steel conforming to EN 1124 standards, with diameters ranging from 50 to 110 mm.

The tool boasts a sturdy metal construction that can withstand demanding use, facilitating easy and swift operation with an ergonomic tension handle. It features spring-loaded plastic clamping inserts for the centralized clamping of various pipe sizes, and these can be swapped out with no need for additional tools. The clamping pressure is continuously adjustable to compensate for pipe tolerances.

The REMS Cut 110P Set comes in different variants to accommodate various pipe diameters:

1. Set 50 + 75 + 110: This variant caters to pipe diameters from 50 mm to 110 mm.
2. Set 60 + 80 + 100 + 110: This set is designed for slightly larger pipe diameters, starting from 60 mm up to 110 mm.
3. Set 76 + 87 + 100 + 110: This option is for even larger pipes, with the smallest diameter being 76 mm and the largest at 110 mm.

These variations allow users to select a set that best matches the range of pipe sizes they intend to work with. Each set is priced accordingly, reflecting the different components included for each range of pipe sizes.

REMS Cut 110P Set – Pipe cutting and pipe chamfering tool

A specially hardened cutting wheel made from proven, tough REMS cutting-jaw steel ensures a long service life. For less strenuous operation, the set includes a workbench mount. Additionally, the tool set and clamping inserts allow for perpendicular, flush cutting and chamfering (15°) of plastic pipes, which is available as an accessory detailed on page 94.

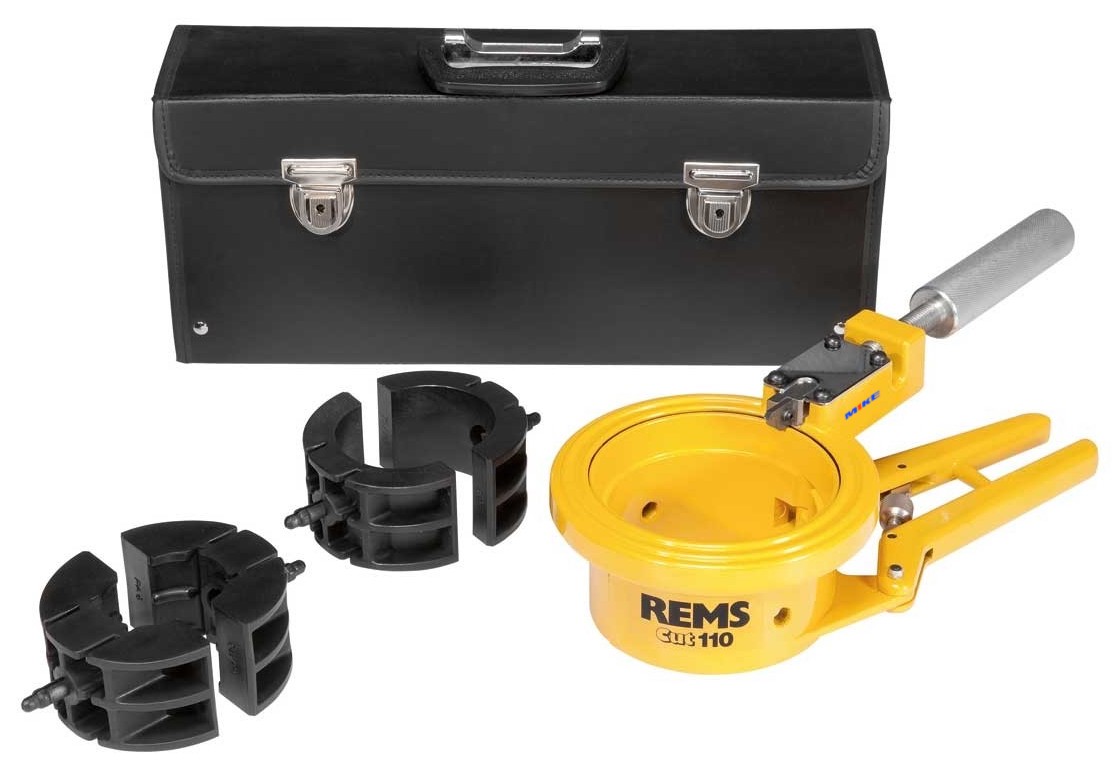

The basic configuration of the REMS Cut 110P Set typically includes:

1. The cutting and chamfering tool itself, which is designed for right-angle separation of welded pipes.
2. A range of clamping inserts to accommodate different pipe diameters.
3. A cutting wheel, specifically the REMS Cut 110 Cu-INOX cutting wheel, which is made from specially hardened steel for durability.
4. A robust metal case for transport and storage of the tool set.
5. Instructions for use, which likely include safety guidelines and maintenance advice.

Additionally, some sets may come with accessories for bench mounting to facilitate easier cutting and to reduce effort during use. The exact contents can vary depending on the specific set purchased, as indicated by the options listed in the image provided.

– Robust quality tool for perpendicular cutting of welded pipes
– Usable freehand, in a parallel vice, or on a workbench
– Suitable for copper, titanium zinc, and stainless steel pipes (EN 1124)
– Pipe diameter range from 50 to 110 mm
– REMS Cut 110 Cu-INOX – Simple separation of downpipes
– Durable metal construction for heavy-duty use

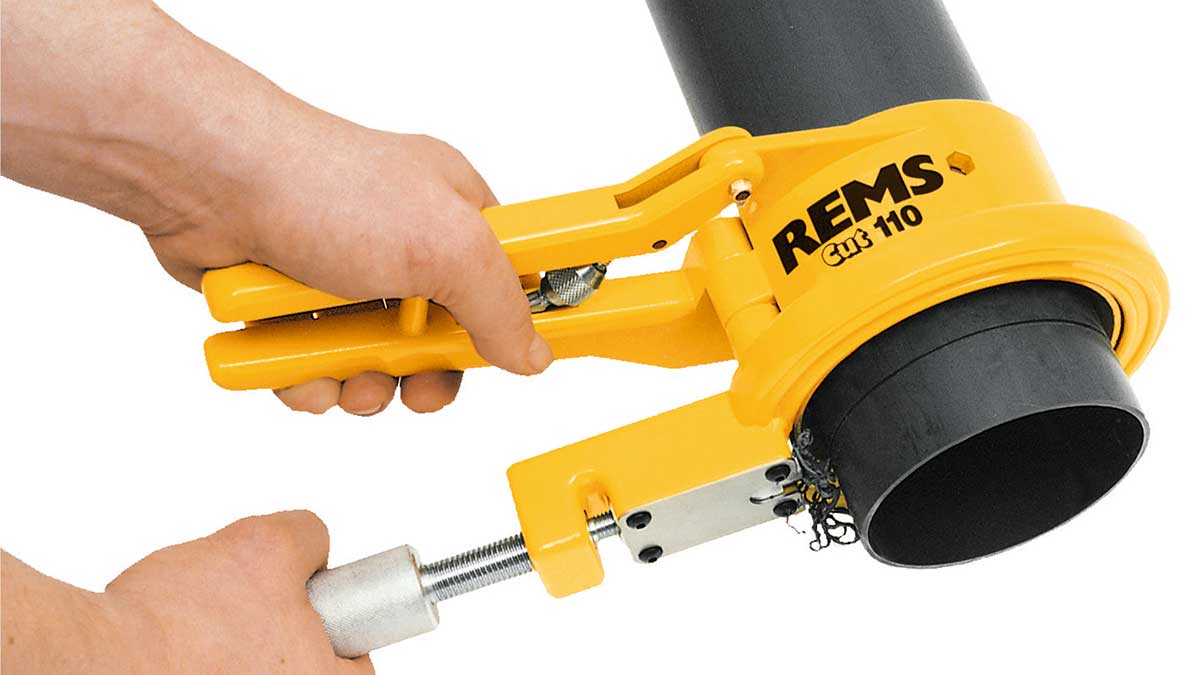

– Quick and easy operation with an ergonomic clamping handle
– Spring-loaded clamping inserts made of plastic for centered clamping of various pipe sizes
– Tool-free interchangeable clamping inserts
– Continuously adjustable clamping pressure to compensate for pipe tolerances
– Specially hardened cutting wheel from REMS cutting-jaw steel for extended durability

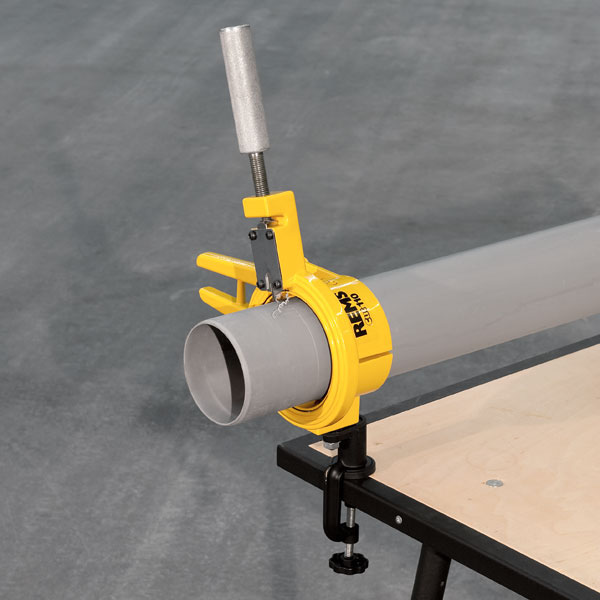

– Workbench mount included for efficient, less tiring operation

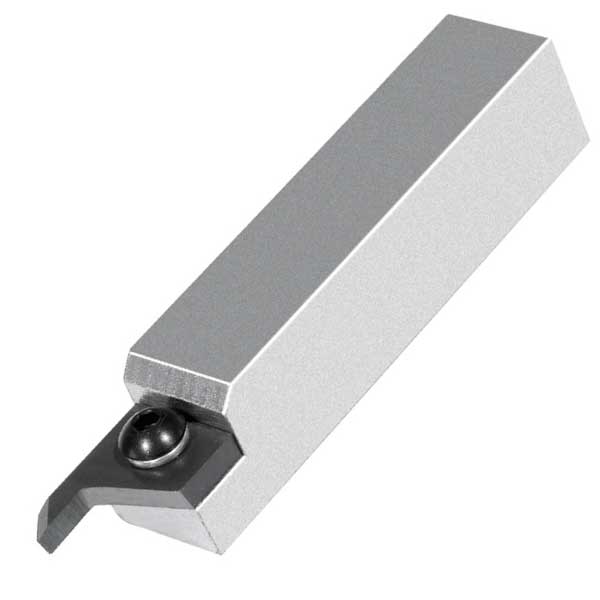

– Toolset P and clamping inserts for perpendicular, clean cutting and 15-degree chamfering of plastic pipes as an accessory (refer to page 94 for details)
