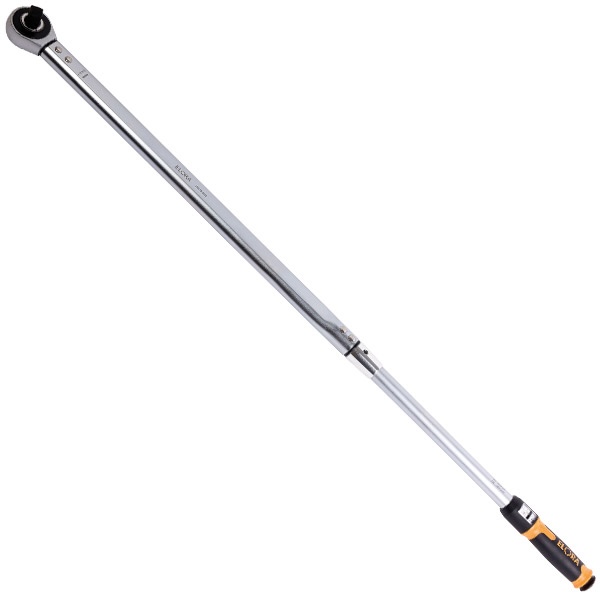

Torque wrench 3/4″ ELORA 2070, with vernier scale

ELORA 2070 Torque Wrench with Push-Through Square Drive 3/4 inch, Germany. Designed for adjusting tightening torque within the range of 100 – 1000 Nm. Depending on the torque range required, select the corresponding model from the table below. The main and default scale commonly used in Vietnam is Nm (Newton-metre, i.e. force multiplied by lever arm).

The ELORA 2070 measures torque accurately. It allows torque adjustment from 100 Nm up to 1,000 Nm. The torque wrench is specifically designed with a 3/4 inch push-through square drive for reversing the direction of rotation, delivering efficiency in practical applications. This series comprises three versions with different measuring ranges.

Manufactured from steel tube with matt chrome plating, the ELORA 2070 is robust and optimised for operation. In addition, the QUATROLIT®-2C non-slip handle provides comfort and secure grip during use. The wrench is equipped with a Nm scale and secondary markings for ft.-lb. The graduation marks enable users to read and set torque values with ease.

ELORA 2070 Torque Wrench
Push-through square drive 3/4 inch

One of the key features of the ELORA 2070 is the secure locking of the pre-set torque value via a protective button at the end of the handle, preventing unintentional adjustment. With ELORA-No. 2179-S, the locking button can be replaced by a protective cap, ensuring safe fixation.

• The torque wrench also includes an auxiliary scale in ft.-lb. (foot-pounds).
• Fundamentally, torque is calculated as force multiplied by lever arm.
• The torque lock is secured by the end-cap. To adjust, pull out, set the torque, then lock back in.
• The ratchet head incorporates a 60-tooth mechanism, with an effective working angle of only 6°.
• Handle type: QUATROLIT®-2C non-slip grip.
• Complies with: EN ISO 6789:2017 Part 1, Type II Class A.
• Accuracy: ±4%.
• Torque adjustment range: 100–1000 Nm depending on model.
• Wrench head: Push-through square drive 3/4 inch.Safety lock: Protective button at handle end.
• Accuracy certificate traceable.

It is non-interchangeable, meeting high technical requirements and ensuring operational safety.

Additional notes on the ELORA 2070 series

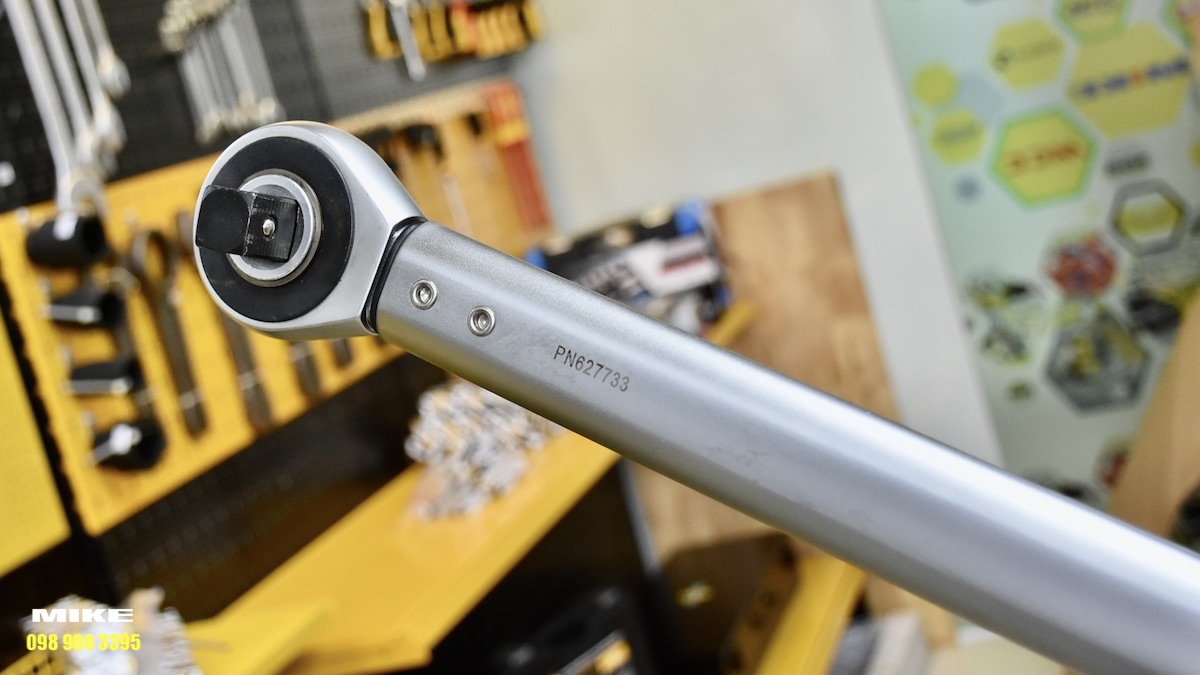

Each torque wrench is marked with a unique serial number, matching the identification code in the manufacturer’s calibration certificate. The ELORA 2070 complies with EN ISO 6789:2017 Part 1, Type II Class A, with an error margin of only ±4%, guaranteeing high accuracy with every application.

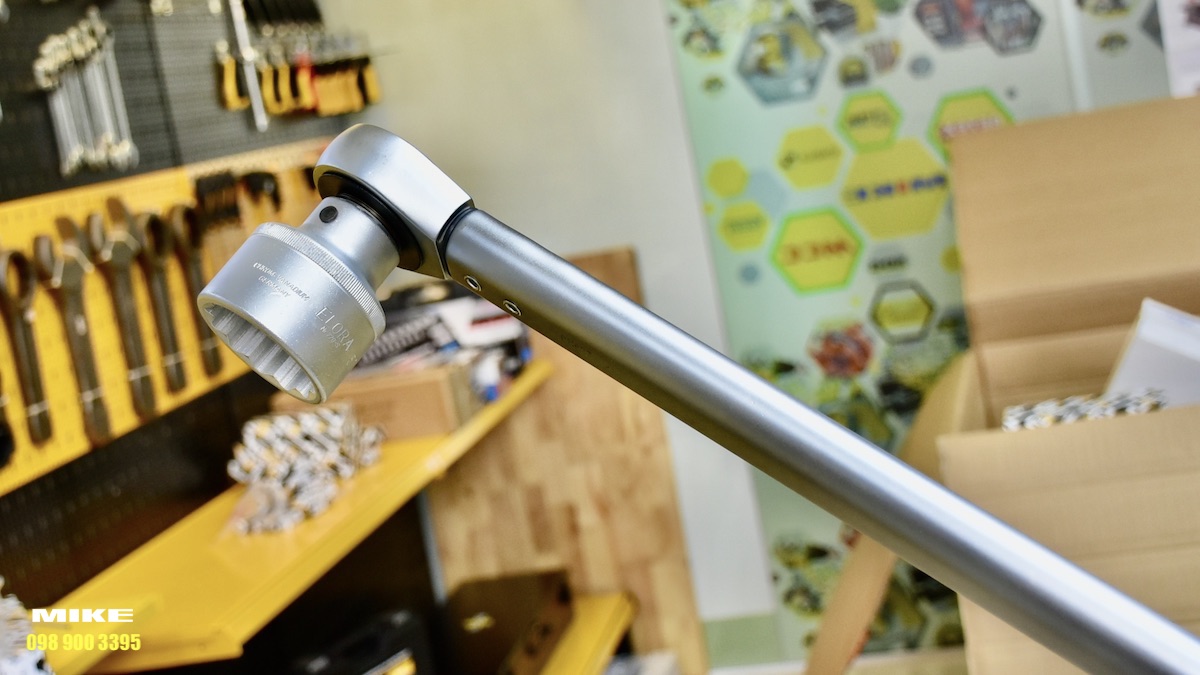

A useful tool for professional technicians, offering a reliable solution where precise and safe torque application is required. Naturally, it should be used in combination with sockets to complete the tool set.

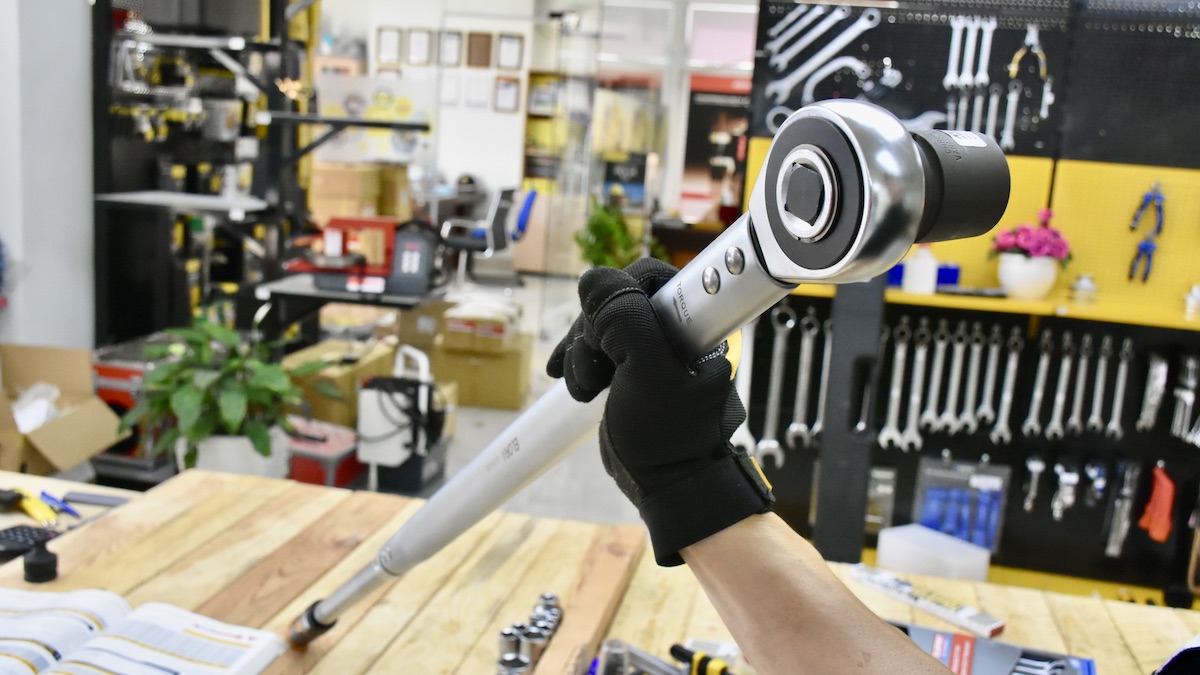

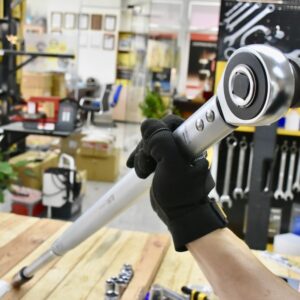

To reverse the direction of rotation, simply push the square drive through to the opposite side. “Push through” refers to the square drive sliding from one side of the ratchet head to the other. Once pushed through, the ball detent secures it in place. (See video above for a clearer demonstration.)
