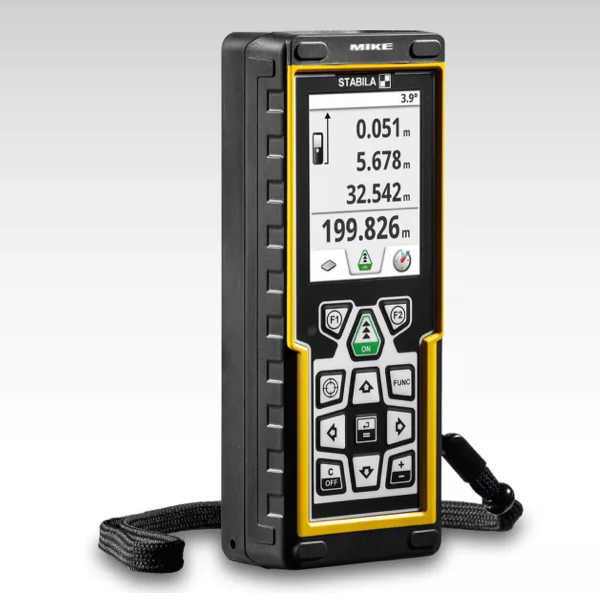

Laser distance measurer LD 520, Bluetooth® Smart 4.0, 200m

Laser distance measurer LD 520 is a professional-grade measuring tool offering precision, connectivity, and versatility. Measuring range extends from 0.05 m to 200 m, with accuracy of ±1 mm in compliance with ISO 16331-1. Equipped with a digital target locator and 4x zoom, this instrument enables precise targeting even outdoors in strong sunlight, making it suitable for complex construction and engineering applications.

The built-in Bluetooth® Smart 4.0 technology allows seamless transfer of measurement data to smartphones or tablets. Professionals benefit from real-time documentation, calculation of material requirements, and efficient project management. An integrated 360° inclination sensor expands flexibility, enabling measurement from any position with display values up to ±180°.

LD 520 integrates 18 comprehensive measuring functions, including MIN/MAX tracking, indirect distance and height calculations, and elevation profile measurements. A built-in calculator supports on-site computations without additional tools. The illuminated display ensures clear visibility in all conditions.

Laser distance measurer LD 520

It supports applications in construction planning, material cost estimation, interior finishing, and surveying tasks. The combination of zoom-assisted targeting, wireless data transfer, and multifunction capability makes LD 520 a versatile tool for tradesmen, engineers, and project managers.

• Measuring range: 0.05–200 m
• Accuracy: ±1 mm, ISO 16331-1 certified
• Digital target locator with 4x zoom
• Bluetooth® Smart 4.0 for wireless data transfer
• 360° inclination sensor (±180°)
• 18 measuring functions including indirect height and elevation profiles
• Built-in calculator and memory storage option
• Display illumination for clear readings
• Impact-resistant housing with STABILA soft grip
• IP 54 protection against dust and water spray
• 1/4” tripod connection for stable positioning
• Belt pouch and wrist strap included

LD 520 laser distance measurer is designed for professionals working indoors and outdoors who need accurate distance recording and target location over long ranges.

Technical specifications LD 520

Each unit is supplied with a belt pouch, wrist strap, and two AA batteries for immediate operation. With a working capacity of up to 5000 measurements per battery set, LD 520 ensures reliability across extended projects.

• Article number: 18562
• GTIN: 4005069185626
• Laser class: 2
• Laser wavelength: 635 nm
• Output: < 1 mW
• Measuring range: 0.05–200 m
• Accuracy: ±1 mm
• Number of functions: 18
• Inclination sensor: ±180°
• Storage option: Yes
• Data transfer: Yes (Bluetooth® Smart 4.0)
• Battery type: 2 × AA
• Operating life: approx. 5000 measurements
• Protection rating: IP 54
• Tripod connection: 1/4″

The housing features impact-resistant construction with STABILA soft grip casing, protecting against shocks during field use. Rated to IP 54, the instrument resists dust intrusion and water spray, enhancing durability in challenging environments. A 1/4” tripod thread provides stable positioning for long-range targeting.
