REMS eva hand die stock with quick-change die heads
SKU: REMS EVAFeaturing a robust, plastic-coated steel ratchet lever and uniform quick-change die heads for easy operation. Its durable dies ensure clean, efficient threading across a wide range of sizes, ideal for plumbers. Made in Germany
Price from: € 204.0 – € 685.0
(Price excluding tax, for reference only.)

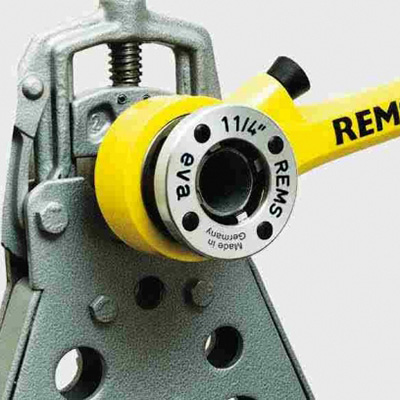

REMS eva Set in steel case – the plumber’s die stock. Excellent start-cutting and threading. Steel ratchet lever, thickly plastic coated.Only one type of quick-change die heads.Indestructible quality dies. REMS eva hand die stock is a testament to proven quality and excellent threading capabilities, catering specifically to the needs of plumbers. This tool is adept at creating pipe threads from ⅛ to 2 inches (16 – 50 mm) and bolt threads from 6 to 30 mm (¼ to 1 inch), embodying versatility and efficiency in threading tasks.

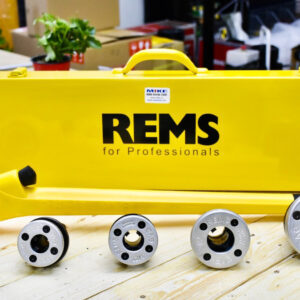

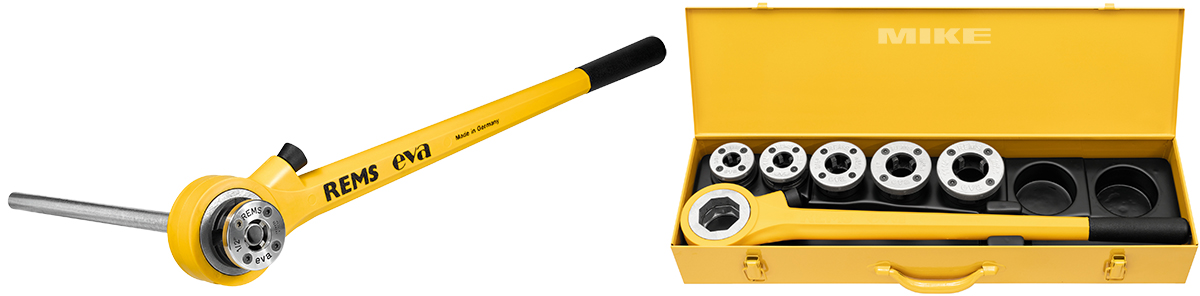

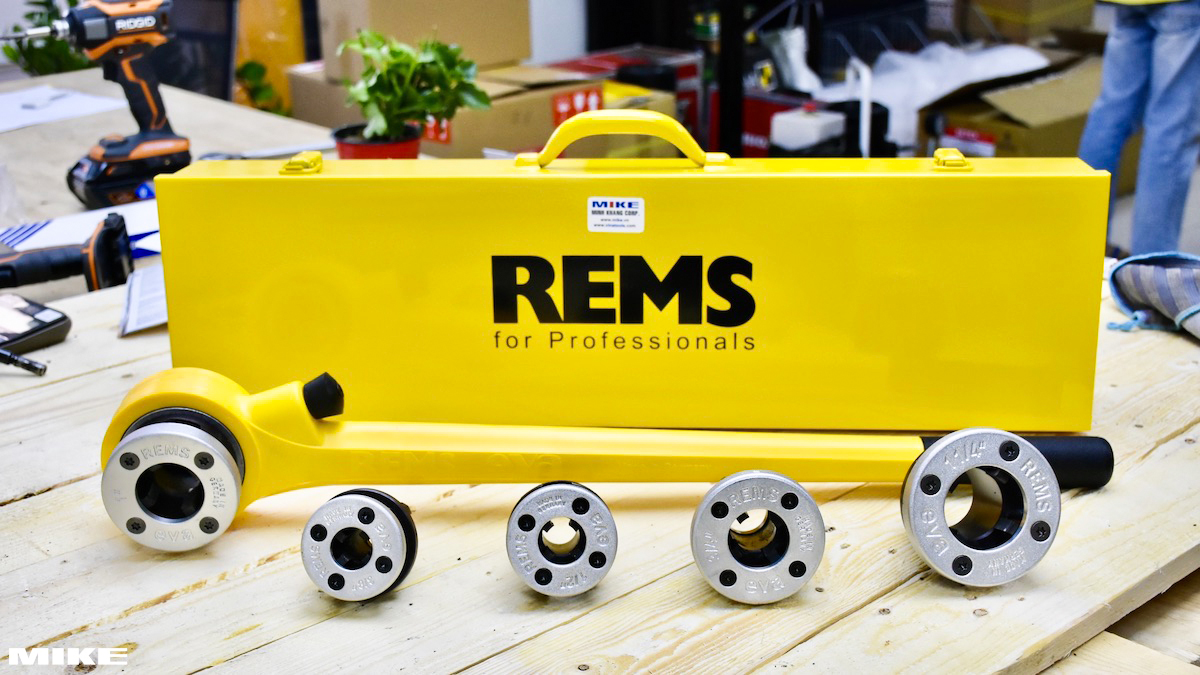

REMS eva Set in steel case

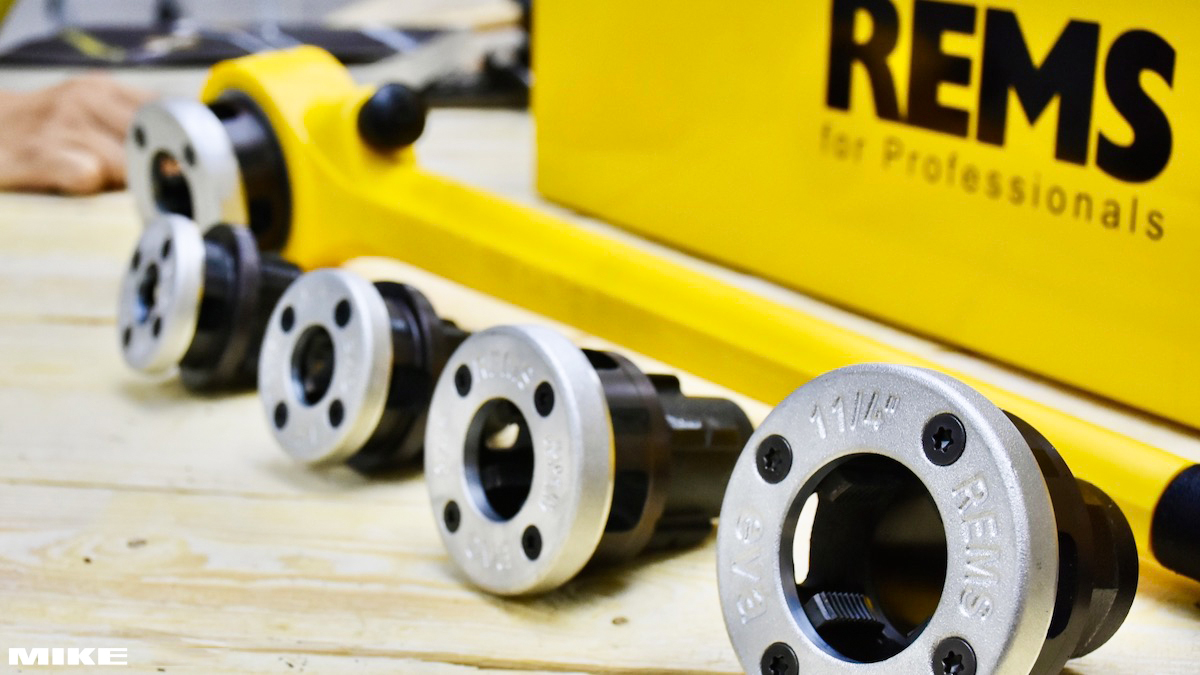

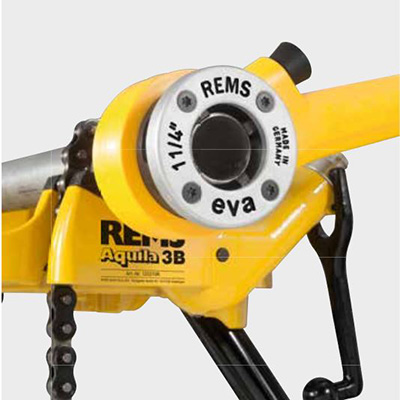

A standout feature of the REMS eva is its unique system advantage, which simplifies the threading process. With a large working range that extends up to 1¼ inches and further up to 2 inches, it utilizes only one ratchet lever, streamlining the operation. The uniformity in the design of quick-change die heads and dies not only facilitates efficient and easy stocking but also prevents any possible confusion. These quick-change die heads are compact and compatible with all REMS die stocks and other suitable die stocks, enhancing their utility.
System advantage
- Large working range up to 1¼” and up to 2″ with only one ratchet lever. Only onetype of small, compact quick-change die heads and only one type of dies.
- The same quick-change die heads fi t all REMS die stocks and other suitable makes of die stocks. Effi cient and easy stocking. No confusion possible.

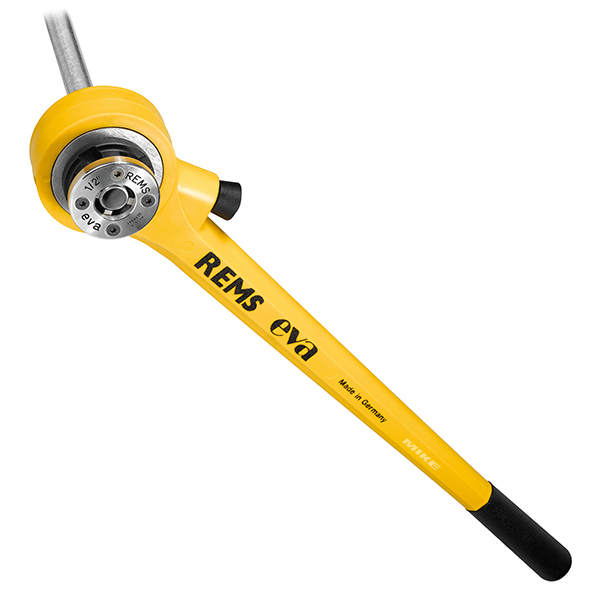

Ratchet lever

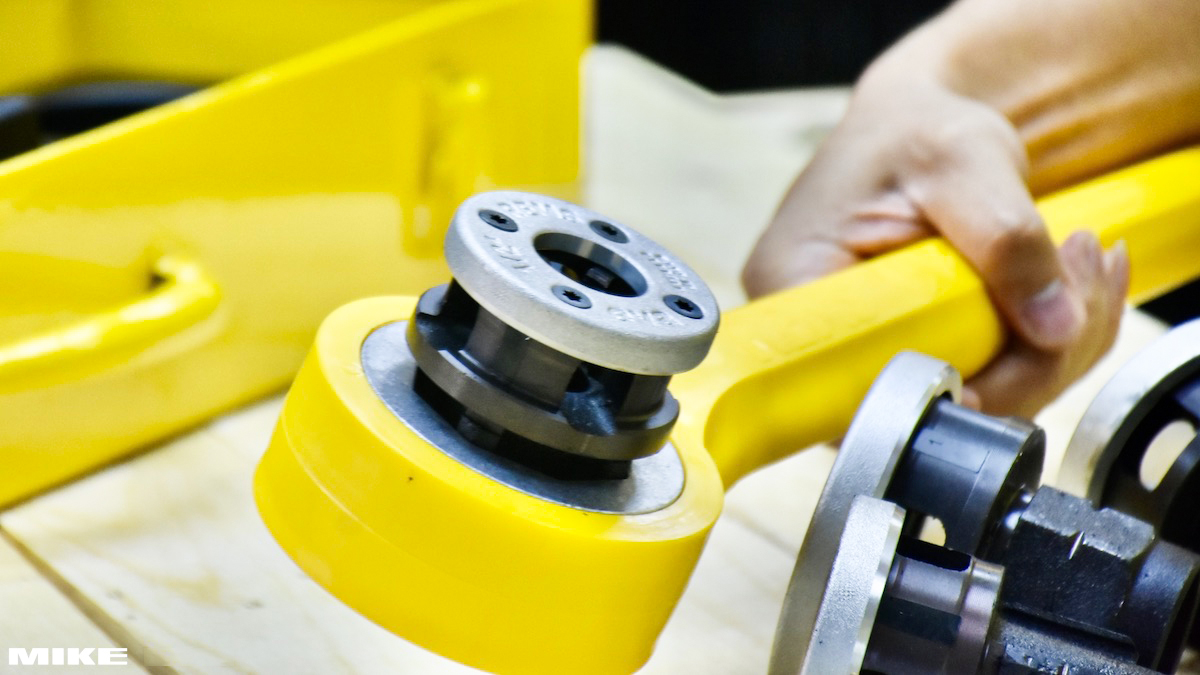

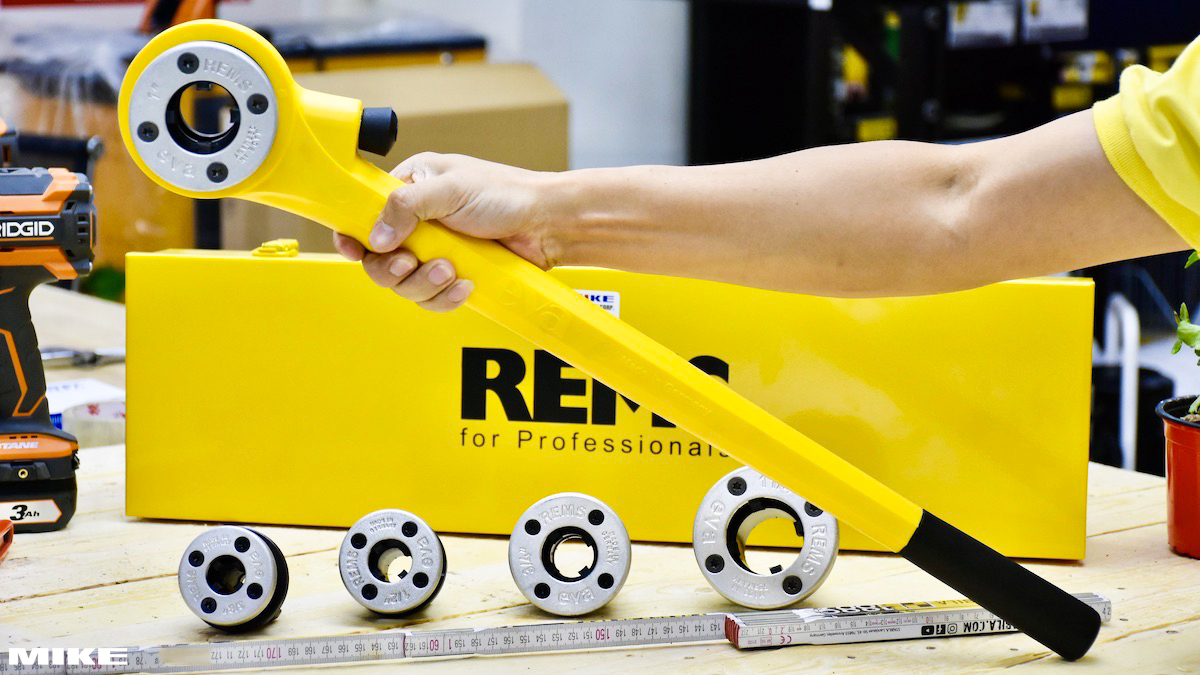

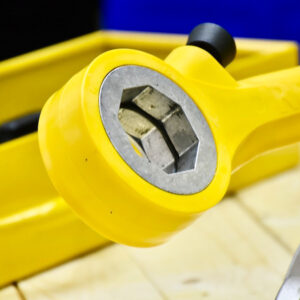

The ratchet lever of the REMS eva die stock epitomizes robustness. Made of steel and coated with thick plastic, it ensures convenient operation. The handle is serrated plastic, providing a secure grip and allowing easy adjustment of the ratchet’s rotation. This feature ensures perfect, secure seating for quick-change die heads, enabling fast and easy changes.
- Robust. Ratchet lever in steel, thickly plastic coated, for convenient operation.

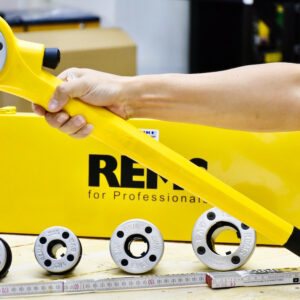

- Serrated plastic handle for secure grip. Easy adjustment of ratchet rotation.

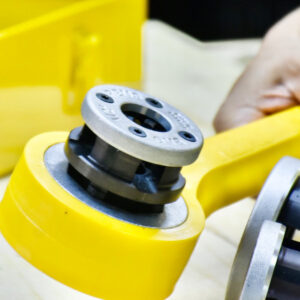

- Perfect, secure seating of quick-change die heads, fast and easy change.

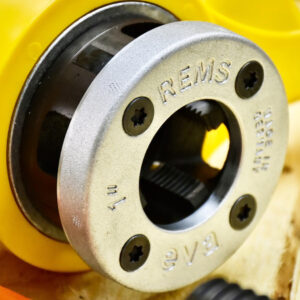

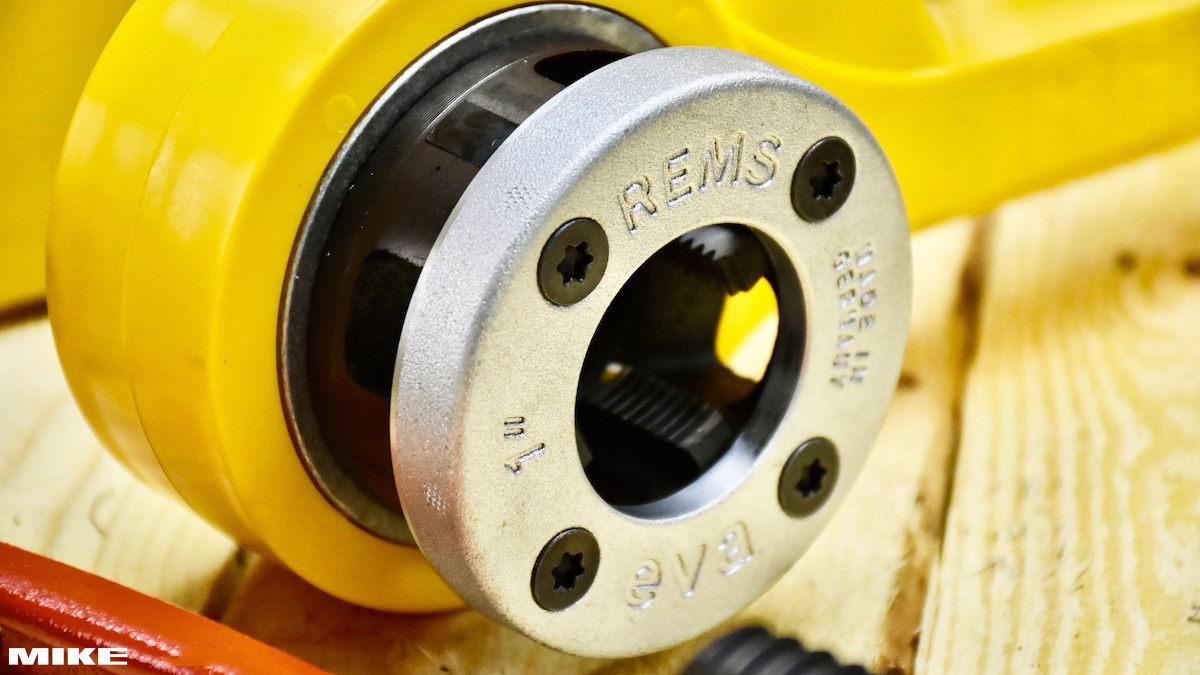

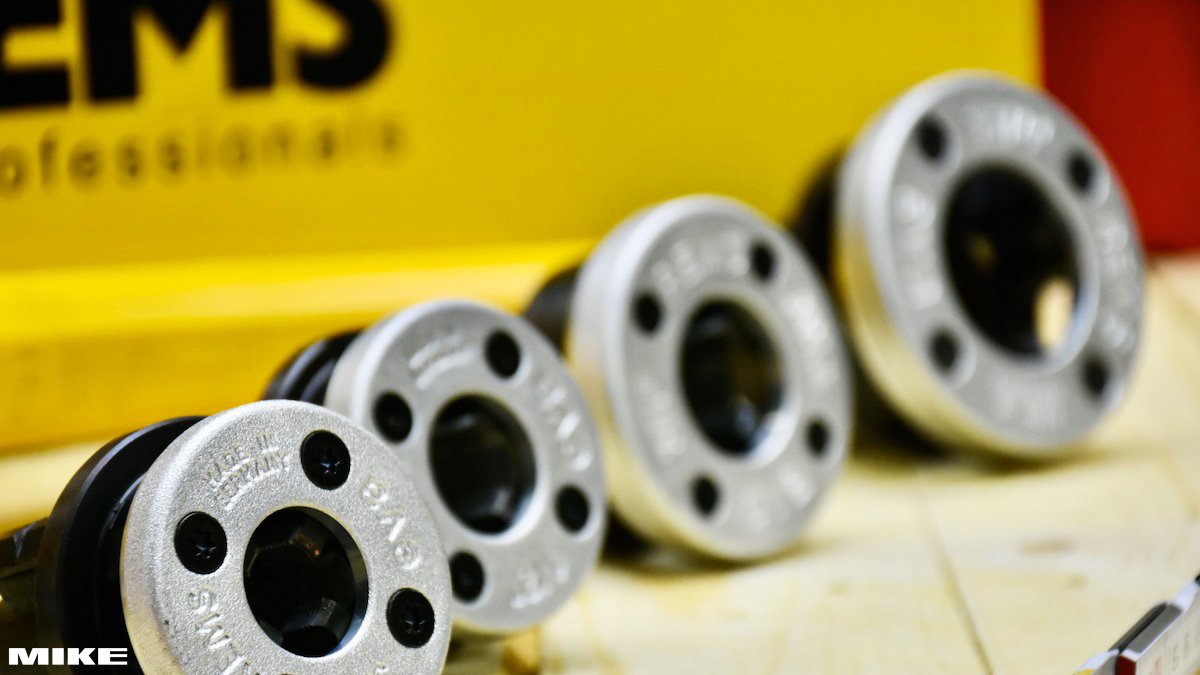

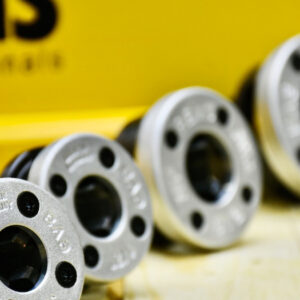

REMS eva’s quick-change die heads feature proven technology, high-grade materials, and precise machining. This combination guarantees excellent start-cutting performance and seamless threading without the stalling of dies. The die heads are designed for long, precise pipe guidance, ensuring perfect pipe centering. Additionally, the chip holes widen towards the outside, facilitating good chip flow and clean threads. For cutting pipe threads in hard-to-reach areas, quick-change die heads S are also available.

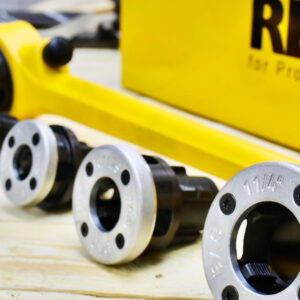

Quick-change die heads
- Proven technology, high-grade material and precise machining of die head, dies and cover form a unit and ensure an excellent start-cutting performance and easy threading. No stalling of dies. Long, precise pipe guidance for perfect pipe centering.
- The chip holes which become wider at the outside enable good chip fl ow and clean threads. Quick-change die heads S for cutting pipe threads in hard-to-reach areas.
The dies themselves are of indestructible REMS quality, crafted from high-quality, special-grade steel. They are fully tempered and hardened, offering an extremely long service life due to their precise cutting geometry. This ensures excellent start-cutting performance, easy threading, and clean threads.
The proven, indestructible REMS quality dies with precise cutting geometry ensure an excellent start-cutting performance, easy threading and clean threads. Dies in a high-quality special-grade steel, fully tempered and hardened, for extremely long die life.
Thread-cutting oil and Nipple-threading
- Thread-cutting oil: REMS Sanitol and REMS Spezial. Specially developed for threading. High cooling and lubricating effect. Essential for clean threads and longer service life of dies, tools and machines.
- Nipple-threading: Efficient with REMS Nippelspanner ⅜ – 2″.
Sanitol | Spezial |
For thread cutting, REMS recommends using REMS Sanitol and REMS Spezial oils, specially developed for threading. These oils provide a high cooling and lubricating effect, which is essential for producing clean threads and extending the service life of dies, tools, and machines.
Additionally, the REMS eva die stock proves efficient in nipple-threading, accommodating sizes from ⅜ to 2 inches. This capability further underscores the versatility and utility of the REMS eva hand die stock, making it an indispensable tool for plumbers seeking quality, efficiency, and reliability in their threading tasks.
Guide to selecting the right REMS Eva Set for your threading needs
Choosing the right REMS eva Set configuration for your needs involves considering the type of threads you plan to cut, the range of sizes required for your projects, and whether you need a set for right-hand, left-hand, or both types of threads. Each REMS eva Set includes a hand die stock with quick-change die heads, designed for creating precise pipe and bolt threads.
Basic components of each set
- 1 Ratchet Lever: Designed to cover the complete work range, facilitating ease of use across all sizes included in the set.
- Quick-Change Die Heads with Dies: These are tailored for specific thread types and sizes. For pipe threads, they conform to the tapered ISO 7-1, EN 10226 (DIN 2999, BSPT) R right-hand standard, and for electric conduit threading, they adhere to EN 60423 M.
- Packaging Options: Sets come in either a sturdy steel case for enhanced durability and protection or a cardboard box for lighter handling and storage.
Choosing the right set
- Determine the thread types and sizes you need: REMS eva Sets are available for a variety of thread sizes and types, including metric (M) sizes for bolt threads and sizes for pipe threads. The sets range from ⅛ – 2 inches (16 – 50 mm) for pipe threads and 6 – 30 mm (¼ – 1 inch) for bolt threads.
- Select based on thread direction: If you require tools for left-handed threads or NPT threads, ensure the set you choose specifies this capability.
- Consider your work environment: If you’re frequently moving the set or working in rough conditions, a steel case might offer better protection and longevity. For lighter use or if portability is a key concern, a cardboard box may be sufficient.
- Match the set to your most common tasks: For more specialized needs, such as threading electric conduit, ensure the set includes dies for the specific standards you work with.
Example set configurations
- For basic needs covering common pipe sizes, a set like the R ½ + ¾ + 1 in a steel case or cardboard box might be sufficient.
- For a broader range of pipe threading tasks, including larger sizes, consider a set like the R ½ + ¾ + 1 + 1¼ + 1½ + 2.
- For metric bolt threading, the M 16 + 20 + 25 + 32 set would cater to those specific requirements.
By carefully selecting a REMS eva Set based on these guidelines, you can ensure that you have a versatile and reliable tool for your threading tasks, whether for plumbing, electrical installations, or general maintenance work.
SKU | Price | Add | No. die head | Pipe threads | Set name |
---|---|---|---|---|---|
520014 | € 360.0 | 3 | ½ + ¾ + 1 | Set R | |
520015 | € 450.0 | 4 | ½ + ¾ + 1 + 1¼ | Set R | |
520013 | € 510.0 | 5 | ⅜ + ½ + ¾ + 1 + 1¼ | Set R | |
520017 | € 630.0 | 6 | ½ + ¾ + 1 + 1¼ + 1½ + 2 | Set R | |
520016 | € 685.0 | 7 | ⅜ + ½ + ¾ + 1 + 1¼ + 1½ + 2 | Set R | |
520010 | € 525.0 | 4 | 16 + 20 + 25 + 32 (M × 1,5) | Set M | |
520009 | € 565.0 | 4 | 20 + 25 + 32 + 40 (M × 1,5) | Set M | |
520008 | € 204.0 | 2 | ½ + ¾ | Set R | |
520004 | € 262.0 | 3 | ½ + ¾ + 1 | Set R | |
520003 | € 382.0 | 5 | ⅜ + ½ + ¾ + 1 + 1¼ | Set R |
- Pending orders
Accessories and options
SKU | Price | Add | Thumbnail | Products |
---|---|---|---|---|
522051 | € 150.0 | Extension 300 mm accessories for REMS eva and other makes
|
||
5212xx | € 144.0 – € 269.0 | Select | Pipe threads NPT tapered, right-hand, Taper Pipe Thread
Offer reliable, leak-proof connections for fluid systems. Sizes range from ⅛ to 2 inches, ensuring compatibility and a secure seal across various applications in plumbing, gas, and steam transport. Made in Germany |
|
5210xx | Price on request | Pipe threads R tapered, right-hand ISO 7-1, EN 10226
They feature no die stalling, precise start-cutting, easy threading, and excellent chip flow for clean threads, ensuring perfect pipe centering and efficient operation. Made in Germany |
||
522000 | € 150.0 | Ratchet lever for complete work range 522000 REMS EVA
|
||
Nippelspanner | € 110.0 – € 342.0 | Select | REMS Nippelspanner accessories for threading machines
Nippelspanner is a manual pipe nipple chuck designed for internal clamping of short pipe pieces. Compatible with various threading machines, it saves time and money by utilizing short pipes efficiently. REMS – Germany. |
|
5211xx | € 140.0 – € 262.0 | Select | REMS Pipe threads R tapered, left-hand, ISO 7-1, EN 10226
Featuring sizes R ⅛ LH to R 2 LH. Advanced design ensures easy start-cutting, no stalling, perfect centering, and clean threads, distinguishing left-hand from right-hand threads by tightening direction. Made in Germany. |
|
REMS Sanitol | € 22.0 – € 1,564.0 | Select | REMS Sanitol Thread-cutting oil, made in Germany
mineral oil-free thread-cutting oil, ideal for drinking water pipes and universal threading. Water-soluble, ethanol-free, and featuring high lubrication and cooling effects, it ensures clean threads and longevity of tools. |
|
REMS Spezial | € 20.0 – € 630.0 | Select | REMS Spezial thread-cutting oil, made in Germany
REMS Spezial, an eco-friendly thread-cutting oil, enhances threading with superior lubrication and cooling, extends tool lifespan, and meets environmental standards for safe use on drinking water pipes. Made in Germany. |
|
5213xx | € 178.0 – € 322.0 | Select | Threads M for electric conduit EN 60423 REMS 5213xx
including sizes from M16 to M50. These threads feature quick-change die heads for seamless threading, ensuring precise start-cutting performance, smooth operation without die stalling, and optimal pipe centering. |
