REMS Amigo Electric die stock with quick-change die heads

REMS Amigo Electric Die Stock, originating from Germany, stands out as a powerful, user-friendly threading machine designed for threading applications. This machine tool boasts a distinctive support bracket that enables its operation without the need for a vice, making it an ideal choice for repair, renovation, and job site tasks. It is capable of handling pipe threads ranging from ⅛ to 1¼ inches (16 – 40 mm) and bolt threads from 6 to 30 mm (¼ to 1 inch), showcasing its versatility in various sizes.

The REMS Amigo is celebrated for being the smallest, lightest, strongest, and fastest electric die stock in its class up to 1¼ inches. A notable system advantage of this tool is its uniformity in quick-change die heads and dies, applicable for all REMS die stocks. This uniformity simplifies and streamlines stocking processes, eliminating potential confusion.

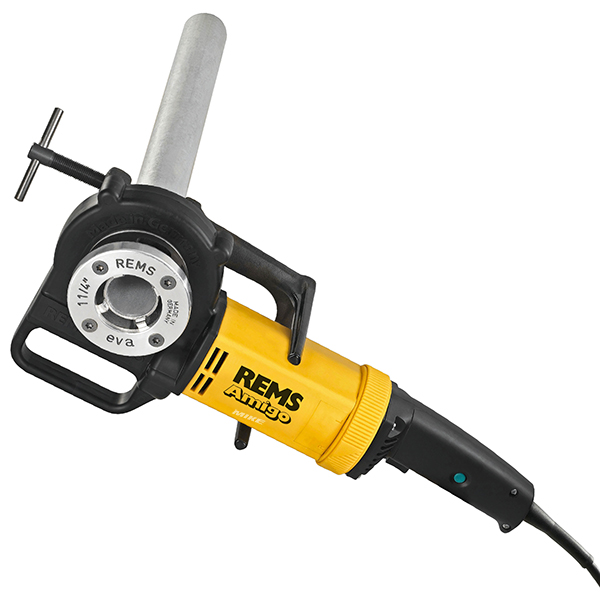

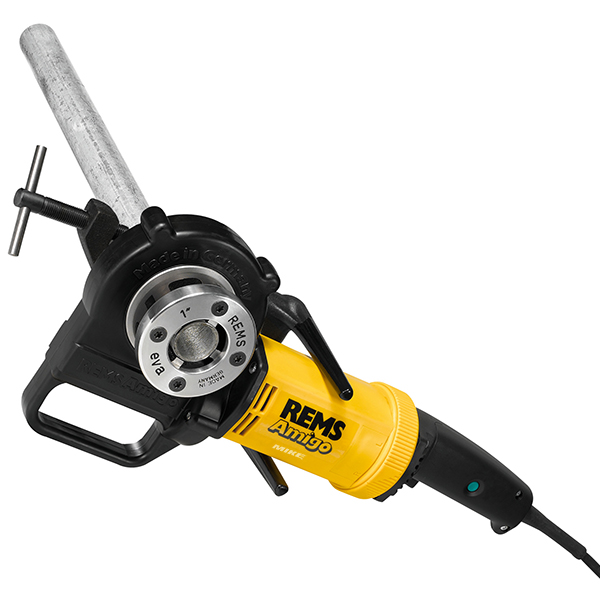

Its support bracket is another feature worth mentioning. Designed for solidity and ease of use, it effectively supports the die stock against torque from both directions. The tool’s secure clamping is achieved through an angular clamping spindle that benefits from a self-supporting effect, facilitating the simple mounting of the die stock onto both the support bracket and the pipe.

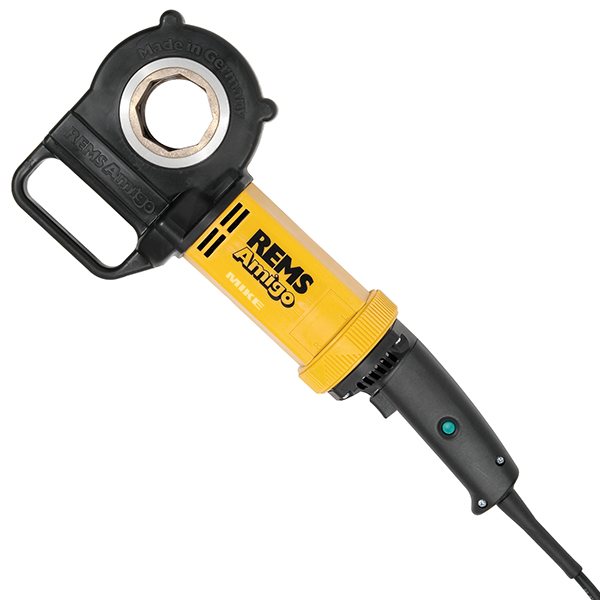

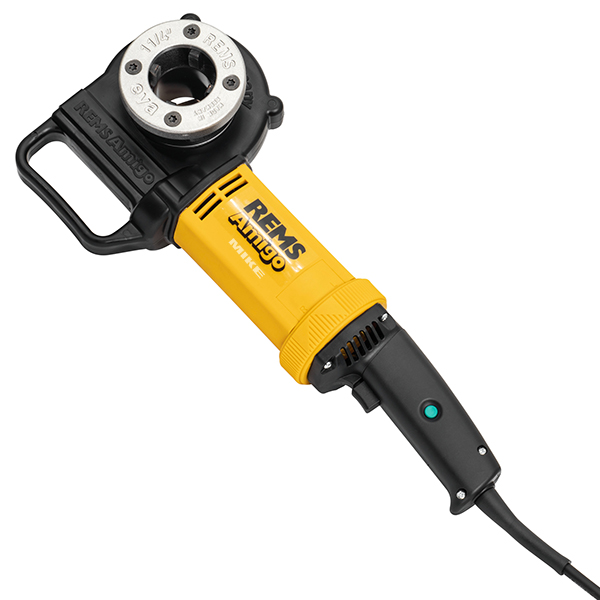

REMS Amigo Electric die stock

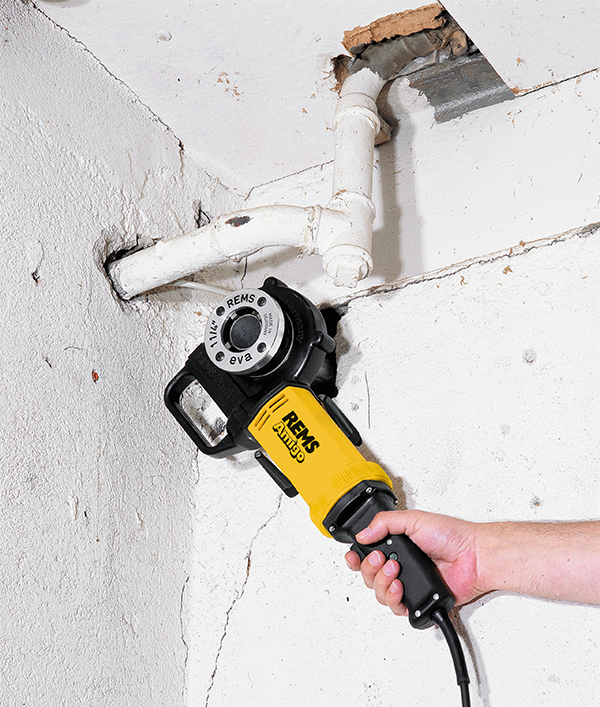

In terms of design, the REMS Amigo is compact, robust, and proven in job site conditions. It can operate independently of a vice and is specifically shaped for use in confined spaces. The drive unit’s weight is only 3.5 kg (excluding the die head), which promotes single-hand operation. The tool ensures perfect, secure seating for quick-change die heads.

The drive mechanism of the REMS Amigo features a solid, compact, maintenance-free gear. It incorporates a robust, powerful 1200 W universal motor, capable of a 30% power increase through automatic carbon brush adjustment when changing rotation direction. This motor can reach a peak power input of up to 1800 W, with threading speeds ranging from 35 to 27 rpm, and includes a safety tip switch.

The quick-change die heads of the REMS Amigo utilize proven technology, high-grade materials, and precise machining. This combination ensures excellent start-cutting performance and easy threading, without stalling. Long, precise pipe guidance contributes to perfect pipe centering, while the design of the chip holes facilitates efficient chip flow and clean threads.

REMS Amigo specifications

REMS dies are known for their durable quality and precise cutting geometry, offering exceptional start-cutting performance, easy threading, and clean thread results. These dies are made from high-quality, specially treated steel, fully tempered and hardened for an extended lifespan.

• Origin: Made in Germany
• Tool Type: Electric die stock for threading
• Unique Feature: Quick-change die heads
• Operation: Without vice, with unique support bracket
• Application: Ideal for repair, renovation, job site
• Pipe Thread Range: ⅛ – 1¼ inches (16 – 40 mm)
• Bolt Thread Range: 6 – 30 mm (¼ – 1 inch)
• Attributes: Smallest, lightest, strongest, fastest up to 1¼”
• Die Heads: Uniform type for all REMS die stocks
• Support Bracket: Solid, angular clamping spindle, easy use
• Design: Compact, robust, job site-proven, slender for confined areas
• Drive Unit Weight: 3.5 kg (without die head)
• Motor: 1200 W universal, with automatic carbon brush adjustment, up to 1800 W peak power
• Threading Speed: 35 – 27 rpm, with safety tip switch
• Dies: High-grade steel, fully tempered and hardened
• Thread-Cutting Oil: REMS Sanitol, REMS Spezial
• Nipple Threading: Efficient with REMS Nippelspanner ⅜ – 1¼” (2″)

For threading, REMS recommends using REMS Sanitol and REMS Spezial thread-cutting oils, which are specially formulated for threading tasks. These oils provide high cooling and lubricating effects, crucial for achieving clean threads and extending the service life of dies, tools, and machines.

REMS Amigo system includes solutions for efficient nipple threading, specifically with the REMS Nippelspanner for sizes ⅜ to 1¼ inches (2 inches), ensuring comprehensive support for a wide range of threading requirements.

How to choose the right REMS Amigo Set configuration for your needs?

When selecting your REMS Amigo Set configuration, it’s essential to choose based on the specific threading needs for your projects. Each set is designed to cater to different threading requirements, ensuring precision and efficiency. Here’s a guide to help you make an informed choice:

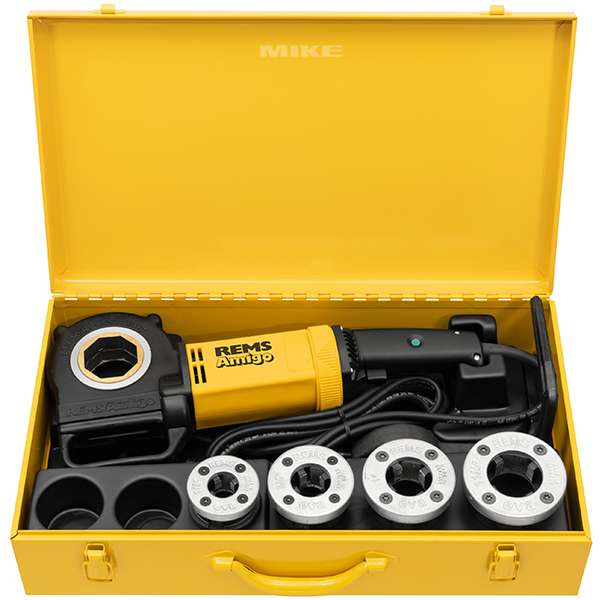

1. Set R (Art.-No. 530020): This set is equipped with quick-change die heads for pipe threads ½, ¾, 1, and 1¼ inches (ISO 7-1, EN 10226, or DIN 2999/BSPT R right-hand). Ideal for general plumbing and pipe work requiring right-hand threads.

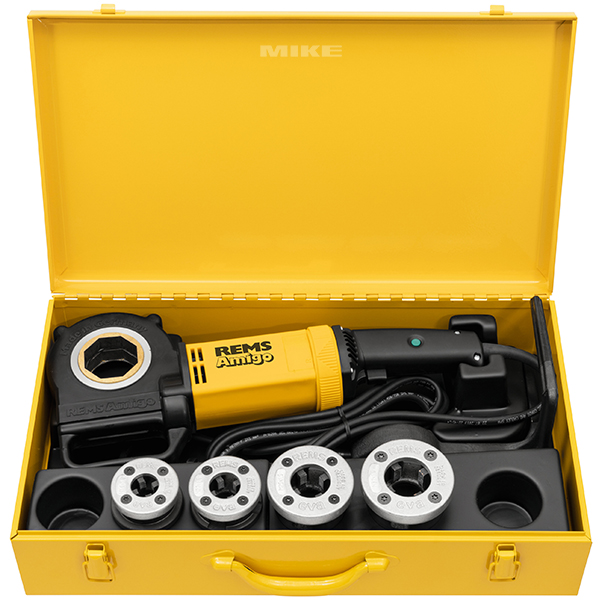

2. Set M (Art.-No. 530022): This configuration includes die heads for threading electric conduit and bolts with metric sizes 16, 20, 25, and 32 mm (M × 1.5). Suitable for electrical installations and projects requiring precise metric threads.
3. Set M (Art.-No. 530023): Similar to the previous set but for larger sizes, this set comes with die heads for metric sizes 20, 25, 32, and 40 mm (M × 1.5). Perfect for tasks that need larger metric threading.

Each REMS Amigo Set includes:

• A drive unit featuring a maintenance-free gear and a powerful universal motor available in either 230 V or 110 V, 50 – 60 Hz, with 1200 W power, capable of peak power input up to 1800 W.
• A safety tip switch, automatic carbon brush adjustment for power efficiency, and the ability for both right and left-hand rotation.
• Overload protection switch to ensure safety during operation.
• A support bracket that aids in stabilizing the tool against torque in both directions.
• REMS Eva quick-change die heads designed for pipe threads (tapered, according to ISO 7-1, EN 10226 or DIN 2999/BSPT) or for threading electric conduit (according to EN 60423 M).
• All components are neatly organized in a sturdy steel case for durability and ease of transportation.

For those working with NPT threads, a specific REMS Amigo Set designed for NPT threading is also available, ensuring you have the right tools for the job regardless of the threading standard required. Choose the set that best matches your threading needs to ensure efficient and precise work on your projects.
