Pipe wrenches PW-SD follow JIS Ordinary Grade strength, ensuring durability for industrial pipe work. Each model features a sturdy ductile cast-iron handle for long service life. The full floating hook jaw with spring suspension delivers instant grip and smooth release, reducing effort in repetitive tightening.
Manufactured in Japan, PW-SD standard handle wrenches cover pipe capacities from 22 mm (1/2″) up to 102 mm (3-1/2″). They are suitable for plumbing, gas, and general piping applications.

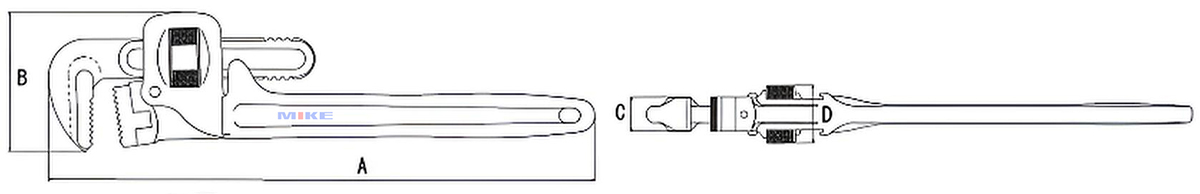

| Model | Size | Capacity | Weight | ||
|---|---|---|---|---|---|
| No | mm | inch | mm | inch | kg |
| PW-SD15 | 150 | 6 | 22 | 1/2″ | 0.20 |
| PW-SD20 | 200 | 8 | 28 | 3/4″ | 0.35 |
| PW-SD25 | 250 | 10 | 34 | 1″ | 0.65 |
| PW-SD30 | 300 | 12 | 43 | 1-1/4″ | 0.95 |
| PW-SD35 | 350 | 14 | 49 | 1-1/2″ | 1.30 |
| PW-SD45 | 450 | 18 | 61 | 2″ | 2.05 |
| PW-SD60 | 600 | 24 | 77 | 2-1/2″ | 3.20 |
| PW-SD90 | 900 | 36 | 102 | 3-1/2″ | 7.00 |

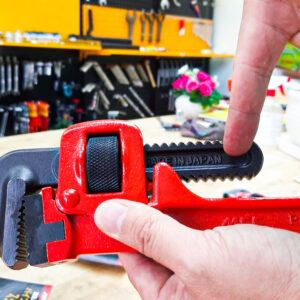

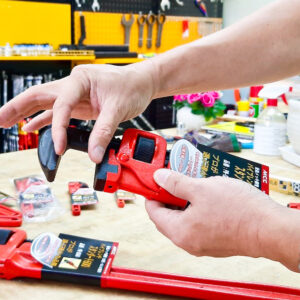

The hook jaw is fully floating with spring suspension, ensuring instant grip and smooth release.
[vinatools_gallery ids=73333]

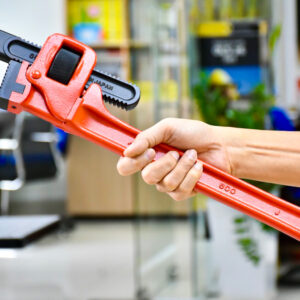

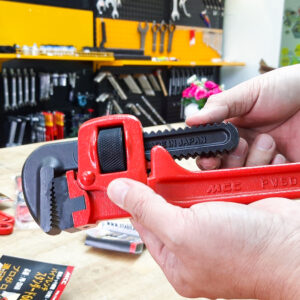

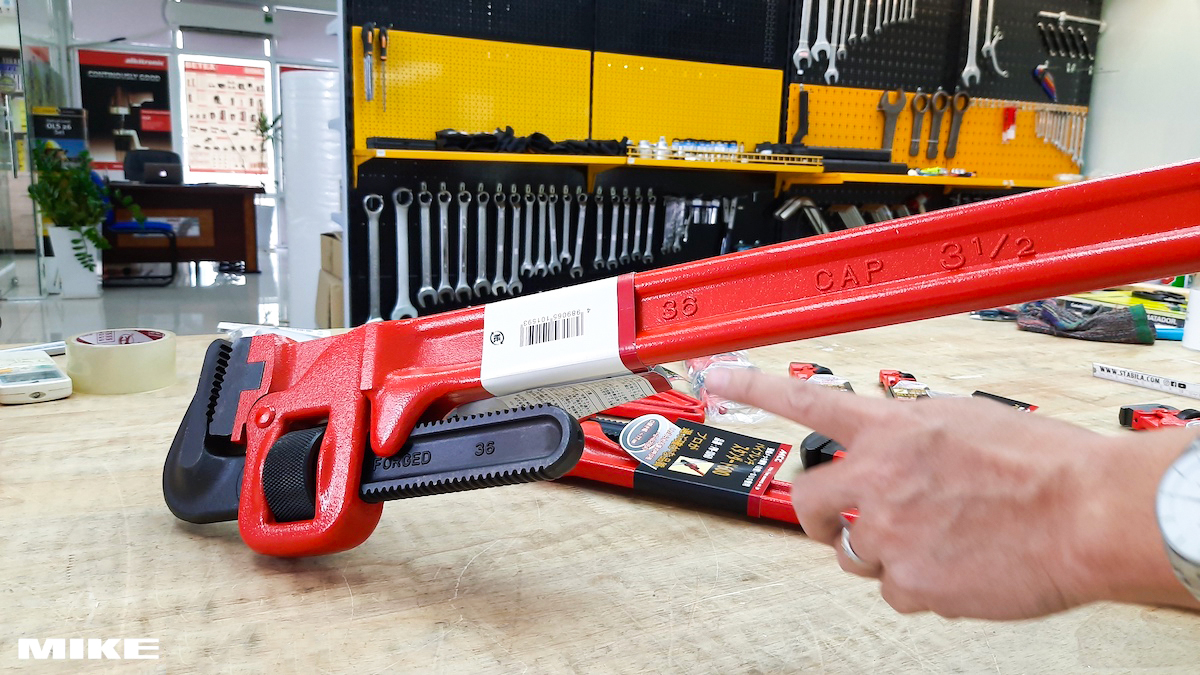

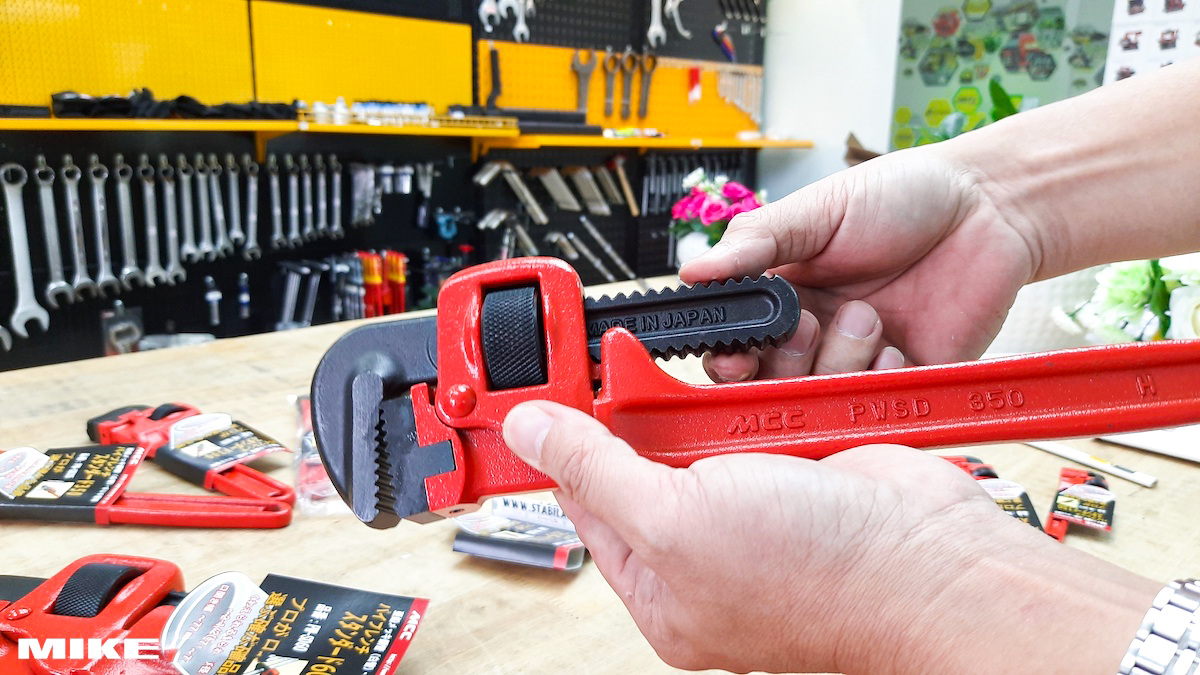

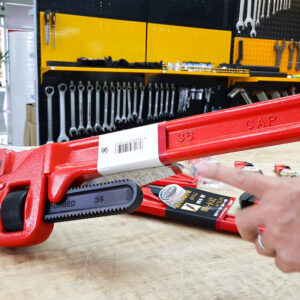

Pipe wrenches PW-SD
standard handle, made in Japan
- JIS Ordinary Grade strength for industrial use

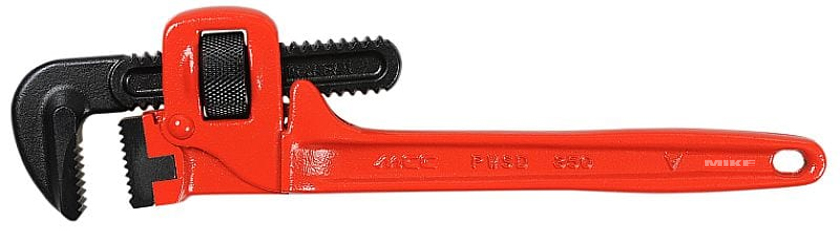

- Ductile cast-iron handle, red painted, with hanging hole
- Fully floating hook jaw with spring suspension for instant grip and easy release
- Hardened jaw for wear resistance, Chrome Vanadium material
- Induction-hardened teeth for long service life

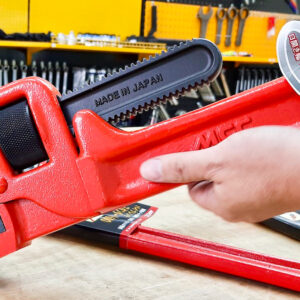

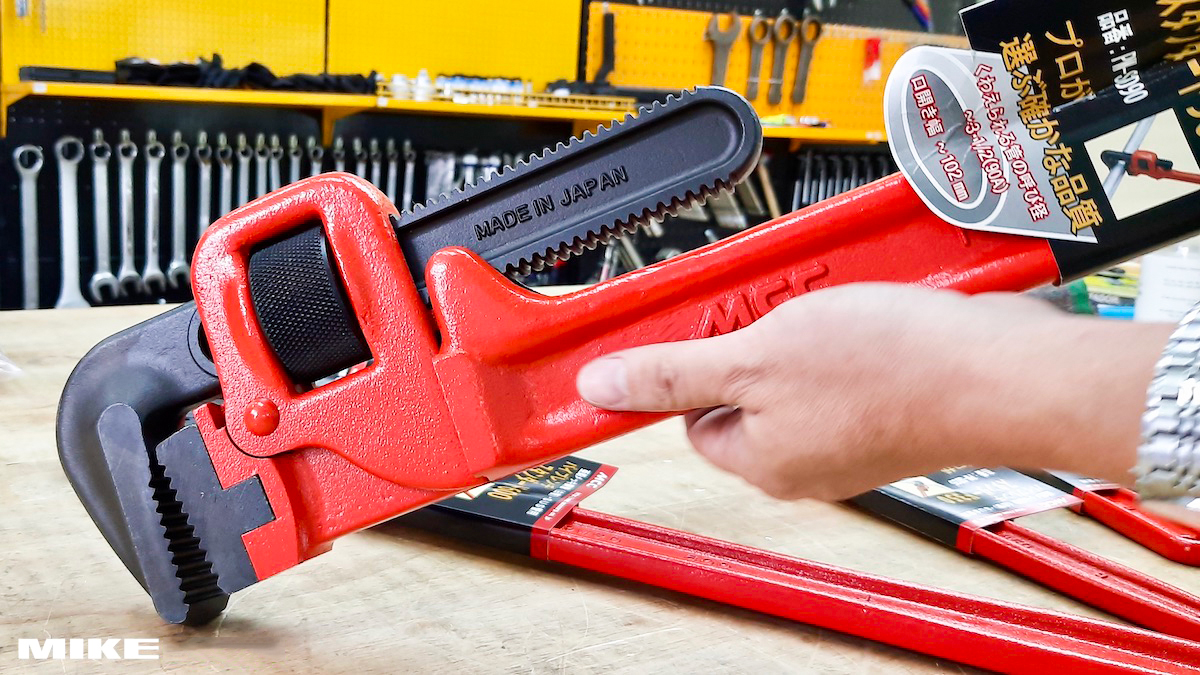

- Raised “Made in Japan” marking on jaw
- Pipe outer diameters from 22 mm to 102 mm
Kunci pipa PW-SD buatan Jepang hadir dengan gagang besi tuang ulet berwarna merah dan lubang gantung praktis. Rahang terbuat dari baja Chrome Vanadium dengan pengerasan induksi pada gigi untuk ketahanan aus lebih lama.
Mekanisme rahang mengambang dengan pegas memastikan cengkeraman cepat dan pelepasan mudah. Kapasitas penjepitan mencakup pipa berdiameter luar 22 mm hingga 102 mm, sesuai standar industri JIS.
