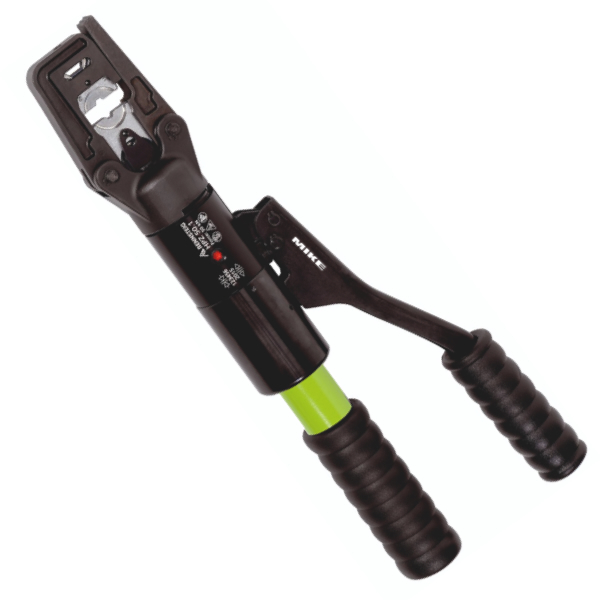

Hydraulic crimping tool Rennsteig HPZ 50.1 for Cu-Al cables

handles copper cables 10–185 mm² and aluminium cables 10–150 mm². Two-hand hydraulic design, 180° rotating head, and quick die change system ensure fast, accurate crimping. Includes a 15-slot case for dies, ergonomic grips, and durable forged body.

Tick the rows you need in the table below, then press this button.

Description

Rennsteig HPZ 50.1 delivers reliable crimping performance for copper and aluminium conductors from 10 mm² to 185 mm² (Cu) and 10 mm² to 150 mm² (Al). The two-hand hydraulic mechanism increases crimping power while keeping operation light and precise. Each stroke provides consistent compression for durable electrical connections.

Rennsteig HPZ 50.1 Hydraulic Two-hand Crimping Tool for Copper and Aluminium Cables

The 180° rotating crimping head allows flexible positioning during work in cabinets or tight spaces. The quick-open latch ensures fast die changes without tools. The forged steel body withstands long-term industrial use and resists corrosion, ensuring strength and accuracy over thousands of cycles.

HPZ 50.1 includes a durable plastic case with 15 compartments for additional die sets. The tool accepts Rennsteig hexagonal, WM-profile, and indent dies, enabling use across multiple connection types. Every die is precision-ground and meets DIN 46235 and DIN 46329 standards for copper and aluminium lugs.

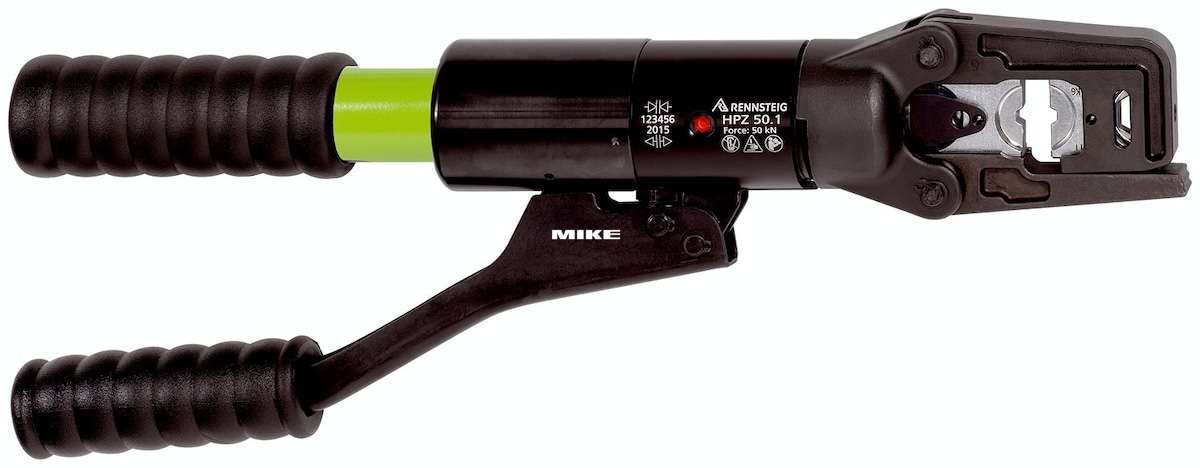

Hydraulic crimping tool Rennsteig HPZ 50.1 for Cu-Al cables

Weighing only 3.3 kg and measuring 460 × 230 × 85 mm, the HPZ 50.1 offers excellent balance and control. Dual-layer grips enhance comfort and reduce fatigue during extended operation. This compact design makes the tool ideal for field installations, maintenance work, and industrial panel assembly.

Crimping range: 10–185 mm² (Cu) / 10–150 mm² (Al)
Operation: hydraulic two-hand
Crimp head: rotates 180°, quick-open mechanism
Compatible dies: 630 201 5 – 630 207 5, 630 307 5 – 630 313 5
Body material: forged alloy steel, corrosion-resistant finish
Handles: dual-layer ergonomic grips
Storage: plastic case with 15 die compartments
Dimensions: 460 × 230 × 85 mm
Weight: 3.3 kg
Standards: DIN 46235 / DIN 46329
Origin: Made in Germany – Rennsteig Werkzeuge GmbH

Rennsteig manufactures the HPZ 50.1 in Germany with strict quality control. The tool combines ergonomic handling, high mechanical advantage, and compatibility with a wide die range, making it an essential instrument for professional electricians and cable installers.
