Floor Drill Press FERVI T032 with Drive Belt, Rotating Table
Available on backorder
features a 125mm Vice, offering precise drilling operations. With a Max drilling capacity of Ø 31.75mm on cast iron and steel, MT 3 spindle taper, and 1.5 kW motor, it ensures efficient drilling.
Available on backorder
FERVI T032 Floor Drill Press with Drive Belt and Partially Rotating Table, equipped with a 125mm Vice, is a robust machine designed for precise drilling operations. With its impressive specifications, it offers reliable performance for various drilling tasks.
Featuring a Max drilling capacity of Ø 31.75 mm on both cast iron and steel, this drill press is suitable for a wide range of materials. The spindle taper is MT 3, ensuring compatibility with a variety of drill bits. Its continuous drilling capacity of Ø 25 mm enables efficient drilling without interruptions.
Equipped with a chuck size of 1 ÷ 16 B18, users have versatility in choosing the appropriate tool for their drilling needs. The spindle speed ranges from 160 to 1880 rpm, providing flexibility to adjust according to the requirements of different materials and drilling operations.
 |
 |
 |

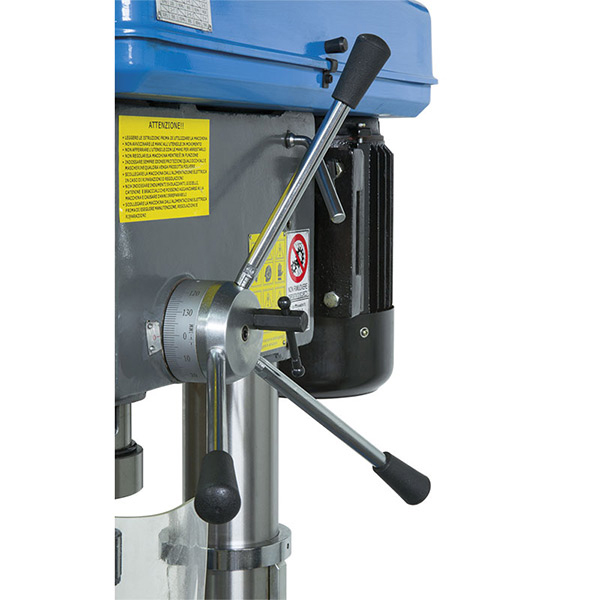

The spindle travel of 130 mm allows for precise drilling depth control, enhancing accuracy and efficiency. With a sturdy column of Ø 102 mm, stability during drilling is ensured. The distance between the spindle axis and the column is 230 mm, providing ample space for maneuverability.
The drill press features a generously sized table of dimensions 330 x 380 mm, with a travel of 670 mm, allowing for versatile positioning of workpieces. The table slot of 14 mm further enhances flexibility in securing workpieces during drilling operations.

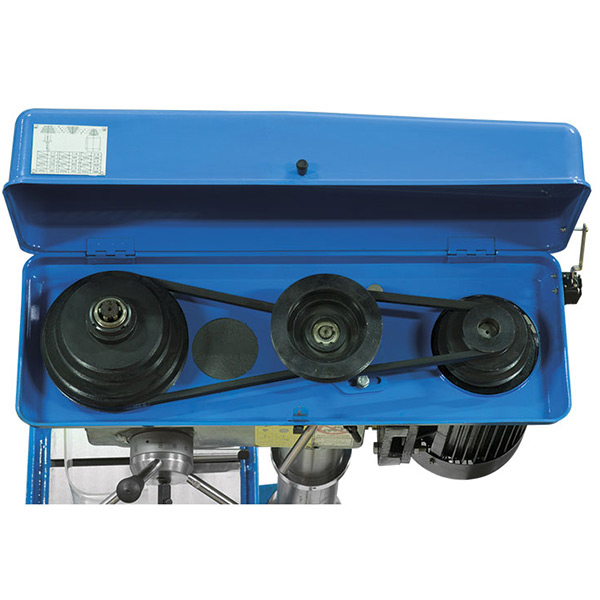

Floor Drill Press FERVI T032 with Drive Belt
For stable operation, the drill press is supported by a solid base with dimensions of 300 x 325 mm. The motor operates at 400V 50Hz, delivering a power of 1.5 kW, ensuring sufficient power for demanding drilling tasks.
Despite its robust construction and powerful performance, the drill press is designed with compact overall dimensions of 900 x 430 x 1760 mm, making it suitable for various workshop settings. With a net weight of 280 kg, it offers stability during operation while remaining relatively portable.
- Max drilling capacity on cast iron with pre-drilling hole: Ø 31,75 mm
- Max drilling capacity on steel with pre-drilling hole(s235jr): Ø 31,75 mm
- Spindle taper: MT 3
- Continuous drilling capacity: Ø 25 mm
- Chuck sizes: 1 ÷ 16 B18
- Spindle speed: (9) 160 ÷ 1880 rpm
- Spindle travel: 130 mm
- Column: Ø 102 mm
- Distance between spindle axis and column: 230 mm
- Distance between spindle nose and table: 700 mm
- Distance between spindle nose and base: 1175 mm
- Table dimensions: 330 x 380 mm
- Travel of table: 670 mm
- Slot: 14 mm
- Base dimensions: 300 x 325 mm
- Motor: 400V 50Hz 1,5 kW
- Overall sizes: 900 x 430 x 1760 mm
- Net weight: 280 kg
- Packaging dimensions: 930x460x1940 h mm
- Gross weight: 280,00 kg
When it comes to transportation, the drill press is conveniently packaged with dimensions of 930 x 460 x 1940 mm (height) and a gross weight of 280 kg, ensuring safe and efficient handling during transit. FERVI T032 Floor Drill Press with Drive Belt and Partially Rotating Table, equipped with a 125mm Vice, is a versatile and reliable tool that offers precise drilling capabilities for a wide range of applications.
