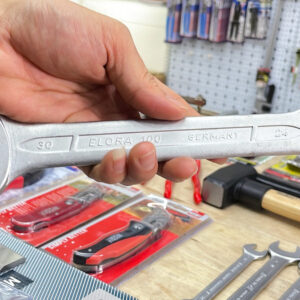

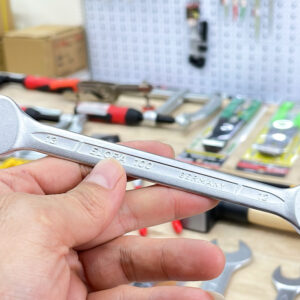

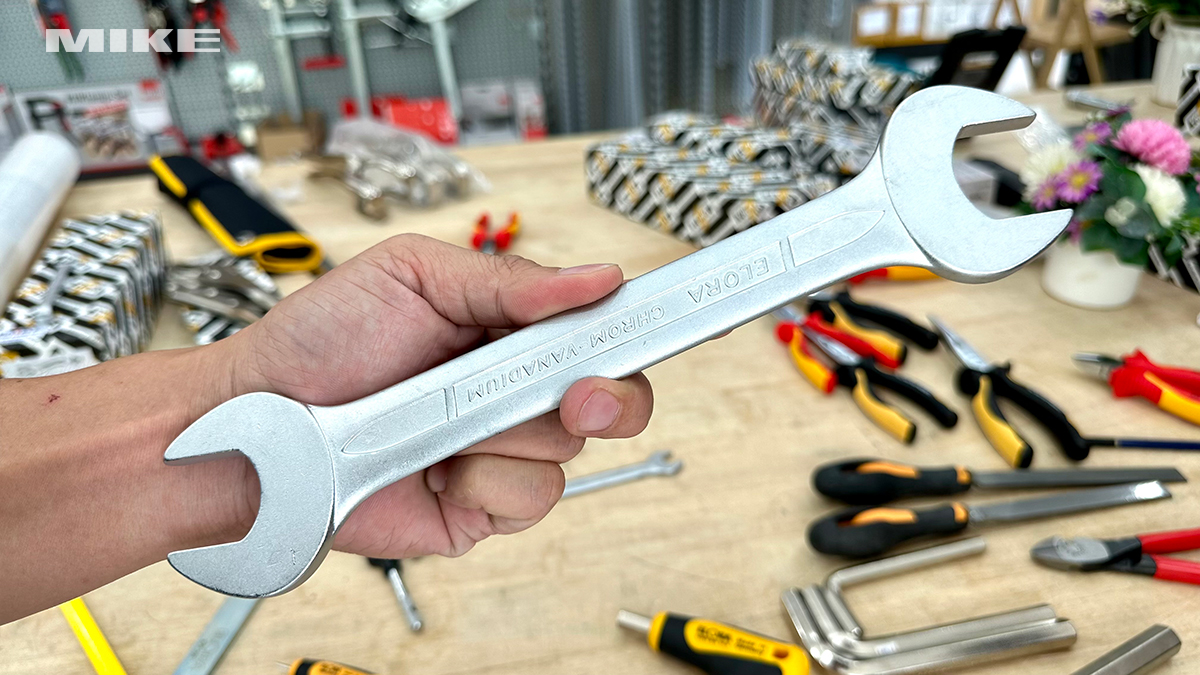

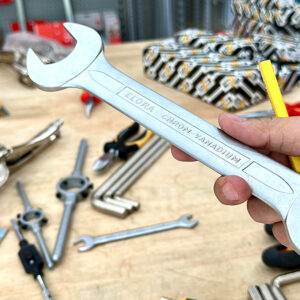

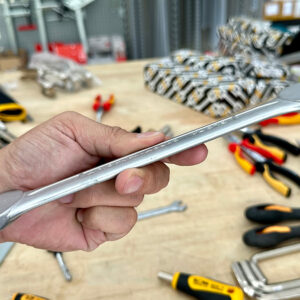

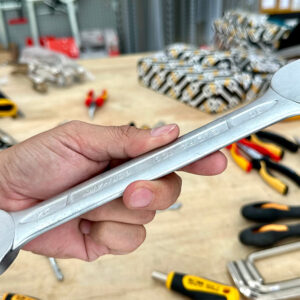

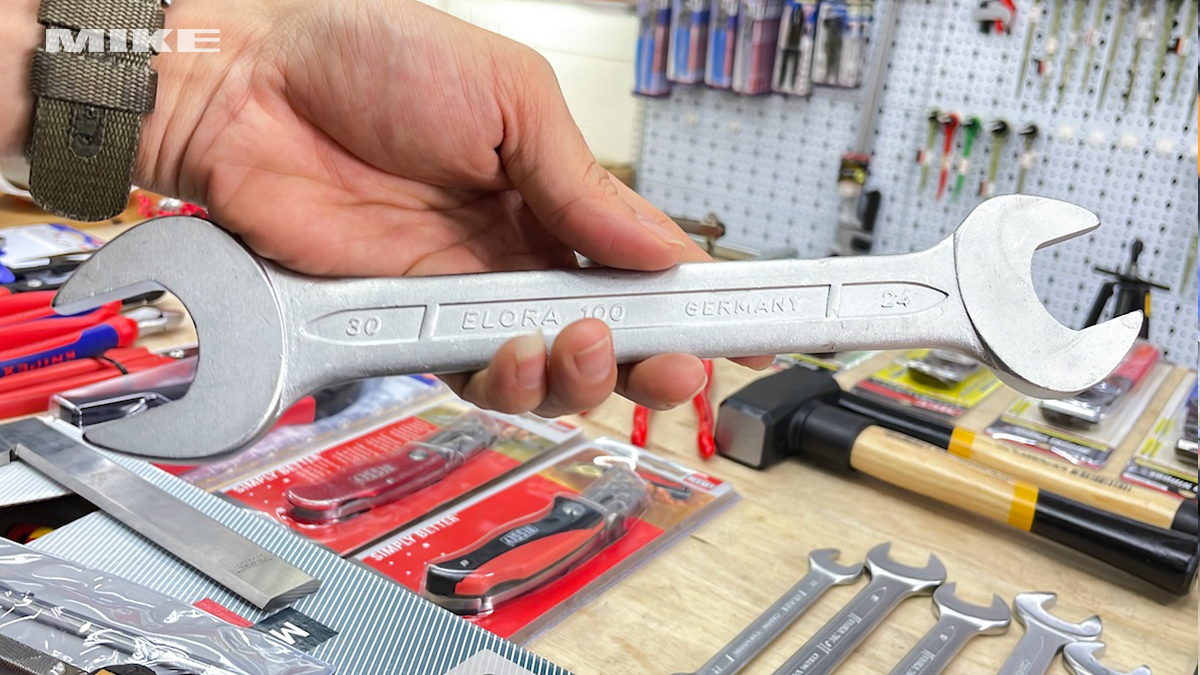

Double open ended spanner ELORA 100-, size 4×5 – 55x60mm, DIN-3110

SKU: 100-

Matt chrome plated, heads ground. ELORA-Chrome-Vanadium 31CrV3 / 1.2208. According to DIN 3110, ISO 3318, ISO 1085, ISO 10102. Made in Germany

Price from:  6.0 320.0
(Price excluding tax, for reference only.)

Description

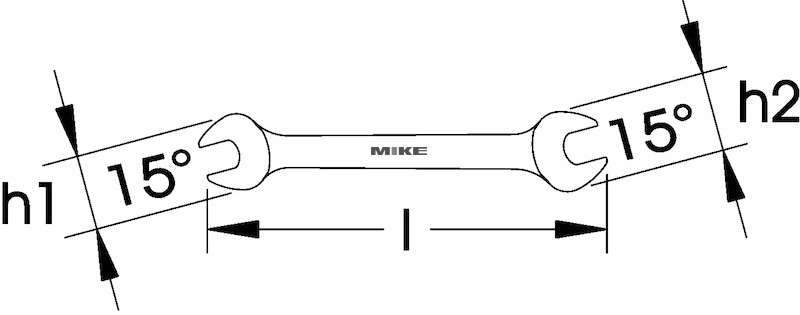

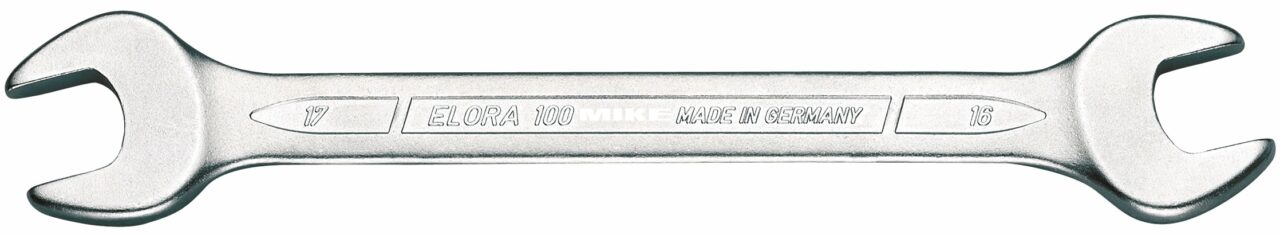

Double open ended spanner 100- series, size 4×5 – 55x60mm, DIN-3110. Matt chrome plated, heads ground. ELORA-Chrome-Vanadium 31CrV3 / 1.2208, according to DIN 3110, ISO 3318, ISO 1085, ISO 10102.

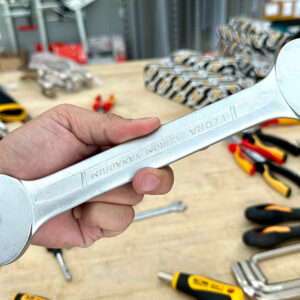

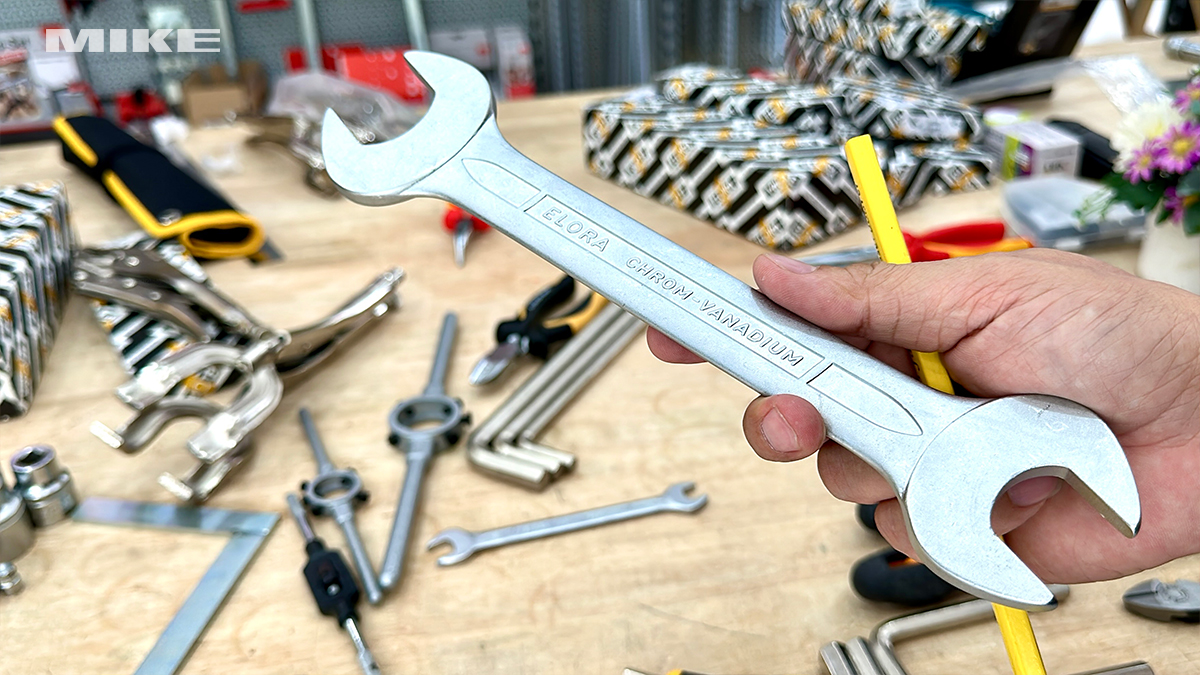

Double open ended spanner ELORA 100-, size 4x5 - 55x60mm, DIN-3110

The starting material is high-grade ELORA chrome vanadium 31 CrV3/1.2208. The cropped blank for the spanner is cut from the rough blank. The characteristic shape is recognisable even at this early stage.

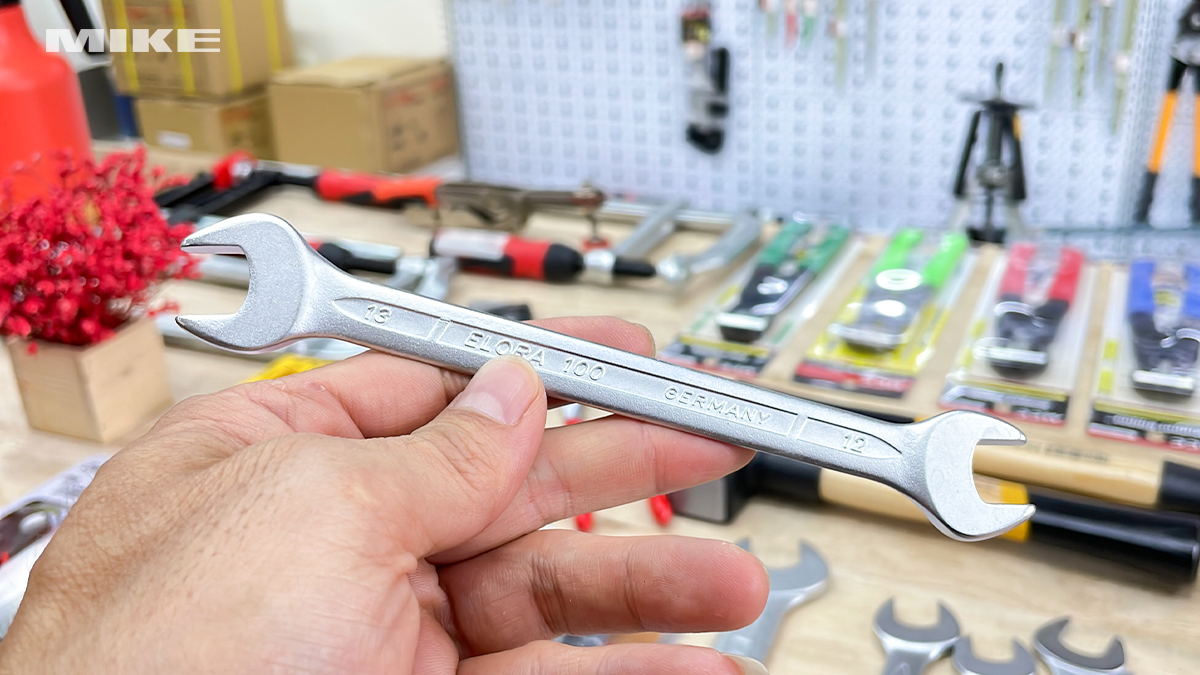

Double open ended spanner ELORA 100

The cropped blank is heated in a furnace to the correct forging temperature and then drop forged in this hot state using high press forces. Following this, the flash is then removed using flash-removal presses.

In the next step, the hole at the ring-end of the double open ended spanner 100 is punched. The subsequent grinding process ensures the tool has a smooth outside surface. Any sharp edges and flash still remaining are then removed by vibro-deburring. The purpose of the broaching operation is to ensure the ring and jaw ends have exactly the right dimensions.

– Model: 100 Series
– Matt chrome plated, heads ground
– ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
– According to DIN 3110, ISO 3318, ISO 1085, ISO 10102
– Maker: ELORA
– Origin: Germany

The individual marking that identifies our spanners around the world is added during the profile punching operation. This special heat treatment ensures our spanners enjoy the longest possible service lifetimes. Double open ended spanner 100’s tensile strength is provided by precise hardening and the high level of ductility by the tempering process.

To make sure the spanner has a matt, non-slip surface, we sand-blast it. The jaw-end is then also polished to give it a smooth finish.Finally, the spanner is nickel-plated and chrome-plated in an electroplating process. The final product now boasts effective surface protection and a specially high-grade appearance. Typically ELORA.

SKU Price Add
100-4x5  6.0
100-4,5x5,5  6.1
100-5,5x7  6.3
100-6x7  6.5
100-6x8  6.6
100-7x8  6.6
100-8x9  6.7
100-8x10  6.7
100-8x11  6.7
100-9x10  6.8
100-10x11  7.0
100-10x12  7.1
100-10x13  8.3
100-11x13  8.3
100-12x13  8.5
100-12x14  8.6
100-13x14  8.7
100-13x15  8.9
100-14x15  9.0
100-13x16  9.5
100-13x17  9.5
100-14x17  9.8
100-16x17  9.8
100-16x18  10.5
100-17x19  10.8
100-18x19  10.9
100-18x21  13.0
100-19x22  13.5
100-19x24  13.8
100-20x22  13.8
100-21x22  13.2
100-21x23  12.8
100-21x24  14.4
100-22x24  13.6
100-24x26  15.5
100-24x27  15.5
100-24x30  18.0
100-25x28  17.6
100-27x29  22.1
100-27x30  22.2
100-27x32  22.1
100-30x32  22.3
100-30x34  31.2
100-32x34  37.9
100-30x36  38.0
100-32x36  38.0
100-34x36  45.5
100-36x41  50.7
100-38x42  50.7
100-41x46  68.6
100-46x50  110.0
100-55x60  320.0
