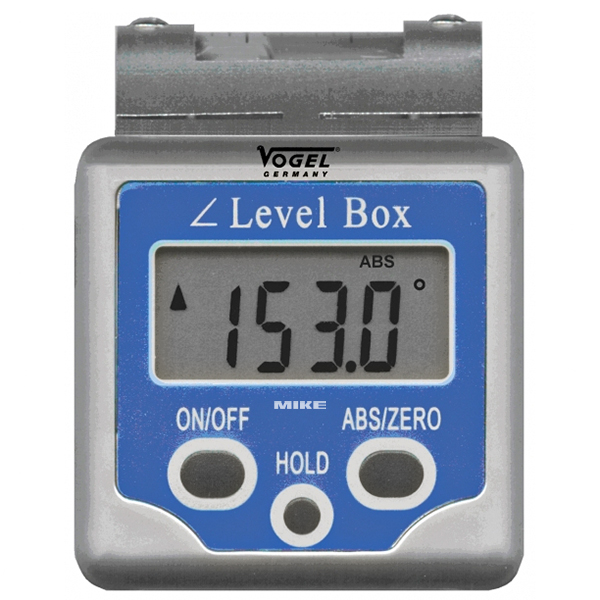

Digital Angle-Sensor 320011 Vogel Germany, ±180°, IP54
Available on backorder
Provides accurate ±180° angular measurement with a 0.1° resolution. It features a large 10 mm LCD, robust metal housing, and magnetic base with three discs for secure mounting. The unit includes On/Off, zero, ABS, and data hold functions, operating on a 3 V CR2032 lithium battery.
€ 76.0
Available on backorder
Description

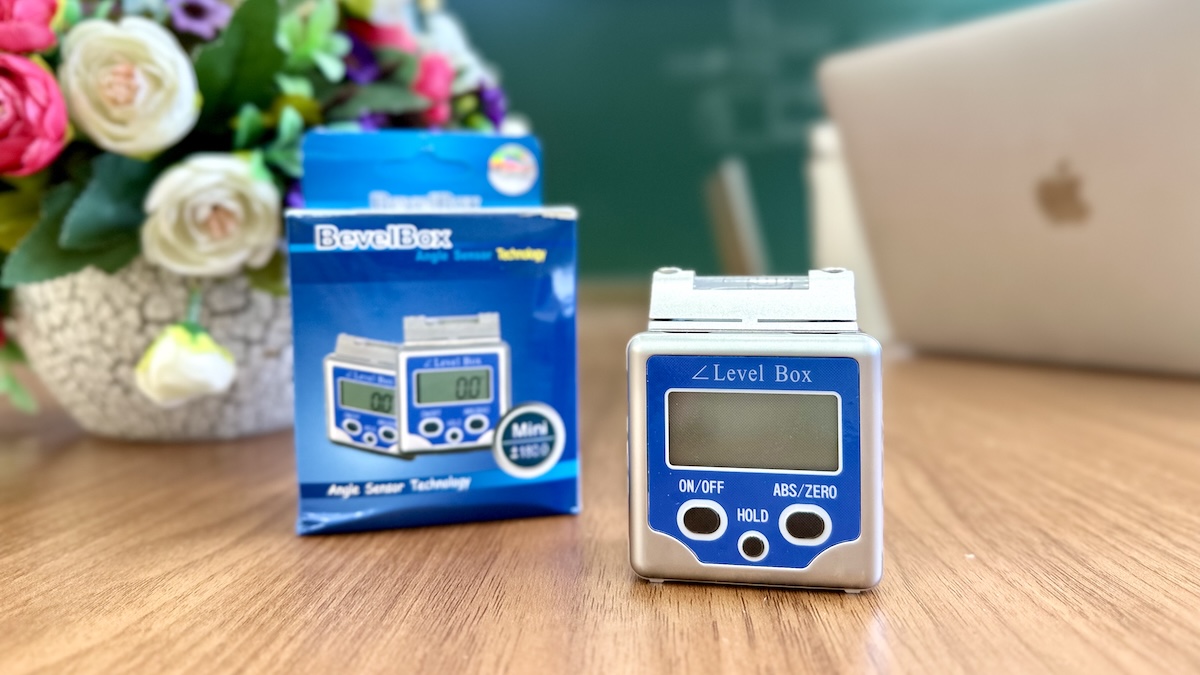

Digital Angle-Sensor 320011 from Vogel Germany is a compact electronic inclinometer for angular measurement and alignment. It covers a range of ±180° with a 0.1° resolution and ±0.1° accuracy. These values make it suitable for precise setup and calibration tasks.
[youtube id=”gw0LuEdhQ3o”]

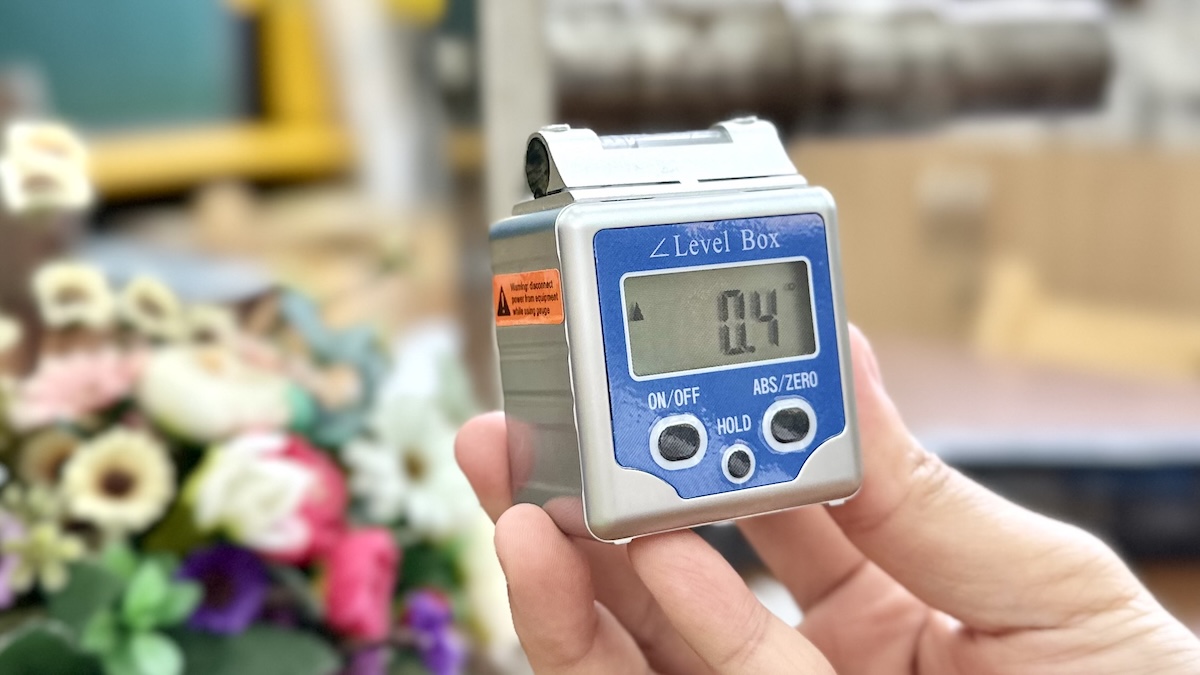

The housing is made of metal, offering durability and consistent performance. In addition, a 10 mm LCD display ensures clear readings under various lighting conditions. The device meets IP54 protection according to DIN 40050 / IEC 60529, which guards against dust and splash water.
[vinatools_gallery ids=74040]

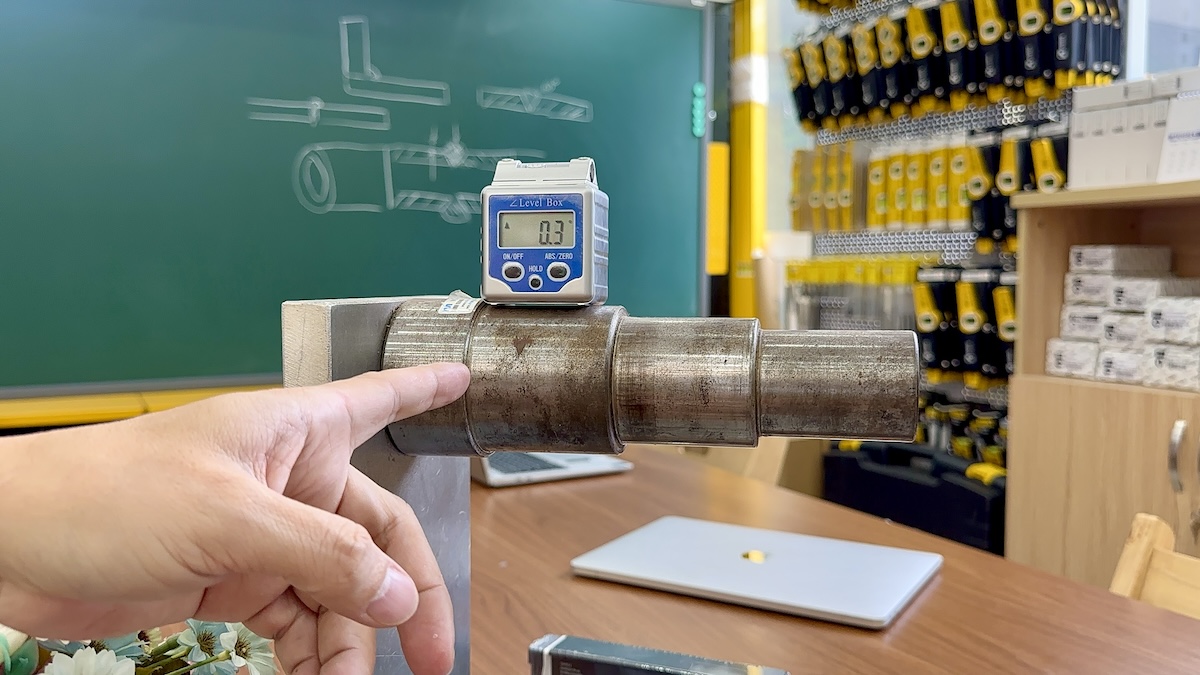

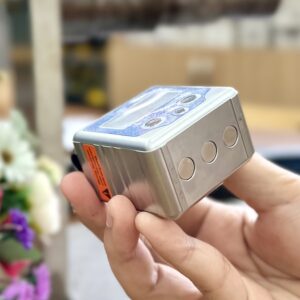

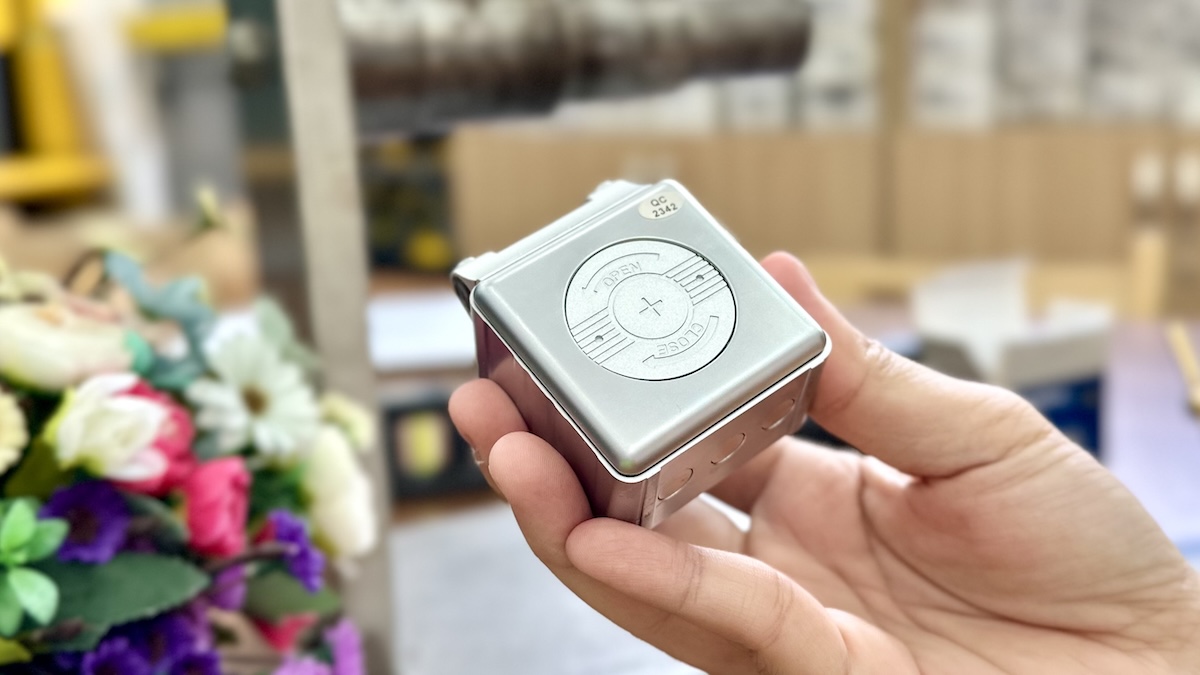

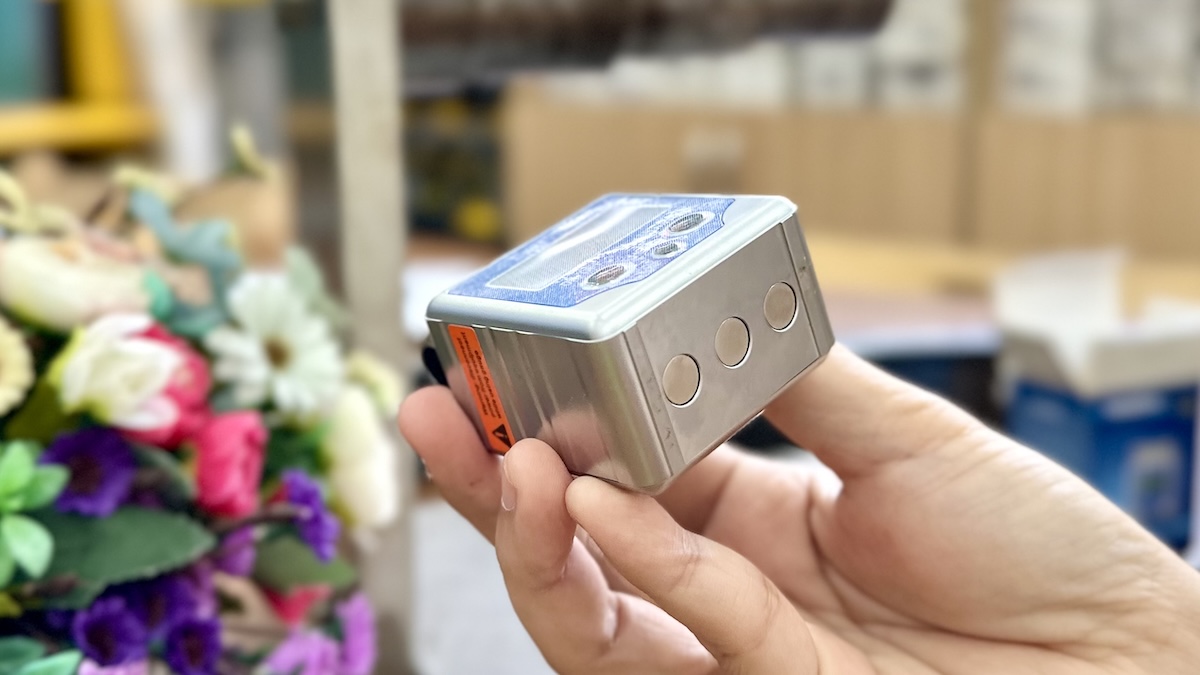

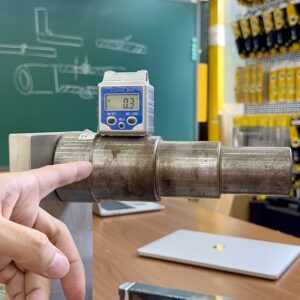

The base has three magnetic discs that attach firmly to metal surfaces. This allows secure positioning on machine tables or frames. The control panel includes On/Off, zero, ABS, and data hold buttons for intuitive operation.
Digital Angle-Sensor 320011 Vogel Germany

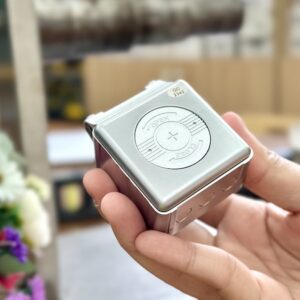

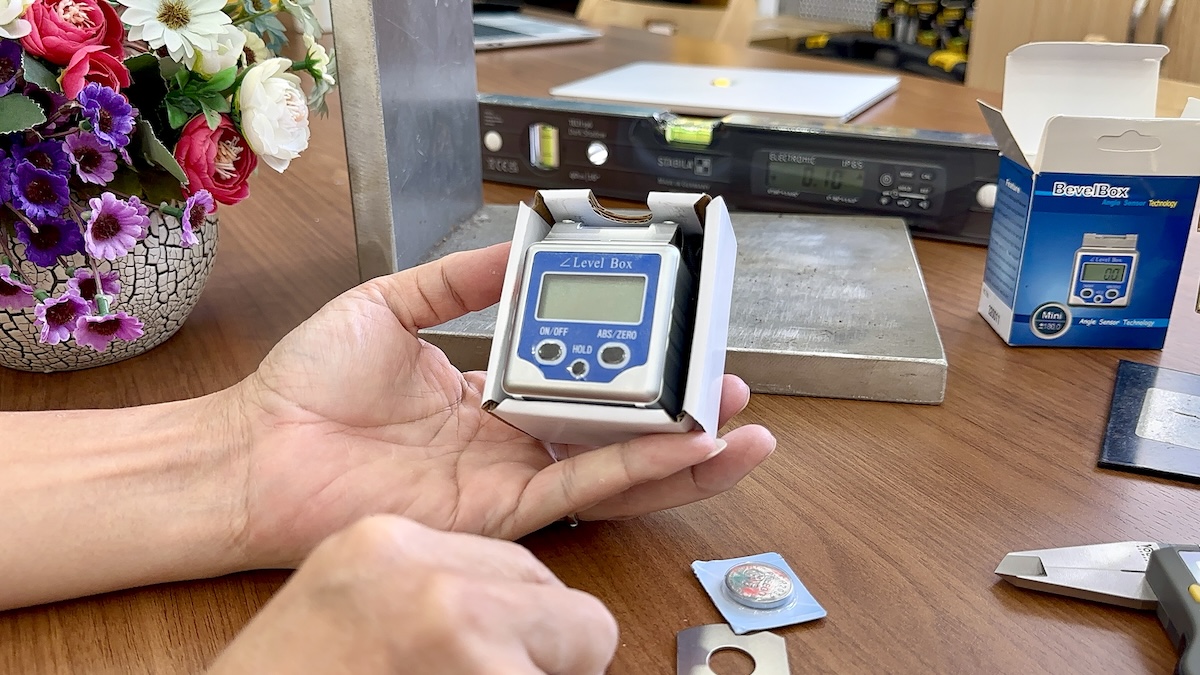

A small vial on top of the body assists manual leveling. Moreover, the unit runs on a 3 V CR2032 lithium battery and includes an instruction manual for immediate use.
- Measuring range: ±180°
- Resolution: 0.1°
- Accuracy: ±0.1°

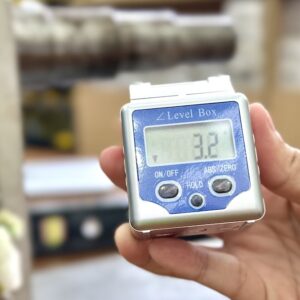

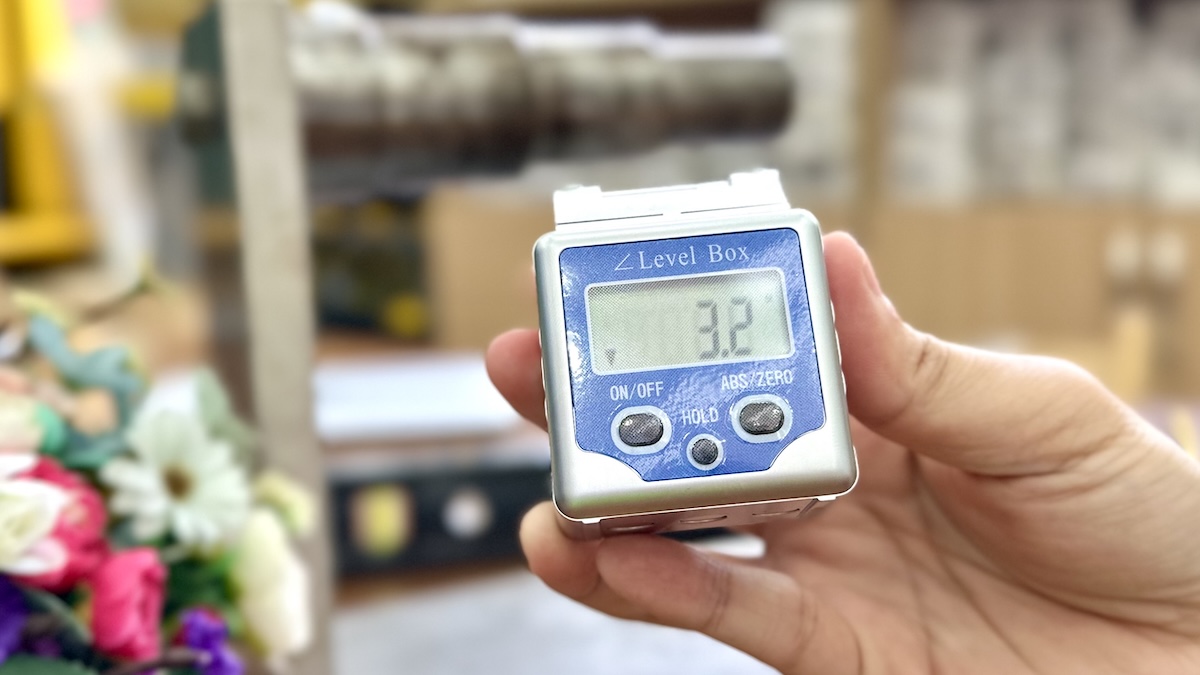

- Display: LCD, 10 mm digit height
- Housing: Metal, magnetic base with 3 discs
- Functions: On/Off, zero, ABS, data hold
- Power supply: 1 × 3 V CR2032 lithium battery
- Protection class: IP54 (according to DIN 40050 / IEC 60529)
- Dimensions (L × W × H): 50 × 63 × 32 mm
- Art. No.: 320011

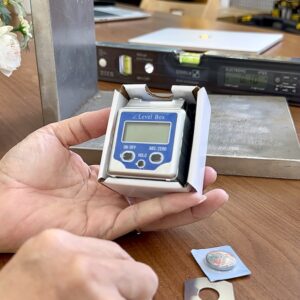

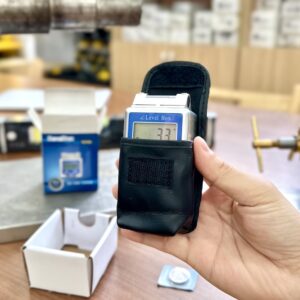

- Included accessories: Battery CR2032, operation manual
- Origin: Vogel Germany
