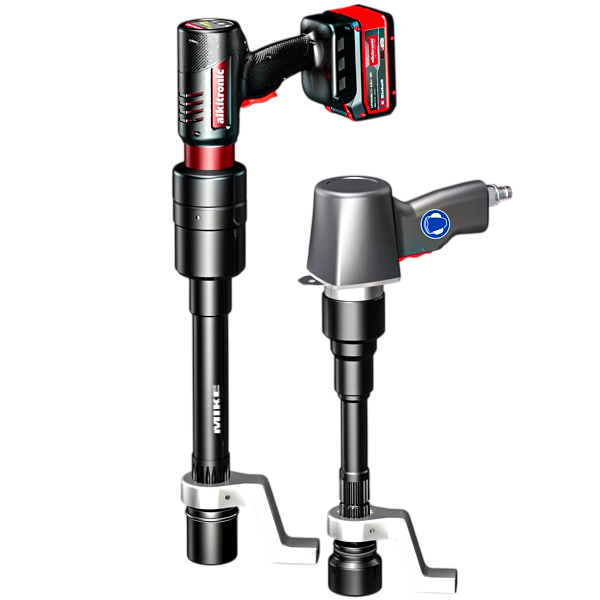

alkitronic N-Tools torque multipliers for mining trucks

alkitronic N-Tools torque multipliers for mining trucks are designed for heavy-duty bolt connections. They provide an effective solution for tightening and loosening bolts on oversized wheels. With a torque range of up to 3,500 Nm, these tools handle heavy truck wheels, dump trucks in open-pit mining, and long-distance buses.

Dedicated for oversized rims, they ensure reliable performance in demanding conditions.

PC-N pneumatic torque multipliers feature a durable cast aluminum housing and a globally proven pneumatic motor. They are suitable for explosion-proof environments, making them the preferred choice in underground mining.

The motor unit can rotate 360° for flexible positioning, while one-hand operation in CW and CCW ensures safe and ergonomic use. With torque ranges up to 3,460 Nm, the PC-N offers robust performance in demanding conditions.

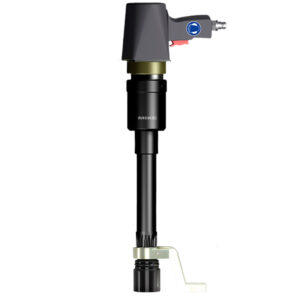

PC-N pneumatic series

The PC-N series features a cast aluminum housing, robust and durable. The pneumatic motor is globally proven for reliability and is suitable for explosion-proof working environments. This makes the PC-N the preferred choice in underground mining, where safety requirements are critical.

• Heavy-duty cast aluminum housing, strong and durable
• Suitable for use in explosion-proof working environments
• Globally proven pneumatic drive motor, reliable in continuous operation
• Torque range up to 3,460 Nm depending on the model
• 360° rotatable motor unit for flexible positioning
• One-hand operation with clockwise and counterclockwise directions

EB-N battery series

The EB-N series uses a brushless synchronous motor with stable efficiency. An intelligent controller ensures automatic shut-off once the preset torque is reached. Two Li-Ion batteries are included, allowing continuous operation in open-pit environments. The compact aluminum frame provides a secure mount for both the motor and gearbox.

• Brushless synchronous motor with stable efficiency and long service life
• Intelligent processor-controlled automatic shut-off at preset torque
• Two Li-Ion batteries included for continuous operation
• Compact aluminum profile housing, corrosion-resistant and break-proof
• Ergonomic, non-slip housing design for safe handling
• alkitronic® Smart Service for complete documentation of bolting cases
• Modular software packages available for application-specific needs
• Repeat shut-off accuracy of ±3% for the same bolting task
• OLED display, anti-glare and high contrast, readable under all weather conditions

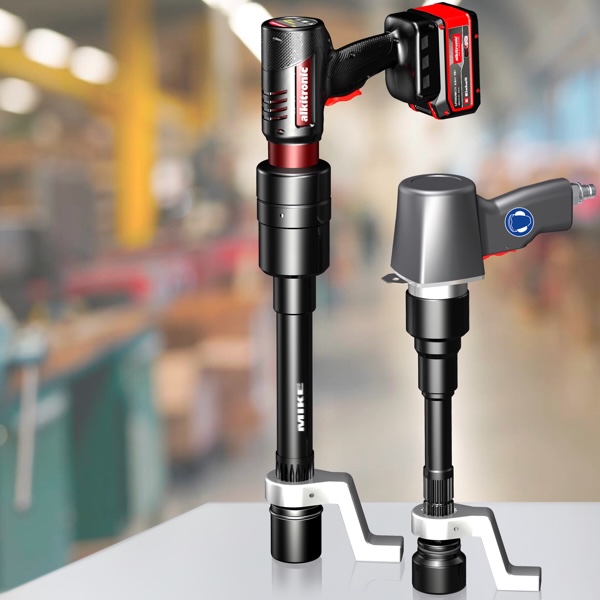

alkitronic N-Tools torque multipliers for mining trucks

N-Tools support safe and efficient working. The motor unit rotates 360°, with one-hand operation in clockwise and counterclockwise directions. The OLED display is anti-glare and high contrast, allowing clear visibility under all weather conditions. This reduces the chance of errors and improves workflow.

No.	Model	Torque range (Nm)	Square drive (B)	ØD1 (mm)	ØD2 (mm)	Order No.
1	EB-S 150-N12	150–1400	3/4″	41	38	45280
2	EB-S 250-N12	350–2500	1″	54	48	45282
3	EB-S 250-N18	350–2500	1″	54	48	45283
4	EB-S 350-N12	480–3500	1″	54	48	45284
5	EB-S 350-N18	480–3500	1″	54	48	45285
6	PC-S 125-N12	495–1450	3/4″	41	38	45202
7	PC-S 225-N12	900–2670	1″	54	48	45228
8	PC-S 225-N18	900–2670	1″	54	48	45230
9	PC-S 280-N12	1180–3460	1″	54	48	45207
10	PC-S 280-N18	1180–3460	1″	54	48	45210

The table lists all available EB-S and PC-S models of the alkitronic N-Tools torque multipliers for mining trucks. Each row shows the key specifications to compare models side by side.

How to read the table of 10 variants

• Model: Identifies the specific variant. EB-S are battery-driven, while PC-S are pneumatic-driven.
• Torque range (Nm): The working torque capacity of each model. This indicates the minimum and maximum torque the multiplier can deliver.
• Square drive (B): The drive size, either 3/4″ or 1″, which determines the compatibility with sockets.
• ØD1 and ØD2 (mm): Approximate diameters of the gearbox area, useful for checking clearance in wheel applications.
• Order No.: The alkitronic reference number for purchasing or spare parts ordering.

For example:

• The EB-S 150-N12 covers 150–1400 Nm with a 3/4″ drive, suitable for medium wheel bolts.
• The EB-S 350-N18 reaches 480–3500 Nm with a 1″ drive, handling the largest mining truck wheels.
• Pneumatic options like PC-S 125-N12 or PC-S 280-N18 are chosen where compressed air is available or required for explosion-proof environments.

This structure makes it straightforward to select the correct model based on torque demand, drive size, and operating environment.

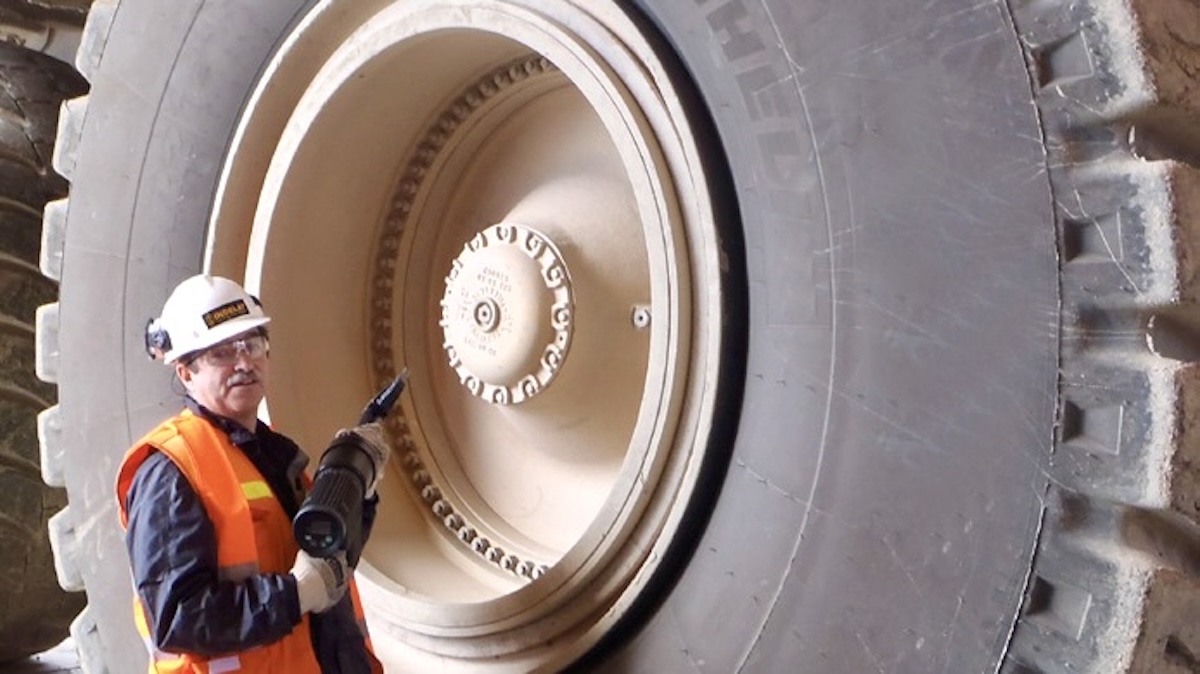

Application of alkitronic N-Tools
torque multipliers for mining trucks

Manufactured in Germany, alkitronic N-Tools maintain joint quality better than impact wrenches or hydraulic torque wrenches. They are essential in mining operations and in the maintenance of heavy trucks.

• Economic and safe operation without costly weather-related downtime.
• Higher joint quality ensured by continuous rotation of the square drive.
• Comfortable, stress-free working with 360° motor rotation and one-hand CW/CCW control.

Technical notes

The compact aluminum housing is corrosion-resistant and impact-proof, while the ergonomic non-slip grip supports safe handling. Features such as the OLED display and alkitronic® Smart Service provide clear operation and complete bolting documentation.

EB-N battery torque multipliers combine mobility with high efficiency. They use a brushless synchronous motor with processor-controlled automatic shut-off, ensuring repeatable accuracy of ±3%. Two Li-Ion batteries are included for continuous operation in open-pit mining and outdoor environments.

• When loosening bolts, release torque may be up to 20% higher.
• Optimal operating conditions: pressure 2–7 bar, air flow approx. 10–15 l/s. Torque accuracy depends on the stability of the supply system.
• Dimensions and comparison

Both battery-driven and pneumatic-driven models are listed together for ease of comparison. For example, the EB-S N12 model has an overall height of 279 mm, while the pneumatic PC-S N12 is shorter at 210 mm. All dimensions exclude the impact socket.

Values marked with * indicate millimeters, while dark background indicates inches.

ATV square drive extension

The ATV square drive extensions fit directly with the gear drive and square outputs. They are compatible with both EB and PC models and are available as separate accessories, not included with the tool. Customers may purchase them together with the tool or later as needed.

Square drive (B)	ØD1 (mm)	L1 (mm / in)	L2 (mm / in)	Order No.
3/4″	41	260 / 10.2″	229 / 9″	10310
3/4″	41	336 / 13.2″	305 / 12″	10313
1″	54	267 / 10.5″	229 / 9″	10278
1″	54	343 / 13.5″	305 / 12″	10279

Together, the PC-N and EB-N models offer versatile solutions tailored to mining operations, ensuring safe, efficient, and durable bolting performance.
