Easy-laser XT440 shaft alignment equipment without display

Easy-laser XT440 shaft alignment equipment. Thanks to groundbreaking cross-platform technology, XT440 lets you display data on a multitude of different handheld devices, giving you the freedom to work with the gear that suits you and your company the best. To make this new generation as straightforward as possible we have included all XT measurement programs in a user-friendly application you can download for free.

Vibration analysis*Diagnose vibration level, unbalance, misalignment and looseness. (Requires the XT280 accessory.)	Vertical/flange mounted machines For measurement and alignment of vertically and flange mounted machines.	Soft foot check Alignment work begins with a soft foot check. The soft foot check ensures that the machine is resting evenly on all its feet by indicating which foot/feet should be adjusted. This is an important part of securing a reliable alignment. After the soft foot check is complete, you can go directly to the alignment program with all of the machine’s distance values saved.
Values – Shaft alignment applicationsUse the M and S measuring units included to measure as with digital dial gauges, but with laser precision and the possibility to document the measurement result. Another application is to check shaft radial play (bearing play).	Belt alignment* Using the system you can align sheaves and pulleys with digital precision. Adjustment of the machines is displayed in real time on the screen, with readings for angle and axial displacement in both the vertical and horizontal axes, as well as an adjustment value for the front or rear foot pair. The result can be documented as normal. (Requires the XT190 BTA accessory.)	Horizontal machines The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for As found and As left in the same file.

• Able to align shafts both horizontally and vertically!
• The app works on your iOS or Android phone or tablet.
• No licenses. The measuring units determine which measurements can be carried out.
• Saves measurements.
• Possibility to save notes and photos.
• Information can be Easy-laser XT440 shaft alignment equipment with your customer by email.
• The XT products are very robust, waterproof and dustproof (IP66/IP67).
• Long battery life.
• Use in combination with XT190 pulley alignmnent system

Measurement points are recorded at fixed points 9, 12 and 3 o’clock. This is the classic three-point method which can be used in most cases. The preferred method for situations where the machine to be aligned is mounted on a moving object, and it is not possible to use the inclinometers (e.g., on ships, cranes, wind turbines etc.).	EasyTurn™ functionIdeal method for coupled machines where you manually rotate the shafts to any position. The EasyTurn™ function allows you to begin the measurement process from anywhere on the turn. You can turn the shaft to any three positions with as little as 20° between each position to register the measurement values. An easier-to-use version of the three-point method (see 9–12–3).

Measuring units XT40-M / XT40-S

The XT40 measuring units have large 30 mm PSD [1.2”], and a state-of-the-art OLED display which shows the angle of the unit, making it easier to position it on the shaft. The line laser technology provides a fast setup and measurement process.

Rigid and rugged

The diagonally positioned fastening screws set the unit in a grid-lock on the rods. Rigid aluminium housing for maximum stability. IP66 and 67, dust- water- and shockproof. Heavy-duty battery for very long operating times. Built-in wireless technology.

Features

• Built-in wireless technology. Integrated rechargeable battery.
• TruePSD technology with unlimited resolution for greatest accuracy.
• Dual laser beams and PSDs.
• Sturdy aluminium body. IP66/67 design.
• OLED display shows the angle of the unit
• 24 hours operating time

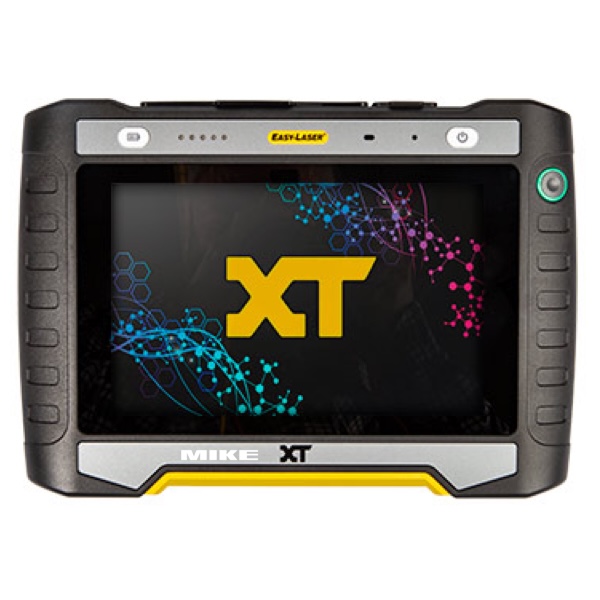

Display unit XT12 (optional)

Rugged, robust, industrial grade tablet with wear resistant rubberized protective coating. IP66 and 67, dust- water- and shockproof. As standard a 13 MP camera for documentation is built-in, but you can also choose a model with IR camera added.

Glove enabled touch-screen

A large 8″, glove-enabled touch-screen makes the information clear and the app easy to use. You can check battery status also when the unit is turned off .
Heavy-duty rechargeable battery for very long operatong times; up to 16 hours. Fastening points for shoulder strap (accessory).

Features

• Robust, rubber coated design, IP66/67.
• Large 8” glove enabled touch-screen.
• IR Camera for thermal images (optional).
• 16 hours operating time.

A complete system contains

• 1 Measuring unit XT40-M
• 1 Measuring unit XT40-S
• 2 Shaft brackets with chains and rods 120 mm
• 4 Rods 75 mm
• 1 Measuring tape 3m
• 1 Hexagon wrench set
• 1 Charger (100–240 V AC)
• 1 DC split cable for charging
• 1 DC to USB adapter, for charging
• 1 Quick reference manual
• 1 Cleaning cloth for optics
• 1 USB memory with manuals
• 1 Carrying case Medium

Display Unit

• Name: XT12
• Type of display/size: 8″ LCD capacitive multi-touch colour display
• Internal battery (fixed): Heavy duty Li Ion chargeable
• Connections: USB A, USB C, Charger, AV
• Operating temperature: -10–50 °C
• Storage temperature: -20–50 °C
• Communication: Wireless technology, WiFi
• Relative humidity: 10–95%
• Lound speakers: Built-in, rear-facing
• Charger: 15 V
• Camera: 13 Mp autofocus, with LED diode
• IR camera (optional): FLIR LEPTON® (0–400 °C)
• Help functions: Built-in manual
• Environmental protection: IP class 66 and 67. Designed for outdoor use (pollution degree 4)
• Housing material: PC/TPE or PC/TPU
• Dimensions WxHxD: 269.0×190.0x49.4 mm
• Weight (without batteries): 1400g
• Operating time: Up to 16 h continuously
• Order code: 780319

Optional with camera

• Robust and user-friendly display unit XT12
• Infra red camera for XT12
• Order code: 780318

Measuring Units

• Name: XT40-M / XT40-S
• Communication: BT wireless technology
• Type of detector: TruePSD 30 mm
• Resolution: 0.001 mm
• Measurement accuracy: ±5µm ±1%
• Measurement range: Up to10m
• Type of laser: Diode laser
• Laser wavelength: 630–680 nm
• Laser class: Safety class 2
• Laser output: <1 mW
• Electronic inclinometer: 0.1° resolution
• Environmental protection: IP class 66 and 67
• Operating temperature: -10–50 °C
• Internal battery: Heavy duty Li Ion chargeable
• Storage temperature: -20–50 °C
• Relative humidity: 10–95%
• Housing material: Anodized aluminium + PC/ABS + TPE
• Dimensions WxHxD: 76×76.7×39.3 mm
• Weight: 245g
• OLED display: 128×64 pixels
• Operating time: >24 h continuously
• Order code: 780320
