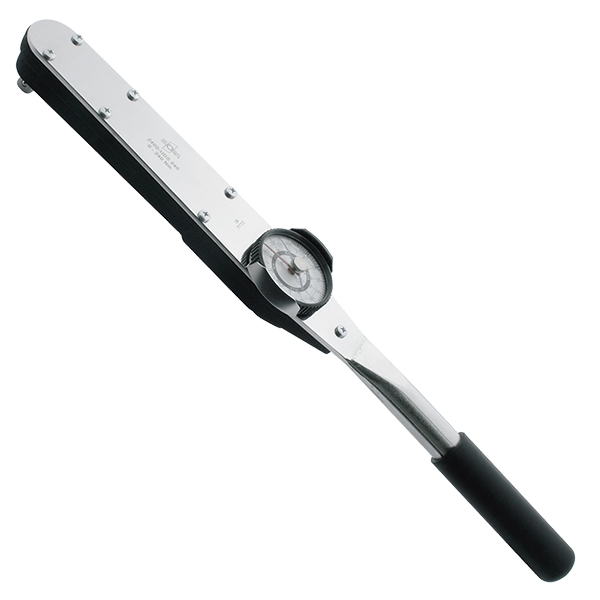

Elometer torque wrench with drag indicator
SKU: 2400indicating torque wrench with dial gauge and drag indicator for controlled tightening from 0,7 – 2800 Nm. Measurement units: Nm, ft.-lb. or in.-lb. Elora – Made in Germany
Description
Elometer torque wrench with drag indicator
- indicating torque wrench with dial gauge and drag indicator
- for controlled tightening from 0,7 – 2800 Nm
- measurement units: Nm, ft.-lb. or in.-lb.
- bi-directional fixing
- with fixed head square according to DIN 3120, ISO 1174
- ELORA No. 2400 UDS 1400 and 2400-UDS 2800 with additional audible buzzer
- in dependence EN ISO 6789:2017 part 1, type I class B
- with traceable declaration of conformance
- Display deviation ±3%
| Model | Square driver | Nm | in.lb | ft.lb | length | Weight |
| 2400-UDS3 | 1/4“ | 0,1 | 6-30 | – | 270 | 725 |
| 2400-UDS9 | 1/4“ | 0,2 | 15-75 | – | 270 | 725 |
| 2400-UDS18 | 3/8“ | 0,5 | 30-150 | – | 270 | 725 |
| 2400-UDS30 | 3/8“ | 0,5 | 50-250 | – | 270 | 725 |
| 2400-UDS70 | 3/8“ | 2 | – | 10-50 | 270 | 725 |
| 2400-UDS240 | 1/2“ | 5 | – | 35-175 | 560 | 1400 |
| 2400-UDS350 | 1/2“ | 10 | – | 50-250 | 560 | 1400 |
| 2400-UDS480 | 3/4“ | 10 | – | 70-350 | 675 | 3200 |
| 2400-UDS800 | 3/4“ | 20 | – | 120-600 | 1180 | 4500 |
| 2400-UDS1400 | 1‘‘ | 25 | – | 200-1000 | 1970 | 9000 |
| 2400-UDS2800 | 1‘‘ | 50 | – | 400-2000 | 3200 | 21000 |
| SKU | Add | Torque range (approx.) | Square drive |
|---|---|---|---|
| 2400-UDS3 | 0,7-3,5 Nm | 1/4' | |
| 2400-UDS9 | 1,8-9 Nm | 1/4' | |
| 2400-UDS18 | 4-18 Nm | 3/8' | |
| 2400-UDS30 | 6-30 Nm | 3/8' | |
| 2400-UDS70 | 14-70 Nm | 3/8' | |
| 2400-UDS240 | 50-250 Nm | 1/2" | |
| 2400-UDS350 | 70-350 Nm | 1/2" | |
| 2400-UDS480 | 100-480 Nm | 3/4“ | |
| 2400-UDS800 | 160-800 Nm | 3/4“ | |
| 2400-UDS1400 | 300-1400 Nm | 1“ | |
| 2400-UDS2800 | 600-2800 Nm | 1“ |
