Bearing puller 3 arms ELORA 177, Heavy-duty forged puller
SKU: 177-for extracting ball bearings, gear wheels, and pulleys with precision and strength. Featuring a heavy-duty forged body, zinc-plated arms, and a gunmetal-finish spindle, it delivers consistent pulling force. Available in multiple span widths from 20 mm to 500 mm, with depth up to 500 mm.
Price from: € 93.0 – € 510.0
(Price excluding tax, for reference only.)
ELORA 177 is a professional-grade bearing puller featuring a 3-arm forged pattern, purpose-built for reliable extraction of ball bearings, gear wheels, v-belt pulleys and similar press-fitted parts. Each unit is manufactured from high-grade tool steel to ensure mechanical integrity under high loads.
| Art. No | Model | Span Width |
Span Deep |

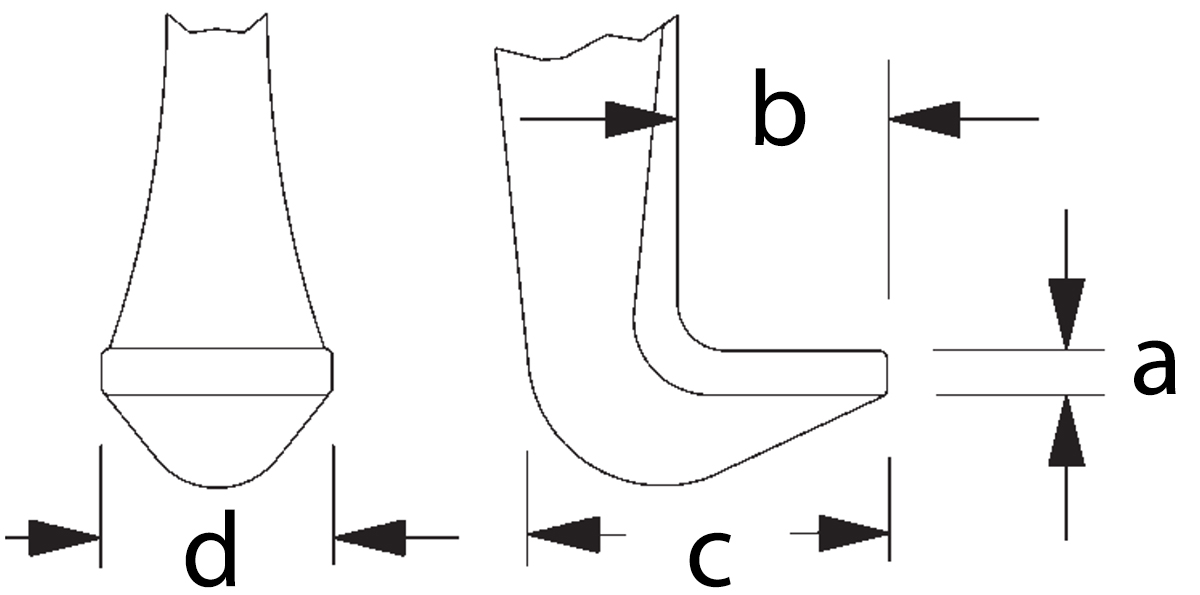

a | b | Weight |
|---|---|---|---|---|---|---|
| Code | mm | mm | mm | mm | g | |
| 0177001006100 | 177-100 | 20–120 | 120 | 3 | 10 | 610 |
| 0177002006100 | 177-200 | 20–165 | 145 | 4 | 13 | 1120 |
| 0177002506100 | 177-250 | 35–230 | 220 | 4 | 15 | 2820 |
| 0177003006100 | 177-300 | 50–300 | 270 | 4.5 | 28 | 5800 |
| 0177003506100 | 177-350 | 50–350 | 350 | 5 | 22 | 8300 |
| 0177004006100 | 177-400 | 50–400 | 400 | 6.5 | 27 | 8100 |
| 0177004506100 | 177-450 | 50–450 | 450 | 5 | 22 | 9400 |
| 0177005006100 | 177-500 | 50–500 | 500 | 6.5 | 26 | 10500 |
The arms provide symmetrical force distribution while the precision-machined zinc-plated finish enhances resistance against wear and corrosion. The spindle comes in a gunmetal-finish, reducing friction and increasing service life. Available in various span widths and depths, this tool accommodates a wide range of maintenance and disassembly operations in both workshop and industrial environments.

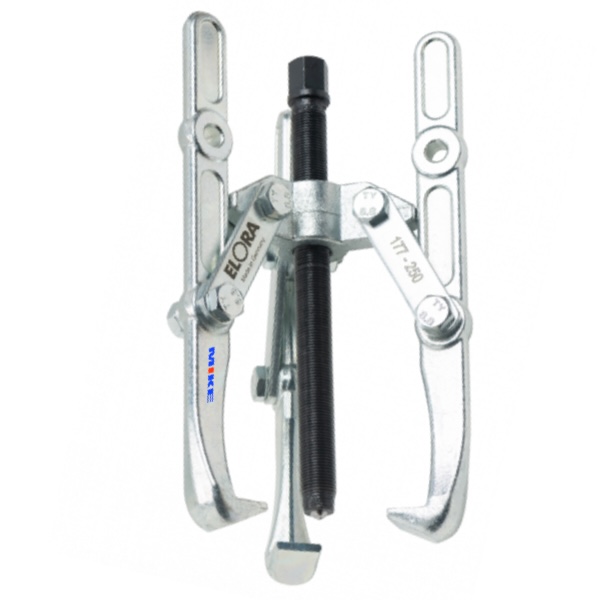

Heavy-duty 3-arm bearing puller ELORA 177
Technical features
- Forged 3-arm pattern for centered, uniform pulling force
- Suitable for bearings, gear wheels, pulleys, etc.
- Zinc-plated body with gunmetal-finish spindle
- Drop-forged arms made of high-grade tool steel
- Engineered for high load durability
Specifications and features:
- Pulling capacity: from 20 mm to 500 mm span width
- Arm depth: up to 500 mm depending on size
- Arm count: 3
- Surface: zinc-plated arms, gunmetal-finish spindle
- Material: high-grade tool steel
- Manufacturer: ELORA-Werkzeugfabrik GmbH, Germany
- Weight range: 610 g – 10,500 g depending on model
ELORA 177 pullers are commonly used in mechanical maintenance tasks across automotive repair, machine overhauls, agricultural equipment servicing, and gearbox or transmission disassembly. Their wide span and rugged construction allow them to handle diverse component sizes in both mobile fieldwork and fixed workshop setups.
| SKU | Price | Add | Span width | Span depth |
|---|---|---|---|---|
| 177-100 | € 93.0 | 20-120 mm | 120mm | |
| 177-200 | € 123.0 | 20-165 mm | 145mm | |
| 177-250 | € 210.0 | 35-230 mm | 220mm | |
| 177-300 | € 326.0 | 50-300 mm | 270mm | |
| 177-350 | € 380.0 | 50-350 mm | 350mm | |
| 177-400 | € 411.0 | 50-400 mm | 400mm | |
| 177-450 | € 481.0 | 50-450 mm | 450mm | |
| 177-500 | € 510.0 | 50-500 mm | 500mm |
