Battery hydraulic crimping tool for Cu-Al, RENNSTEIG APZ 80
Available on backorder
Delivers 80 kN force for copper and aluminium cables 10–400 mm². Two-stage hydraulics, 18 V Li-ion battery, 360° rotating head, quick-change dies, and automatic pressure control support fast, precise cable termination in industrial and field applications.
Price from: € 4,200.0
(Price excluding tax, for reference only.)
Available on backorder
RENNSTEIG APZ 80 delivers 80 kN hydraulic crimping force for copper and aluminium cables from 10 mm² to 400 mm². The 18 V / 5 Ah lithium-ion battery supports long operation with stable pressure. Each charge handles hundreds of crimps without loss of power.
The two-stage hydraulic system increases crimping speed and reduces effort. Operators control the pressure precisely during every cycle. A 360° rotating head allows access in tight switchgear or vertical busbars. The quick-open latch changes dies instantly and keeps work continuous.
A digital battery indicator shows remaining capacity. The 18–230 V charger restores full charge in less than one hour. The optional 120 V version supports North American voltage. The tool includes two batteries, charger, and a heavy-duty plastic case with compartments for die storage.

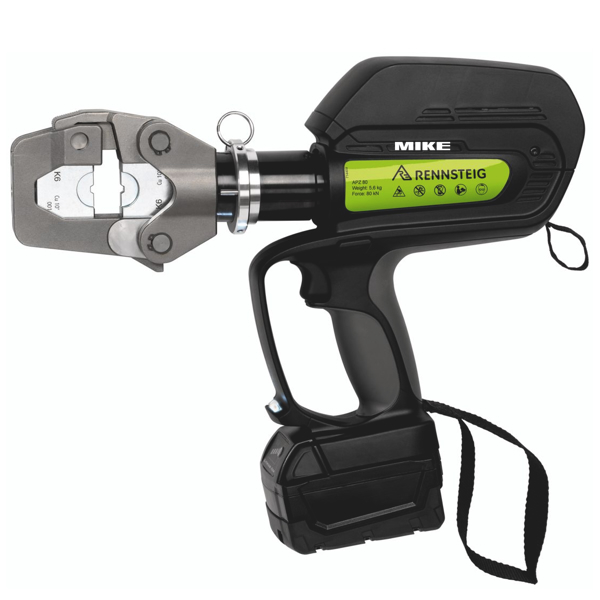

Battery-powered hydraulic crimp tool RENNSTEIG APZ 80
for copper and aluminium cables
A pressure-relief valve prevents overload. The manual release lever interrupts a cycle safely when needed. All Rennsteig die sets from 630 201 5 to 630 210 5 fit directly. Each die follows DIN 46235, DIN 46267, and DIN 46329 standards for copper and aluminium lugs.
- Crimping force : 80 kN
- Crimping range : 10 – 400 mm² (Cu) / 10 – 300 mm² (Al)
- Hydraulic system : two-stage, high-speed and pressure stage
- Head rotation : 360°, quick-open mechanism
- Power source : 18 V / 5 Ah Li-ion battery
- Charger : 18–230 V standard, 18–120 V optional
- Operation cycles : 20 000 crimps
- Weight : 5.6 kg (with battery)
- Dimensions : 384 × 331 × 75 mm
- Standards : DIN 46235 / DIN 46267 / DIN 46329
- Compatible dies : 630 201 5 – 630 210 5
- Warranty : 3 years or 20 000 cycles
- Origin : Made in Germany
APZ 80 supports field and workshop cable terminations up to 400 mm². The crimp head ensures consistent compression across all conductor types. The balanced weight and ergonomic handles improve handling during long installation work. Built in Germany by Rennsteig Werkzeuge GmbH, this tool combines power, mobility, and endurance for modern electrical engineering.
